You Have Been Diagnosed with CPVT: What is the Plan? Susan P. Etheridge, MD 1 What is CPVT? Potentially lethal genetic arrhythmia syndrome Rare (1:10,000*) but important cause of sudden death in young 15% autopsy (-) sudden death

slide-1
SLIDE 1

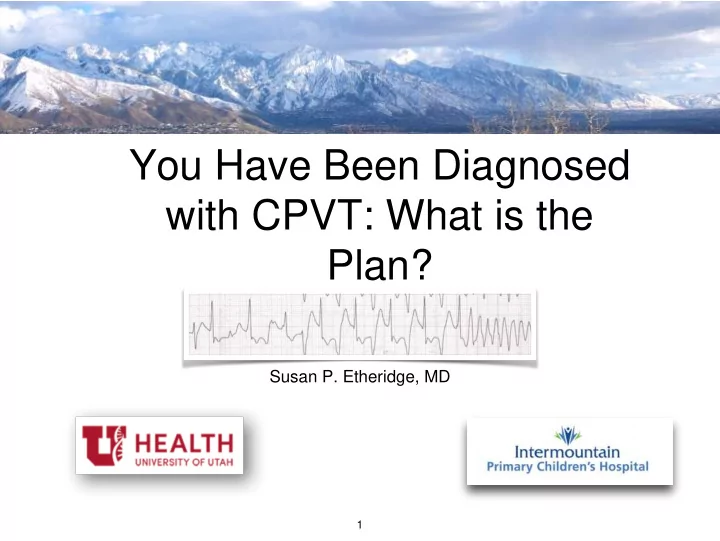

Susan P. Etheridge, MD

You Have Been Diagnosed with CPVT: What is the Plan?

1

slide-2
SLIDE 2

What is CPVT?

  • Potentially lethal genetic arrhythmia syndrome
  • Rare (1:10,000*) but important cause of sudden death in

young

  • 15% autopsy (-) sudden death < age 40
  • 1/3 sudden death 1st symptom
  • Untreated 30% mortality < age 40

2

*minimal evidence

slide-3
SLIDE 3

Bidirectional VT

Beat-to-beat 180 degree QRS rotation HIGHLY suggestive of CPVT Not always observed

3

Differential Diagnosis Digoxin toxicity Andersen Tawil Syndrome

slide-4
SLIDE 4

4

patients may tolerate BiVT well because of normal heart but… BiVT can quickly degenerate into VF

slide-5
SLIDE 5

Some have primary polymorphic VT

5

Some have supraventricular arrhythmias including atrial fibrillation, flutter, AET especially younger children

DiPino Heart Rhythm 2014

slide-6
SLIDE 6

Structurally normal heart and a normal ECG

6

slide-7
SLIDE 7

Bradycardia and U waves

7

Uncertain clinical relevance

possibly a function of altered calcium metabolism

slide-8
SLIDE 8

8

Roston Circulation Arrhythmia, EP 2015

slide-9
SLIDE 9

So, how can we identify these patients with a normal ECG and echo?

9

slide-10
SLIDE 10

10

  • High rate of life-threatening symptoms, treatment failure in

probands

  • Delay in diagnosis
  • Universal use of BB

10

226 patients Diagnosed 2 years after 1st symptom Patients exposed to RISK

slide-11
SLIDE 11

11

Sylvia Priori Invitae Lecture 2017

Early onset of symptoms > 80% with events by age 40 years More symptoms than BrS and LQTS

Early diagnosis important

slide-12
SLIDE 12

Exercise testing: The most important tool

12

slide-13
SLIDE 13

Exercise Testing

  • Heart rate reaches critical rate - arrhythmias occur
  • Atrial arrhythmias can occur and may precede

ventricular arrhythmias

  • Reproducible: can use to assess efficacy of

therapy

13

116 bpm 153 bpm 142 bpm

slide-14
SLIDE 14

14

What is the Plan?

Do an exercise test

slide-15
SLIDE 15

Holter/Event Monitor

  • Less sensitive
  • Patient too small or unable to perform exercise test
  • Trigger is something other than exercise

15

slide-16
SLIDE 16

Epinephrine Infusion

  • Useful if patient cannot perform an

exercise test (too young, still ill after an arrest…)

  • Generally lower peak heart rates than

exercise test

  • Lower sensitivity but high specificity
  • ? utility for therapy assessment

16

slide-17
SLIDE 17

17

L-type calcium channels release calcium Trigger calcium release from sarcoplasmic reticulum

slide-18
SLIDE 18

18

slide-19
SLIDE 19

19

Ryanodine Receptor (RyR2)

Ca2+ Ca2+ Ca2+

Large ion channel sits in membrane of sarcoplasmic reticulum Genes encode for proteins of channel 4 proteins come together to make this structure with a hole in the middle where the calcium goes through Mutation channel conformational changes in protein Channel unable to stay closed Calcium leaks out

slide-20
SLIDE 20

20

Ca2+

Na+ Na+ Na+ Sodium depolarizes the cell and creates DAD RyR2

Ca2+ Ca2+

Calcium release in diastole Na+ Na+ Na+ Important when considering therapy Cell tries to get rid of excess calcium Exchanges it for sodium + stress

slide-21
SLIDE 21

21

What is the Plan?

Understand the disease

21

slide-22
SLIDE 22

22

Average age at symptoms onset 10.5 years syncope 43% cardiac arrest 19% palpitations 5% asymptomatic 22% M=F heartbeat@cw.bc.ca

slide-23
SLIDE 23

CPVT is a Genetic Disease

  • Penetrance RyR2 CPVT > 80%
  • Genetic testing is recommended for

proband with clinical features of CPVT starting with RyR2 and CASQ

23

slide-24
SLIDE 24

CPVT: Genetic disease of dysregulation in intracellular calcium handling

24

55-65%

2-5% 1-2% Unknown 35- 45% CALM 1 and 2 encoding calmodulin rare

slide-25
SLIDE 25

Cascade Screening

  • Test early since disease onset young age

(mean age 10 years)

  • Genetic testing when “target” exists
  • Exercise testing but disease penetrance <

100% so a negative test does not completely rule out disease

  • Presymptomatic treatment important since

sudden death can be 1st symptom

25

slide-26
SLIDE 26

26

What is the Plan?

Test the family

26 26

slide-27
SLIDE 27

Challenges in CPVT

  • Hard to diagnose while patient is

alive, harder after death

  • First symptom may be sudden

death and there may be no further investigation of family or victim

  • About 1/3 are gene negative

27

slide-28
SLIDE 28

Beta Blockers

  • 1st line of therapy
  • Highest tolerable dose
  • Class I - symptomatic patients
  • Class IIa - Gene (+) phenotype (-) patients
  • Evaluate efficacy/compliance regularly by

exercise testing

28

slide-29
SLIDE 29

29 29 29

  • High rate of life-threatening symptoms, treatment failure

in probands

  • Delay in diagnosis
  • Universal use of BB

Mainstay of therapy BUT….

  • noncompliance
  • intolerance
  • subtherapeutic dosing
slide-30
SLIDE 30

30

Cardiac Event Rates Fatal or Near Fatal Event Rates

  • 81 patients on BB
  • 62 (77%) no events
  • 8-year cardiac (27%) and fatal or near-fatal (11%) event rates on BB
  • Event rate not sufficiently low
  • Some events associated noncompliance
  • BB other than nadolol and younger age at diagnosis independent predictors for events
slide-31
SLIDE 31

31

Not all BB are equal Nadolol superior

Heart Rhythm 2016

  • lower maximal heart rate than B1 selective
  • more pronounced chronotropic effect
  • once daily dosing, better compliance
slide-32
SLIDE 32

32

What is the Plan?

Treat with beta blockers

32 32

preferably nadolol

slide-33
SLIDE 33
  • Events despite BB
  • Fail to sufficiently suppress arrhythmias on exercise

testing

  • Noncompliance and intolerance

33

slide-34
SLIDE 34

34

Watanabe Nat Med. 2009, Liu Circ Res. 2011, van der Werf J Am Coll Cardiol. 2011, Hayashi Circulation. 2009

  • Ic antiarrhythmic
  • Sodium channel blocking agent
  • Approved for children with life-threatening arrhythmias
  • Dose response effect
  • Minimal side-effects
  • Fail to sufficiently suppress arrhythmias on exercise testing
  • Noncompliance and intolerance
slide-35
SLIDE 35
  • Decrease arrhythmias in CASQ2 knockout mouse
  • Effective in RyR2, CASQ2 and gene (-) CPVT
  • Monotherapy in patients intolerance of BB
  • Suppresses DADs
  • Mechanism
  • Na-channel blocking agent
  • ?direct effect on RyR2

35

Watanabe Nat Med 2013, Padfield Heart Rhythm 2016

slide-36
SLIDE 36

36

Single-blind, multicenter, placebo controlled, clinical crossover study Placebo vs Flecainide + Maximally-tolerated BB

slide-37
SLIDE 37

37

Change in arrhythmia score with flecainide

Flecainide added to β-blocker - superior to maximally tolerated β-blocker alone in reducing exercise-induced ventricular arrhythmias in patients with CPVT

slide-38
SLIDE 38

Left Cardiac Sympathetic Denervation

  • Surgical ablation of the lower 2/3 of

stellate ganglion and thoracic ganglia T2-T4 (complete)

  • Interrupt major source of

epinephrine release in the heart

  • Partial LSCD ineffective

38

slide-39
SLIDE 39

39

  • 63 patients LCSD as secondary (n=54) or primary (n=9) prevention
  • LCSD
  • Decreased % cardiac events despite optimal medical therapy from 100% to 32%

(P<0.001)

  • Decreased rate of shocks by 93% (3.6 to 0.6 shocks person/year, P<0.001)
  • Incomplete LCSD - more events compared to complete (71% vs 17%, P<0.01)
  • Circulation. 2015;131:2185-2193.

Event-free survival before LCSD

Syncope despite optimal medical therapy LCSD could be considered next rather than an ICD

  • r as a complement to ICD in patients with recurrent shocks

LCSD is an effective antifibrillatory intervention in CPVT

1 year event-free survival 87% 2 year event-free survival 81% Event-free survival after LCSD

slide-40
SLIDE 40

40

What is the Plan?

Consider dual/triple therapy for severe disease

40 40

slide-41
SLIDE 41

Exercise testing in CPVT

  • Use exercise test to assess

adequacy of therapy

  • Delay in arrhythmia onset (at faster

heart rates)

  • Test for disease progression in

children with mild phenotype

41

slide-42
SLIDE 42

42

ICD

after cardiac arrest recurrent syncope, arrhythmias despite medic

slide-43
SLIDE 43

43

VF 33% polymorph VT 31% BiVT 4% atrial tach 16% noise 12% ectopy 4%

Circ Arrhythm Electrophysiol. 2013;6:579-587, Roses-Noguer Heart Rhythm 2014, Olde Nordkamp Heart Rhythm 2016

  • 54% appropriate shocks
  • 46% inappropriate shocks
  • 24% electrical storm
  • 36% induction of more malignant arrhythmias

ICD Problematic

Proarrhythmic CPVT patients are young and have a lifetime of exposure to ICD risks 85% CPVT patients with ICD related complications

“rhythms” associated with shocks

slide-44
SLIDE 44

44

What is the Plan?

Try to avoid an ICD

44 44

slide-45
SLIDE 45

45

Shared decision making Well-informed patient and family Maximally-treated patient AED

no time-dependent difference in outcome between athletes and non-athletes

slide-46
SLIDE 46

46

What is the Plan?

Find a balance between exercise and safety

46 46
