PL-LAB: Polish initiative to develop laboratory infrastructure for testing Future Internet solutions J. Sliwinski, J. Mongay Batalla (National Institute of Telecommunication) W.Burakowski, A.Beben, H.Tarasiuk (Warsaw University of Technology)

slide-1
SLIDE 1

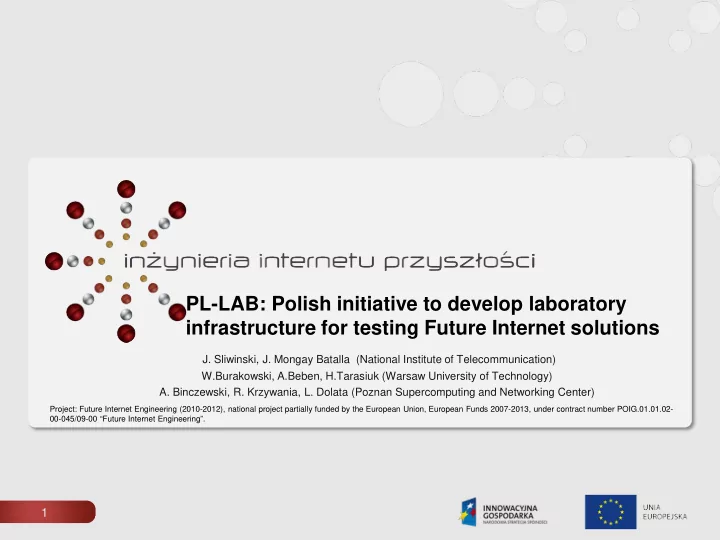

PL-LAB: Polish initiative to develop laboratory infrastructure for testing Future Internet solutions

  • J. Sliwinski, J. Mongay Batalla (National Institute of Telecommunication)

W.Burakowski, A.Beben, H.Tarasiuk (Warsaw University of Technology)

  • A. Binczewski, R. Krzywania, L. Dolata (Poznan Supercomputing and Networking Center)

1

Project: Future Internet Engineering (2010-2012), national project partially funded by the European Union, European Funds 2007-2013, under contract number POIG.01.01.02- 00-045/09-00 “Future Internet Engineering”.

slide-2
SLIDE 2

Plan

Future Internet Engineering Project Goal#1The IIP System

Architecture Parallel Internets

Goal#2: PL-LAB Conclusions

slide-3
SLIDE 3

Plan

Future Internet Engineering Project The IIP System

Architecture Parallel Internets

PL-LAB Conclusions

slide-4
SLIDE 4

Duration: 01.01.2010 – 31.12.2012 Budget: 40 mln PLN (about 10 M Euro) 19 teams from 9 leading research centers and academia (more than 120 researchers)

Warsaw University of Technology – coordinator, Warsaw National Institute of Telecommunication, Warsaw Wroclaw University of Technology, Wroclaw Poznan University of Technology, Poznan Institute of Bioorganic Chemistry PAS – Poznan Supercomputing and Networking Center, Poznan Institute of Theoretical and Applied Informatics of the Polish Academy of Sciences, Gliwice Silesian University of Technology, Gliwice Gdansk University of Technology, Gdansk AGH University of Technology, Cracow

Project „Future Internet Engineering”

PW IŁ PG PP PCSS PWr IITiS PŚl AGH

www.iip.net.pl

slide-5
SLIDE 5

Network infrastructure for Future Internet Applications for Future Internet National research network for experiments Dissemination Transformation from IPv4 to IPv6

Goals of the project

Goal #1: to specify architecture for Future Internet, prototype system and test Goal #2: to develop national labs for testing Future Internet proposals Goal #3: to develop exemplary applications for Future Internet Goal #4: to accelarate process of transformation from IPv4 to IPv6

slide-6
SLIDE 6

State of the art System specification Phase A Phase B Phase C Phase D Phase E Phase F

We are here

Implementation Integration Testing

Timetable

slide-7
SLIDE 7

Plan

Future Internet Engineering Project The IIP System

Architecture Parallel Internets

PL-LAB Conclusions

slide-8
SLIDE 8

The IIP System

abbreviation from Polish name of the project Inżynieria Internetu Przyszłości

Solution for Future Internet

Sandbox for post-IP networks Virtualized infrastructure for setting Parallel Internets

8

slide-9
SLIDE 9

High-level architectures for Future Internet

US: Internet 3.0: General Inter-Networking Architecture (GINA) Japan: Akari project: New Generation Networks (NWGN) EU FP7

4WARD Virtual Networks (VNet) Management and Service-Aware Networking Architectures for Future Internet (MANA) – inside Future Internet Assembly (FIA): Others…

These architectures are also deeply analysing by the important Future Internet forums, e.g. FIA, ITU-T, ETSI and IETF .

9

slide-10
SLIDE 10

10 Routers

Current Internet: TCP/IP Technology

Links

slide-11
SLIDE 11

11 Net A Net B Device enabling virtualization

System IIP: Network A

slide-12
SLIDE 12

12 Sieć A Sieć B Węzeł z możliwością wirtualizacji

System IIP : virtual networks A and B

Net A Net B Device enabling virtualization

slide-13
SLIDE 13

Parallel Internets

IP-based

IPv6 QoS (NGN, DiffServ)

Post-IP

Data Streams Switching (DSS) for handling mainly high speed CBR traffic Content Aware Network (CAN) for content delivery

13

slide-14
SLIDE 14

Architecture of the I I P System

14 Level 1 Physical infrastructure Physical infrastructure enabling for creating virtual nodes, links (NetFPGA, XEN, EZappliance) Level 3 Parallel Internets Level 4 Virtual networks

Users Applications/Services

IPv6 QoS DSS VN1 VN2 VN1 VN2 VN1 VN2 CAN

Virtual nodes: IPv6 QoS, CAN, DSS Virtual nodes: IPv6 QoS, CAN, DSS Virtual nodes: IPv6 QoS, CAN, DSS

Level 2 Virtualization

Virtual links: IPv6 QoS, CAN, DSS

Creation of virtual nodes and links for IPv6 QoS, CAN and DSS

Virtual links: IPv6 QoS, CAN, DSS

Management

slide-15
SLIDE 15

Parallel Internet # 1: IPv6 QoS

15

Architecture

DiffServ: end-to-end CoSs, QoS mechanisms NGN: Service stratum – new universal communication platform for each application type NGN: Transport stratum – admission control (RACF)

QoS guarantees

Strict

Virtual networks

per application type application scenario consist of many connections QoS request: planned or on demand

slide-16
SLIDE 16

Parallel Internet # 2: CAN (PI CAN)

PI Content Aw are Netw ork defines new network architecture which deals with all aspects of content delivery facilitating the publication, resolution and delivery of the content

New content resolution & management plane

content addressing based on flat content identifiers scalable content resolution algorithms content aware multi-path routing awareness about network conditions and server load

New content delivery plane:

stateless pathlet forwarding based on source routing at inter-domain level mechanisms supporting content delivery: in network caching, multicast, content

  • riented CoSs

New applications:

1 ) Hom eNetMedia

  • VoD,
  • on-line radio & video

2 ) Distributed Virtual Museum

  • 3D video
  • interactive 3D objects

3 ) eHealth Netw ork

  • medical records,
  • medical video & images

16

slide-17
SLIDE 17

Parallel Internet # 2: CAN (PI CAN)

Processes in PI CAN

  • Content resolution
  • Content delivery

Content Publisher

Store content

  • n content

server Register content in PI CAN

  • Content publication

User

Find content (ID)

CM interactions path enforcement

Content properties Get content Content transfer

17

slide-18
SLIDE 18

Parallel Internet # 3: Data Streams Switching

For emulation of „classical circuit switched network” For handling high speed CBR traffic (as produced by 3D) with more restrictive QoS requirements than available in IP QoS Based on REM multiplexing Uses concept of virtual paths and links We use non-IP data plane

18

WFQ – Weighted Fair Queueing, REM multiplexing

w1 w3 w4 w5

C – output link rate

The weight for a connection is assigned during set-up phase

C PBR PBR

N i i new

ρ ≤ +∑

= 1 1

w2

Handling streams in the nodes

Example with 5 CBR streams

slide-19
SLIDE 19

Applications

I Pv6 QoS I OT applications:

e-health: eDiab, Asthm a, Sm artFit Hom eNetEnergy: Sensors data stream analysis e-learning application HD video conference

CAN

HomeNetMedia: VoD, on-line radio & video Distributed Virtual Museum : 3D video, interactive 3D objects eHealth Network: medical records, medical video & images

DSS 3D video – live and VoD

19

slide-20
SLIDE 20

Plan

Future Internet Engineering Project The IIP System

Architecture Parallel Internets

PL-LAB Conclusions

20

slide-21
SLIDE 21

PL-LAB environment

Summary

8 laboratories 29% of the project’s budget 3 parts:

  • perational

access system research Concurrent experiments

21

slide-22
SLIDE 22

PL-LAB: operational part Each laboratory features an access switch

Interfaces to the PIONIER network (1 or 2 Gbps) Interfaces to the research devices (VLAN bridging)

Connectivity between laboratories

MPLS services inside PIONIER Controlled link sharing for concurrent experiments

22

slide-23
SLIDE 23

PL-LAB: access system

Web portal

User roles

Management module Monitoring module Security module VPN access to the management interfaces

23

slide-24
SLIDE 24

PL-LAB: research part

Juniper MX series routers enabling control plane customization Servers with focus on virtualization itself Programmable switching devices

NetFPGA cards (Virtex2/ Virtex5) EZappliance (EZchip) network procesor

Application specific devices:

4K/ 3D cameras , encoders, decoders and displays access networks (optical & wireless) sensor networks …

24

slide-25
SLIDE 25

Planned experiments in PL-LAB

First step:

IIP System - new network architecture, mechanism and protocols – thanks to programmable devices (NetFPGA, EZappliance) and virtualisation Migration from IPv4 to IPv6 New applications as 3D/ 4K video, eHealth, IoT, e-learning, etc. (developed in the project)

Next steps:

To extend number of users, e.g. PhD and MSc students New projects

25

slide-26
SLIDE 26

Plan

Future Internet Engineering Project The IIP System

Architecture Parallel Internets

PL-LAB Conclusions

26

slide-27
SLIDE 27

Conclusions

The IIP System meets the requirements for Future Internet

Co-existence of Parallel Internets differing in data and control planes The architecture is scalable – we may expect only a few post-IP solutions Open to implement new post-IP solutions Presented in FIA meeting (Ghent 2010, and recently in 5th Workshop on Future Architecture Cluster – Warsaw 2011)

Open virtual network infrastructure (virtual nodes and links) for new post IP solutions

The demonstration of the IIP system – FIA in Poznan (October 2011) and some elements in national telecommunication conference in Łódź (Poland) – September 2011

PL-LAB will help us with in experimentally driven research – we have presented the main concept in FIRE meeting (in Budapest 2011)

Possible connections with G-LAB, AKARI and GENI (we have a GENI terminal) 27
