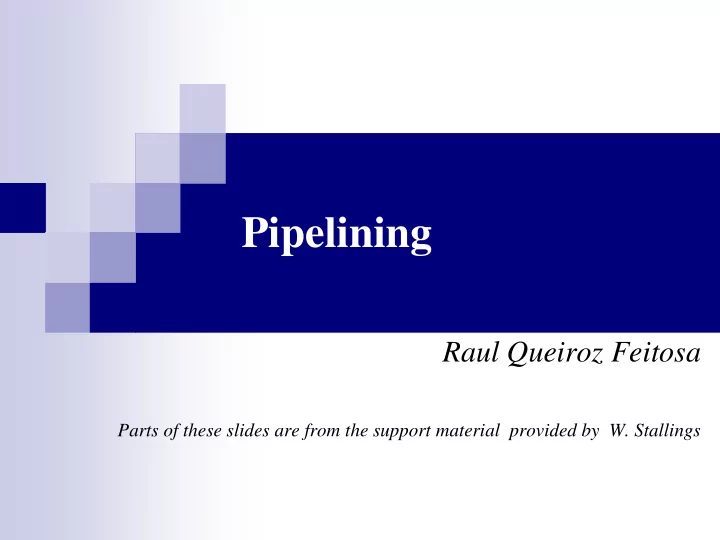

Pipelining Raul Queiroz Feitosa Parts of these slides are from the - - PowerPoint PPT Presentation

Pipelining

Raul Queiroz Feitosa

Parts of these slides are from the support material provided by W. Stallings

Objective

To present the Pipelining concept, its limitations and the techniques for performance optimization

Outline

 Instruction Cycle  Instruction Pipelining  Pipeline Performance  Pipeline Hazards

Resource Data Control

Instruction Cycle State Diagram

instruction address decoding interrrupt check instruction fetch instruction

• peration

decoding

• perand

address calculation data

• peration

result store interrrupt

• perand

fetch result address calculation indirection multiple

• perands

multiple results indirection no interrupt interrupt

Outline

 Instruction Cycle  Instruction Pipelining  Pipeline Performance  Pipeline Hazards

Resource Data Control

Instruction Pipelining

 Instruction cycle is split into sequential steps  A specific hardware unit (pipeline stage) is built to

perform each step

 Pipeline stages are arranged as a chain

pipeline stages 1 2 k

Instruction Pipelining - Example

FI – fetch instruction DI – decode instruction CO – calculate operand FO – fetch operand EI – execute instruction WO – write operand (result) FI DI CO FO EI WO

Instruction Pipeline Operation

FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO instruction 2 instruction 1 instruction 3 instruction 4 instruction 5 instruction 6 instruction 7 instruction 15 instruction 16 time 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Outline

 Instruction Cycle  Instruction Pipelining  Pipeline Performance  Pipeline Hazards

Resource Data Control

Pipeline Performance

Assuming

 k stages  τ= τ1 = τ2 = ... = τk (τi is the time delay of the i-th stage)

Tn,k time for a pipeline with k stages to execute n instructions

 Tn,1= n k τ

→ (conventional machine)

 Tn,k = k τ+ (n-1)τ = (n+k-1)τ → (pipeline)

The speedup For large n 1 ) 1 (       k n nk k n nk Sk  

k k n nk S

   

1 lim lim

! ! ! ! ! !

Pipeline Performance

Number of instructions 1 2 4 8 16 32 64 128 Number of instructions 12 10 8 6 4 2 Speedup k = 9 stages k = 6 stages k = 12 stages Number of instructions 0 5 10 15 20 Number of stages Speedup n = 20 instructions n = 10 instructions n = 30 instructions 14 12 10 8 6 4 2

Pipeline Performance

The optimal performance is never reached because:

 The execution time is different from stage to stage  There is still a time delay to latch the output of each stage  Pipeline hazards

k

      

2 1

  d

i i

    max

Outline

 Instruction Cycle  Instruction Pipelining  Pipeline Performance  Pipeline Hazards

Resource Data Control

Pipeline Hazards

 In some cases a portion of pipeline must

stall, due to the so called hazards

 Also called pipeline bubble  Types of hazards

Resource Data Control

Outline

 Instruction Cycle  Instruction Pipelining  Pipeline Performance  Pipeline Hazards

Resource Data Control

Resource Hazards

Also called structural hazards, occur when multiple instructions need the same resource, e.g., single port memory

instruction 2 instruction 1 instruction 3 instruction 4 FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO time 1 2 3 4 5 6 7 8 9 10 11 12 13 14 WO instruction 2 instruction 1 instruction 3 instruction 4 FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI FI CO FO DI EI WO time 1 2 3 4 5 6 7 8 9 10 11 12 13 14

idle idle

Outline

 Instruction Cycle  Instruction Pipelining  Pipeline Performance  Pipeline Hazards

Resource Data Control

 Conflict in access of an operand location  Two instructions to be executed in sequence  Both access a particular memory or register

• perand

 Example:

Data Hazards

SUB ECX,EAX ADD EAX,EBX instruction 3 instruction 4 FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI FO EI WO CO DI time 1 2 3 4 5 6 7 8 9 10 11 12 13 14 idle idle idle

Outline

 Instruction Cycle  Instruction Pipelining  Pipeline Performance  Pipeline Hazards

Resource Data Control

Control Hazards

JNZ ADDRESS ADD EAX,EBX instruction 3 instruction 4 FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO time 1 2 3 4 5 6 7 8 9 10 11 12 13 14 JNZ ADDRESS ADD EAX,EBX instruction 3 instruction 4 FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO time 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Also called branch hazard. What is the address of the instruction following a conditional branch from? Known only here no memory conflict!

idle

Dealing with Branches

Multiple Streams

 Two pipelines  prefetch each branch into a separate

pipeline (IBM 370/168 and IBM 3033). Always one pipeline produces no useful work.

Prefetch Branch Target

 Target of branch is prefetched in addition to instructions

following branch; keep target until branch is executed (IBM 360/91)

Loop buffer

 Very fast memory maintained by fetch stage of pipeline.

Check buffer before fetching from memory (CRAY-1)

Branch prediction Delayed branching

Control Hazards

Concept:

Instead of delaying the fetch of next instruction, it is

predicted

Results are stored in temporary registers If prediction correct, make results definitive If prediction incorrect, flush results, and restart

fetching from the right address

Branch Prediction

Static Methods:

Predict “never taken” or “always taken” Predicted by opcode

 There are two codes for each branch instruction → 1 bit

indicates “predict taken” or “predict not taken”

 Compiler analyses the code, guesses and generates the

appropriate branch code.

 Processor follows compiler suggestion  Implies in code incompatibility with previous processors

Branch Prediction

Branch Prediction

Dynamic Methods

Based on recent branch history

• ● ●
• ● ●
• ● ●

branch instruction address target address state Branch History Table not taken predict taken not taken predict taken not taken taken taken predict not taken predict not taken taken not taken taken Branch Prediction State Diagram

Delayed Branch

Concept

The branch takes effect only after the execution of the following instruction reduces the branch penalty

MOV EDX,ECX ADD EAX,[EBX] JZ LA instruction LA: instruction

...

MOV EDX,ECX ADD EAX,[EBX] JZ LA instruction LA: instruction conventional branch

... ...

not taken taken ADD EAX,[EBX] JZ LA MOV EDX,ECX instrução LA: instrução

... ...

ADD EAX,[EBX] JZ LA MOV EDX,ECX instruction LA: instruction

...

always executed

delayed branch not taken taken

FO DI FI

Delayed Branch

Example: conventional branch Prediction wrong

ADD EAX,[EBX] MOV EDX,ECX JZ LA

instruction 1 FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI EI WO time FI DI FI FI CO FO DI EI WO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 instruction 2 instruction 3 instruction 4

branch penalty

FI FI

Delayed Branch

Example: delayed branch Prediction wrong

FI DI

ADD EAX,[EBX] MOV EDX,ECX JZ LA

instruction 1 FI CO FO DI EI WO FI CO FO DI EI WO FI CO FO DI FI DI EI WO time FI CO FO DI EI WO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 instruction 2 instruction 3 instruction 4

branch penalty

Exercises

PROGRAM 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Exercise 1: Assume the pipeline shown in slide 7 containing 6 stages. Complete the graphs below that represent the pipeline operation assuming a single port memory. Hint: take in consideration the memory accesses for instruction fetch, operand fetch and result write.

PROGRAM 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

INC EBX DEC [ESI*2+EBP] MOV CX,[ 4768]

Exercises

PROGRAM 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Exercise 2: Repeat the previous exercise assuming that there are separate Instruction and Data caches, so that accesses to instruction and operands may

• ccur simultaneously.

PROGRAM 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

INC EBX DEC [ESI*2+EBP] MOV CX,[ 4768]
