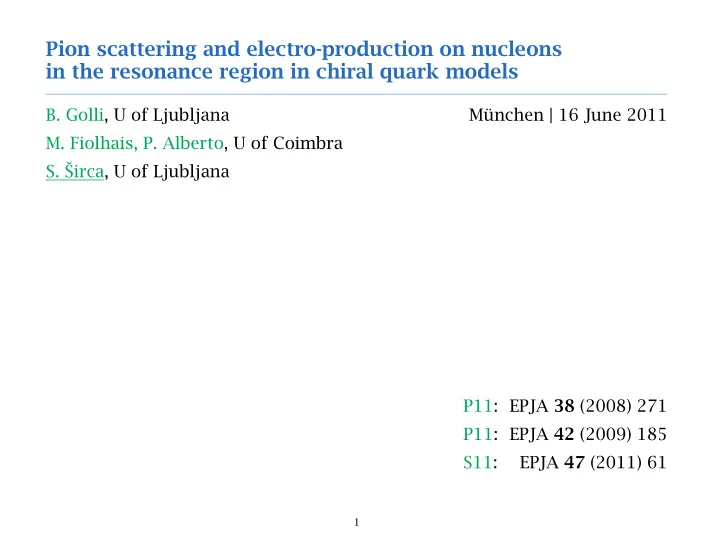

SLIDE 1 Pion scattering and electro-production on nucleons in the resonance region in chiral quark models
München | 16 June 2011
- M. Fiolhais, P. Alberto, U of Coimbra
- S. Širca, U of Ljubljana
P11: EPJA 38 (2008) 271 P11: EPJA 42 (2009) 185 S11: EPJA 47 (2011) 61
1
SLIDE 2 Motivation for study of P11 and S11 resonances
- Large width of **** P11(1440) “Roper”; existence of *** P11(1710) unclear;
difficult to identify directly (in cross-sections)
- Atypical behaviour of ImTπN in J =I =1/2 partial wave
- Level ordering (parity inversion) of P11(1440) wrt. S11(1535) on Lattice
- Many competing explanations of the Roper in models, e.g.
q3g hybrid ⊲ Li, Burkert PRD 46 (1992) 70 qqqqq admixtures ⊲ Li, Riska PRC 74 (2006) 015202 dynamical generation by N +σ ⊲ Krehl++ PRC 62 (2000) 025207 ⊲ Döring++ NPA 829 (2009) 170
- Two negative-parity resonances:
resonance M [MeV] Γ [MeV] decays S11(1535) 1535 150 πN 35–55 % , ηN 45–60 % 2πN < 10 % , (πR) S11(1650) 1655 165 πN 60–95 % , ηN 3–10 % , KΛ 3–11 % 2πN 10–20 % , ρ 4–12 % , ∆ 1–7 %
2
SLIDE 3 Present work
- A coupled-channels approach that includes many-body states
- f quarks and mesons in the scattering formalism
- Calculate scattering and electro-production amplitudes
within the same framework
- Investigate whether quark+meson description is sufficient
i.e. no exotic degrees of freedom involved
- Baryons treated as composite particles
→ coupling constants and cut-offs of form-factors computed from the underlying model, not fitted → smaller number of free parameters
- Physical resonances appear as linear combinations of bare resonances
- Bare quark-meson and quark-photon vertices are strongly modified
by meson loops and mixing of resonances
- K-matrix real & symmetric → S-matrix unitary
3
SLIDE 4 Reminder: ∆(1232) in quark models with pion cloud
Helicity and electro-production amplitudes for γ∗N → ∆(1232) → Nπ A1/2 E1+/M1+ S1+/M1+
- M1+ is (∼ 50 % pion cloud) + (∼ 50 % quarks)
- E1+ is (∼ 100 % pion cloud)
Golli++ PLB 373 (1996) 229
4
SLIDE 5 Coupled-channel K-matrix formalism
Our model
Golli, Širca / EPJA 38 (2008) 271 Golli, Širca, Fiolhais / EPJA 42 (2009) 185
The meson field linearly couples to the quark core; no meson self-interaction
H = Hquark +
lmt(k)almt(k) +
- V lmt(k)almt(k) + V lmt(k)† a†
lmt(k)
- V lmt(k) induces also radial excitations of the quark core,
e.g. 1s → 2s, 1s → 1p1/2, 1s → 1p3/2, . . . transitions
For example: V(k) from Cloudy Bag Model
V s→s
1mt(k) =
1 2f k2
ωs ωs − 1 j1(kRbag) kRbag
3
σ i
mτi t
(p−wave pions) V s→2s
1mt (k) =
1 2f k2
(ω2s − 1)(ωs − 1) j1(kRbag) kRbag
3
σ i
mτi t
(p−wave) V
s→p1/2 1=0,t (k) =
1 2f k2
(ωp1/2 + 1)(ωs − 1) j0(kRbag) kRbag
3
τi
t
(s−wave) V
s→p3/2 2mt
(k) = 1 2f k2
(ωp3/2 − 2)(ωs − 1) j2(kRbag) kRbag
3
Σi
2mτi t
(d−wave)
5
SLIDE 6 Constructing the K-matrix
Aim: include many-body states of quarks (and mesons) in the scattering formalism (Chew-Low type approach) Construct the K-matrix in spin-isospin (JI) basis: KJI
M′B′ MB = −π
kMW Ψ MB
JI (W)||VM′(k)||ΨB′
by using principal-value (PV) states |Ψ MB
JI (W) =
kMW
JI − P H − W [V(kM)|ΨB]JI
Ψ MB(W)|Ψ M′B′(W ′) = δ(W − W ′)δMB,M′B′(1 + K2)MB,MB
dressed states
6
SLIDE 7 Ansatz for the channel PV states
|Ψ MB
JI =
kMW [a†(kM)| ΨB]JI +
cMB
R |ΦR
+
dk χM′B′MB(k, kM) ωk + EB′(k) − W [a†(k)| ΨB′]JI
Above the meson-baryon (MB) threshold:
KM′B′ MB(k, kM) = π
kMW
kM′W χM′B′ MB(k, kM) 2π decay through intermediate hadrons (∆(1232), N(1440); σ, ρ, . . .), e.g.
πN → B∗ → π∆ → ππN , πN → B∗ → σN → (2π)N Solve Lippmann-Schwinger eqs for χ; the solution has the form
χM′B′MB(k, kM) = −
cMB
R V M′ B′R(k) + DM′B′MB(k, kM)
free meson (defines the channel) bare (genuine) baryons (3q) meson “clouds” with amplitudes χ dressed background vertex part
7
SLIDE 8 Solving the coupled equations
The dressed vertices satisfy:
V M
BR(k) = V M BR(k) +
- M′B′
- dk′ KMB M′B′(k, k′) V M′
B′R(k′)
ω′
k + EB′(k′) − W
rMBR = V M
BR(k)
V M
BR(k)
Similarly, for the background part of the amplitude:
DM′B′ MB(k, kM) = KM′B′ MB(k, kM) +
- M′′B′′
- dk′ KM′B′ M′′B′′(k, k′)DM′′B′′ MB(k′, kM)
ω′
k + EB′′(k′) − W
The coefficients cMB
R′ of the quasi-bound states satisfy a set of equations:
ARR′(W) cMB
R′ (W) = V M BR(kM)
ARR′ = (W − M0
R)δRR′ +
B′R(k) V M′ B′R′(k)
ωk + EB′(k) − W
8
SLIDE 9 Calculating the K-matrix
To solve the set of equations, diagonalize A to obtain U, along with the poles of the K- matrix, and wave-function normalization Z: UAUT = ZR(W)(W − MR) ZR′(W)(W − MR′) ZR′′(W)(W − MR′′)
As a consequence, ΦR mix:
| ΦR =
URR′|ΦR
1
URR′VBR′
Solution for the K-matrix:
KMB,M′B′ = π
kMW
kM′W
R
BR
V M′
B′R
(MR − W) + DMB,M′B′ resonant background
Solution for the T matrix:
TMB,M′B′ = KMB,M′B′ + i
TMB,M′′B′′KM′′B′′,M′B′
9
SLIDE 10 Pion electro-production: including the γN channel
Only the strong TMB,M′B′ appears on the RHS:
TMB,γN = KMB,γN + i
TMB,M′B′KM′B′,γN KM′B′,γN = −π
kγW
JI
- Vγ
- ΨN
- Choosing a resonance, R = N∗, the principal-value state can be split into
the resonant and background parts. Then MMB γN =
γ N
ωMEB 1 πVBN∗
helicity amplitude
N∗ (W)|˜
Vγ|ΨN TMB MB
MB γN
+ M
(bkg) MB γN
The resonant state takes the form: |Ψ (res)
N∗ (W) =
1
| ΦN∗ −
dk
BN∗(k)
ωk + EB − W [a†(k)|ΨB]JI
bare quark contrib meson cloud contrib
10
SLIDE 11 Underlying quark model
Cloudy Bag Model extended to pseudo-scalar SU(3) octet L(quark−meson)
CBM
= − i 2f qγ5λaqφaδ
a = 1, 2, . . . , 8 Parameters: Rbag = 0.83 fm f π = 76 MeV f K = 1.2 f π f η = f π
1.2 f π Similar results for 0.75 fm < Rbag < 1.0 fm Free parameters: bare masses of the resonant states
11
SLIDE 12
Pion scattering in P11 partial wave πN → MB
Channels: πN, π∆, σN, πR (preliminary: ηN, KΛ)
Parameters of the σN-channel: gσNR = 1 , mσ = 450 MeV , Γσ = 550 MeV
Thin lines: only N(1440) included ((1s)2(2s)1) Thick lines: N(1710) added ((1s)1(2p)2) with gπNN(1710) = 0 gσNN(1710) ≈ gσNN(1440)
12
SLIDE 13
Pion scattering in S11 partial wave πN → MB
Allow single-quark excitations (1s → 1p1/2 and 1s → 1p3/2)
Φ(1535) = −sin ϑs|481/2 + cos ϑs|281/2 Φ(1650) = cos ϑs|481/2 + sin ϑs|281/2 ϑs is a free parameter (≈ −30◦) Myhrer, Wroldsen / Z. Phys. C 25 (1984) 281
13
SLIDE 14
Pion scattering in S11 partial wave
Inelastic Channels
S11 contribution dominates P11, P13 negligible P11, P13 contributions sizeable not yet included in our calculation PWA results on S11 : P11 : P13 uncertain
14
SLIDE 15
Helicity amplitudes for γp → N(1440)
[10−3 GeV−1/2]
15
SLIDE 16
P11 transverse photo-production amplitudes γN → Nπ0
[10−3/mπ] [10−3/mπ]
16
SLIDE 17
Helicity amplitudes γp → S11(1535), S11(1650) A1/2(Q2)
[10−3 GeV−1/2]
S1/2(Q2)
[10−3 GeV−1/2]
17
SLIDE 18
S11 transverse amplitudes γp → pπ0
[10−3/mπ] [10−3/mπ]
18
SLIDE 19
Eta, kaon photoproduction
work in progress
19
SLIDE 20 Summary
- Using a single set of parameters we reproduce the main features of pion-
and photon-induced production of π, η, and K mesons in P11 and S11 partial waves.
- Importance of the meson cloud:
– it enhances the bare baryon-meson couplings; – it improves the behaviour of the helicity amplitudes at low Q2.
- Enhancement of couplings stronger for P11 and P33 than in the case of
S11 resonances which are dominated by quark-core contributions.
20
