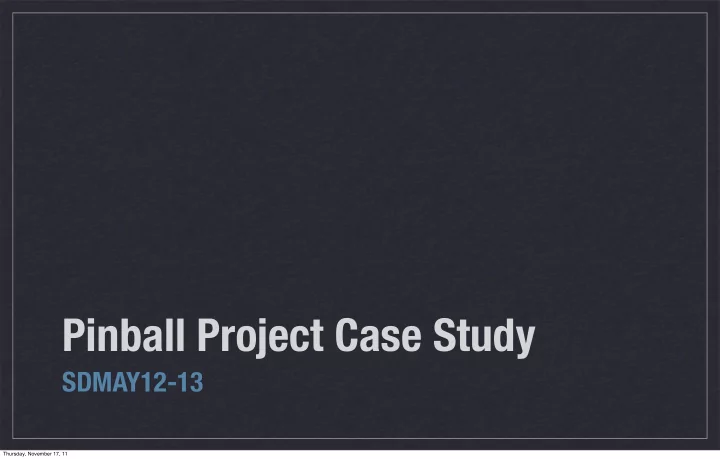

SLIDE 1

Pinball Project Case Study

SDMAY12-13

Thursday, November 17, 11

SLIDE 2

Dr. Who

http://www.hyperspin-fe.com/forum/showthread.php?t=8239

Thursday, November 17, 11

SLIDE 3

Dr. Who Widebody Clone

Cabinet dimensions copied from a Williams Electronics Twilight Zone machine

Thursday, November 17, 11

SLIDE 4

Dr. Who Brief System Specs

Screens Used: 46" 16:9 lcd Samsung full hd 1080p screen 32" 16:9 lcd Sony hd ready 720p screen 17" 4:3 lcd Dell monitor dmd-screen

Thursday, November 17, 11

SLIDE 5

DR. WHO WIDEBODY CLONE

SCREEN CONFIGURATION

Thursday, November 17, 11

SLIDE 6

Dr. Who Brief System Specs

Windows XP , SP3 Quad Core, 3GHz CPU 4 GB RAM 64GB SSD, read: 230MB/s - write: 135MB/s NVidia GTX250, 1GB RAM, for playfield and dmd NVidia 9600GT, 512MB RAM, for backbox and backglass

Thursday, November 17, 11

SLIDE 7

Dr. Who Brief System Specs

2 Industry Relays for flipper force-feedback 2 mercury switches for nudge left/right IPac 3x 220mm Arctic Silent Fans for ventilation Decals reproduced with Illustrator and Photoshop, printed at a local sign company

Thursday, November 17, 11

SLIDE 8

DR. WHO WIDEBODY CLONE

FINAL PRODUCT

Thursday, November 17, 11

SLIDE 9

DR. WHO WIDEBODY CLONE

FINAL PRODUCT

http://www.youtube.com/watch?v=zRoYsv0qYmM

Thursday, November 17, 11

SLIDE 10

DR. WHO WIDEBODY CLONE

FINAL PRODUCT

http://www.youtube.com/watch?v=zRoYsv0qYmM

Thursday, November 17, 11

SLIDE 11

Features of Note:

DMD screen is a 17” monitor recessed into the bottom of the backglass.

Thursday, November 17, 11

SLIDE 12

Features of Note:

Screens were removed from casing for better fit.

Thursday, November 17, 11

SLIDE 13

Other Notables

Both a 46” and 32” television used Quad-core CPU on Windows XP Video Cards used total ~$375 to ~$400 together Experience would suggest that 600W PSU not recommended for Video configuration IPac Used

Thursday, November 17, 11

SLIDE 14

http://www.hyperspin-fe.com/forum/showthread.php?t=10766

TRON

Thursday, November 17, 11

SLIDE 15

TRON Pinball 2000 Clone

PLEASE NOTE: COMPUTER SPECS WERE NOT SPECIFIED FOR THIS PROJECT

Thursday, November 17, 11

SLIDE 16

TRON PINBALL 2000 CLONE

BUILD PHOTOS

Thursday, November 17, 11

SLIDE 17

TRON Force Feedback

800 RPM Shaker motors for force feedback 8 installed total: 3 pop bumpers 2 flippers 2 slingshots 1 knocker Adjusted with a motor speed controller

Thursday, November 17, 11

SLIDE 18

TRON PINBALL 2000 CLONE

FINAL PRODUCT

Thursday, November 17, 11

SLIDE 19

TRON PINBALL 2000 CLONE

FINAL PRODUCT

http://s913.photobucket.com/albums/a...t=MOV02056.mp4

Thursday, November 17, 11

SLIDE 20

TRON PINBALL 2000 CLONE

FINAL PRODUCT

http://s913.photobucket.com/albums/a...t=MOV02056.mp4

Thursday, November 17, 11

SLIDE 21

Features of Note:

Case design is much more complex.

Thursday, November 17, 11

SLIDE 22

Features of Note:

DMD is reflected of the playfield glass. This requires special mirrored glass.

Thursday, November 17, 11

SLIDE 23

Features of Note:

Relay board for force feedback in this implementation expected a common ground and +5V trigger But the LEDWIZ used a common +5V and ground as the trigger. Should consider this when using LEDWIZ

Thursday, November 17, 11

SLIDE 24

Wildfire Pinball

http://www.vpforums.org/index.php?s=d1ea30ae8fdba54f12df57965e2591c2&showtopic=14734

Thursday, November 17, 11

SLIDE 25

Wildfire Pinball

Not copied from any existing table design Built to fit displays rather than finding displays to fit Website did not have full case dimensions available

Thursday, November 17, 11

SLIDE 26

Brief System Specs

Philips 46" LCD connected via HDMI Sharp Aquios 46" LCD connected via HDMI LEDWIZ and IPac Intel i5 3.3GHz, with Intel Integrated Video Windows 7 Professional x64 8GB RAM ATI HD 6850 PCIe Video Card 40GB SSD 4x 140mm Cooling Fans

Thursday, November 17, 11

SLIDE 27

WILDFIRE PINBALL

BUILD PHOTOS

Thursday, November 17, 11

SLIDE 28

WILDFIRE PINBALL

BUILD PHOTOS

Thursday, November 17, 11

SLIDE 29

WILDFIRE PINBALL

FINAL PRODUCT

Thursday, November 17, 11

SLIDE 30

WILDFIRE PINBALL

FINAL PRODUCT

Thursday, November 17, 11

SLIDE 31

Features of Note:

Dual 46” Displays May be prohibitively expensive

Thursday, November 17, 11

SLIDE 32

Features of Note:

PC controls from a side panel

Thursday, November 17, 11

SLIDE 33

Features of Note:

LEDWIZ needed relays to interact with force feedback solenoids

Thursday, November 17, 11

SLIDE 34

Features of Note:

Builder discovered that solenoids get very hot when left engaged for longer than 10 seconds - a reasonable activation time for flippers. Also found that solenoids were also sometimes left engaged when exiting a table in software.

Thursday, November 17, 11

SLIDE 35

Final Remark:

The Wildfire project page had numerous solutions for feedback motors, LEDWIZ timings, and wiring.
