Physical Aspects of IMRT Samuel Tung, M.S. Sr. Medical Physicist UT MD Anderson Cancer Center 3D/IMRT Comparison IMRT Techniques Conventional Beam modifiers (wedge, partial blocks) Compensators LINAC, Proton therapy

slide-1
SLIDE 1

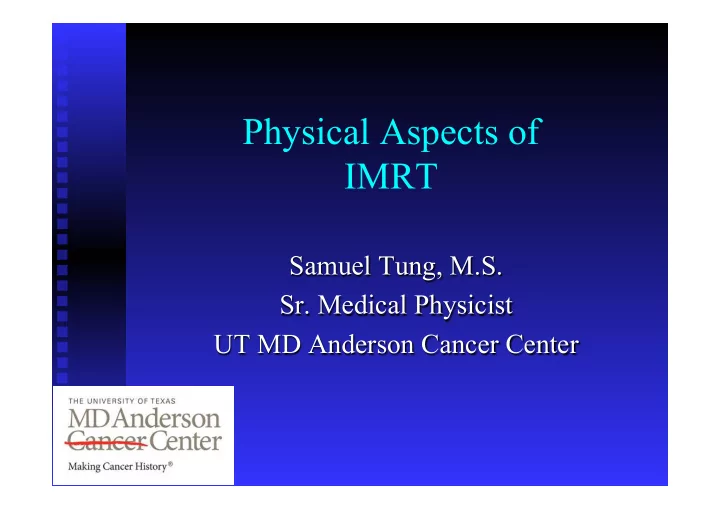

Physical Aspects of IMRT

Samuel Tung, M.S.

  • Sr. Medical Physicist

UT MD Anderson Cancer Center

slide-2
SLIDE 2

3D/IMRT Comparison

slide-3
SLIDE 3

IMRT Techniques

  • Conventional – Beam modifiers (wedge,

partial blocks)

  • Compensators – LINAC, Proton therapy
  • Computerized MLCs – LINAC
  • Binary MLCs – PEACOCK, Tomotherapy
  • Robot-Controlled – Cyberknife
  • Scanning Beams – Proton therapy (IMPT)
slide-4
SLIDE 4

IMRT Delivery

  • Step and Shoot
  • Sliding Window
  • VMAT
slide-5
SLIDE 5

IMRT Delivery: Step and Shoot

slide-6
SLIDE 6

IMRT Delivery: Sliding Window

slide-7
SLIDE 7

IMRT Delivery : VMAT

slide-8
SLIDE 8

Motivation?

slide-9
SLIDE 9
slide-10
SLIDE 10

Benefits of Using IMRT

  • Dose reductions to normal tissue
  • Dose Escalation to target structures
  • Improves target coverage of complex tumor

shapes, e.g. tumor wraps around brainstem or spinal cord

  • Ability to delivers different doses to different

targets

  • Ideal for reducing doses to critical structures
slide-11
SLIDE 11
slide-12
SLIDE 12

IMRT Inverse Planning

  • Optimization Process for Fixed Field IMRT
  • Beamlet Based Optimization
  • Direct Aperture Optimization (DAO)
slide-13
SLIDE 13

The Beamlet Model

  • Before an IMRT
  • ptimization, each

beam is defined and divided into a number

  • f smaller beamlets

(pencil beams), usually 5 mm x 5 mm

slide-14
SLIDE 14

The Beamlet Model

  • The corresponding dose

distributions from all beamlets are computed and added together.

slide-15
SLIDE 15

The Beamlet Model

  • Beamlet weights are
  • ptimized to produce

an optimized fluence map or matrix for each beam direction.

slide-16
SLIDE 16

The Beamlet Two-Steps Model

  • Leaf Sequencing: From “ideal” fluence, the

“deliverable” MLC patterns are generated map base on machine characteristics.

slide-17
SLIDE 17

The Beamlet Two-Steps Model

  • The final “full” dose is calculated from all

small beam segments (control points)

  • Requires a large number of segments in
  • rder to simulate the “ideal” map
  • Small field segments cause significant

degradation in the plan quality

  • What you see from “ideal” fluence is

“NOT” what you get from small fields

slide-18
SLIDE 18

NOMOS CORVUS Plan (2002)

slide-19
SLIDE 19

NOMOS CORVUS Plan (2002)

slide-20
SLIDE 20

IMRT Dosimetry - Small Fields

?

slide-21
SLIDE 21

Dose Modeling Problem

slide-22
SLIDE 22

Dose Modeling Problem

slide-23
SLIDE 23

Dose Modeling Problem

slide-24
SLIDE 24

IMRT Planning Process

slide-25
SLIDE 25

The Beamlet Two-Steps Model

  • 1st Generation IMRT was adopted

by nearly all TPS in1990:

  • Corvus (NOMOS) – Sliding Window
  • Pinnacle (ADAC) – Step and Shoot
  • Eclipse (Varian) – Sliding Window
  • Plato (Nucletron)
  • Xio (CMS)
slide-26
SLIDE 26

Direct Aperture Optimization (DAO)

slide-27
SLIDE 27

Direct Aperture Optimization (DAO)

  • Inverse planning technique where both

the beam shapes and the beam weights are optimized at the same time

  • All of the MLC delivery parameters are

included in the optimization (DMPO)

  • Number of beam segments and

minimum MU per segment can be also predefined

slide-28
SLIDE 28

DAO via Simulated Annealing

slide-29
SLIDE 29
slide-30
SLIDE 30

1 cm

slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38

DMPO Constraints

slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41

DMPO Summary

  • Plan Quality
  • Total cost function ↓ 50% => Better

normal tissue protection with more uniform dose to all target volumes

  • Treatment delivery
  • Total MU ↓ 40% => Less Tx time
  • Segments ↓ 50% => Less down time
slide-42
SLIDE 42

VMAT / IMAT

slide-43
SLIDE 43

IMAT / VMAT Optimization

  • IMAT treatment planning represents a

particular complex optimization problem. ü The size of the problem ü Dynamic motion ü Motion limitation ü The dose calculation time

slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46
slide-47
SLIDE 47
slide-48
SLIDE 48
slide-49
SLIDE 49
slide-50
SLIDE 50

N and n Optimization: An Intermediate Case

Comparison of Dose Conversion Iteration Case #6: 5235 Parameters

0.2 0.4 0.6 0.8 1 2 4 6 8 10 12 14 16 18 20 Dose Conversion Iteration Normalized Total O.V.

N = 5 N = 8 N = 10 N = 12 N = 15

MU as Function of Conversion Iterations Case # 6: 5235 Parameters

0.2 0.4 0.6 0.8 1 5 10 15 20 Dose Conversion Iteration Normalized MU N = 5 N = 8 N = 10 N = 12 N = 15

slide-51
SLIDE 51

HN cases
