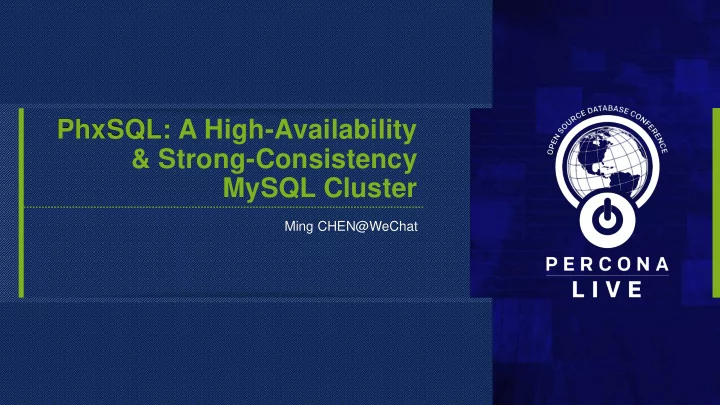

PhxSQL: A High-Availability & Strong-Consistency MySQL Cluster

Ming CHEN@WeChat

Why PhxSQL

Highly expected features for MySql cluster

3

Availability and consistency in MySQL cluster

• Master-slaves replication
• Replication solutions
• Fully synchronous
• Semi-synchronous
• Asynchronous
• Third-party aided failover
• Zookeeper/Admin/…

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

SVR C

MySQL (slave)

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

SVR B

MySQL (slave)

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

SVR A

MySQL (master)

pull pull client

4

Call for both high-availability and strong- consistency

• Critical Applications demand both high-availability and strong-consistency
• accounts/financial transactions/…
• Support for both high-availability and strong-consistency
• greatly simplifies system design
• makes correctness-reasoning easier

5

A new MySQL cluster supports the same high- availability and strong-consistency as Zookeeper does

PhxSQL

What is PhxSQL

High-availability & strong-consisteny MySQL cluster

7

Key PhxSQL features

• Support full compatibility with MySQL
• Support high availability and linearizable consistency
• Support deployment in wide-area network
• Support online reconfiguration of cluster membership

8

Support full compatibility with MySQL

• Transparent to MySQL clients
• Support full features of MySQL
• Even serializable level of transaction isolation
• Minimum intrusive change to MySQL source code

modify after_flush add before_recoverty

9

Support high availability

• Fully automatic failover within configurable seconds
• A cluster works well when more than half of cluster servers still function

10

Support linearizable consistency

• A cluster of PhxSQL seems to be a single MySQL server to MySQL clients

concurrently accessing it

• PhxSQL supports the same consistency level as strong as Zookeeper does!

11

Support online reconfiguration of cluster membership

• Add a new server, remove an old server, or replace an old server with a new one

in an atomic fashion while still serving read/write requests

• Be easier for maintenance and more friendly to clients

How PhxSQL Works

MySQL cluster powered by Paxos

13

Paxos maintains consistent states across servers by enforcing same operations on all servers when more than half of servers work

SVR A

Client R Client S Client T

int X=0; int Y=0; void Foo(int a, int b); bool Bar(int a, int b);

invoke: R1, T1, S1, R2, … Paxos

SVR B

int X=0; int Y=0; void Foo(int a, int b); bool Bar(int a, int b);

Paxos

SVR C

int X=0; int Y=0; void Foo(int a, int b); bool Bar(int a, int b);

Paxos

Foo(1, 2); Bar(3, 30) Bar(1, 10) Foo(3, 4)

1: R1: Foo(1, 2) 2: T1: Foo(3, 4) 3: S1: Bar(1, 10) 4: R2: Bar(3, 30) …

invoke: R1, T1, S1, R2, … invoke: R1, T1, S1, R2, …

God

14

PhxSQL enforces a simple but effective constraint by Paxos

• Constraint: two MySQL servers have SAME states if and only if they have

SAME binlog

• Enforcement
• PhxSQL maintains a GLOBAL consistent binlog by Paxos
• Every MySQL server aligns its LOCAL binlog to the GLOBAL one.

15

MySQL cluster

client

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

SVR B

MySQL (slave)

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

SVR A

MySQL (master)

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

SVR C

MySQL (slave)

pull pull

16

PhxSQL

client

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

Phx Plugin Phx Binlog … 3: z 2: y 1: x Paxos Phx Proxy

SVR B

Phx BinlogSvr MySql (slave)

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

Phx Plugin Phx Binlog … 3: z 2: y 1: x Paxos Phx Proxy

SVR A

Phx BinlogSvr MySql (master)

Binlog … 3: z 2: y 1: x Innodb

• |--|-
• |--|-

Phx Plugin Phx Binlog … 3: z 2: y 1: x Paxos Phx Proxy

SVR C

Phx BinlogSvr MySql (slave)

pull pull forward

• 1. Paxos detects failure and elects new master by leasing

and periodic heartbeat

• 2. Clients access master MySQL transparently via PhxProxy

who forwards requests to current master

• 3. MySql master appends local binlog to global consistent

PhxBinlog maintained by Paxos

• 4. MySql slaves pull binlog from global consistent

PhxBinlog

17

Paxos maintains consistent states in the cluster

PhxBinlogSvr A

PhxPlugin:Client R PhxPlugin:Client S PhxPlugin:Client T

master_ver master_id binlog_queue

C1: bool change_master(ver, new_master); C2: int app_binlog(binlog_id, binlog);

Paxos

PhxBinlogSvr B

Paxos

PhxBinlogSvr C

Paxos

C1(1, R); C2(“R_xxx”, “insert foo=2 into table_1”) C1(1, S) C1(1, T)

1: R1: C1(1, R) 2: T1: C1(1, T) 3: S1: C1(1, S) 4: R2: C2(…) …

SM SM

God

SM master_ver master_id binlog_queue

C1: bool change_master(ver, new_master); C2: int app_binlog(binlog_id,binlog);

master_ver master_id binlog_queue

C1: bool change_master(ver, new_master); C2: int app_binlog(binlog_id,binlog);

How to Use PhxSQL

Easy to integrate into existing system

19

Case 1: non-intrusive change to existing system

• Assume there some kinds of naming service that tells the current master

in existing system

• Zookeeper/DNS/configuration file/...
• Develop a new daemon program to learn the change of master in

PhxSQL cluster and update information in the naming service accordingly

• Safety: PhxSQL ensures consistency even the master information in naming service

is stale or MySQL clients connects to a slave

naming service master ip: 10.1.1.1 master 10.1.1.1 slave 10.1.1.3 slave 10.1.1.2

PhxSQL

client

daemon

• I. learn new master
• II. update
• 1. get ip of master
• 2. request

20

Case 2: minimal intrusive change to existing system

• Traditional invocation scenario

1. Read the IP of master from configuration file 2. Get MySQL handler by calling mysql_real_connect(MYSQL *mysql, const char * IP, …) with the IP 3. Invoke other MySQL client API with the handler

• PhxSQL invocation scenario

1. Read the IP list of PhxSQL cluster servers from configuration file 2. Get MySQL handler by calling PhxSQLClientBase::Connect() with the IP list and then PhxSQLClientBase::GetMySQLFD() 3. Invoke other MySQL client API with the handler

Performance

On par with MySQL semi-sync replication

22

Performance test settings: PhxSQL vs. MySQL Semi-sync

• 3 servers: Intel(R) Xeon(R) CPU E5-2420 @ 1.90GHz * 2, 32G memory, SSD

Raid10, 1000M NIC

• Network ping latency: master->slave: 3ms; client->master: 4ms
• Percona 5.6.31-77.0
• Master of MySQL semi-sync replication waits for only ONE ack
• Test tool and parameters: sysbench --oltp-tables-count=10 --oltp-table-

size=1000000 --num-threads=500 --max-requests=100000 --report-interval=1 -- max-time=200

23

QPS on par

5076 46334 25657 4055 47528 20391 insert.lua (100% write) select.lua (0% write) OLTP.lua (20% write)

200 co concu curre rent cl clien ent t thread ads

PhxSQL MySQL 8260 105928 46543 7072 121535 33229 insert.lua (100% write) select.lua (0% write) OLTP.lua (20% write)

500 co concu curre rent cl clien ent t thread ads

PhxSQL MySQL

24

Response time (ms) on par

39.34 4.21 140.16 49.27 4.1 176.39 insert.lua (100% write) select.lua (0% write) OLTP.lua (20% write)

200 concurrent client threads

PhxSQL MySQL 60.41 4.58 192.93 70.6 4.17 270.38 insert.lua (100% write) select.lua (0% write) OLTP.lua (20% write)

500 00 concurrent client threads

PhxSQL MySQL

25

Current progress

• Deployed in WeChat account system
• WeChat account: 889M monthly active users
• Support for Percona 5.7 in progress
• Open source: https://github.com/tencent-wechat/phxsql
