Penspective: a Perspective-Aware Game Map Editor with Natural - - PowerPoint PPT Presentation

Title Introduction Design System Prototype Conclusion Bibliography Penspective: a Perspective-Aware Game Map Editor with Natural Interaction Alexandre M. F. de Sousa, Anderson C. M. Tavares, Carlos H. Morimoto Department of Computer


slide-1
SLIDE 1

Title Introduction Design System Prototype Conclusion Bibliography

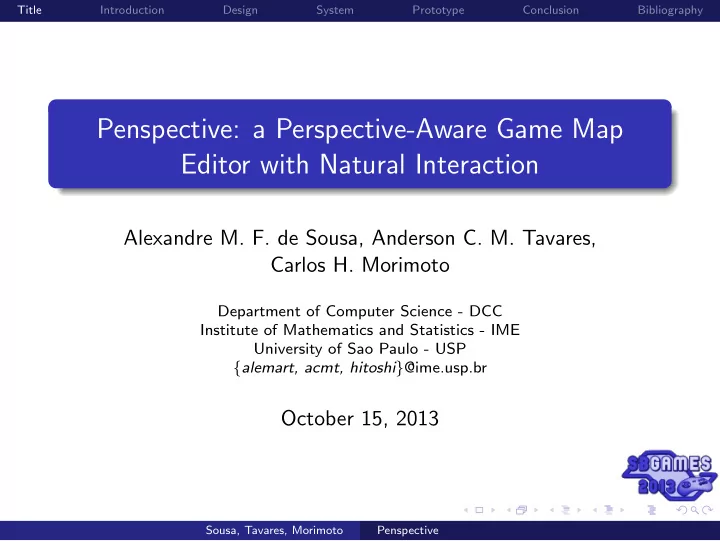

Penspective: a Perspective-Aware Game Map Editor with Natural Interaction

Alexandre M. F. de Sousa, Anderson C. M. Tavares, Carlos H. Morimoto

Department of Computer Science - DCC Institute of Mathematics and Statistics - IME University of Sao Paulo - USP {alemart, acmt, hitoshi}@ime.usp.br

October 15, 2013

Sousa, Tavares, Morimoto Penspective

slide-2
SLIDE 2

Title Introduction Design System Prototype Conclusion Bibliography

Introduction

Map editors; Learning curve (WIMP → hotkeys, cluttered menus);

pixel-hungry, indirection; mouse/keyboard → impose complex interactions.

Advances in Human-Computer Interaction (HCI); Post-WIMP interfaces [1];

new generation of UIs; gestures, speech...

Leverage users’ mundane, pre-existent knowledge.

reduce the gap: human goals/actions; communication in the non-digital realm.

Sousa, Tavares, Morimoto Penspective

slide-3
SLIDE 3

Title Introduction Design System Prototype Conclusion Bibliography

Introduction

Interaction: drawing sketches with pen and eraser;

versatile, widely used;

  • bvious metaphor.

Visualization: illusion of depth;

like magic paper.

Penspective:

Grid paper (little 3D blocks); Affordance of pen and eraser; 3D View without glasses. Figure: Pen and eraser.

Sousa, Tavares, Morimoto Penspective

slide-4
SLIDE 4

Title Introduction Design System Prototype Conclusion Bibliography

Design

(a) Drawing blocks. (b) Removing blocks. (c) Moving (selection phase). (d) Moving (dragging phase).

Sousa, Tavares, Morimoto Penspective

slide-5
SLIDE 5

Title Introduction Design System Prototype Conclusion Bibliography

Design

(e) Adjusting height (before). (f) Adjusting height (after).

Sousa, Tavares, Morimoto Penspective

slide-6
SLIDE 6

Title Introduction Design System Prototype Conclusion Bibliography

System

Multitouch Interaction

Kinect sensor (depth + color)

Detect touch events on ordinary surfaces [2]; Recognize the touching artifact [3].

(g) Detecting touch. (h) Color.

Sousa, Tavares, Morimoto Penspective

slide-7
SLIDE 7

Title Introduction Design System Prototype Conclusion Bibliography

System Description

Above-the-surface Interaction

Kinect sensor (depth + color); Grab a template (grayscale); Track its position: pt = argmin(x,y)costt(x, y) costt(x, y) =        α · (1 − R(x, y)) + if dt(x, y) ≤ 1 (1 − α) · dt(x, y) ∞

  • therwise

where:

α ∈ [0, 1], r are empirically defined; dt(x, y) = (x, y) − pt−1 / r; R(x, y) ∈ [0, 1] is a template matching function [4].

Depth sensor → 3D position.

Sousa, Tavares, Morimoto Penspective

slide-8
SLIDE 8

Title Introduction Design System Prototype Conclusion Bibliography

System Description

Skeleton Tracking/Off-Axis Perspective

another Kinect camera tracks the user in physical space; calibration phase → position of the user relative to the screen;

  • ff-axis perspective projection [5];

illusion of depth. Figure: calibration phase.

Sousa, Tavares, Morimoto Penspective

slide-9
SLIDE 9

Title Introduction Design System Prototype Conclusion Bibliography

System Description

Setup: 2 Kinects, 1 LCD screen, pen, eraser. Components exchange data using VRPN [6];

Figure: System components.

Sousa, Tavares, Morimoto Penspective

slide-10
SLIDE 10

Title Introduction Design System Prototype Conclusion Bibliography

Prototype

(a) Prototype (b) Changing the viewpoint (c) Erasing (d) Drawing

Sousa, Tavares, Morimoto Penspective

slide-11
SLIDE 11

Title Introduction Design System Prototype Conclusion Bibliography

Prototype

(e) Height adjustment (f) Height adjustment (g) Height adjustment (h) moving a block

Sousa, Tavares, Morimoto Penspective

slide-12
SLIDE 12

Title Introduction Design System Prototype Conclusion Bibliography

Conclusion

More direct ways of building maps; A new form of interaction: drawing on grid paper; Working prototype to show the viability of the concept.

Figure: Penspective.

Sousa, Tavares, Morimoto Penspective

slide-13
SLIDE 13

Title Introduction Design System Prototype Conclusion Bibliography

Bibliography I

  • A. van Dam, “Post-WIMP user interfaces,” Communications
  • f the ACM, vol. 40, no. 2, pp. 63–67, Feb. 1997.
  • A. D. Wilson, “Using a depth camera as a touch sensor,” in

ACM International Conference on Interactive Tabletops and Surfaces - ITS ’10, ACM. New York, New York, USA: ACM Press, 2010, p. 69. J.-Y. Lee and S. I. Yoo, “An elliptical boundary model for skin color detection,” in Proc. of the 2002 International Conference

  • n Imaging Science, Systems, and Technology.

Citeseer, 2002.

  • A. Kaehler and G. Bradski, Learning OpenCV: Computer

Vision with the OpenCV Library, 1st ed. O’Reilly Media, 2008.

Sousa, Tavares, Morimoto Penspective

slide-14
SLIDE 14

Title Introduction Design System Prototype Conclusion Bibliography

Bibliography II

  • R. Kooima, “Generalized Perspective Projection,” 2013.

[Online]. Available: http: //csc.lsu.edu/∼kooima/articles/genperspective/index.html

  • R. M. Taylor, T. C. Hudson, A. Seeger, H. Weber, J. Juliano,

and A. T. Helser, “VRPN: a device-independent, network-transparent VR peripheral system,” in Proceedings of the ACM symposium on Virtual reality software and technology - VRST ’01. New York, New York, USA: ACM Press, 2001, p. 55.

Sousa, Tavares, Morimoto Penspective
