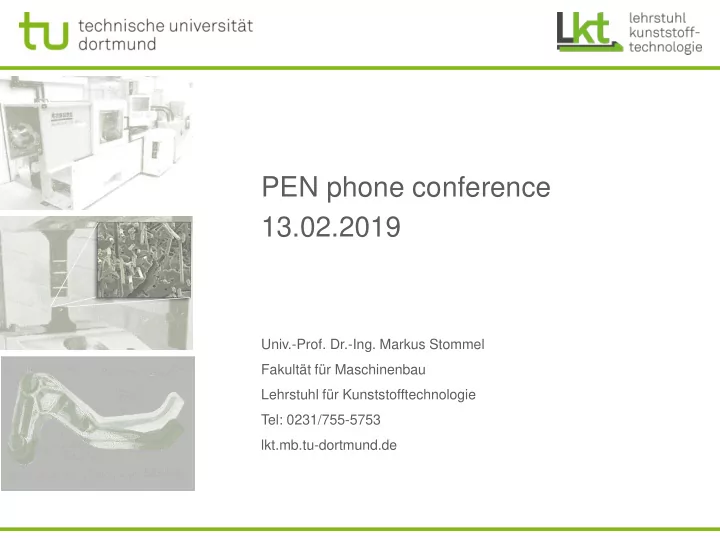

PEN phone conference 13.02.2019 Univ.-Prof. Dr.-Ing. Markus Stommel Fakultt fr Maschinenbau Lehrstuhl fr Kunststofftechnologie Tel: 0231/755-5753 lkt.mb.tu-dortmund.de Agenda Progress with Glass Mould Mechanical simulation of LEGEND
SLIDE 2
SLIDE 3
3
Glass Mould
Switch from regular steel mould to glass mould:
- Very good surface quality
- PEN tends to stick to polished steel -> release agent is necessary
- It is more difficult to produce complicated moulds from glass
- Glass has a very low thermal conductivity (slow cooling of polymer).
It is ideal for production of very thin but large parts with injection compression moulding
SLIDE 4
4
Glass Mould
Glass plates
SLIDE 5
5
Glass Mould
https://youtu.be/hYSboZ56nZc
SLIDE 6
6
Glass Mould
Scintillation in the sunlight
SLIDE 7
7
Glass Mould
Scintillation under UV-C light
Diameter: 17 mm Thickness: 0,75 mm
SLIDE 8
8
Simulation
- Static Simulation
- Dynamic Simulation (acceleration
horizontally/vertically) Material:
- Pure Copper
- PTFE
- PEN
- Germanium (as weight)
SLIDE 9
9
LKT
5 6 7 8 9 10 11 12 13 14 1 Glass Mould 1.1 Testing Glass as mould material 3 weeks 1.2 Producing glass mould for 250mm x 250mm plates 5 weeks 1.3 Producing "clean" Plates 3 weeks 2 Simulaton of LEGEND 200 Setup 2.1 Setup Model from CAD 2 weeks 2.2 Simulation 1 week 2.3 Mechanical characterisation (at low temperatures) 3 weeks 2019
