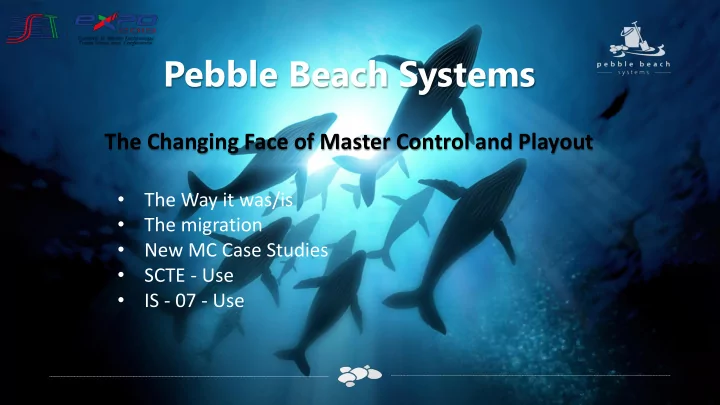

Pebble Beach Systems The Changing Face of Master Control and Playout The Way it was/is The migration New MC Case Studies SCTE - Use IS - 07 - Use Challenges Leveraging New Technology Multi Format Distribution

slide-1
SLIDE 1

Pebble Beach Systems

The Changing Face of Master Control and Playout

  • The Way it was/is
  • The migration
  • New MC Case Studies
  • SCTE - Use
  • IS - 07 - Use
slide-2
SLIDE 2
slide-3
SLIDE 3

Challenges

  • Leveraging New Technology
  • Multi Format Distribution
  • Addressing new Viewing Habits
  • Staying Current
  • How to Migrate to IP
slide-4
SLIDE 4

Automation – Multi Channel

1990’s Becomes more sophisticated

  • Multiple Playlists
  • Cart Machines Many devices
  • Multiple graphic sources - Keys
  • Traffic becomes King
  • Only corrections are manual
  • Reconciliation – Exportable spread
  • Neilson Families
slide-5
SLIDE 5

Traditional Control

slide-6
SLIDE 6

Traditional Control

Complexity, Flexibility, System Accountability, Multifunctional, Ecology, Anxiety, many simultaneous activities, but wait, there is more

slide-7
SLIDE 7

MC Goal

slide-8
SLIDE 8
slide-9
SLIDE 9

CIAB and Migration

Traditional Master Control Hardware Intensive Forklift upgrades Gain Efficiencies with IP

  • Multiple streams from 1 pipeline
  • On one port
  • IS-09 – System API
  • BCP-002-01 - Natural Grouping of NMOS

Resources

  • BCP-003-01 – Securing communications

in NMOS APIs

slide-10
SLIDE 10

MC The Next Step

slide-11
SLIDE 11
slide-12
SLIDE 12

Project Overview

slide-13
SLIDE 13

YurView Project Overview

LAN CONTROL VIDEO HW Automation LAN Client Workstation #6 SGL Archive Media LAN MIP-9111-00H Client Workstation #5 Client Workstation #4 Client Workstation #3 Client Workstation #2 Client Workstation #1 2RU-Device Server: Main 1 1RU-Witness Server 1 2RU-Device Server: Backup 1 MODE SELECT Witness Health Au toma tic Manual POWE R Main Backu p Activ e Health 1RU-Emergency Changeover Panel 1 GPI’s SERIAL STATUS SERIAL STATUS 16 GPI/O’s 16 GPI/O’s GPI’s Changeover Switch 1 16 16 16 16 GPI’s 2RU-Device Server: Main 2 1RU-Witness Server 2 2RU-Device Server: Backup 2 SERIAL STATUS SERIAL STATUS Nvision 8900 Router 1 LOCH2 LOCH6 LOCH9 Cox7 LOCH7 LOCH3 OKLA-LOCH11 PHX22 LOCH5 LOCH1 LOCH10 LOCH4 LOCH8 OKXtra-LOCH12 TUC22 ORLNS TULSA MIP-9111-00H With Branding MIP-9111-00H With Branding MIP-9111-00H With Branding MIP-9111-00H With Branding MPC-7002/ 1 x MIP-7300-M2H+1 x MIP-7100-M2H-M2R MPC-7002/ 2 x MIP-7100-M2H MPC-7002/ 1 x MIP-7100-M2H+1 x MIP-7300-M2H MPC-7002/ 2 x MIP-7100-M2H MPC-7002/ 2 x MIP-7100-M2H MPC-7002/ 2 x MIP-7100-M2H SQL Database PRIMARY (MIRRORED CLUSTER) MIP-9111-00H SQL Database BACKUP (MIRRORED CLUSTER) MIP-9111-00H Housekeeper Primary Housekeeper Backup

Cox Media-Phoenix

Redundant Conceptual Drawing

LIVE INGEST/QC03 (Prep 2) LIVE INGEST/QC02 (Prep 1) LIVE INGEST/QC05 (Prep 4) LIVE INGEST/QC04 (Prep 3) LIVE INGEST/QC07 (Prep 13) LIVE INGEST/QC06 (Prep 12) LIVE INGEST/QC01 (Prep 5) LOCH2 LOCH6 LOCH9 LOCH7 LOCH3 LOCH5 LOCH1 LOCH10 LOCH4 LOCH8 OKLA-LOCH11 OKXtra-LOCH12 Cox7 PHX22 MCP-2251-41C MCP-2251-41C MediaStore MSS-5024-06H MediaStore MSS-5024-06H MCP-2251-2XO LIVE INGEST/QC05 (Prep 4) LIVE INGEST/QC04 (Prep 3) LIVE INGEST/QC07 (Prep 13) LIVE INGEST/QC06 (Prep 12) LIVE INGEST/QC03 (Prep 2) LIVE INGEST/QC02 (Prep 1) LIVE INGEST/QC01 (Prep 5) Protrack Traffic OPTIONAL OSI Traffic CST MAIN

Multiple Cities Live Events Web Channels

slide-14
SLIDE 14

Project Overview

slide-15
SLIDE 15

Overview Drawing

WhatsON Traffic Sys LTC VITC Housekeepers Playlist Panels (x7) Redundant Device Controllers Redundant SQL Database (customer supply or Marina option)
  • /p Marina XML Playlist
Marina API Marina Clients (x8) ation LAN mer Supplied IP Switch Control Lighthouse Web Server 10 client logins (PBS or customer supply) NTP Transfer Storage Media LAN Customer Supplied CH1a Main Pipeline (A) Dolphin Server 1a CH1b Main Pipeline (A) Dolphin Server 1b FAB 1 Device 1a Broadcast Controller/SDN Device 1b Device 1n CH2a Main Pipeline (A) Dolphin Server 2a CH2b Main Pipeline (A) Dolphin Server 2b FAB 2 Device 2a Device 2b Device 2n CH3a Main Pipeline (A) Dolphin Server 3a CH3b Main Pipeline (A) Dolphin Server 3b FAB 3 Device 3a Device 3b Device 3n CH4a Main Pipeline (A) Dolphin Server 4a CH4b Main Pipeline (A) Dolphin Server 4b FAB 4 Automation Network Device Control Device Control SRF 1 SRF 1 SRF Info Test & Emergency Network Switch VIZ 1a VIZ 1b VIZ 2a VIZ 2b VIZ 3a VIZ 3b VIZ 4a VIZ 4b Device Control 2 5 2 5 2 5 2 5 2 5 2 5 2 5 2 5 5 5 5 5 5 5 5 5 Optional backend services hardware when testing/training Database Housekeeper Device Control
slide-16
SLIDE 16

Project Overview

  • Operated from Amsterdam

Ground Up! office building

  • 90 channels on air since October 2017
  • 180 Virtual streams used in

1+1 configuration

  • All customers’ services are operated
  • from this solution
  • No SDI
  • Operates in the Cloud
slide-17
SLIDE 17

Project Overview

  • Equipment located in Equinix AM3 Amsterdam
  • 160 racks in the old building, now using

40 in the data centre

  • 10 of the 40 racks for ~15PB of spinning

disk storage

  • Power consumption 33% of the old system
  • 240 VMs running CIB’s, Automation and ingest
  • Compressed transport streams in and out (2110-22)
slide-18
SLIDE 18

Is Our

FRIEND

slide-19
SLIDE 19

*

Advanced SCTE support

Support for SCTE 104, SCTE 35 and 30

  • SCTE104 Inserted into the VANC just before the end of Regional Blocks
  • SCTE 35 Marks when to go in and out of commercial for the Remote Site
  • SCTE 30 Defined the splice points.
  • Explicit triggers in the schedule
  • Configurable rules-based engine

Supports

  • Single and Multi-operation messages
  • Segmentation descriptors
  • DTMF descriptors
slide-20
SLIDE 20

SCTE For Multiple Channels

Time Origination Metadata

  • SCTE describe Assets for

Interpretation

  • Starts with Traffic
  • Many Content versions
  • Minor Variations
  • SCTE104/35 to many compliant devices

WEB Channel ON Demand IOS

slide-21
SLIDE 21

SCTE

Program

End of Program 1 Start of Program 2 End of Program 2 Start of Program 3

Chapter

End of Chapter 4 Chapter 1 Chapter 2 Chapter 1 Commercial 1 Promo 1 Commercial 2 Promo 2

Interstitial

Promo 1 Commercial 2

Break

Start Break 1 End Break 1 Start Break 2

Time

Program Rule

  • Based on HouseID
Start Dist. Plcmnt. Op 1 End Dist. Plcmnt. Op 1

Avail

Start Dist. Plcmnt. Op 2

Placement

Start Prov. Plcmnt. Op 1 End Prov. Plcmnt. Op 1 Start Dist. Plcmnt. Op 2

Interstitial Rule

  • Based on EventType
  • Single event in multiple categories

Chapter Rule

  • Increments until program changes

Break Rule

  • Based on EventType
  • Grouped across multiple categories

Avail and Placements

  • Based on events with “Commercial”

EventType

slide-22
SLIDE 22
slide-23
SLIDE 23

NMOS

Significant R&D investment PBS chairing NMOS IS-07

Support for

  • IS-04 – Discovery and Registration
  • IS-05 – Connection Management
  • IS-07 – Event & Tally
  • IS-09 – System API
  • BCP-002-01 - Natural Grouping of NMOS

Resources

  • BCP-003-01 – Securing communications in

NMOS APIs

Marina/Dolphin

IS-04 Query IS-04 Register

IS-05 IS-07

IS-07 Trigger Support IS-05 ST-2110 Switching IS-07 Automation Counters/Stats IS-07 Client Layout State

Broadcast Controller

IS-07 Telemetry

3 2 1

IS-07 Buttons Smart Panel

NMOS Registry

slide-24
SLIDE 24

*

Routing and Grouping

So, how does all this fit together with the rest of NMOS?

  • IS-07 uses the NMOS object model
  • Extending the existing senders and receivers with new transports
  • IS-04 registration in the registry
  • IS-05 connection management

TPC:

  • GPI out
  • timecode output
  • Automation layout output
  • Preview, audio shuffle selection and telemetry
  • Now on Secured transports
slide-25
SLIDE 25
slide-26
SLIDE 26

Remote

Secure real-time access anytime, anywhere: mission-critical control beyond the normal boundaries of the TX environment, Multi Domain Media Purge. Drives operational efficiencies: consolidates control across multiple locations, and focusses fast on what’s important Easy to use, easy to manage: intuitive interfaces for operators, web security and user-based permissions for peace of mind

slide-27
SLIDE 27
slide-28
SLIDE 28

Use Case: Multi-Site

slide-29
SLIDE 29

Reference Links

https://www.linkedin.com/feed/hashtag/?keywords=%23tradeshow https://www.linkedin.com/pulse/cloud-daniel-robinson/ http://www.pebble.tv/pebble-beach-systems-moves-ip-control-forward- at-nab-2019-with-focus-on-nmos-is-07/ https://github.com/AMWA-TV/nmos-event-tally https://amwa-tv.github.io/nmos-event-tally/

  • WWW. SMPTE.ORG

https://amwa-tv.github.io/nmos-grouping/best-practice-natural- grouping.html

slide-30
SLIDE 30

The End

For More Information Contact me at david.russin@pebble.tv Or Videodata Visit us at IBC2019 - Stand 8.B68
