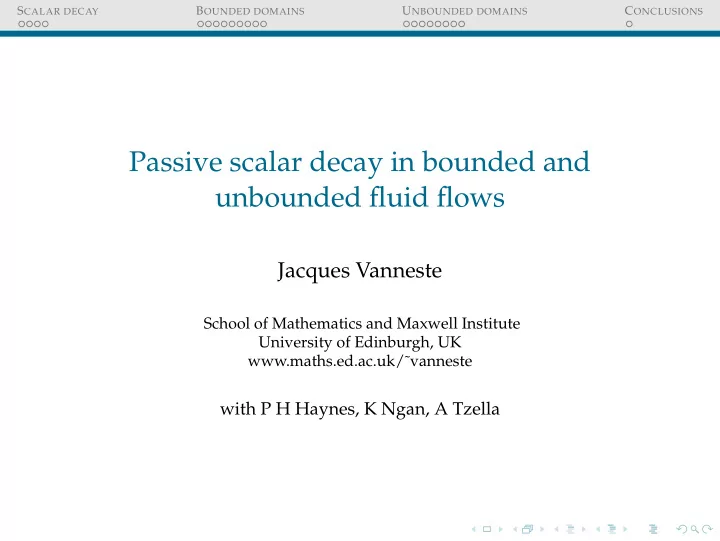

Passive scalar decay in bounded and unbounded fluid flows

Jacques Vanneste

School of Mathematics and Maxwell Institute University of Edinburgh, UK www.maths.ed.ac.uk/˜vanneste

with P H Haynes, K Ngan, A Tzella

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Scalar decay

Passive scalar (eg pollutant) released in fluid flow homogenise quickly through:

◮ differential advection, creating fine scales; ◮ molecular diffusion.

Aims:

◮ characterise the decay of concentration fluctuations, ◮ relate it to flow and domain characteristics.

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Scalar decay

Concentration C(x, t) obeys the advection–diffusion equation: ∂tC + u · ∇C = κ∆C , with a given flow u(x, t) that

◮ satisfies ∇ · u = 0, ◮ is smooth, u(x, t) − u(x′, t) ∝ |x − x′| as |x − x′| → 0.

Also interpreted as the pdf of particles positions X(t) with ˙ X = u(X, t) + √ 2κ ˙ W . Interested in the long-time limit: t → ∞ .

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Scalar decay

Bounded domains

◮ C(x, t) →

• C(x, 0) dx = 0 as t → ∞,

◮ for time-independent flows, ∂tu = 0,

C(x, t) ∼ e−λ(κ)t , with λ(κ) smallest e’value of u · ∇ − κ∆,

◮ for time-periodic flows, λ(κ) is a Floquet exponent, ◮ for stationary random flows, λ(κ) is a Lyapunov exponent.

For ‘sufficiently mixing’ flows, dissipative anomaly: lim

κ→0 λ(κ) = λ(0) = 0 ,

Relate λ(0) and corrections to flow characteristics. Part I

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Scalar decay

Unbounded domains

◮ for t large enough, scalar scale ≫ tracer scale, ◮ homogenisation theory applies, ◮ ∂tC ≈ κeff∆C, ◮ Gaussian approximation

C(x, t) ∝ e−|x|2/(4κefft) ,

◮ breaks down in the tails, |x| ≫ O(t1/2).

Predict C(x, t) for |x| = O(t) using large deviations. Part II

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Part I

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

Take u to be stationary random process:

◮ C(x, t) decays exponentially for t ≫ 1:

C(x, t) ∼ D(x, t)e−λ(κ)t,

◮ λ is the deterministic Lyapunov exponent of the

advection–diffusion equation,

◮ D(x, t) is a stationary random function, strange eigenmode, Pierrehumbert 1998

Lagrangian stretching theories

Antonsen et 1996, Falkovitch et al 2000, Balkovsky & Fouxon 1999

Relate λ(0) to large-deviations of finite-time Lyapunov exponents of ˙ x = u(x, t).

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

Tangent dynamics: δ˙ x = Du · δx. Finite-time Lyapunov exponent h = t−1 log δx have pdf p(h, t) ≍ e−tg(h), where g is the rate function. Prediction: scalar decay rate λ(0) = g(0)/2 .

◮ numerical evidence inconclusive (finite-κ effects), ◮ prediction cannot always hold: for small-scale flows,

homogenisation applies and λ(κ) ∝ L−2.

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

Covariance equation

Take u to be:

◮ homogeneous in x, in a periodic domain, ◮ white in time (Kraichnan flows), or iid in [nτ, (n + 1)τ],

n = 1, 2 · · · (renewing flows). Closed equation for the covariance Γ(x, t) = E C(x + y, t)C(y, t) . For Kraichan flows, with E ui(x + y, t)uj(y, t′) = Bij(x)δ(t − t′), ∂tΓ = Dij(x)∂2

ijΓ + κ∆Γ ,

where Dij(x) = Bij(x) − Bij(0). Note: Dij(x) ∼ Sijklxkxl as |x| → 0.

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

Covariance equation

Eigenvalue of Dij(x)∂2

ij + κ∆ gives decay rate of Γ:

lim

t→∞ t−1 log E C2 = γ = smallest e’value.

Numerical observation: γ ≈ 2λ(κ). Asymptotic analysis of the eigenvalue problem for κ → 0:

Haynes & V 2005 ◮ singular perturbation problem, ◮ for κ = 0, continuous spectrum + discrete eigenvalues, ◮ relation to finite-time Lyapunov exponents: p(δx, t)

satisfies ∂tp = Sijklδxkδxl∂ijp,

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

Two regimes

• 1. locally controlled regime, associated with

edge of continuous spectrum, γlocal = g(0) + 2π2 g′′(0) 1 log2 κ + o(1/ log2 κ),

• 2. globally controlled regime, associated

with isolated eigenvalues. γglobal ∼ λ0 + cκσ, with σ related to g(h).

x x

• = 0

= 0 /

2

1/log 1/log

x

• x

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

◮ local control consistent with prediction

λ(κ) ≈ γ/2 = g(0)/2,

◮ global control when L Lflow flow scale; recovers

homogenisation for L ≫ Lflow,

◮ confirmed numerically in 2D, Haynes & V 2005, Tsan et al 2005 ◮ in 3D, γ is the same for a flow and its time reverse (exact

result). Numerical simulations

Ngan & V 2011

3D sine map in periodic domain [0, 2πP]3 for P = 1, 2, · · · . xn+1 = xn+π sin(yn + φn), yn+1 = yn + π sin(zn + ψn), zn+1 = zn + π sin(xn+1 + ϕn)

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

Numerical results

Forward map, P = 1, κ = 10−4, n = 2, 4, 6 Inverse map, P = 1, κ = 10−4, n = 2, 4, 6

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Random flows

Numerical results

Results for P = 1: forward and inverse maps.

10−6 10−5 10−4 10−3 10−2 10−1 κ 1.0 1.2 1.4 1.6 1.8 2.0 γ

Decay rate γ vs κ

2 4 6 8 10 P 0.0 0.5 1.0 1.5 2.0 γ

Decay rate γ vs P Estimate transition P: γlocal ∼ γglobal ∼ γhom ⇒ P = 2.2

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Bounded domain: random flows

Numerical results

Forward map, n = 30, P = 2, 3, 4, κ = 10−4

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Part II

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations

Localised release of passive scalar in an unbounded domain: examine spread of C(x, t). For t ≫ 1 , scalar scale ≫ flow scale: homogenisation applies: can compute an effective diffusivity κeff :

◮ E X ⊗ X ∼ 2κefft, ◮ C ≍ exp(−x · κ−1 eff · x/(4t)): Gaussian distribution, ◮ effective equation

∂tC = ∇ · (κeff · ∇C). In simple flows: κeff can be computed explicitly.

◮ shear flows (Taylor dispersion), ◮ periodic flows. e.g. Majda & Kramer 1999

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations

Shear dispersion: dye in pipe flows spreads along the pipe. κeff = κ−1 y

−1

U(y′) dy′ 2 + κ ∝ κ−1 .

Taylor 1953

Cellular flow: ψ = − sin x sin y κeff ∼ 2νκ1/2 for κ ≪ 1,

x y 6 4 2 2 4 6 6 4 2 2 4 6

with ν ∼ 0.5327407 · · ·

Shraiman, Rosenbluth et al, Childress, Soward. ..

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations

Diffusive approximation assumes x/t1/2 = O(1) as t → ∞. It cannot describes the tails of C(x, t) which are non-Gaussian. Large deviations:

◮ obtain C(x, t) for x/t = O(1), ◮ recover homogenisation as a limiting case.

Interest:

◮ Low concentrations can be important:

◮ anecdotally: highly toxic chemicals, ◮ exactly: FKPP fronts.

Tzella’s talk

◮ Unifies ‘improvements’ to homogenisation. ◮ Example of extreme-event statistics.

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations

For t ≫ 1, the concentration takes the large-deviation form C(x, t) ≍ exp(−tg(ξ)) for ξ = x/t = O(1), with g the rate function, convex with g(0) = g′(0) = 0. Computing g: define f(q) by etf(q) ≍ E eq·X . f and g are a Legendre transform pair. Eigenvalue problem: f(q) is e’value, φ e’function: ∆φ − (Pe u + 2q) · ∇φ +

• Pe u · q + |q|2

φ = f(q)φ. Solve for q ∈ Rd. Deduce g(q) by Legendre transform.

Haynes & V 2014a

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations: cellular flow

Cellular flow u = (−ψy, ψx), with ψ = − sin x sin y. For Pe ≫ 1, par- ticles are trapped inside cells, with rare exits across separatrices.

x y

−20 −10 10 20 −20 −10 10 20

x y

−20 −10 10 20 −20 −10 10 20

log C at t = 2, 4 for Pe = 250.

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations: cellular flow

Solve the e’value problem

◮ numerically, ◮ asymptotically for

Pe = UL/κ ≪ 1.

−1 −0.5 0.5 1 1 2 3 4

x/t

Three regimes:

• 1. |x|/t = O(Pe−3/4): averaging in interior + boundary layers,
• 2. |x|/t = O(log Pe): empty interior, boundary layers +

corners,

• 3. |x|/t = O(Pe): action-minimising trajectories

(Freidlin–Wentzel).

Haynes & V 2014b

More in Tzella’s talk.

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations: rectangular network

O L βL βL U V

Non-Gaussian behaviour induced by geometry.

Tzella & V 2016

Rate function g:

◮ for U = V = 0: from g ∼ |ξ|2/2 to g ∼ (|ξ1| + |ξ2|)2/4, ◮ for U, V ≫ 1: g independent of κ, topological dispersion.

U = V = 0

−5 5 −5 5 5 5 5 10 15 20 25

U = V = 5

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Large deviations: rectangular network

◮ Monte Carlo

simulations vs large deviations

◮ t = 1, 5, ◮ large deviations

work well at moderately large time.

SCALAR DECAY BOUNDED DOMAINS UNBOUNDED DOMAINS CONCLUSIONS

Conclusions

◮ Scalar decay in bounded random flows

◮ exponential decay: of C ∼ exp(−λ(κ)t), ◮ dissipative anomaly: limκ→0 λ(κ) = 0

(under which conditions?)

◮ E C2 ∼ exp(−γ(κ)t): local vs global control of γ(κ)

(but is λ(κ) = γ/2?)

◮ Scalar decay in unbounded flows

◮ homogenisation, C ≍ exp(−x|2/(4κt) for |x| = O(t1/2), ◮ large deviations, C ≍ exp(−tg(x/t)) for |x| = O(t), ◮ rate function g(·) found by solving a family of e’value

problems,

◮ large-Pe asymptotics for cellular flows, ◮ mixing in ‘interesting’ topologies.
