NATIONAL TECHNICAL UNIVERSITY OF ATHENS NAVAL ARCHITECTURE AND MARINE ENGINEERING DEPT. SHIP DESIGN AND MARINE TRANSPORTATION DIV. SHIP DESIGN LABORATORY DIPLOMA THESIS Parametric ship design and holistic ship design optimization of a 9000

slide-1
SLIDE 1

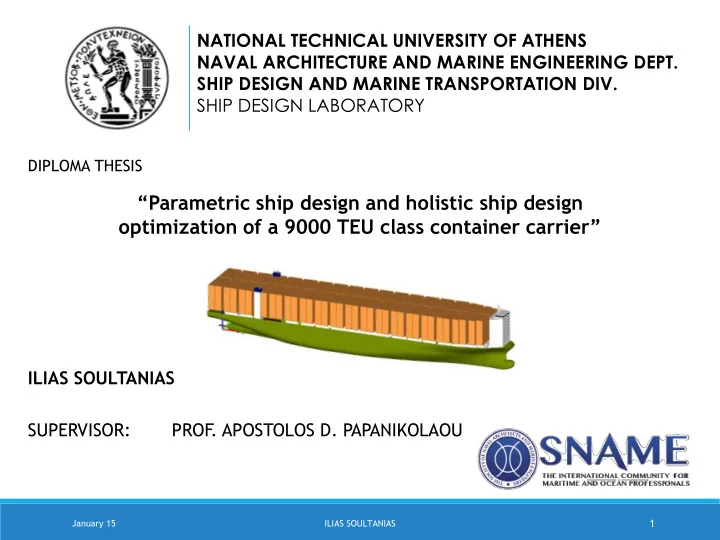

NATIONAL TECHNICAL UNIVERSITY OF ATHENS NAVAL ARCHITECTURE AND MARINE ENGINEERING DEPT. SHIP DESIGN AND MARINE TRANSPORTATION DIV. SHIP DESIGN LABORATORY

DIPLOMA THESIS

“Parametric ship design and holistic ship design

  • ptimization of a 9000 TEU class container carrier”

ILIAS SOULTANIAS SUPERVISOR: PROF . APOSTOLOS D. PAPANIKOLAOU

January 15 ILIAS SOULTANIAS

1

slide-2
SLIDE 2

Structure

  • Container ship transportation
  • Computer Aided Ship Design
  • Integrated Ship Design
  • Parametric Design
  • Holistic design optimization
  • Port Efficiency

Introduction

  • Project goal
  • Ship operational plan
  • Parametric model
  • Sensitivity Analysis
  • Optimization

Design of the 9000 TEU container carrier

  • Pareto front
  • Selected design
  • Conclusion
  • Further research suggestions

Results and conclusion

January 15 ILIAS SOULTANIAS

2

slide-3
SLIDE 3

Containerized trade dominates

  • Starting in ’50s – Mc Lean
  • Containers of standard

dimensions

– TEU – FEU

  • Intermodal – combined goods

transportation

  • Increasing goods

containerisation

January 15 ILIAS SOULTANIAS

3

slide-4
SLIDE 4

Computer Aided Ship Design

Traditional preliminary design methods

– Conceptual model – Initial stage – Final stage – Detailed design and developed hull geometry

CAD/CAE1 advantages

– Time saving – Quick analytical computations – Connection between CAD – CAE – Quick geometry variations – Grater range of design stages – Higher designer satisfaction

January 15 ILIAS SOULTANIAS

4

1CAD: Computer Aided Design CAE: Computer Aided Engineering

slide-5
SLIDE 5

Integrated ship design

  • Parametric design
  • Numerical methods
  • Simulations
  • Optimization
  • Computational power

January 15 ILIAS SOULTANIAS

5

  • Systems combination
  • Design spiral replacement
  • Core model
  • Many different design

“layers”

slide-6
SLIDE 6

Parametric Ship Design

  • Conventional design

Traditional approach Application of classic methods with computer support Unproductive

  • Semi parametric design

Variation of given ship hull forms Transformations application (Lackenby)

  • Fully parametric design

Complete design based on mathematical model Direct calculation of efficiency indices Form variation flexibility

January 15 ILIAS SOULTANIAS

6

slide-7
SLIDE 7

Holistic optimization

Holistic approach

Of the ship as a whole and not as a synthesis of its subsystems.

All the subsystems are modelled Life cycle based optimization

January 15 ILIAS SOULTANIAS

7

slide-8
SLIDE 8

Holistic optimization

Multicriteria optimization Genetic algorithms use Optimization attributes:

  • Optimization criteria
  • constraints
  • Design variables
  • Initial Data
  • Results

January 15 ILIAS SOULTANIAS

8

slide-9
SLIDE 9

Fast ship in port

Lower fuel consumption is the

  • bjective

Saving time from port

  • perations

Lower voyage speeds Optimal loading procedure Loading simulations investigation Complex phenomenon Index:

𝑑𝑝𝑜𝑢𝑏𝑗𝑜𝑓𝑠𝑡 𝑝𝑜 𝑒𝑓𝑑𝑙 𝑑𝑝𝑜𝑢𝑏𝑗𝑜𝑓𝑠𝑡 𝑗𝑜 ℎ𝑝𝑚

January 15 ILIAS SOULTANIAS

9

«The fast voyage is done inside the port»

slide-10
SLIDE 10

Structure

  • Container ship transportation
  • Computer Aided Ship Design
  • Integrated Ship Design
  • Parametric Design
  • Holistic design optimization
  • Port Efficiency

Introduction

  • Project goal
  • Ship operational plan
  • Parametric model
  • Sensitivity Analysis
  • Optimization

Design of the 9000 TEU container carrier

  • Pareto front
  • Selected design
  • Conclusion
  • Further research suggestions

Results and conclusion

January 15 ILIAS SOULTANIAS

10

slide-11
SLIDE 11

What is the goal of this project

  • Parametric modelling of a 9000 TEU container carrier
  • Design variables’ change limits investigation
  • Multicriteria optimization
  • Results evaluation

January 15 ILIAS SOULTANIAS

11

slide-12
SLIDE 12

Where will the ship sail to

North Europe – Far East Asia trade route Current services offered in this line Adjust to competition

Containership operational profile Transit time 40 days Vessel speed 20 knots Ship capacity 8000-9500 TEU Route Length 13810 sea miles

January 15 ILIAS SOULTANIAS

12

Study of 3 competitors Route catered by 8000-9500 TEU container vessels 38-47 days duration of the round trip

slide-13
SLIDE 13

Build the parametric model

Using the CAESES/FRIENDSHIP- Framework

  • Geometry construction
  • Parameters support
  • Integrated computational

attributes

  • Programming capabilities
  • Different designs creation
  • Built in optimization algorithms
  • Visualization and results

evaluation tools

January 15 ILIAS SOULTANIAS

13

slide-14
SLIDE 14

Geometry construction

Initial hull geometry

  • Fore, middle and aft parts
  • Parametric functional curves
  • Elliptical cross section

Lackenby Transformation Superstructure placed forward and E/R aft

Parameter dependent on Beam Rows number draft

  • Engine room aft extent

bays aft Engine room fwd extent bays aft, ER length hatch height no tiers in hold Length b.p. no of bays Length of cargo space no of bays, ER length length of deckhouse

  • Tiers in hold
  • Tiers on deck
  • January 15

ILIAS SOULTANIAS

14

slide-15
SLIDE 15

How is the cargo stowed

  • n board

Advanced pre-programmed feature constructing the cargo spaces Calculation of cargo capacity, centers of gravity and moments Fully parametric method

January 15 ILIAS SOULTANIAS

15

slide-16
SLIDE 16

Integrated preliminary ship design

January 15 ILIAS SOULTANIAS

16

Parametric hull geometry Transformed Hull Hydrostatics Cargo Blocks Resistance & Propulsion Lightship & DWT Consumables and Ballast arrangement Large Angle Stability Loading cases / Stowage scenaria EEDI & Economics

Lackenby Transformation

slide-17
SLIDE 17

Trim and stability calculations

Created internal large angle stability calculation tool Stability criteria applied: International Stability Code 2008 (container carriers) Adjustment of the centers of gravity towards meeting the criteria

January 15 ILIAS SOULTANIAS

17

slide-18
SLIDE 18

Loading cases calculations

Loading case study based on adjusted centers of gravity for sufficient stability 2 loading cases identified:

  • Maximum TEU capacity
  • Zero ballast

Parameters’ evaluation:

  • Zero ballast case TEU capacity
  • Weight per TEU-container
  • Min Required ballast

January 15 ILIAS SOULTANIAS

18

slide-19
SLIDE 19

Design variables and constraints

Constraint Comparator Limit EEDI ratio attained/required less than 1 GM initial greater than/equal 0.15 GZ area 30 to 40 deg greater than/equal E 30-40 GZ area up to 30 deg greater than/equal E 30 GZ area up to 40 deg greater than/equal E 40 angle at max GZ greater than/equal 30 deg Trim at FLD less than/equal 0.5% LBP homogenous weight per TEU max capacity greater than/equal 6 t homogenous weight per TEU zero ballast greater than/equal 7 t

Design Variable Upper Limit Lower Limit

  • num. of Bays

17 20

  • num. of Rows

15 20

  • num. of Tiers in hold

7 10

  • num. of Tiers on deck

7 9 double side 2 2.5 double bottom 1.8 3 relative bilge height (wrt. Depth) 0.1 1 relative bilge width (wrt. Beam) 0.1 1 relative parallel body length 0.3 relative parallel body position (from AP) 0.4 0.55 ΔCp change of prismatic coef.

  • 0.06

0.06 ΔXCB long. center of buoyancy change

  • 0.02

0.02

January 15 ILIAS SOULTANIAS

19

slide-20
SLIDE 20

Model sensitivity wrt. Change in parameters

DRAFT CHANGE Draft change sensitivity trials between 14,5 και 15 m Increased consumption and costs Decreased required ballast SPEED CHANGE

January 15 ILIAS SOULTANIAS

20

slide-21
SLIDE 21

Investigate the problem domain space

Pseudo-random algorithm for the variable allocation 𝑜𝑣𝑛𝑐𝑓𝑠 𝑝𝑔 𝑤𝑏𝑠𝑗𝑏𝑜𝑢𝑡 = 𝑜𝑣𝑛𝑐𝑓𝑠 𝑝𝑔 𝑒𝑓𝑡𝑗𝑕𝑜 𝑤𝑏𝑠𝑗𝑏𝑐𝑚𝑓𝑡 2 Kept the initial investigation range and the baseline – reference design

January 15 ILIAS SOULTANIAS

21

slide-22
SLIDE 22

Optimization

Genetic algorithm application – NSGA II 3 optimization criteria:

  • Minimum required freight rate
  • Maximum zero ballast capacity
  • Maximum ratio: 𝑑𝑝𝑜𝑢𝑏𝑗𝑜𝑓𝑠𝑡 𝑝𝑜 𝑒𝑓𝑑𝑙

𝑑𝑝𝑜𝑢𝑏𝑗𝑜𝑓𝑠𝑡 𝑗𝑜 ℎ𝑝𝑚𝑒

January 15 ILIAS SOULTANIAS

22

Parametric model construction Baseline design Design of Experiment Sobol 500 variants Draft investigation 1.5 m, 15 m  14.5m Speed investigation 18-26 kn  20 kn Optimization round 1 NSGA II 6 generations, 50 population size Dominant variants: des 116, des 69 Optimization round 2 NSGA II 6 generations, 50 population size Dominant variants: des 116, des 69 Design 116 Baseline

slide-23
SLIDE 23

Results evaluation

Normalized efficiency indices (optimization criteria) Weighted average based on different scenarios weights Ranking of the different design variants Selection of the superior independently of the scenarios

Scenario 1 2 3 Zero Ballast capacity 33% 40% 20% Stowage ratio 33% 40% 20% Required Freight Rate 33% 20% 40%

January 15 ILIAS SOULTANIAS

23

slide-24
SLIDE 24

Structure

  • Container ship transportation
  • Computer Aided Ship Design
  • Integrated Ship Design
  • Parametric Design
  • Holistic design optimization
  • Port Efficiency

Introduction

  • Project goal
  • Ship operational plan
  • Parametric model
  • Sensitivity Analysis
  • Optimization

Design of the 9000 TEU container carrier

  • Pareto front
  • Selected design
  • Conclusion
  • Further research suggestions

Results and conclusion

January 15 ILIAS SOULTANIAS

24

slide-25
SLIDE 25

Optimal designs area at the Pareto Front

January 15 ILIAS SOULTANIAS

25

700 750 800 850 900 950 1000 1050 1100 3000 3500 4000 4500 5000 5500 RFR [$] Zero Ballast Capacity [TEU]

RFR vs. Zero Ballast capacity

116

slide-26
SLIDE 26

Optimal designs area at the Pareto Front

January 15 ILIAS SOULTANIAS

26

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 3000 3500 4000 4500 5000 5500 Ratio on Deck/in Hold TEUs Zero Ballast Capacity [TEU]

Stowage ratio vs Zero Ballast capacity

116

slide-27
SLIDE 27

Optimal designs area at the Pareto Front

January 15 ILIAS SOULTANIAS

27

700 750 800 850 900 950 1000 1050 1100 0.7 0.9 1.1 1.3 1.5 1.7 1.9 RFR [$] Ratio on deck/in hold containers

RFR vs Stowage ratio

116 69

slide-28
SLIDE 28

Selected design

Design baseline

  • des. 1/116

Rows 18 19 Bays 19 18 Tiers in hold 8 8 Tiers on deck 8 9 double bottom [m] 2.347 2.569 double side [m] 2.140 2.244 relative bilge height 0.184 0.481 relative bilge width 0.522 0.410 relative parallel body length 0.253 0.098 relative parallel body position 0.46 0.442

Design baseline

  • des. 1/116

change L bp [m] 18 19 Beam [m] 295.19 280.18 Depth [m] 45.558 48.089 Displacement [t] 142326 129548

  • 8.98%

TEU capacity 9010 9456 +4.95% weight per TEU [t] 7.35 6.39

  • 13.06%

Cost per ton container mile [$] 30.66 29.53

  • 3.69%

EEDI ratio 0.685 0.718 4.82% Zero Ballast TEU capacity 4833 5067 +4.84% Required Freight Rate [$] 845.99 815.54

  • 3.60%

Stowage ratio 1.466 1.744 +18.96%

January 15 ILIAS SOULTANIAS

28

slide-29
SLIDE 29

Concluding…

Extensive parametric modelling

  • Improved subsystems modelling
  • Expansion of the laboratory model resources

Improvement of the reference design Special feature: superstructure forward

  • Reduced length for the given capacity class
  • High weight center  low weight per container

January 15 ILIAS SOULTANIAS

29

slide-30
SLIDE 30

Worth investigating further…

  • Study different size categories
  • Experimenting further away from the conventional designs
  • Include more subsystems in the model (structural analysis, sea

keeping, vibrations analysis etc.)

  • Extensive study of the port efficiency and operations based on

the design configuration

January 15 ILIAS SOULTANIAS

30

slide-31
SLIDE 31

Thank you!

Danke schön! Çok teşekkür ederim!

January 15 ILIAS SOULTANIAS

31
