PANE Aero Pane: 2.5mm LED Digital Poster SET-UP YOUR LED CLIENTS GROUP QUICKL Y 3 Selling points Integral machine design, ultra slim and light weight Cloud control and management system No parameter -setting required Aero Pane

SLIDE 1

PANE

SLIDE 2

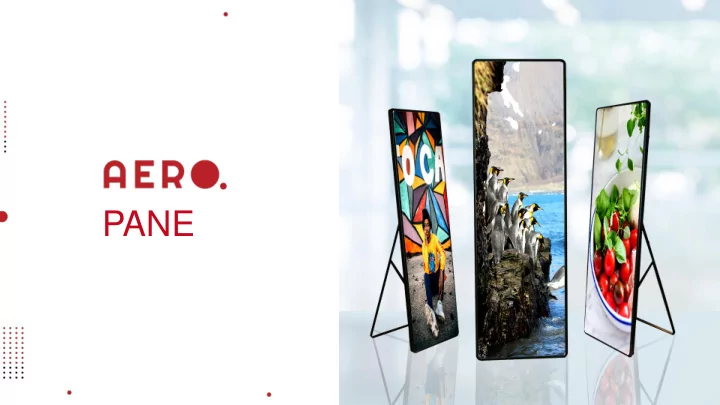

Aero Pane: 2.5mm LED Digital Poster

SET-UP YOUR LED CLIENTS GROUP QUICKL Y 3 Selling points ✓ Integral machine design, ultra slim and light weight ✓ Cloud control and management system ✓ No parameter -setting required

SLIDE 3

Aero Pane Application: Retail

Features ✓ Portable carriage and installation ✓ Cascade connection playing ✓ Various types of Signal inputs ✓ Fashionable appearance ✓Localized delivery

SLIDE 4

UTV-P has been engineered with the latest technologies to give it a smoother, slimmer profile. The entire poster frame weights less than 35kg, making it more portable and easier to install.

Integral machine design, ultra slim and lightweight

SLIDE 5

SELLING POINT

CLOUD CONTROL & MANAGEMENT SYSTEM

Clouds management system makes you manage your content at anytime and anywhere. Centralized video control and management Manage and control your network remotely. UTV-P makes centralized video control and management via internet delivery workflow possible.

SLIDE 6

N O P A R A M E T E R - S E T T I N G S R E Q U I R E D

0 parameter-setting required Plug and paly, you don't need to set any parameters.

Confidential

SLIDE 7

P O R T A B L E & E A S Y I N S T A L L A T I O N

Confidential

Carrier bag Flight case: Portable carriage and easy

installation. Saves time and makes it easy to

maintain.

Foldable Stand Being useful and convenient, stand will help you a lot during the operation. Pull out the stand when it' s needed for supporting the panel. And put it back in place when packing the panel.

Carton

SLIDE 8

Extended Mode

Cascade connection playing

Split and show the same video content on 2 or more UTV-P simultaneously. Also known as cascade or split-screen mode. Wireless Multi-screen Mode

C A S C A D E C O N N E C T I O N P L A Y I N G

Confidential

SLIDE 9

Increase Brightness Decrease Brightness Mode Switch (Mirror mode & extend mode)

HDMI, Wifi, USB signal input, makes it more convenient to display your content.

WiFi Antenna HDMI Output

V A R I O U S T Y P E S O F S I G N A L I N P U T S

Confidential

SLIDE 10

Fashionable appearance Colored Outer Frame

Confidential

Colored outer frame makes you feel the beauty.

SLIDE 11

Protective glass cover

Confidential

A C C E S S O R I E S

SLIDE 12

Ground installation Hanging installation

Confidential

I N S T A L L A T I O N

SLIDE 13

Side-Mounting Wall-mounting Wall-mounting

I N S T A L L A T I O N

Confidential

SLIDE 14

S P E C I F I C A T I O N

Confidential Material Parameters UTV-P

Pixel Pitch(mm) 2.5 Display Resolution(Dots) 160 x 120/ 112 x 84 Display Dimension (H x W X D) 576 x 1944 x 35 mm Panel Material Aluminum Weight 35 kg Brightness 1200 cd/' Display Color 4.4 trillion Refresh Rate > 3600 Hz Contrast Ratio 3000:1 Maximum Power Consumption 600W/ panel Average Power Consumption 240W/ panel Operating Temperature –100 ~ +50℃ Operating Lifetime (50% Brightness) ≥100,000 hours

SLIDE 15

Brand retail store Cinema Retail store

A P P L I C A T I O N

Confidential

SLIDE 16

A P P L I C A T I O N

SLIDE 17

Railway station Cinema Gallery

Couture

Confidential

A P P L I C A T I O N

SLIDE 18

AERO PANE AT SKECHERS SHOWROOM - BANGALAORE

SLIDE 19

+91 9999709238 info@aerodigitalworld.com Plot No.4, M G Road, Near Ghitorini Metro Station Pillar #117 New Delhi - 110030
