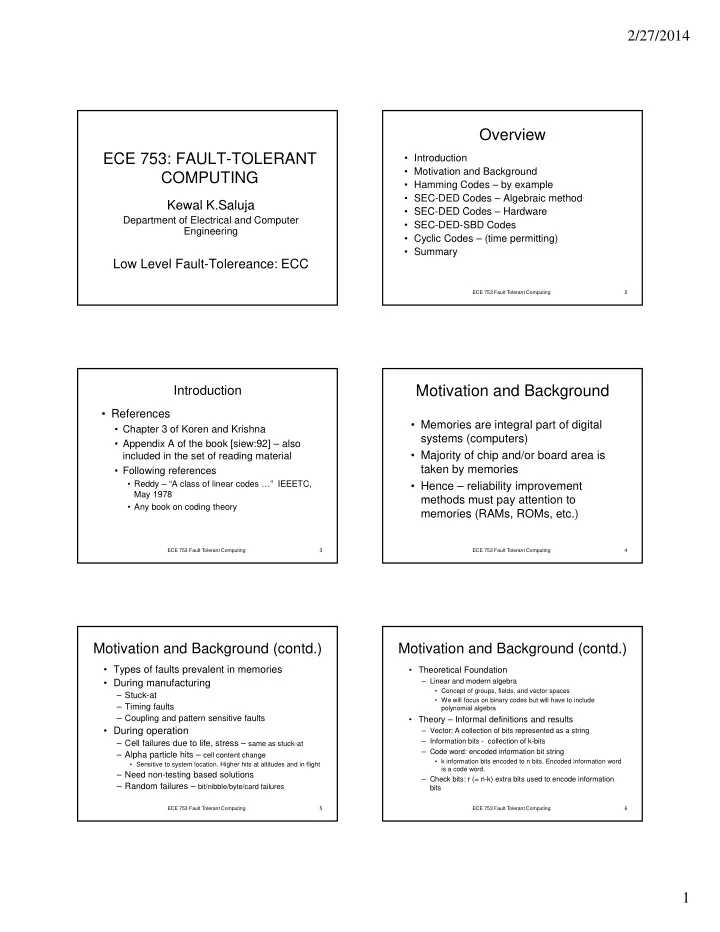

SLIDE 1

2/27/2014 1

ECE 753: FAULT-TOLERANT COMPUTING

Kewal K Saluja Kewal K.Saluja

Department of Electrical and Computer Engineering

Low Level Fault-Tolereance: ECC

Overview

Introduction
Motivation and Background
Hamming Codes – by example
SEC-DED Codes – Algebraic method

SEC DED C d H d

ECE 753 Fault Tolerant Computing 2

SEC-DED Codes – Hardware
SEC-DED-SBD Codes
Cyclic Codes – (time permitting)
Summary

Introduction

References
Chapter 3 of Koren and Krishna
Appendix A of the book [siew:92] – also

included in the set of reading material

ECE 753 Fault Tolerant Computing 3

Following references
Reddy – “A class of linear codes …” IEEETC,

May 1978

Any book on coding theory

Motivation and Background

Memories are integral part of digital

systems (computers)

Majority of chip and/or board area is

t k b i

ECE 753 Fault Tolerant Computing 4

taken by memories

Hence – reliability improvement

methods must pay attention to memories (RAMs, ROMs, etc.)

Motivation and Background (contd.)

Types of faults prevalent in memories
During manufacturing

– Stuck-at – Timing faults – Coupling and pattern sensitive faults

ECE 753 Fault Tolerant Computing 5

During operation

– Cell failures due to life, stress – same as stuck-at – Alpha particle hits – cell content change

Sensitive to system location. Higher hits at altitudes and in flight

– Need non-testing based solutions – Random failures – bit/nibble/byte/card failures

Motivation and Background (contd.)

Theoretical Foundation

– Linear and modern algebra

Concept of groups, fields, and vector spaces
We will focus on binary codes but will have to include

polynomial algebra

Theory – Informal definitions and results

ECE 753 Fault Tolerant Computing 6

y

– Vector: A collection of bits represented as a string – Information bits - collection of k-bits – Code word: encoded information bit string

k information bits encoded to n bits. Encoded information word

is a code word.

– Check bits: r (= n-k) extra bits used to encode information bits

SLIDE 2

2/27/2014 2

Motivation and Background (contd.)

Theory – Informal definitions and results

– Hamming weight of a vector v: Number of 1’s in v – Hamming distance (HD) between a pair of vectors v1 and v2: number of places two vectors differ from each other. HD( ) HW( ⊕ )

ECE 753 Fault Tolerant Computing 7

HD(v1, v2) = HW(v1⊕v2) – Code: Collection of code words. – Block code: each code word contains same number of bits. – Minimum Hamming distance of a code: Minimum

f all HDs between all pairs of code words in a

code.

Motivation and Background (contd.)

Theory – Informal definitions and results (contd.)

– Error detection: Erroneous word (a code word with one or more bit errors) is not a code word

Basic results 1: A code is capable of t error detection

if and only if min HD of the code is at least t+1.

– Proof: use sphere packing argument to show this.

ECE 753 Fault Tolerant Computing 8

Example: Use of parity –we know that we can detect

single error. What is the minimum HD for such a code? Prove that the min HD is 2 using the argument that no two binary strings with even (odd) Hamming weight can have a HD of 1.

Motivation and Background (contd.)

Theory – Informal definitions and results (contd.)

Basic results 2: A code is capable of

correcting t errors if and only if min HD of the code is at least 2t+1

ECE 753 Fault Tolerant Computing 9

code is at least 2t+1.

– Proof: use sphere packing argument as before.

Combine the two results: A code is a capable
f correcting t errors and detecting d errors (d

≥ t) if and only if min HD of the code is at least t+d+1.

Hamming Codes – by example

A linear block code
Consider a (7,4) Hamming code
Let i1 i2 i3 i4 be information symbols

Let p p p be check symbols

ECE 753 Fault Tolerant Computing 10

Let p1p2 p4 be check symbols
The parity equations:

p1 = i1 ⊕ i2 ⊕ i4 p2 = i1 ⊕ i3 ⊕ i4 p4 = i2 ⊕ i3 ⊕ i4

Hamming Codes – by example (contd.)

Can write the equations as follows (easy to

remember) p1 p2 i1 p4 i2 i3 i4 1 1 1 1

ECE 753 Fault Tolerant Computing 11

1 0 1 0 1 0 1 0 1 1 0 0 1 1 0 0 0 1 1 1 1 1 2 3 4 5 6 7 This encodes a 4-bit information word into a 7- bit codeword

Hamming Codes – by example (contd.)

Properties of the code

– If there is no error, all parity equations will be satisfied – Denote the outcomes of these equation h k

ECE 753 Fault Tolerant Computing 12

checks as c1, c2, c4 – If there is exactly one error, then c1, c2, c4 point to the error – The vector c1, c2, c4 is called syndrome – The above (7,4) Hamming code is SEC code

SLIDE 3

2/27/2014 3

Hamming Codes – by example (contd.)

The above method of construction can be

generalized to construct an (n,k) Hamming code

Simple bound

k = number of information bits b f h k bit

ECE 753 Fault Tolerant Computing 13

r = number of check bits n = k + r = total number of bits n + 1 = number of single or fewer errors Each error (including no error) must have a distinct syndrome With r check bits max possible syndrome = 2r Hence: 2r ≥ n + 1

Hamming Codes – by example (contd.)

Simple bound

When: 2r = n + 1 the corresponding Hamming code is a perfect code

Perfect Hamming codes can be

t t d f ll

ECE 753 Fault Tolerant Computing 14

constructed as follows: p1 p2 i1 p4 i2 i3 i4 p8 i5 . . . . . . 20 21 3 22 5 6 7 23 9 . . . . . . Parity equations can be written as before from the above matrix representation

SEC-DED Codes – Algebraic method

Definitions

– (G, *) – An abelian (commutative) Group

There is a 0 in G (identity)
For every a in G a-1 is also in G (inverses)

ECE 753 Fault Tolerant Computing 15

For all a and b in a*b = b*a is also in G

(closed)

– Examples

G = (0, 1); * = ⊕ (Exclusive-OR)
(Z3, +3) is a commutative group

SEC-DED Codes – Algebraic method (contd.)

Definitions (contd.)

– (F, +, .) – A Field if

(F, +) is an abelian group with identity of 0
(F

) is an abelian group

ECE 753 Fault Tolerant Computing 16

(F - 0, .) is an abelian group

– Examples

(F, ⊕, .) is a Field
F = (0, 1); ⊕ = Exclusive-OR; . = AND
The above Field is called GF(2)

SEC-DED Codes – Algebraic method (contd.)

Definitions (contd.)

– Vector space over a field F

(V, +) is an abelian group
v in V and c in F  cv is V

ECE 753 Fault Tolerant Computing 17

c(u + v) = cu + cv
(c+d)v = cv + dv
C(dv) = (cd)v

– S ⊆ V is a subspace if S is a vector space – A linear combination of vectors is a vector

u = c1v1 + c2v2 + c3v3 + … + cnvn

SEC-DED Codes – Algebraic method (contd.)

Some results and more definitions

– Over GF(2) a collection of all n-bit vectors forms a vector space – Let v1, v2, … , vk be n-bit vectors each.

ECE 753 Fault Tolerant Computing 18

1 2 k

Then all 2k linear combinations of these k vectors form a subspace – A set of k vectors v1, v2, … , vk is linearly independent if for not all ci = 0, i = 1, …, k c1v1 + c2v2 + c3v3 + … + ckvk ≠ 0

SLIDE 4

2/27/2014 4

SEC-DED Codes – Algebraic method (contd.)

Some results and more definitions

(contd.)

– Largest number of linearly independent vectors in a vector space is the dimension

f the space.

ECE 753 Fault Tolerant Computing 19

Dimension of the space containing all n-bit

vectors is n

Dimension of the space containing all 2k linear

combinations of k vectors was no more than k.

– A binary (n,k) linear block code is a k- dimensional subspace of an n-dimensional vector space

SEC-DED Codes – Algebraic method (contd.)

A binary (n,k) linear block code can be described by a collection
f k carefully chosen vectors. Each code word is a linear

combination of these k-vectors, thus forming a k-dimensional subspace.

These k-vectors can be written as a k×n matrix G, called

Generator matrix. A code word for a k-bit information word, say vector a, is obtained by aG E l F th (7 4) H i d d ib d li

ECE 753 Fault Tolerant Computing 20

Example: For the (7,4) Hamming code described earlier

p1 p2 i1 p4 i2 i3 i4 1 1 1 0 0 0 0 1 0 0 1 1 0 0 = G 0 1 0 1 0 1 0 1 1 0 1 0 0 1 Note: a code word is a linear combination of rows of G

SEC-DED Codes – Algebraic method (contd.)

Two vectors v1 and v2 are orthogonal if v1 . v2 = 0
The G matrix can also be represented by an r×n matrix H in

which each n vector of H is orthogonal to every vector of G.

Hence GHT = 0
dim G + dim H = n

Example: For the (7 4) Hamming code described earlier the H

ECE 753 Fault Tolerant Computing 21

Example: For the (7,4) Hamming code described earlier the H

matrix is:

p1 p2 i1 p4 i2 i3 i4 1 0 1 0 1 0 1 0 1 1 0 0 1 1 = H 0 0 0 1 1 1 1

Check that GHT = 0

SEC-DED Codes – Algebraic method (contd.)

There are two ways to encode data words

– Use G (generator) matrix – Use H (parity check) matrix

We will use H – being of lower dimensionality
Consider the following representation of H

H = [ Pr | Ir ], where Pr is r×k matrix and Ir is r×r matrix

Consider a code word (a1, a2, … , ak, p1, p2 … pr)
We can wirite parity check equations from the above H i e from

ECE 753 Fault Tolerant Computing 22

We can wirite parity check equations from the above H, i.e. from HaT

Example: For the (7,4) Hamming code we can write H matrix

as:

a1 a2 a3 a4 p1 p2 p4 1 0 1 1 1 0 0 1 1 0 1 0 1 0 = H 0 1 1 1 0 0 1

Can obtain previous parity equations from this H in a simple

manner

SEC-DED Codes – Algebraic method (contd.)

Note the H is specified such that all information bits

stay intact & together and check bits stay together and depend only on information bits

A code specified by an H of the above type is called a

systematic code

ECE 753 Fault Tolerant Computing 23

y

– Data bits and check bits stay separate from each other – It is easy to extract data bits from a code word

Statement: rearrangement of columns of H does not

change the code. All it does is that it changes the position of the check bits and information bits

Question: when can we write an arbitrary H in

systematic form?

SEC-DED Codes – Algebraic method (contd.)

Theorem: H, an r×n matrix and rank(H) = r (rank r

means H contains r linearly independent columns), then H can be transformed to a systematic form

– Row operation on H means linear combination of parity check equations. Thus solution of equations does not change

ECE 753 Fault Tolerant Computing 24

change – First rearrange columns of H such that last r columns are linearly independant – Next find a matrix M such that M performs row operations on H such that M when multiplies the last r columns, it gives an unity r×r matrix. Thus M in fact is the inverse of the matrix that consists of the last r columns of H – Now the the matrix MH will be in systematic form

Example in class

SLIDE 5

2/27/2014 5

SEC-DED Codes – Algebraic method (contd.)

Definition: Syndrome S of an n-bit x word is

S = HxT Note – S is an r-bit vector

Note also in the above equation xT provides a linear combination
f columns of H
Example consider a (6,3) systematic H and consider a 6-bit

ECE 753 Fault Tolerant Computing 25

vector x

Theorem: for an (n,k) linear block code represented by H the

syndrome of every code word is 0

– Proof is more or less based on the way we have defined a block code and H matrix

Definition: Error word, E, is a vector that represents where a

codeword is erroneous

Example in class to define all these terms

SEC-DED Codes – Algebraic method (contd.)

Theorem: let C be a code word and E be an error

word, i.e. C’ = C + E is the erroneous word (code word with error in it). Let S’ be the syndrome of the word C’ then S’ = HET

Theorem: A linear block code represented by H is

ECE 753 Fault Tolerant Computing 26

Theorem: A linear block code represented by H is SEC if and only if the columns of H are distinct and non zero

Theorem: A linear block code represented by H is

SEC-DED if:

– All columns of H are distinct and non zero – Sum of any two columns of H is non zero and is not equal to a third column of H

SEC-DED Codes – Algebraic method (contd.)

Consider an H matrix in which each column has odd number of

1’s code generated by such an H matrix is called odd weight column code

Example: consider r = 4. Let us consider an H, a 4×8 matrix:

1 1 1 1

ECE 753 Fault Tolerant Computing 27

1 0 0 0 0 1 1 1 0 1 0 0 1 0 1 1 = H 0 0 1 0 1 1 0 1 0 0 0 1 1 1 1 0 wt = 1 columns wt = 3 columns This is a (8,4) SEC-DED code

Theorem: Odd weight column code is a SEC-DED code
Theorem: Hamming code with overall parity is a SEC-DED code

SEC-DED Codes – Algebraic method (contd.)

Shortened codes

– Some times we are interested in code that do not exactly satisfy the bound derived for perfect Hamming codes. For example consider the case when k=8. Clearly we will need r=5. But we do not want to have a (15,11). What we want a

ECE 753 Fault Tolerant Computing 28

(12,8) code. Following result comes handy to design such codes and still have error correction capability – Result: Deleting columns of H does not alter the error correction capability of the corresponding code

Proof: the conditions stated in the theorem (for example

columns remaining odd weight columns, or no two columns being identical) do not change by deleting columns of H.

What columns to delete? See next hardware issue.

SEC-DED Codes –Hardware

Encoding hardware

K inf bits

ECE 753 Fault Tolerant Computing 29

XOR Tree

R check bits

K inf bits

SEC-DED Codes –Hardware (contd.)

Decoding hardware – Algorithm

– Compute syndrome S – If S = 0 then no error – If S ≠ 0 { decode S

ECE 753 Fault Tolerant Computing 30

{

– If S is in range (decoded S ≤ n) then correct sth bit – Else there is an uncorrectable error

}

Note: it is easy to determine if S is 0
Decoding S is also straight forward
Correction implies a bit flip (EOR operation)

SLIDE 6

2/27/2014 6

SEC-DED Codes –Hardware (contd.)

Decoding hardware – Implementation

k r

ECE 753 Fault Tolerant Computing 31

EOR tree

Error corrector n EORs Syndrome

n . . .

r

nor

and

decoder

Corrected word

SEC-DED Codes –Hardware (contd.)

Hardware simplification

– Reduce number of EORs

Have as few 1s in the matrix as possible

Reduce delay depth of EOR tree

ECE 753 Fault Tolerant Computing 32

– Reduce delay – depth of EOR tree

Have as few 1s in each row of H as possible

SEC-DED-SBD Codes

Motivation

– Many memories are organizes as byte

riented

– Failures manifest themselves as follows

Random failure – bit error

ECE 753 Fault Tolerant Computing 33

Chip failure – byte error

– Objective is to detect such byte errors while detect and correct random errors. Hence the error model

Single random error
Multiple errors limited within a byte

SEC-DED-SBD Codes (contd.)

Theorem (Reddy): Let E1 and E2 be

two sets of error patterns and E1∩E2 = φ. A linear block described by H can correct all errors in E1 and detect all errors in E if and only if

ECE 753 Fault Tolerant Computing 34

errors in E2 if and only if

a) For e in E1∪E2 HeT ≠ 0 b) For ei, ej in E1 Hei

T ≠ Hej T and

c) For an ei in E2 there is no ej in E1 such that Hei

T = Hej T

SEC-DED-SBD Codes (contd.)

To demonstrate the use of the theorem, let us look

at an example H matrix and its capabilities for a small byte (nibble) size

b = number of bits in each memory card
n = total number of bits in a code word

ECE 753 Fault Tolerant Computing 35

r = number of check bits
n = b(2r-b+1 –1)
For b = 4 and r = 5 we have n = 12. Thus we will

construct a (12,7) code which will be able to correct any single error and detect errors confined to 4-bit nibbles

SEC-DED-SBD Codes (contd.)

Many parts of the code are shown as blocks

in the following figure

Correction

ECE 753 Fault Tolerant Computing 36

Detect mult Errors in byte Correction part

SLIDE 7

2/27/2014 7

SEC-DED-SBD Codes (contd.)

Now let us look at the complete matrix

0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 1 1 1 1

ECE 753 Fault Tolerant Computing 37

1 0 0 0 1 0 0 0 1 0 0 0 0 1 0 1 0 1 0 1 0 1 0 1 0 0 1 1 0 0 1 1 0 0 1 1

SEC-DED-SBD Codes (contd.)

The capability can be proven as follows
E1 single error, E2 errors limited to 4-bit

nibbles

All columns are non-zero and any

combinations of columns within 4-bit nibble are also non-zero

ECE 753 Fault Tolerant Computing 38

are also non-zero

All columns are distinct – providing single

error correction capability

The last 3 rows provide guarantee that no

combination of errors limited to a nibble will have a syndrome identical to single error syndrome

SEC-DED-SBD Codes (contd.)

Two comments

– The code can be converted to a systematic code – Distance of the code can be increased by 1 to make it a DED code

ECE 753 Fault Tolerant Computing 39

– This code can also be shortened

Summary

Why ECC in Fault tolerance
Hamming code – by example
Algebra and Algebraic coding

ECE 753 Fault Tolerant Computing 40

– Codes – Hardware

SEC-SBD code
