1/22/2015 Origin of Soils The Geological Cycle 1 1/22/2015 Igneous Rocks Igneous Rocks Intrusive magma cools slowly, producing coarse-grained rocks such as GRANITE Extrusive magma cools quickly, producing fine-grained rocks such as BASALT 2

slide-1
SLIDE 1

1/22/2015 1

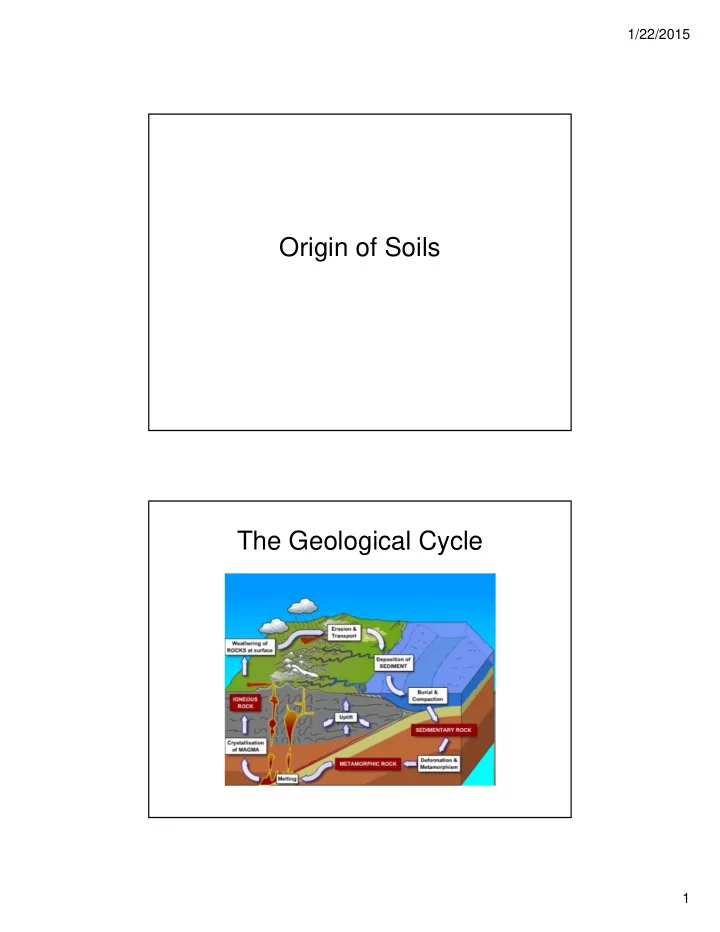

Origin of Soils The Geological Cycle

slide-2
SLIDE 2

1/22/2015 2

Igneous Rocks Igneous Rocks

Intrusive magma cools slowly, producing coarse-grained rocks such as GRANITE Extrusive magma cools quickly, producing fine-grained rocks such as BASALT

slide-3
SLIDE 3

1/22/2015 3

Physical Weathering

Wind Water Earthquakes Landslides Freeze/Thaw Cycles Growth of Ice, Salt Crystals Growth of Plant Roots

Chemical Weathering

Oxidation – chemical addition of oxygen Reduction – addition of hydrogen or removal of oxygen Hydration – chemical addition of water Carbonation – dissolution by carbonic acid

slide-4
SLIDE 4

1/22/2015 4

Products of Weathering

Rock Type Granite Basalt Shale / Slate Sandstone Limestone Soil Type Silty Sands Clayey Soil Clay / Silt Sand Clay / Silt

Transportation / Deposition

Transporting Agent Gravity Water

Streams Rainfall

Ice Wind Soil Type Colluvial Alluvial

Fluvial Pluvial

Glacial Aeolian

slide-5
SLIDE 5

1/22/2015 5

Sedimentary Rocks

www.docstoc.com

Detrital Sedimentary Rocks

Formed when sediment consolidates under the weight of overlying soil or is cemented in place by minerals (SiO2, CaCO3, FeO, MgO)

Gravel = conglomerate (rounded) or breccia (angular) Sand = sandstone Silt = siltstone Clay = shale (foliated) or mudstone (massive)

slide-6
SLIDE 6

1/22/2015 6

Biochemical Sedimentary Rocks

Formed by biological / chemical processes

Limestone – CaCO3 deposited by organic or inorganic processes Chalk – CaCO3 deposited by single-cell animals in ocean environment Gypsum – CaSO4 precipitate formed by the evaporation of seawater Rock salt – NaCl precipitate formed by the evaporation of seawater Coal – Carbon formed from decomposing plant and animal matter

Metamorphic Rocks

Produced when rocks are changed by combination

  • f heat, pressure, shearing stresses

Granite  Gneiss Basalt  Schist Shale  Slate  Schist Sandstone  Quartzite Limestone  Marble

slide-7
SLIDE 7

1/22/2015 7

Soil Deposits Residual Soils

http://echo2.epfl.ch/VICAIRE/mod_3/chapt_1/main.htm

slide-8
SLIDE 8

1/22/2015 8

Colluvial Soils (Talus Slope)

GeologyCafé.com

Braided Streams

http://www.mccullyweb.com/glossary/defs/braided.jpg

slide-9
SLIDE 9

1/22/2015 9

Meandering Streams

http://www.scienceclarified.com/landforms/images/ueol_03_img0108.jpg

Youthful Streams

http://www.personal.kent.edu/~cschweit/Stark/Romaniastream.gif

slide-10
SLIDE 10

1/22/2015 10

Mature Streams

http://faculty.ccc.edu/cdl/Courses/geology201/labs/streams/Streams.htm

Meander Topography

http://www.ohiodnr.com/Portals/7/pubs/fs_gifs/stfs03fig4.gif

slide-11
SLIDE 11

1/22/2015 11

Old Age Streams

http://notendur.hi.is/oi/Siberia%20photos/Meandering%20river%20on%20the%20Yamal%20tundra.jpg

Alluvial Soil (Alluvial Fan)

http://www.rmnp.com/RMNP-Areas-HorseshoePark-AlluvialFan.html

slide-12
SLIDE 12

1/22/2015 12

Alluvial Soil (River Delta)

http://www.alaska-in-pictures.com/data/media/19/kenai-river-delta_1958.jpg

Lacustrine Soil (Varved Clay)

http://www.anr.state.vt.us/DEC/GEO/images/varveswaterbury.jpg

slide-13
SLIDE 13

1/22/2015 13

Glacial Soils

coxclasses.com

Glacial Till

http://polar3.home.att.net/northpole-pics/thule/thule-glacial-rubble.jpg

slide-14
SLIDE 14

1/22/2015 14

Glacial Till

http://jesse.usra.edu/articles/iceagemodule/resources/images/moraine_till_svalbard.jpg

Glacial Till

http://www.sfu.ca/geog351fall02/gp2/geography/PROJECT/till.jpg

slide-15
SLIDE 15

1/22/2015 15

Outwash Plains

coxclasses.com

Outwash Plains

http://imgarcade.com/1/glacial-outwash-diagram/

slide-16
SLIDE 16

1/22/2015 16

Aeolian Soil (Dust Storm) Aeolian Soil (Sand Storm)

slide-17
SLIDE 17

1/22/2015 17

Aeolian Soil (Volcanic Ash) Origins of Loess

http://esp.cr.usgs.gov/info/eolian/14.gif

slide-18
SLIDE 18

1/22/2015 18

Loess in the US

http://esp.cr.usgs.gov/info/eolian/1213.gif

Loess

http://www.outreach.canterbury.ac.nz/resources/geology/glossary/loess.jpg

slide-19
SLIDE 19

1/22/2015 19

Loess

http://www.uamont.edu/facultyweb/francis/soilprofiles/WIowaLoessBluffs.jpg

Organic Soils

  • Found in low-lying areas where water

table is near or above the surface

  • Water promotes plant growth which

decomposes to form organic soils

  • Tend to have a high water content
  • Tend to be highly compressible
  • Consolidate over time as water is expelled

due to loads applied to the soil

slide-20
SLIDE 20

1/22/2015 20

Organic Soils (Peat Bog)

https://www.flickr.com/photos/14716771@N05/8281432745/
