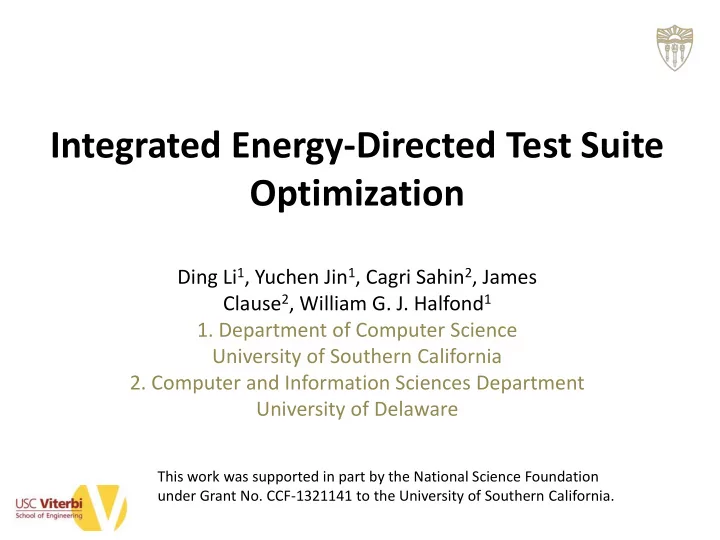

Integrated Energy-Directed Test Suite Optimization

Ding Li1, Yuchen Jin1, Cagri Sahin2, James Clause2, William G. J. Halfond1

  • 1. Department of Computer Science

University of Southern California

  • 2. Computer and Information Sciences Department

University of Delaware

This work was supported in part by the National Science Foundation under Grant No. CCF-1321141 to the University of Southern California.

slide-2
SLIDE 2

A Background Story

1

Alice Earthquake monitor LA metro area Battery supported In mountains On dams Changing batteries is expensive No stable power supply Need in situ testing

slide-3
SLIDE 3

Alice’s Problem

  • In situ testing is required

– But it consumes precious battery energy

  • Batteries have to be changed frequently

– But it is difficult to change them

2

slide-4
SLIDE 4

Test Suite Minimization

3

1.4 mJ 2.8 mJ

slide-5
SLIDE 5

Current Solution

  • Energy is not considered [G. Rothermel et al.] [S. Yoo et al.]

– Optimize the size – Optimize the execution time

  • These methods may not generate the optimal

solution

– On average, the least energy expensive test suite consumes ≈18 % less energy than the smallest test suite, despite being ≈11 % larger – Optimization of time also generates suboptimal solutions with respect to energy

4

slide-6
SLIDE 6

Motivation: Variance in Energy of Test Suites

5

The difference between two test suites with approximately the same code coverage can be large

slide-7
SLIDE 7

Our Solution: EDTSO

6

Test suite Minimization criteria Energy usage data Test related data Optimized test suite Problem builder ILP Solver Energy-directed Test Suite Optimizer

slide-8
SLIDE 8

The Minimization Workflow

7

Minimization Criteria Selection Minimization Test Suite Data Collection Embedded Device

Minimization Criteria Test Data Minimized Test Suite

Energy Profiling Embedded Device

Energy Data

In house In the field Execution Data Collection Energy Profiling Minimization

slide-9
SLIDE 9

EDTSO: Energy Profiling

  • 1. Instrument test cases to collect start and end

timestamps

– Can be fully automated for JUnit or TestNG

  • 2. Execute the test suits on an Energy

Measurement Platform (EMP)

– Many ways to implement EMP [Singh et al.] [Hao et al.]

  • 3. Map the logged time stamps to the energy

measurements

8

slide-10
SLIDE 10

EDTSO: Energy Minimization

  • Convert the energy minimization problem to

an ILP problem [Hsu et al.]

– Each test case is represented as a binary variable – Requirements are represented as constraints – Energy is coded as minimization target – Generate a set of values of all binary variables that meets all constraints but has minimal energy consumption

9

slide-11
SLIDE 11

EDTSO: Energy Minimization

  • We encode the test case selection problem as

a constrained minimization problem

  • The problem can be expressed as an Integer

Linear Programming (ILP) problem

– It is an NP-Complete problem – In practice is solvable in seconds

10

slide-12
SLIDE 12

EDTSO: Energy Minimization

11

slide-13
SLIDE 13

EDTSO: Energy Minimization

  • We encode the test case selection problem as

a constrained minimization problem

  • The problem can be expressed as an Integer

Linear Programming (ILP) problem

– It is an NP-Complete problem – In practice is solvable in seconds

12

slide-14
SLIDE 14

EDTSO: Energy Minimization

13

slide-15
SLIDE 15

EDTSO: Energy Minimization

  • We encode the test case selection problem as

a constrained minimization problem

  • The problem can be expressed as an Integer

Linear Programming (ILP) problem

– It is an NP-Complete problem – In practice is solvable in seconds

14

slide-16
SLIDE 16

EDTSO: Energy Minimization

15

slide-17
SLIDE 17

EDTSO: Energy Minimization

  • We encode the test case selection problem as

a constrained minimization problem

  • The problem can be expressed as an Integer

Linear Programming (ILP) problem

– It is an NP-Complete problem – In practice is solvable in seconds

16

slide-18
SLIDE 18

EDTSO: Energy Minimization

17

slide-19
SLIDE 19

EDTSO: Energy Minimization

  • We encode the test case selection problem as

a constrained minimization problem

  • The problem can be expressed as an Integer

Linear Programming (ILP) problem

– It is an NP-Complete problem – In practice is solvable in seconds

18

slide-20
SLIDE 20

EDTSO: Energy Minimization

19

slide-21
SLIDE 21

Evaluation

  • RQ 1: Effectiveness. How much energy can

EDTSO save?

  • RQ 2: Minimization time. How much time

does EDTSO need?

  • RQ 3: Proxy Measures. How is EDTSO’s

performance impacted by using proxy measures?

20

slide-22
SLIDE 22

Evaluation: Protocol

  • Hardware platform: LEAP

– An embedded x86 platform based on an ATOM N550 processor that runs Android 3.2

  • Structural coverage

– Technique of Thomas Ball and James Larus

  • Energy measurement: DAQ

– Connected to the LEAP – Profiles the energy consumption at 10 kHz

  • Time measurement: instrumented time stamps

21

slide-23
SLIDE 23

Evaluation: Protocol

  • To generate more test suites

– We randomly selected 10,000 subsets of each test suite – We grouped the generated subsets into 10 groups based on coverage level wrt original test suite (i.e. 0%-10%, ... 90%-100%)

22

slide-24
SLIDE 24

Evaluation: Benchmarks

Subject Description LOC #Tests c:geo Geocaching client 51,451 176 ConnectBot SSH client 50,581 22 K-9 Mail Email Client 71,816 38 MobileOrg Org-mode file manipulation 14,819 87 MyTracks Track user paths 35,039 310 Sky Map Astronomical map 21,121 134 Yaaic IRC client 19,293 28

23

They are real-world open source apps

slide-25
SLIDE 25

RQ 1: Effectiveness

  • Compare EDTSO to the traditional, size-

focused technique

– On average, 90% of the time EDTSO is generating a strictly more energy efficient test suite – The overall average improvement in energy is 3.8% to 17.9% – The maximum improvement is near 100%

24 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% c:geo ConnectBot K-9 Mail MobileOrg My Tracks Sky Map Yaaic

EDTSO generates more energy efficient test suites than size focused approaches

Frequency of EDTSO generating a more energy efficient test suite than traditional size focused approach

slide-26
SLIDE 26

RQ 2: Minimization Time

  • We measure the absolute time of EDTSO

– All 70,000 generated subsets are minimized in less than 1 second

  • We compare the minimization time of EDTSO

to traditional size-focused approach

– Only Yaaic has a significant difference (p > 0.05) – But its effect size is small (0.56)

25

There is no significant difference in terms of minimization time

slide-27
SLIDE 27

RQ 3: Proxy Measurement

  • Compare the energy savings using time to

energy savings using EDTSO

– On average, 55% of the time EDTSO is generating a strictly more energy efficient test suite – The overall average loss in energy saving is 0.1% to 5.3% – The maximum loss is near 60%

26

Time can be a proxy measurement when EMP is not available, but it still generates sub-optimal solutions

Frequency of EDTSO generating a more energy efficient test suite than using time as a proxy measurement `

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% c:geo ConnectBot K-9 Mail MobileOrg My Tracks Sky Map Yaaic

slide-28
SLIDE 28

Conclusion

  • EDTSO minimizes the energy of in situ test suites
  • EDTSO can be integrated into current test suite

minimization workflows

  • We evaluated EDTSO on realistic market apps

– Saved up to 95% energy compared to traditional size focused approach – Using time as a proxy measurement may lose up to 60% of energy savings – EDTSO was as fast as traditional approaches
