Optimal Design of Multi-Purpose Reservoir System to Meet Water Demands in Townsville Michael V. Sarunn Supervisor: Dr. Bithin Datta 12-9-2017 Discipline of Civil Engineering 1 16% 2 1 2 Haughton pipeline duplication Hells Gate Dam.

slide-1
SLIDE 1

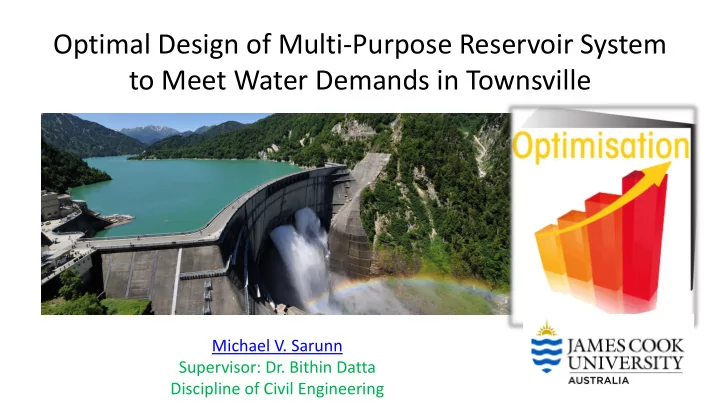

Optimal Design of Multi-Purpose Reservoir System to Meet Water Demands in Townsville

Michael V. Sarunn Supervisor: Dr. Bithin Datta Discipline of Civil Engineering

12-9-2017

1

slide-2
SLIDE 2

2

16%

slide-3
SLIDE 3

SOLUTIONS

Haughton pipeline duplication

  • scheduled to begin in 2019

1

Hells Gate Dam.

  • A feasibility is being done

2

slide-4
SLIDE 4

HELLS GATE

slide-5
SLIDE 5

MULTIPURPOSE RESERVOIR

slide-6
SLIDE 6

6

slide-7
SLIDE 7

CAPITAL AND RECURRING COST

7

Duplication Pipeline

slide-8
SLIDE 8

OPTIMISATION

8

Non-Dominated Sorting Genetic Algorithm-II (NSGAII)

slide-9
SLIDE 9

CUMULATIVE PROBABILITY – 50 YRS DATA

9

Inflow = [18, 19, 22.5, 3.8, 2, 1.7, 1.7, 1.5, 0.93, 0.58, 4, 27.8]; total = 103.5 GL; 10% cumulative probability Inflow = [56.3, 74, 70, 9.6, 7.3, 6, 3.8, 2.5, 1.6, 1.83, 4, 17.6]; total = 254.5 GL; 30% cumulative probability 10% means 5 times in 50 years, the inflow <= 103.5 GL 30% means 15 times in 50 years, the inflow <= 254.5 GL

slide-10
SLIDE 10

OPTIMISATION MODELS

 F1 = minimise Capacity  F2 = minimise Deviation = 𝑢=1

12 (𝑆(𝑢) − 𝐸(𝑢))2

 F1 = minimise Capacity  F2 = - Maximise power = 𝑢=1

12 𝐹 𝑇 ∗𝑆(𝑢)∗9.81∗1000 86400∗730

[Mw]

10

slide-11
SLIDE 11

CONSTRAINTS

 Capacity >= storage  𝑇𝑢+1 = 𝑇𝑢 + [𝐽𝑢 − (𝑆(𝑢)+ 𝐹𝑤𝑏𝑞𝑀𝑝𝑡𝑡𝑢)]

11

slide-12
SLIDE 12

Capacity Release (12 months) X(1) X(2) X(3) X(4) X(5) X(6) X(7) X(8) X(9) X(10) X(11) X(12) X(13) Storage (12 months) X(14) X(15) X(16) X(17) X(18) X(19) X(20) X(21) X(22) X(23) X(24) X(25) Power (12 months) X(26) X(27) X(28) X(29) X(30) X(31) X(32) X(33) X(34) X(35) X(36) X(37)

Solving for 25 to 37 unknowns

slide-13
SLIDE 13

13

Optimisation Model 1

10% Cumulative Probability, 10% Initial Storage

Total Avg Demand 30.6 24.5 26.4 24.4 20.7 19 19.3 23 27.4 33.2 32.9 33.7 315.1 26.3 Release 25.0 22.1 21.5 22.1 20.5 18.4 20.3 20.7 21.1 24.3 23.9 25.8 265.8 22.1 Differenc e

  • 5.6
  • 2.4
  • 4.9
  • 2.3
  • 0.2
  • 0.6

1.0

  • 2.3
  • 6.3
  • 8.9
  • 9.0
  • 7.9
  • 49.34
  • 4.1
slide-14
SLIDE 14

14

Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Total Demand (GL) 30.6 24.5 26.4 24.4 20.7 19 19.3 23 27.4 33.2 32.9 33.7 315.1 Release (GL) 30.7 24.6 26.4 24.5 20.8 19.0 19.3 23.1 27.4 33.3 32.9 33.8 315.8 Difference (GL) 0.07 0.05 0.02 0.06 0.14 0.05 0.04 0.08 0.03 0.07 0.04 0.05 0.7

30% Cumulative Probability, 50% Initial Storage

slide-15
SLIDE 15

POWER VS CAPACITY

MODEL 2

15

slide-16
SLIDE 16

16

Optimisation Model 2

10% cumulative probability

slide-17
SLIDE 17

17

30% cumulative probability, 50% initial storage

Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Total Demand (GL) 30.6 24.5 26.4 24.4 20.7 19 19.3 23 27.4 33.2 32.9 33.7 315.1 Release (GL) 28.31 27.66 28.55 25.18 28.99 26.93 25.09 22.70 26.52 26.77 28.04 25.88 320.6 Difference

  • 2.3

3.2 2.2 0.8 8.3 7.9 5.8

  • 0.3
  • 0.9
  • 6.4
  • 4.9
  • 7.8

5.5

slide-18
SLIDE 18

MONTHLY RELEASES FOR POWER

18

Capacity Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Total 274.0 27.2 25.4 28.0 24.0 29.2 26.6 23.4 20.4 27.1 27.6 26.7 24.9 310.4 273.8 26.7 27.9 29.4 24.7 28.5 26.7 24.5 22.0 25.8 24.9 25.9 24.5 311.5 277.0 29.6 27.1 29.7 25.3 29.4 25.8 25.3 21.5 26.1 26.5 28.0 27.4 321.8 274.0 28.0 28.4 27.3 24.8 28.4 27.5 23.7 23.2 27.4 26.5 28.3 24.4 318.1 275.3 28.2 27.5 28.8 25.8 30.0 26.3 24.5 23.0 26.3 27.6 28.4 26.3 322.8 283.9 28.5 28.4 29.2 25.3 29.8 25.9 25.4 22.3 26.3 28.4 30.1 26.5 326.2 273.7 27.8 27.7 28.3 24.2 28.0 27.4 23.9 20.7 25.2 25.9 26.5 24.7 310.2 276.0 30.2 28.5 27.4 24.7 29.9 28.9 26.0 22.7 26.1 27.5 27.3 26.6 325.8 275.3 27.1 27.1 28.5 25.4 27.9 27.6 25.7 22.1 25.9 26.8 27.2 24.7 315.9 274.5 28.2 27.7 29.2 24.2 29.3 27.2 24.9 22.7 25.3 26.3 28.0 26.5 319.5 275.3 26.8 26.5 29.8 25.3 29.1 27.5 24.8 20.9 27.8 25.9 26.7 26.2 317.5 278.0 28.3 28.0 28.7 25.3 28.3 26.6 25.2 22.6 26.7 27.6 30.0 26.7 324.0 280.9 30.1 28.2 27.7 26.9 29.3 26.3 26.6 26.3 27.7 27.5 28.6 25.9 331.1 274.4 27.1 26.9 28.0 25.1 28.3 26.2 25.1 24.6 27.4 24.8 27.6 24.8 315.9 276.15 28.14 27.52 28.57 25.07 28.97 26.89 24.94 22.50 26.51 26.70 27.81 25.72 319.3 276.15 28.14 27.52 28.57 25.07 28.97 26.89 24.94 22.50 26.51 26.70 27.81 25.72 319.34

slide-19
SLIDE 19

CONCLUSION

  • RESERVOIRS SERVE MANY PURPOSES.
  • MUCH TO BE GAINED FROM THE CONSTRUCTION OF THE DAM
  • GENETIC ALGORITHM (NSGA-II) CAN BE USED TO DETERMINE RELEASE POLICIES
  • THE MODEL SHOWS THAT:
  • 1. CAPACITY OF THE DAM RANGE FROM 200 - 280 GL WITH 70% PROBABILITY

OF EXCEEDING THIS AMOUNT

  • 2. WITH 30% CUMULATIVE PROBABILITY
  • HYDRO-ELECTRIC POWER VARIES BETWEEN 15 - 29 MW PA.

19

slide-20
SLIDE 20

20

slide-21
SLIDE 21

TOWNSVILLE WATER DEMAND

21

2016 2036 Townsville Population 199358 288593 Growth Rate 1.96% 1.72% Annual Demand Projections (ML) 60000 86857 Daily Demand (ML) 164.4 238.0
