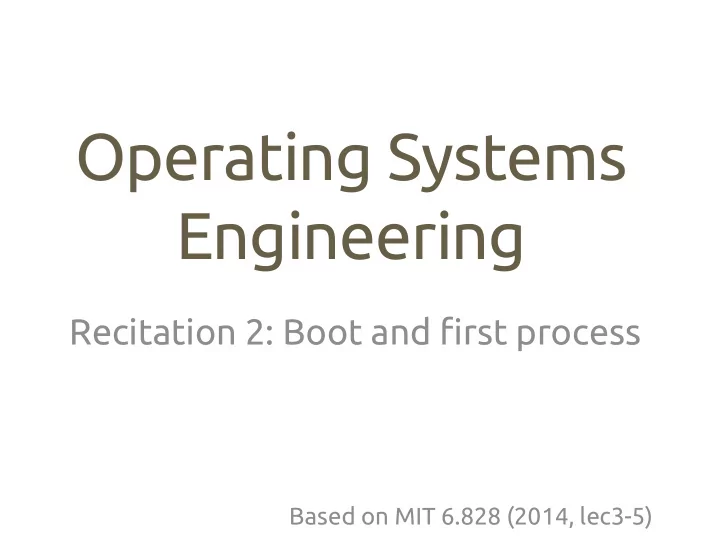

Operating Systems Engineering

Based on MIT 6.828 (2014, lec3-5)

Recitation 2: Boot and fjrst process

Focus on xv6

• An educational OS based on UNIX V6
• only a few abstractions \ services
• Processes
• File system
• I/O (via fjle descriptors)

Power on (“boot”) the machine

• Initial state

– nothing in RAM, need to read kernel from disk

• BIOS in charge, start bootloader (sheets 84-85)

– copy fjrst “boot” sector to 0x7c00 in mem – boot sector = bootasm.S + bootmain.c – executing at end of bootasm.S – stack below 0x7c00, so we can call into C – call bootmain

xv6 – bootloader (1)

• Bootloader in charge:

– bootmain() – sheet 85

• Two jobs:

– copy kernel from disk to mem (0x100000 phys addr)

• not fjle–-sectors, raw disk
• linker writes in ELF format

– jump to kernel's fjrst instruction

• elf->entry
• objdump -f kernel or readelf -e kernel
• kernel.ld and entry.S

xv6 – bootloader (2)

• Why phys address 0x100000 (1MB)?

– can't use 0x0

memory mapped devices 0x0->1M →

– can use 0x200000 (2MB)?

• yes! it is possible
• Bootloader can load kernel to phys address if

– it is a DRAM address – kernel must be able to fjnd itself

• 0x100000 satisfjes both conditions

xv6 – bootloader (3)

• Where bootmain jumps?

– entry->elf_entry from ELF header – not 0x100000 but 0x10000c

• this is "start", in entry.S, sheet 10

– linker put 0x10000c in the ELF header

• (gdb) b *0x10000c (entry.S)
• (gdb) si
• continue and then si to jmp *%eax
• (gdb)

#0 0x801033b2 in main () at main.c:19

xv6 – processes

• Process has user space memory:

– instructions - actual computation fmow – data - variables used in computation – stack – organize procedures calls

• Per-process state private to the kernel

– page table – kernel stack – fjle descriptor table

xv6 – Process Isolation

• Prevent process X from spying on Y
• Prevent process X from corrupting Y

– Separated memory, fjle descriptors – Prevent resource exhaustion (fairness)

• Protect kernel from processes
• Defensive tactic

– Against buggy programs – Against malicious programs

xv6 – Isolation Mechanisms

• User/Kernel mode fmag
• System call abstraction
• Address spaces
• Timeslicing

User/Kernel Mode Flag

• Called CPL in x86
• Bottom two bits of the cs register
• CPL=0 – kernel mode – privileged
• CPL=3 – user mode – not privileged

cs: CPL

User/Kernel Mode Flag

• CPL is the base to almost every isolation

– CPL in low 2 bits of CS – CPL=0 -> can modify cr*, devices, can use any PTE – CPL=3 -> can't modify cr*, or use devs, and PTE_U enforced

• Writes to control registers (cs, for instance)
• Writes to certain fmags
• Memory access
• I/O Port access
• However, setting CPL=3 is not enough
• Kernel needs to manage policy

System calls System calls System calls

• Call from user to kernel – needs to change CPL
• Can this be done?

– set CPL=0 – jump sys_open()

• How about a combined instruction that forces

the user to jump to a kernel address?

System calls - x86 solution

• Kernel sets allowed entry points
• int instruction sets CPL=0 and jumps

– saves the values of cs and eip on stack – system call returns with iret – restores old cs and eip

• Should these instructions be privileged?

xv6 – First Process (1)

• Each process state in struct proc (2103)
• Process states

– UNUSED, EMBRYO, SLEEPING, RUNNABLE,

RUNNING, ZOMBIE

• Each process address space maps

– program memory (<0x80000000) – kernel instructions and data (>0x80100000)

xv6 – First Process

• Each process has two stacks: user and kernel
• Thread of execution (aka thread)

– p->kstack + code – p->state – p->pgdir

• When in user mode kernel stack empty
• When in kernel (syscall) user stack contains data but not used

– thread state stored in kernel stack:

• local variables
• return address

xv6 – Virtual Memory Layout

• 0x80000000=KERNBASE
• memlayout.h (0207)

xv6 – First Address Space

• main.c

main() sheet 12 →

• First process (see userinit, 2252)

– allocproc() sheet 22, set up stack for "returning" to user space

• save trapret (3027)
• p->context->eip = forkret (2533) , ret will run forkret
• forkret will return to trapret (3027), then to userpace

– Fill in kernel part of address space (setupkvm) – Fill in user part of address space

• 1 page containing initcode (see initcode.S)

– Setup trapframe to exit kernel

• User-mode bit
• tf->eip = 0 (beginning of initcode.S)
• User-stack lives at top of 1 page of initcode

– Set process to runnable

xv6 – trap frame

• Kernel stack after allocproc()
• Ready to return to user space
• trapasm.S (3027) :

trapret:

popal popl %gs popl %fs popl %es popl %ds addl $0x8, %esp # trapno # and errcode iret

xv6 – First System Call exec()

• initcode.S (7708) calls exec “/init”
• Instruction int enters kernel again
• System call exec (3207)

– replace initcode with /init binary – run /init which

• creates new console
• start shell
• handles orphaned zombies
• system is up

Questions?

Backup Slides

xv6 – A Monolithic Kernel

• Kernel is a big program
• Contains all services, low level

hardware mechanisms

• Entire kernel runs with full

privileges

• Pros

– easy kernel subsystem interactions

• Cons

– complex interactions => bugs => system crash – no isolation in the kernel

• Unix, Linux, BSD family, Solaris, xv6

Micro Kernel

• Kernel is a small program

– A micro kernel tries to run most

services as daemons in user space.

• Only kernel runs with full privileges
• Microkernel is essentially a high

speed context-switching engine

• Pros

– complex service interactions => bugs => service crash but system alive! – kernel isolated from services, services isolated from user

• Cons

– complex OS subsystem interactions using IPC – a lot of of messaging and context switching involved

• MINIX, QNX, L4

Exo Kernel

• Kernel is a very small program

– concept of an exokernel is orthogonal

to that of micro- vs. monolithic kernels.

– there are no forced abstractions – security separated from abstraction

• Kernel and users can run with full

privileges

• Pros

– simplicity and performance – freedom: users can implement their own optimal subsystems

• Cons

– additional efgort from users and system maintainers

• JOS, nonkernel, BareMetal OS
