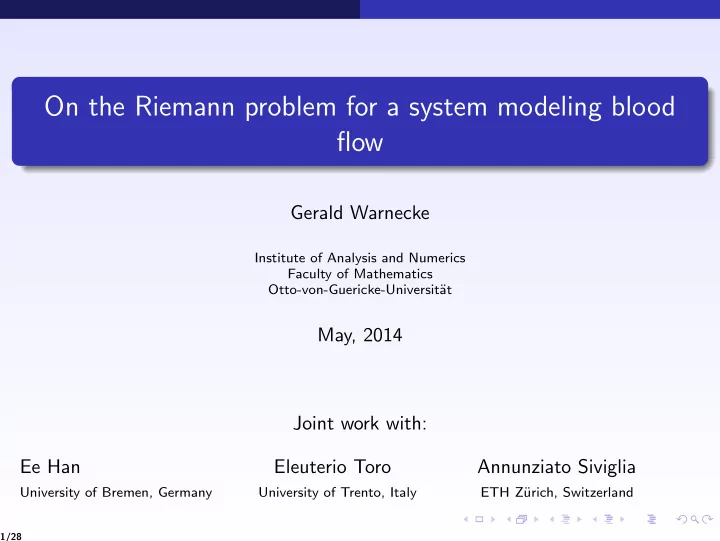

On the Riemann problem for a system modeling blood flow

Gerald Warnecke

Institute of Analysis and Numerics Faculty of Mathematics Otto-von-Guericke-Universit¨ at

May, 2014 Joint work with: Ee Han Eleuterio Toro Annunziato Siviglia

University of Bremen, Germany University of Trento, Italy ETH Z¨ urich, Switzerland

1/28

slide-2
SLIDE 2

Outline

1

Background and model

2

Mathematically related models

3

Riemann problem and mathematical structure

4

L–M and R–M curves L–M curve in Case IIl Examples L–M curve in Case IVl Examples

5

Conclusions and outlook

2/28

slide-3
SLIDE 3

Background and model

Figure: http://www.hopkinsmedicine.org

3/28

slide-4
SLIDE 4

Background and model

Blood in compliant vessels of medium and large diameter

4/28

slide-5
SLIDE 5

Background and model

Blood in compliant vessels of medium and large diameter

continuum and incompressible liquid in thin collapsible tubes

4/28

slide-6
SLIDE 6

Background and model

Blood in compliant vessels of medium and large diameter

continuum and incompressible liquid in thin collapsible tubes

  • Fig. 1 Assumed axially symmetric vessel configuration in three space dimensions at time t. Cross

Figure: Assume blood vessel in 3D is axially symmetric axisymmetric incompressible Navier–Stokes equations + boundary conditions

4/28

slide-7
SLIDE 7

Background and model

Blood in compliant vessels of medium and large diameter

continuum and incompressible liquid in thin collapsible tubes

  • Fig. 1 Assumed axially symmetric vessel configuration in three space dimensions at time t. Cross

Figure: Assume blood vessel in 3D is axially symmetric axisymmetric incompressible Navier–Stokes equations + boundary conditions

Apply averaging procedure The radius of blood vessel is much smaller than length of blood vessel

4/28

slide-8
SLIDE 8

Background and model

Governing equations ∂tA + ∂x(Au) = 0, ∂t(uA) + ∂x(Au2 + AΨ

ρ ) − ΨAx ρ

= −Ru, ∂tK = 0, where A(x, t) - cross–sectional area of vessel u(x, t) - average velocity in cross sectional area

  • 1E. Toro and A. Siviglia, Commun. Comp. Phys. 13(2)(2011) 361-385.

5/28

slide-9
SLIDE 9

Background and model

Governing equations ∂tA + ∂x(Au) = 0, ∂t(uA) + ∂x(Au2 + AΨ

ρ ) − ΨAx ρ

= −Ru, ∂tK = 0, where A(x, t) - cross–sectional area of vessel u(x, t) - average velocity in cross sectional area ρ - constant density of blood

  • 1E. Toro and A. Siviglia, Commun. Comp. Phys. 13(2)(2011) 361-385.

5/28

slide-10
SLIDE 10

Background and model

Governing equations ∂tA + ∂x(Au) = 0, ∂t(uA) + ∂x(Au2 + AΨ

ρ ) − ΨAx ρ

= −Ru, ∂tK = 0, where A(x, t) - cross–sectional area of vessel u(x, t) - average velocity in cross sectional area ρ - constant density of blood Tube law for transmural pressure1 Ψ(x, t) = K(x) A A0 m − 1

  • 0 < m < 1 constant
  • 1E. Toro and A. Siviglia, Commun. Comp. Phys. 13(2)(2011) 361-385.

5/28

slide-11
SLIDE 11

Background and model

Material property variable K(x) = √π (1 − ν2)R0 E(x)h(x) √A0

A0, R0 - equilibrium cross sectional area and radius h - thickness of vessel walls E - Young’s modulus of elasticity ν - Poisson ratio

6/28

slide-12
SLIDE 12

Background and model

Material property variable K(x) = √π (1 − ν2)R0 E(x)h(x) √A0

A0, R0 - equilibrium cross sectional area and radius h - thickness of vessel walls E - Young’s modulus of elasticity ν - Poisson ratio

R = 2πνR

δ

due to viscous resistance of blood

6/28

slide-13
SLIDE 13

Background and model

Material property variable K(x) = √π (1 − ν2)R0 E(x)h(x) √A0

A0, R0 - equilibrium cross sectional area and radius h - thickness of vessel walls E - Young’s modulus of elasticity ν - Poisson ratio

R = 2πνR

δ

due to viscous resistance of blood Homogeneous simplified blood flow model ∂tA + ∂x(Au) = 0, ∂t(uA) + ∂x(Au2 + AΨ

ρ ) − ΨAx ρ

= 0, ∂tK = 0, Wave speed c(A, K) :=

  • A

ρ ΨA =

  • mK

ρ

  • A

A0

m . (1)

6/28

slide-14
SLIDE 14

Mathematically related models

Mathematically related models

The Baer-Nuntiato model for two-phase mixtures2 a - solid, b - gas

∂ca ∂t + ua ∂ca ∂x = Πa

c

∂caρa ∂t + ∂caρaua ∂x = Πa

ρ

∂caρaua ∂t + ∂(caρau2

a + capa)

∂x = pb ∂ca ∂x + Πa

M

∂caρaEa ∂t + ∂caua(ρaEa + pa) ∂x = pbua ∂ca ∂x + Πa

E

∂cbρb ∂t + ∂cbρbub ∂x = −Πa

ρ

∂cbρbub ∂t + ∂(cbρbu2

b + cbpb)

∂x = −pb ∂ca ∂x + −Πa

M

∂cbρbEb ∂t + ∂cbub(ρbEb + pb) ∂x = −pbua ∂ca ∂x + −Πa

E

  • 2N. Andrianov, W., J. Comput. Phys. 195 (2004) 234-264

7/28

slide-15
SLIDE 15

Mathematically related models

Mathematically related models

Duct flow, discontinuous duct area, extended model3               

∂a ∂t = 0, ∂aρ ∂t + ∂aρv ∂x

= 0,

∂aρv ∂t

+ ∂a(ρv2+p)

∂x

= p ∂a

∂x, ∂aρE ∂t

+ ∂av(ρE+p)

∂x

= 0, a(x) duct area, ρ(t, x), v(t, x), p(t, x) density, velocity and pressure respectively

(al, ρl, vl, pl) (ar, ρr, vr, pr) 3Ee Han, M. Hantke, W., J. Hyperbolic Diff. Eqns. 9(3) (2012) 403-449

8/28

slide-16
SLIDE 16

Mathematically related models

Mathematically related models

Shallow water system discontinuous bottom topography extended model4         

∂z ∂t = 0, ∂h ∂t + ∂hv ∂x = 0, ∂hv ∂t + ∂(hv2+g h2

2 )

∂x

= gh ∂z

∂x,

z(x) bottom topography, h(t, x), v(t, x), g water depth, velocity and gravitational constant respectively

4Ee Han, W., Quart. Appl. Math., to appear

9/28

slide-17
SLIDE 17

Riemann problem and mathematical structure

Riemann problem

Initial data (A, u, K) = (AL, uL, KL), x < 0, (AR, uR, KR), x > 0.

10/28

slide-18
SLIDE 18

Riemann problem and mathematical structure

Riemann problem

Initial data (A, u, K) = (AL, uL, KL), x < 0, (AR, uR, KR), x > 0. Serves as building block in theory and numerical methods

10/28

slide-19
SLIDE 19

Riemann problem and mathematical structure

Riemann problem

Initial data (A, u, K) = (AL, uL, KL), x < 0, (AR, uR, KR), x > 0. Serves as building block in theory and numerical methods Applications Figure: Abdominal aortic aneurysms (AAA)

10/28

slide-20
SLIDE 20

Riemann problem and mathematical structure

Riemann problem

Initial data (A, u, K) = (AL, uL, KL), x < 0, (AR, uR, KR), x > 0. Serves as building block in theory and numerical methods Applications Figure: Abdominal aortic aneurysms (AAA) Figure: Surgical treatment

10/28

slide-21
SLIDE 21

Riemann problem and mathematical structure

Mathematical structure

Eigenvalues: λ0 = 0, λ1 = u − c, λ2 = u + c Eigenvectors: R0 =   1

(u2−c2) c2

  , R1 =   1 u − c   , R2 =   1 u + c   . 0–wave (stationary wave), 1–wave, 2–wave 1– and 2–waves consist of shock and rarefaction waves

11/28

slide-22
SLIDE 22

Riemann problem and mathematical structure

Mathematical structure

Eigenvalues: λ0 = 0, λ1 = u − c, λ2 = u + c Eigenvectors: R0 =   1

(u2−c2) c2

  , R1 =   1 u − c   , R2 =   1 u + c   . 0–wave (stationary wave), 1–wave, 2–wave 1– and 2–waves consist of shock and rarefaction waves Features

Nonstrictly hyperbolic: Mutual position of stationary wave with the remaining two waves cannot be determined a priori Resonance occurs at the critical state (u2 = c2 ) R0 → Rk as λk → 0 when k = 1, 2

  • T. Liu (1982): In the resonant state waves of different families are not well

separated and coincide with each other

11/28

slide-23
SLIDE 23

Riemann problem and mathematical structure

Elementary wave curves of Riemann problem

The 1–wave curve T1(wL) and 2–wave curve T2(wR) are classical given by Tk(wq) = {w|u = uq ± fq(A; wq)} where fq(A; wq) :=       

2 m

  • mKq

ρ

  • A

A0

m − cq

  • ,

if A ≤ Aq

cq √m+1

  • A

Aq

m+1 − 1 1 − Aq

A

1

2

, if A > Aq and q = L when k = 1 and q = R when k = 2 T1(wL) is strictly decreasing while T2(wR) is strictly increasing in the (u, Ψ) phase plane

12/28

slide-24
SLIDE 24

Riemann problem and mathematical structure

Stationary wave curve

The additional stationary wave curve satisfies Aoutuout = Ainuin (2) 1 2 ρu2

  • ut + Kout

Aout A0 m − 1

  • =

1 2 ρu2

in + Kin

Ain A0 m − 1

  • (3)

Denote wout = J(Kout; win, Kin)

13/28

slide-25
SLIDE 25

Riemann problem and mathematical structure

Stationary wave curve

The additional stationary wave curve satisfies Aoutuout = Ainuin (2) 1 2 ρu2

  • ut + Kout

Aout A0 m − 1

  • =

1 2 ρu2

in + Kin

Ain A0 m − 1

  • (3)

Denote wout = J(Kout; win, Kin) Define a velocity function φ(u; win, Kin, Kout) by inserting (2) into (3) φ(u; win, Kin, Kout) =

1 2 ρu2 + Kout

  • Ainuin

A0u

m − 1

  • − 1

2 ρu2 in

−Kin

  • Ain

A0

m − 1

  • 13/28
slide-26
SLIDE 26

Riemann problem and mathematical structure

Stationary wave curve

The additional stationary wave curve satisfies Aoutuout = Ainuin (2) 1 2 ρu2

  • ut + Kout

Aout A0 m − 1

  • =

1 2 ρu2

in + Kin

Ain A0 m − 1

  • (3)

Denote wout = J(Kout; win, Kin) Define a velocity function φ(u; win, Kin, Kout) by inserting (2) into (3) φ(u; win, Kin, Kout) =

1 2 ρu2 + Kout

  • Ainuin

A0u

m − 1

  • − 1

2 ρu2 in

−Kin

  • Ain

A0

m − 1

  • Theorem of monotonicity .

Consider u∗ = sgn(uin)

  • mKout

ρ

Ain|uin|

A0

m

1 m+2 then the properties of the velocity function

are the following:

1

φ(u; win, Kin, Kout) decreases if u < u∗;

2

φ(u; win, Kin, Kout) increases if u > u∗;

3

φ(u; win, Kin, Kout) has the minimum value at u = u∗ and |u∗| = c∗, where c∗ = c(Kout, A∗) is defined in (1) and A∗ = Ainuin

u∗

.

13/28

slide-27
SLIDE 27

L–M and R–M curves

L–M and R–M curves

Closely resemble those of the Euler equations in discontinuous ducts and the shallow water equations with discontinuous bottom topography 5

5Han et al. (2011,2012,2013)

14/28

slide-28
SLIDE 28

L–M and R–M curves

L–M and R–M curves

Closely resemble those of the Euler equations in discontinuous ducts and the shallow water equations with discontinuous bottom topography 5 The discontinuous material property variable can be viewed as the limiting case of piecewise linear material property variables

5Han et al. (2011,2012,2013)

14/28

slide-29
SLIDE 29

L–M and R–M curves

L–M and R–M curves

Closely resemble those of the Euler equations in discontinuous ducts and the shallow water equations with discontinuous bottom topography 5 The discontinuous material property variable can be viewed as the limiting case of piecewise linear material property variables Stationary wave to the Riemann problem is a 0 width transition layer located at x = 0

5Han et al. (2011,2012,2013)

14/28

slide-30
SLIDE 30

L–M and R–M curves

L–M and R–M curves

Closely resemble those of the Euler equations in discontinuous ducts and the shallow water equations with discontinuous bottom topography 5 The discontinuous material property variable can be viewed as the limiting case of piecewise linear material property variables Stationary wave to the Riemann problem is a 0 width transition layer located at x = 0 We merge the stationary wave curve into the 1– or 2–wave curves and name these L–M and R–M curves

5Han et al. (2011,2012,2013)

14/28

slide-31
SLIDE 31

L–M and R–M curves

L–M and R–M curves

Closely resemble those of the Euler equations in discontinuous ducts and the shallow water equations with discontinuous bottom topography 5 The discontinuous material property variable can be viewed as the limiting case of piecewise linear material property variables Stationary wave to the Riemann problem is a 0 width transition layer located at x = 0 We merge the stationary wave curve into the 1– or 2–wave curves and name these L–M and R–M curves The L–M curve starting from (AL, uL) to (AM, uM), consists of a 1–shock curve S1, a 1–rarefaction curve R1, and/or the stationary wave curve (not necessarily present)

5Han et al. (2011,2012,2013)

14/28

slide-32
SLIDE 32

L–M and R–M curves

L–M and R–M curves

Closely resemble those of the Euler equations in discontinuous ducts and the shallow water equations with discontinuous bottom topography 5 The discontinuous material property variable can be viewed as the limiting case of piecewise linear material property variables Stationary wave to the Riemann problem is a 0 width transition layer located at x = 0 We merge the stationary wave curve into the 1– or 2–wave curves and name these L–M and R–M curves The L–M curve starting from (AL, uL) to (AM, uM), consists of a 1–shock curve S1, a 1–rarefaction curve R1, and/or the stationary wave curve (not necessarily present) The algorithm for finding the exact Riemann solutions: calculate (AM, uM) for given Riemann initial data construct the L–M and R–M curves

5Han et al. (2011,2012,2013)

14/28

slide-33
SLIDE 33

L–M and R–M curves

Cases of L–M curves with KL > KR

Case Il AP l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL ≤ cL; ul

c ≤ ul sc

Case IIl AP l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL ≤ cL; ul

c > ul sc

Case IIIl AP l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL > cL; ϕ

  • KR

KL ; wL

  • ≤ 0

Case IVl AP l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL > cL; ϕ

  • KR

KL ; wL

  • > 0; τ
  • KR

KL ; wL

  • ≤ 0

Case Vl AP l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL > cL; τ

  • KR

KL ; wL

  • > 0

Case V Il AP l

2

max < A0

  • 1 − KR

KL

1

m

where AP l

2

max =

   A0

  • ρ

mKL

1

m m

2 uL + cL

2

m ,

if uL ≤ 0 ALxu0

1,

if uL > 0 and xu0

1 is the solution

to xm+2 − xm+1 −

  • 1 + (m + 1)

uL cL 2 x + 1 = 0 The critical velocity ul

c = m m+2 uL + 2 m+2 cL and ul sc =

  • 2m

ρ(m+2) (KR−KL)

KR

KL

  • 2

m+2 −1 15/28

slide-34
SLIDE 34

L–M and R–M curves

Cases of R–M curves with KL > KR

Case Ir uR + cR ≥ 0; ur

c < −ur sc

Case IIr uR + cR ≥ 0; ur

c ≥ −ur sc

Case IIIr uR + cR < 0; ϕ

  • KL

KR ; wR

  • ≤ 0

Case IVr uR + cR < 0; ϕ

  • KL

KR ; wR

  • > 0; τ
  • KL

KR ; wR

  • ≤ 0

Case Vr uR + cR < 0; τ

  • KL

KR ; wR

  • > 0

where ϕ(κ; wq) =

m+2 2

uq

cq

2m

m+2 κ 2 m+2 −

  • A0

Aq

m κ − m

2

uq

cq

2

ˆ A1q Aq

−2 −

  • ˆ

A1q Aq

m + Aq

A0

−m (4) and τ(κ; wq) = m + 2 2 F

2m m+2

q

κ

2 m+2 −

A0 Aq m κ − m 2 F 2

q − 1 +

A0 Aq m . (5)

16/28

slide-35
SLIDE 35

L–M and R–M curves L–M curve in Case IIl

Case IIl: AP l

2

max ≥ A0

  • 1 − KR

KL

1

m; uL ≤ cL; ul

c ≤ ul sc Possible wave configurations with uM > 0

1–wave 2–wave x t wL wR wM w− 0–wave

Figure: A

1–wave 1–wave 2–wave x t wL wR wM wc ˜ wc 0–wave

Figure: B

17/28

slide-36
SLIDE 36

L–M and R–M curves L–M curve in Case IIl

Case IIl: A

P l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL ≤ cL; ul

c ≤ ul sc

The L–M curve CL(wL) =

3

  • k=1

P l

k(wL):

P l

1(wL) = {w|w ∈ T1(wL) with u ≤ 0}

P l

2(wL) = {w|w = J(KR; w−, KL) w− ∈ T1(wL) and 0 < u < uc}

P l

3(wL) = {w|w ∈ T1(wc) with u > uc}

where wc = J(aR; ˜ wc, aL) and ˜ wc ∈ T1(wL)

18/28

slide-37
SLIDE 37

L–M and R–M curves L–M curve in Case IIl

Case IIl: A

P l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL ≤ cL; ul

c ≤ ul sc

The L–M curve CL(wL) =

3

  • k=1

P l

k(wL):

P l

1(wL) = {w|w ∈ T1(wL) with u ≤ 0}

P l

2(wL) = {w|w = J(KR; w−, KL) w− ∈ T1(wL) and 0 < u < uc}

P l

3(wL) = {w|w ∈ T1(wc) with u > uc}

where wc = J(aR; ˜ wc, aL) and ˜ wc ∈ T1(wL)

−2 2 4 6 8 10 −1 1 2 3 4 5 x 10

5

P1(QL) P2(QL) P3(QL) u Ψ

Theorem of monotonicity. L–M curve is continuous and decreasing in the (u, ψ) phase plane

18/28

slide-38
SLIDE 38

L–M and R–M curves L–M curve in Case IIl

Case IIl: A

P l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL ≤ cL; ul

c ≤ ul sc

The L–M curve CL(wL) =

3

  • k=1

P l

k(wL):

P l

1(wL) = {w|w ∈ T1(wL) with u ≤ 0}

P l

2(wL) = {w|w = J(KR; w−, KL) w− ∈ T1(wL) and 0 < u < uc}

P l

3(wL) = {w|w ∈ T1(wc) with u > uc}

where wc = J(aR; ˜ wc, aL) and ˜ wc ∈ T1(wL)

−2 2 4 6 8 10 −1 1 2 3 4 5 x 10

5

P1(QL) P2(QL) P3(QL) u Ψ

Theorem of monotonicity. L–M curve is continuous and decreasing in the (u, ψ) phase plane The Riemann solution uniquely exists

18/28

slide-39
SLIDE 39

L–M and R–M curves Examples

Example: the solution with wave configuration A in Case IIl by Toro and Siviglia Table: Initial and intermediate states

K A (m2) u (m/s) F wL 2000003.266554 3.0 × 10−4 −2.6575 × 10−5 −7.88826 × 10−7 w− 2000003.26654 2.01185 × 10−4 12.81037 0.420195 wM 40000.06533 6.34034 × 10−4 4.0648486 0.107114 wR 40000.06533 3 × 10−4 6.123 × 10−6 1.28516 × 10−6

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.3 1.82 2.34 2.86 3.38 3.9 4.42 4.94 5.46 5.98 6.5 x 10

−4

vesessl area (m2) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 −0.02 1.28 2.58 3.88 5.18 6.48 7.78 9.08 10.38 11.68 12.98 velocity (m/s)

Figure: The exact vessel area and velocity at t = 0.012 s.

19/28

slide-40
SLIDE 40

L–M and R–M curves Examples

Example: the solution with wave configuration B in Case IIl Table: Initial and intermediate states

K A (m2) u (m/s) F wL 2000003.266554 3.0 × 10−4 −2.6575 × 10−5 −7.88826 × 10−7 ˜ wc 2000003.26654 2.0034 × 10−4 12.938557 0.424847 wc 40000.06533 4.82994 × 10−4 5.36675 1 wM 40000.06533 4.13503 × 10−4 6.18445 1.197995 wR 40000.06533 1.17 × 10−4 1.5 × 10−7 3.984 × 10−8

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.65 1.3 1.95 2.6 3.25 3.9 4.55 5.2 x 10

−4

vesessl area (m2) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 −0.05 1.25 2.55 3.85 5.15 6.45 7.75 9.05 10.35 11.65 12.95 velocity (m/s)

Figure: The exact vessel area and velocity at t = 0.012 s.

20/28

slide-41
SLIDE 41

L–M and R–M curves Examples

Case IVl: A

P l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL > cL; ϕ

  • KR

KL ; wL

  • ≤ 0

Possible wave configurations with uM > 0

1–wave 2–wave x t wL wR wM w− 0–wave

(a) A

S0

1(w−)

2–wave x t wL wR wM w− w+ KL KR K 0–wave

x=0

(b) E

1–wave 2–wave x t wL wR wM ¯ wL 0–wave

(c) F

21/28

slide-42
SLIDE 42

L–M and R–M curves L–M curve in Case IVl

Case IVl: A

P l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL > cL; ϕ

  • KR

KL ; wL

  • ≤ 0

The L–M curve CL(wL) =

4

  • k=1

P l

k(wL):

P l

1(wL)

= {w|w ∈ T1(wL) with u < 0} , P l

2(wL)

= {w|w = J(KR; w−, KL) and w− ∈ T1(wL) 0 < u < ¯ ˆ u1L

  • P l

3(wL)

= {w|w = J(KR; w+, K); w+ = S0

1(w−); w− = J(K; wL, KL), K ∈]KR, KL[} ,

P l

4(wL)

=

  • w|w ∈ T1( ¯

w1L) u > ˆ ¯ uL

  • ,

22/28

slide-43
SLIDE 43

L–M and R–M curves L–M curve in Case IVl

Case IVl: A

P l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL > cL; ϕ

  • KR

KL ; wL

  • ≤ 0

The L–M curve CL(wL) =

4

  • k=1

P l

k(wL):

P l

1(wL)

= {w|w ∈ T1(wL) with u < 0} , P l

2(wL)

= {w|w = J(KR; w−, KL) and w− ∈ T1(wL) 0 < u < ¯ ˆ u1L

  • P l

3(wL)

= {w|w = J(KR; w+, K); w+ = S0

1(w−); w− = J(K; wL, KL), K ∈]KR, KL[} ,

P l

4(wL)

=

  • w|w ∈ T1( ¯

w1L) u > ˆ ¯ uL

  • ,

1 2 3 4 5 4 5 6 7 8 x 10

4

P l

1(wL)

P l

2(wL)

P l

3(wL)

P l

4(wL)

u ψ

Theorem of Uniqueness. If

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL > 0, the L–M curve on

(u, ψ) phase plane is monotonically decreasing The Riemann solution uniquely exists

22/28

slide-44
SLIDE 44

L–M and R–M curves L–M curve in Case IVl

Case IVl: A

P l

2

max ≥ A0

  • 1 − KR

KL

1

m ; uL > cL; ϕ

  • KR

KL ; wL

  • ≤ 0

The L–M curve CL(wL) =

4

  • k=1

P l

k(wL):

P l

1(wL)

= {w|w ∈ T1(wL) with u < 0} , P l

2(wL)

= {w|w = J(KR; w−, KL) and w− ∈ T1(wL) 0 < u < ¯ ˆ u1L

  • P l

3(wL)

= {w|w = J(KR; w+, K); w+ = S0

1(w−); w− = J(K; wL, KL), K ∈]KR, KL[} ,

P l

4(wL)

=

  • w|w ∈ T1( ¯

w1L) u > ˆ ¯ uL

  • ,

0.5 1 1.5 −4.35 −4.3 −4.25 −4.2 −4.15 −4.1 −4.05 x 10

4

P l

2(wL)

P l

3(wL)

¯ ˆ wL ˆ ¯ wL

P l

4(wL)

u Ψ

Theorem of Nonuniqueness. If

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL < 0, the L–M curve on

(u, ψ) phase plane contains a bifurcation. For the given initial data we have three possible solutions, with wave configurations A, E, and F respectively

23/28

slide-45
SLIDE 45

L–M and R–M curves Examples

Example: the unique solution with wave configuration E in Case IVl

K A (m2) u (m/s) F wL 40000.065331 4.2248 × 10−4 10.380259 2.0 w− 29017.111011 4.03365 × 10−4 10.872157 2.488099 w+ 29017.111011 1.607526 × 10−3 2.728076 0.441869 wM 28000.045732 1.700599 × 10−3 2.578769 0.419263 wR 28000.045732 1.098391 × 10−3

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 x 10

−3

vesessl area (m2) 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1 2 3 4 5 6 7 8 9 10 11 12 velocity (m/s)

Figure: The exact vessel area and velocity at t = 0.02 s, where ϕ

KR

KL ; wL

  • = −0.368912,

τ KR

KL ; wL

  • = −0.547927 and

ρ¯ u2 L mKR − ˆ ¯ AL ¯ AL = 4.814028 24/28

slide-46
SLIDE 46

L–M and R–M curves Examples

Example: the nonunique solutions with wave configurations A, E and F

K A (m2) u (m/s) F wL 58136.483963 1.0 × 10−6 6.655409 4 wR 56973.754284 5.038 × 10−6

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.8 1.6 2.4 3.2 4 4.8 5.6 6.4 7.2 8 x 10

−6

vesessl area (m2) A E F 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.3 7 velocity (m/s) A E F

Figure: The Exact vessel areas and velocities at t = 0.15 s, where ϕ

KR

KL ; wL

  • = −0.405688,

τ KR

KL ; wL

  • = −1.19155, and

ρ¯ u2 L mKR − ˆ ¯ AL ¯ AL = −5.156529 25/28

slide-47
SLIDE 47

L–M and R–M curves Examples

Comments

The L–M curve is monotone decreasing in the (u, Ψ) phase plane in Cases IIl, IIIl, and V Il

26/28

slide-48
SLIDE 48

L–M and R–M curves Examples

Comments

The L–M curve is monotone decreasing in the (u, Ψ) phase plane in Cases IIl, IIIl, and V Il In Case IVl it is also monotone decreasing if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL > 0

26/28

slide-49
SLIDE 49

L–M and R–M curves Examples

Comments

The L–M curve is monotone decreasing in the (u, Ψ) phase plane in Cases IIl, IIIl, and V Il In Case IVl it is also monotone decreasing if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL > 0

The Riemann solution uniquely exists

26/28

slide-50
SLIDE 50

L–M and R–M curves Examples

Comments

The L–M curve is monotone decreasing in the (u, Ψ) phase plane in Cases IIl, IIIl, and V Il In Case IVl it is also monotone decreasing if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL > 0

The Riemann solution uniquely exists The bifurcation occurs in Case IVl if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL < 0

and always in Case Vl

26/28

slide-51
SLIDE 51

L–M and R–M curves Examples

Comments

The L–M curve is monotone decreasing in the (u, Ψ) phase plane in Cases IIl, IIIl, and V Il In Case IVl it is also monotone decreasing if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL > 0

The Riemann solution uniquely exists The bifurcation occurs in Case IVl if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL < 0

and always in Case Vl The nonunique Riemann solutions occur due to the bifurcation

26/28

slide-52
SLIDE 52

L–M and R–M curves Examples

Comments

The L–M curve is monotone decreasing in the (u, Ψ) phase plane in Cases IIl, IIIl, and V Il In Case IVl it is also monotone decreasing if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL > 0

The Riemann solution uniquely exists The bifurcation occurs in Case IVl if

ρ¯ u2

L

mKR − ˆ ¯ AL ¯ AL < 0

and always in Case Vl The nonunique Riemann solutions occur due to the bifurcation The cases for the R–M curves are analogous to the cases of the L–M curves

26/28

slide-53
SLIDE 53

Conclusions and outlook

Conclusions and outlook

For any given Riemann initial data we obtained all possible exact solutions to the simplified blood flow model with discontinuous material properties The behaviors of the L–M and R–M curves for all basic cases were completely analyzed May help to assess numerical schemes for much more complicated and realistic models Possibly a tool to evaluate the effect of the stent graft to the body Planned: Numerical schemes based on these exact Riemann solutions

27/28

slide-54
SLIDE 54

Conclusions and outlook

Thank you very much for your attention

28/28
