On the Resolution Necessary to Capture Dynamics of Unsteady Detonation Christopher M. Romick, University of Notre Dame, Notre Dame, IN Tariq D. Aslam, Los Alamos National Laboratory, Los Alamos, NM and Joseph M. Powers University of Notre


slide-1
SLIDE 1

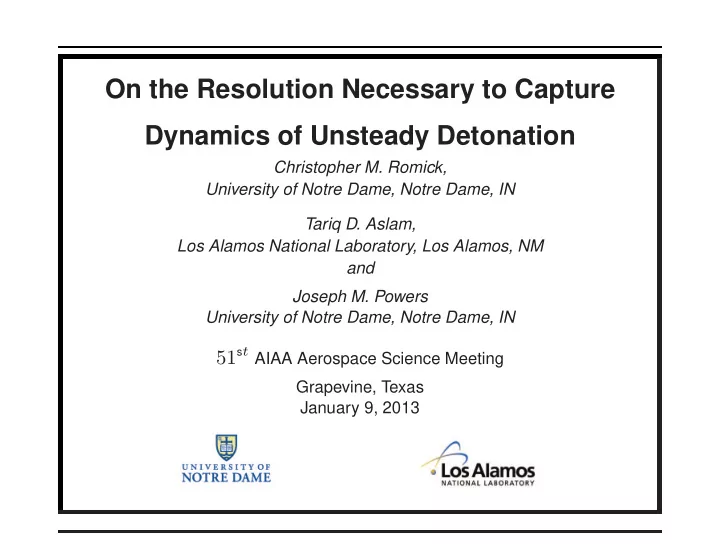

On the Resolution Necessary to Capture Dynamics of Unsteady Detonation

Christopher M. Romick, University of Notre Dame, Notre Dame, IN Tariq D. Aslam, Los Alamos National Laboratory, Los Alamos, NM and Joseph M. Powers University of Notre Dame, Notre Dame, IN

51st AIAA Aerospace Science Meeting

Grapevine, Texas January 9, 2013

slide-2
SLIDE 2

Motivation

  • Using a one-step kinetics model, we (JFM, 2012) showed that when the viscous

length scale is similar to that of the finest reaction scale, viscous effects play a critical role in determining the long time behavior of the detonation.

4 6 8 10 Pmax (MPa) 26 28 E Inviscid 4 6 8 10 Pmax (MPa) 26 28 30 32 E Viscous

  • Mazaheri et al. (Comb. and Flame, 2012) also found diffusion plays a critical

role in regions of high resolution using one-step kinetics in their two-dimensional studies.

  • Here, we will consider detonation dynamics with inviscid, shock-fitting and

shock-capturing, and Navier-Stokes models for H2-air detonations.

  • New harmonic analysis presented here reveals the multi-modal nature of
  • scillatory detonations in H2-air.
slide-3
SLIDE 3

Unsteady, Compressible, Reactive Navier-Stokes Equations

∂ρ ∂t + ∇ · (ρu) = 0, ∂ ∂t (ρu) + ∇ · (ρuu + pI − τ) = 0, ∂ ∂t

  • ρ
  • e +

u · u 2

  • + ∇ ·
  • ρu
  • e +

u · u 2

  • + (pI − τ) · u + q
  • = 0,

∂ ∂t

  • ρYi
  • + ∇ ·
  • ρuYi + ji
  • = Mi ˙

ωi, p = RT N

  • i=1

Yi Mi , e = e

  • T, Yi
  • ,

˙ ωi = ˙ ωi

  • T, Yi
  • ,

ji = ρ N

  • k=1

k=i MiDikYk M ∇yk yk +

  • 1 −

Mk M ∇p p

DT i ∇T T , τ = µ

  • ∇u + (∇u)T −

2 3 (∇ · u) I

  • ,

q = −k∇T + N

  • i=1

jihi − RT N

  • i=1

DT i Mi ∇yi yi +

  • 1 −

Mi M ∇p p

  • .
slide-4
SLIDE 4

Computational Methods

  • Inviscid

– Shock-fitting : Fifth order algorithm adapted from Henrick et al. (J. Comp. Phys., 2006) – Shock-capturing : Second order min-mod algorithm

  • Viscous

– Wavelet method (WAMR), developed by Vasilyev and Paolucci (J. Comp. Phys., 1996 & 1997) – User-defined threshold parameter controls error

  • All methods used a fifth order Runge-Kutta scheme for time integration
slide-5
SLIDE 5

Case Examined

  • Overdriven detonations with ambient conditions of 0.421 atm and 293.15 K
  • Initial stoichiometric mixture of 2H2 + O2 + 3.76N2
  • DCJ ∼ 1972 m/s
  • Overdrive is defined as f = D2
  • /D2

CJ

  • Overdrives of 1.018 < f < 1.150 were examined
slide-6
SLIDE 6

Typical ZND Profile

f = 1.15

10-8 10-6 10-4 10-2 100 Mass Fraction 10 11 12 13 P (atm) 10-4 10-2 100 Distance from Front (cm)

O H HO2 H2O2 OH H2O N2 O2 H2

10-4 10-2 100 Distance from Front (cm)

slide-7
SLIDE 7

Stable Detonation

f = 1.15

0.9 1.0 1.1 Pmax/PZND 10 20 30 40 t (µs)

Inviscid Viscous

For high enough overdrives, the detonation relaxes to a steady propagating wave in the inviscid case as well as in the diffusive case.

slide-8
SLIDE 8

High Frequency Mode - Inviscid

f = 1.10

PFront/PZND 1.00 0.98 1.02 1.04 t (µs) 150 50 100

A single fundamental frequency oscillation occurs at a frequency of 0.97 MHz. This frequency agrees with the experimental observations of Lehr (Astro. Acta, 1972).

slide-9
SLIDE 9

Lehr’s High Frequency Instability

(Astro. Acta, 1972)

  • Shock-induced combustion experi-

ment (Astro. Acta, 1972)

  • Stoichiometric mixture of 2H2 +

O2 + 3.76N2 at 0.421 atm

  • Observed 1.04 MHz frequency

for projectile velocity corresponding to f ≈ 1.10

  • For f = 1.10, the predicted fre-

quency of 0.97 MHz agrees with

  • bserved frequency and the predic-

tion by Yungster and Radhakrishan

  • f 1.06 MHz
slide-10
SLIDE 10

High Frequency Mode - Viscous vs. Inviscid

f = 1.10

1.00 0.98 1.02 1.04 1.06 Pfront/PZND 60 70 80 t (µs)

Viscous Invisicd

The addition of viscosity has a stabilizing effect, decreasing the amplitude of the

  • scillations. The pulsation frequency relaxes to 0.97 MHz.
slide-11
SLIDE 11

Low Frequency Mode Appearance - Inviscid

f = 1.035

1.10 1.05 1.00 0.95 PFront/PZND 100 t (µs) 200 300

As the overdrive is lowered, multiple frequencies appear, and the amplitude of the

  • scillations continues to grow. These multiple frequencies persist at long time.
slide-12
SLIDE 12

Low Frequency Mode Appearance - Viscous vs. Inviscid

f = 1.035

1.10 1.05 1.00 0.95 Pfront/PZND t (µs) 60 30 90

Inviscid Viscous

Viscosity still decreases the amplitude of oscillation, though the effect is reduced compared to higher overdrives. Longer times need further investigation.

slide-13
SLIDE 13

Harmonic Analysis - PSD

  • Harmonic analysis can be used to extract the multiple frequencies of a signal
  • The discrete one-sided mean-squared amplitude Power Spectral Density (PSD)

for the pressure was used

Φd(0) = 1 N2 |Po|2, Φd( ¯ fk) = 2 N2 |Pk|2, k = 1, 2, . . . , (N/2 − 1), Φd(N/2) = 1 N2 |PN/2|2,

where Pk is the standard discrete Fourier Transform of p,

Pk =

N−1

  • n=0

pn exp

  • − 2πınk

N

  • ,

k = 0, 1, 2, . . . , N/2.

slide-14
SLIDE 14

One Step Kinetics - Inviscid

  • 20
  • 10
  • 30

ff 2 2 ff ff 2 3 ff ff 4 Φd ( f ) [dB] 0.2 0.1 f

Ea=27.7 Ea=26.0 Ea=27.5

As the activation energy is increased, the one-step kinetics’ fundamental frequency shifts to a lower frequency, and its amplitude grows. Period-doubling and higher order harmonics are clearly visible. Non-linear effects alter the predicted fundamental frequency from linear theory by 3.4%, 6.2%, and 6.8%.

slide-15
SLIDE 15

One Step Kinetics - Viscous Modulation

Ea = 27.7

0.2 0.1 f

  • 20
  • 10
  • 30

Φd ( f ) [dB] ff 2 2 ff ff 2 3 ff ff 4

Inviscid Viscous

Viscous effects significantly reduce the amplitude of oscillations and alter the predicted behavior from a period-4 to period-1 detonation. Additionally, the predicted fundamental frequency is also altered; it is shifted from 0.0839 to 0.0787.

slide-16
SLIDE 16

Hydrogen-Air: Overview

f [MHz] 0.8 1.0 1.0 0.6 0.4 0.2 2 x 10-3 Φd ( f ) 4 x 10-3 6 x 10-3

f=1.070 f=1.080 f=1.100 f=1.040 f=1.050 f=1.060 f=1.029 f=1.018

Unlike one-step kinetics, hydrogen-air detonations do not go through a period-doubling phenomena at these conditions. However, there is an appearance of a lower frequency as the overdrive is lowered.

slide-17
SLIDE 17

Hydrogen-Air: Near Neutral Stability

f=1.10 f=1.12 f=1.15

5 1 4 3 2 f [MHz] Φd ( f ) [dB] −100 −80 −60 −40 −20 3 ff 2 ff ff

Significant growth of the amplitude of oscillations occurs as one passes through the neutral stability point.

slide-18
SLIDE 18

Hydrogen-Air: High Frequency Shift

ff 2 ff 3 ff

f [MHz] 3.0 1.0 2.0 0.5 1.5 2.5 −20 −10 −30 Φd ( f ) [dB]

f=1.08 f=1.09 f=1.10 f=1.05 f=1.06 f=1.07 f=1.04

The amplitude of the oscillations continues grow as the overdrive is lowered. There appears to be a near power-law decay in the amount of energy carried by the higher harmonics.

slide-19
SLIDE 19

Hydrogen-Air: High-to-Low Frequency Transition

4 x 10-3 6 x 10-3 2 x 10-3 0.5 1.0 1.5 f [MHz] Φd ( f )

f=1.029 f=1.040 f=1.035 f=1.023 f=1.018

A transition of the dominant mode from the high-frequency mode, (0.7 MHz) to the low-frequency mode, (0.1 MHz), occurs at f = 1.029. Furthermore, in this transition region the second harmonic of the low-frequency contains less energy than a higher frequency near 0.6 MHz, until the overdrive reaches f = 1.018.

slide-20
SLIDE 20

Capturing vs. Fitting - High Frequency Mode

f = 1.10

100 150 50 t (µs) 1.00 0.96 1.04 1.06 1.02 0.98 Pmax/PZND

Shock-Capturing Δx= 4μm, moving Δx= 2μm, moving Δx= 1μm, moving Δx= 1/2 μm, moving

Using the same grid size as shock-fitting (∆x = 4 µm), shock-capturing misses the essential dynamics.

slide-21
SLIDE 21

Capturing vs. Fitting - High Frequency Mode

f = 1.10

130 135 132.5 t (µs) 1.00 0.96 1.04 1.06 1.02 0.98 Pmax/PZND

Shock-Fitting Δx= 2 μm Δx= 4 μm Shock-Capturing Δx= 4μm, moving Δx= 2μm, moving Δx= 1μm, moving Δx= 1/2 μm, moving Δx= 1μm, non-moving

Using a four times finer grid with shock-capturing than shock-fitting allows the pulsations to be captured. However, both much higher and lower frequency spurious

  • scillations are predicted as well.
slide-22
SLIDE 22

Capturing vs. Fitting - Low Frequency Mode

f = 1.023

Pmax/PZND 1.0 1.2 1.4 0.8 100 200 t (µs)

Shock-Fitting Δx= 4 μm Shock-Capturing Δx= 4 μm Δx= 2 μm Δx= 1 μm

Using the same grid size (∆x = 4 µm) as shock-fitting, shock-capturing dramatically over-predicts the pulsation amplitude. In shock-capturing, a resolution of

∆x = 1 µm is needed to begin capturing the essential dynamics at long time.

slide-23
SLIDE 23

Capturing vs. Fitting - Low Frequency Mode

f = 1.023

Shock-Fitting Δx= 4 μm Shock-Capturing Δx= 4 μm Δx= 2 μm Δx= 1 μm Δx= 1/2 μm

0.01 0.02 Φd ( f ) 0.1 0.2 0.3 f [MHz]

Only when ∆x = 1/2 µm is used does the PSD of shock-capturing become nearly indistinguishable with that of shock-fitting.

slide-24
SLIDE 24

Effect of Physical Viscosity

f = 1.120

2 1 f [MHz]

  • 20
  • 10

Φd ( f ) [dB]

Inviscid Viscous

Near the neutral stability boundary, viscosity damps the small amplitude oscillations.

slide-25
SLIDE 25

Effect of Physical Viscosity

f = 1.090 Inviscid Viscous

  • 20
  • 10

Φd ( f ) [dB] 2 1 f [MHz]

Viscosity effects reduce the magnitude of the peaks at the first and higher harmonics.

slide-26
SLIDE 26

Effect of Physical Viscosity

f = 1.055

2 1 f [MHz]

  • 20
  • 10

Φd ( f ) [dB]

Inviscid Viscous

As the overdrive is lowered, the viscous PSD looks increasingly like that of the shock-fitted inviscid case.

slide-27
SLIDE 27

Effect of Physical Viscosity

f = 1.035

2 1 f [MHz]

  • 20
  • 10

Φd ( f ) [dB]

Inviscid Viscous

The fundamental frequency’s peak is barely reduced; however, the lower frequency’s peak in the inviscid case is nearly removed in the viscous analog.

slide-28
SLIDE 28

Conclusions

  • Long time behavior of a hydrogen-air detonation becomes more complex as the
  • verdrive is decreased; three phemonona are predicted:

– a stable detonation, – a single dominant high frequency mode oscillatory detonation, – a dual mode oscillatory detonation, dominated by the low frequency mode.

  • Harmonic analysis has revealed the first harmonic frequency moderately lowers

as the overdrive is lowered in the high frequency mode.

  • At the second bifurcation there is a drastic shift in the fundamental frequency

from 0.71 MHz to 0.11 MHz.

  • Shock-capturing requires a four times finer grid to predict the essential

dynamics of an inviscid detonation than the minimal artificial viscosity shock-fitting scheme.

  • Physical diffusion causes a amplitude reduction in all cases examined; further

investigation is needed at longer times near the bifurcation limits.
