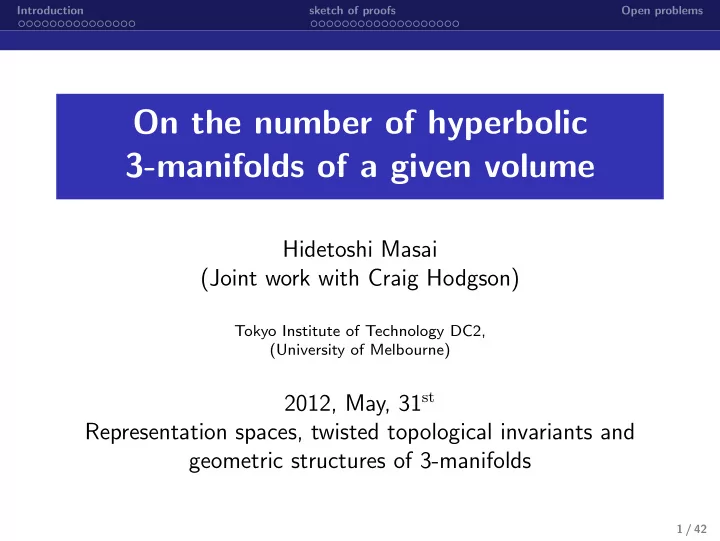

On the number of hyperbolic 3-manifolds of a given volume Hidetoshi - - PowerPoint PPT Presentation

Introduction sketch of proofs Open problems

On the number of hyperbolic 3-manifolds of a given volume

Hidetoshi Masai (Joint work with Craig Hodgson)

Tokyo Institute of Technology DC2, (University of Melbourne)

2012, May, 31st Representation spaces, twisted topological invariants and geometric structures of 3-manifolds

1 / 42

Introduction sketch of proofs Open problems

Contents

1 Introduction

Hyperbolic volume On small N(v) On large N(v)

2 sketch of proofs

Main theorem 1 Main theorem 2

3 Open problems

2 / 42

Introduction sketch of proofs Open problems

Contents

1 Introduction

Hyperbolic volume On small N(v) On large N(v)

2 sketch of proofs

Main theorem 1 Main theorem 2

3 Open problems

3 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

Mostow-Prasad rigidity

Today, by the word ”hyperbolic 3-manifold” (or just ”manifold”), we mean a connected orientable complete hyperbolic 3-manifold of finite volume.

4 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

Mostow-Prasad rigidity

Today, by the word ”hyperbolic 3-manifold” (or just ”manifold”), we mean a connected orientable complete hyperbolic 3-manifold of finite volume. Theorem (Mostow-Prasad rigidity theorem) Let M1, M2 be hyperbolic 3-manifolds. Then, π1(M1) ∼ = π1(M2) ⇐ ⇒ M1 is isometric to M2

4 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

Mostow-Prasad rigidity

Today, by the word ”hyperbolic 3-manifold” (or just ”manifold”), we mean a connected orientable complete hyperbolic 3-manifold of finite volume. Theorem (Mostow-Prasad rigidity theorem) Let M1, M2 be hyperbolic 3-manifolds. Then, π1(M1) ∼ = π1(M2) ⇐ ⇒ M1 is isometric to M2 By Mostow-Prasad rigidity the volume of a given hyperbolic 3-manifold is a topological invariant. For example, for a given hyperbolic link, the volume is a link invariant.

4 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

Volume

Theorem (Jφrgensen-Thurston) Let H be isometry classes of hyperbolic 3-manifolds. Then the volume function vol : H → R>0 is a finite-to-one function. Further, the image vol(H) is a well-ordered subset of R>0 of

• rder type ωω.

By this theorem, for a given v ∈ R>0, there exists a natural number N(v) := ♯vol−1(v).

5 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

N(v)

Question What can we say about N(v)?

6 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

N(v)

Question What can we say about N(v)? Not much is known!

6 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

N(v)

Question What can we say about N(v)? Not much is known! Gabai-Meyerhoff-Milley proved that the Weeks manifold W is the unique smallest volume manifold among all hyperbolic 3-manifolds. i.e N(vol(W )) = 1 and for v < vol(W ), N(v) = 0 (As far as I know) prior to our work, this is the only result which gives the exact value of N(v).

6 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

Classes of hyperbolic 3-manifolds

There are many interesting classes of hyperbolic 3-manifolds. For example, C: cusped manifolds. A: arithmetic manifolds. G: manifolds with geodesic boundaries. L: link complements. It is also interesting to ask NX(v) = ♯{vol−1(v) ∩ X}

7 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

NX(v)

For particular classes some of the exact values are known.

8 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

NX(v)

For particular classes some of the exact values are known. Cao-Meyerhoff proved that m003 and m004 are the smallest cusped manifolds i.e. NC(vol(m003)) = 2.

8 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

NX(v)

For particular classes some of the exact values are known. Cao-Meyerhoff proved that m003 and m004 are the smallest cusped manifolds i.e. NC(vol(m003)) = 2. Gabai-Meyerhoff-Milley detected first 10 smallest cusped manifolds.

8 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

NX(v)

For particular classes some of the exact values are known. Cao-Meyerhoff proved that m003 and m004 are the smallest cusped manifolds i.e. NC(vol(m003)) = 2. Gabai-Meyerhoff-Milley detected first 10 smallest cusped manifolds. For Weeks manifold W and Meyerhoff manifold M, Chinburg-Friedman-Jones-Reid proved NA(vol(W ))) = 1, NA(vol(M))) = 1

8 / 42

Introduction sketch of proofs Open problems Hyperbolic volume

NX(v)

For particular classes some of the exact values are known. Cao-Meyerhoff proved that m003 and m004 are the smallest cusped manifolds i.e. NC(vol(m003)) = 2. Gabai-Meyerhoff-Milley detected first 10 smallest cusped manifolds. For Weeks manifold W and Meyerhoff manifold M, Chinburg-Friedman-Jones-Reid proved NA(vol(W ))) = 1, NA(vol(M))) = 1 Kojima-Miyamoto detected the smallest compact manifolds with geodesic boundaries and Fujii proved that there are 8 of them. i.e. NCG(6.452...) = 8.

8 / 42

Introduction sketch of proofs Open problems On small N(v)

Computer experiments

SnapPy has many good censuses of hyperbolic manifolds. Orientable Cusped Census. (at most 8 ideal tetrahedra) Orientable Closed Census. ( by Hodgson and Weeks)

9 / 42

Introduction sketch of proofs Open problems On small N(v)

Computer experiments

SnapPy has many good censuses of hyperbolic manifolds. Orientable Cusped Census. (at most 8 ideal tetrahedra) Orientable Closed Census. ( by Hodgson and Weeks) Census Knots. (at most 7 ideal tetrahedra) Link Exteriors (using Rolfsen’s notation). (Non) Alternating Knot Exteriors (up to 16 crossings). MorwenLinks(up to 14 crossings, about 180k links).

9 / 42

Introduction sketch of proofs Open problems On small N(v)

Computer experiments

SnapPy has many good censuses of hyperbolic manifolds. Orientable Cusped Census. (at most 8 ideal tetrahedra) Orientable Closed Census. ( by Hodgson and Weeks) Census Knots. (at most 7 ideal tetrahedra) Link Exteriors (using Rolfsen’s notation). (Non) Alternating Knot Exteriors (up to 16 crossings). MorwenLinks(up to 14 crossings, about 180k links). Nonorientable Cusped (or Closed) Census.

9 / 42

Introduction sketch of proofs Open problems On small N(v)

Computer experiments

SnapPy has many good censuses of hyperbolic manifolds. Orientable Cusped Census. (at most 8 ideal tetrahedra) Orientable Closed Census. ( by Hodgson and Weeks) Census Knots. (at most 7 ideal tetrahedra) Link Exteriors (using Rolfsen’s notation). (Non) Alternating Knot Exteriors (up to 16 crossings). MorwenLinks(up to 14 crossings, about 180k links). Nonorientable Cusped (or Closed) Census. We used the first two censuses and compute Ncensus(v)’s.

9 / 42

Introduction sketch of proofs Open problems On small N(v)

Computer experiments

• 10 / 42

Introduction sketch of proofs Open problems On small N(v)

Computer experiments

• 11 / 42

Introduction sketch of proofs Open problems On small N(v)

Main theorem 1

Theorem (Unique volume Manifolds) There exists an infinite sequence of hyperbolic manifolds {Mi} such that N(vol(Mi)) = 1. Theorem (Unique volume Cusped manifolds) There exists an infinite sequence of cusped hyperbolic manifolds {MC

i } such that NC(vol(MC i )) = 1.

These manifolds are obtained by Dehn filling on m004 and m129 respectively. (m004 = complement of figure eight knot, m129 = complement of Whitehead link)

12 / 42

Introduction sketch of proofs Open problems On large N(v)

Growth rate

In the above theorem, we discussed the case N(v) is small. Question How large can N(v) be? Wielenberg: For all n ∈ N, there exists v ∈ R>0 such that N(v) > n. Zimmerman: Nclosed(v) > n. c.f. Theorem (Chesebro-DeBlois, 2012) C(v) can be arbitrary large. Where C(v) is the number of commensurability classes that contain manifolds of volume v.

13 / 42

Introduction sketch of proofs Open problems On large N(v)

Computer experiments

• 14 / 42

Introduction sketch of proofs Open problems On large N(v)

Computer experiments

• 15 / 42

Introduction sketch of proofs Open problems On large N(v)

Growth rate

Question How fast can N(v) grow? In other words, what can we say about G(V )? Where max

v≤V N(v) ≍ G(V )

16 / 42

Introduction sketch of proofs Open problems On large N(v)

Known results

Theorem (Belolipetsky, Gelander, Lubotzky, Shalev, 2010) There exists constants a, b > 0 such that for x ≫ 0, xax < max

xi≤x NA(xi) < xbx

Theorem (Frigerio, Martelli and Petronio, 2003) There exists a constant c > 0 such that for x ≫ 0, NG(x) > xcx (A: arithmetic manifolds G: manifolds with geodesic boundaries)

17 / 42

Introduction sketch of proofs Open problems On large N(v)

Main theorem 2

Theorem (Hodgson-M) There exists c > 1 such that NL(x) > cx (L: Link complements)

18 / 42

Introduction sketch of proofs Open problems

1 Introduction

Hyperbolic volume On small N(v) On large N(v)

2 sketch of proofs

Main theorem 1 Main theorem 2

3 Open problems

19 / 42

Introduction sketch of proofs Open problems

Main theorem 1

Theorem (Unique volume Manifolds) There exists an infinite sequence of hyperbolic manifolds {Mi} such that N(vol(Mi)) = 1. Theorem (Unique volume Cusped manifolds) There exists an infinite sequence of cusped hyperbolic manifolds {MC

i } such that NC(vol(MC i )) = 1.

These manifolds are obtained by Dehn filling on m004 and m129 respectively. (m004 = complement of figure eight knot, m129 = complement of Whitehead link)

20 / 42

Introduction sketch of proofs Open problems Main theorem 1

Hyperbolic Dehn surgery theorem

M : hyperbolic 3-manifold with a cusp T. M(a, b) : manifold after Dehn filling T along slope (a, b). L(a, b) : length of the slope (a, b) on T. Theorem (Thurston) Then there exist a constant C1 = C1(M) such that the Dehn filling M(a, b) is hyperbolic whenever L(a, b) > C1, and vol(M(a, b)) → vol(M) as L(a, b) → ∞

21 / 42

Introduction sketch of proofs Open problems Main theorem 1

Neuman-Zagier asymptotic formula

A : area of the horotori Q(a, b) = L(a, b)2/A ∆(a, b) = vol(M) − vol(M(a, b)) > 0 Theorem (Neumann-Zagier) There exist a constant C2 = C2(M) > 0 such that,

• π2

∆(a, b) − Q(a, b)

• < C2

22 / 42

Introduction sketch of proofs Open problems Main theorem 1

Key idea

Key idea (a0, b0) : pair of relatively prime integers such that (i) Q(a, b) = Q(a0, b0) = Q0 has few integer solutions, (ii) there is large enough 2-sided gap around Q0 in the set of possible value of Q(x, y) for (x, y) relatively prime integers. ⇒ There are few Dehn fillings M(a, b) with the same volume as M(a0, b0)

23 / 42

Introduction sketch of proofs Open problems Main theorem 1

m004 : the figure eight knot complement

m004:the figure eight knot complement. Then Q(a, b) = a2 + 12b2 for suitably chosen basis on the cusp of m004.

24 / 42

Introduction sketch of proofs Open problems Main theorem 1

m004 : the figure eight knot complement

m004:the figure eight knot complement. Then Q(a, b) = a2 + 12b2 for suitably chosen basis on the cusp of m004. ⇒ some number theory proves the existence of a sequence {(ai, bi)} such that (i) (Q0 :=)Q(a, b) = Q(ai, bi) ⇒ (a, b) = (ai, bi) (ii) there is large enough 2-sided gap around Q0 in the set of possible value of Q(x, y) for (x, y) relatively prime integers. ⇒ M(ai, bi) is a unique volume manifold among all Dehn fillings of m004 and m003.

24 / 42

Introduction sketch of proofs Open problems Main theorem 1

Smallest cusped manifolds

By the work of Cao-Meyerhoff, m003 and m004 are the smallest volume cusped manifolds.

25 / 42

Introduction sketch of proofs Open problems Main theorem 1

Smallest cusped manifolds

By the work of Cao-Meyerhoff, m003 and m004 are the smallest volume cusped manifolds. ⇒ (+ Hyperbolic Dehn surgery theorem) ∃ε > 0 such that for all manifolds N with 2.029... − ε < vol(N) < 2.029... can be obtained from m004 or m003 by a Dehn filling.

25 / 42

Introduction sketch of proofs Open problems Main theorem 1

Smallest cusped manifolds

By the work of Cao-Meyerhoff, m003 and m004 are the smallest volume cusped manifolds. ⇒ (+ Hyperbolic Dehn surgery theorem) ∃ε > 0 such that for all manifolds N with 2.029... − ε < vol(N) < 2.029... can be obtained from m004 or m003 by a Dehn filling. ⇒ If M(a, b) is a unique volume manifold among all Dehn fillings of m004 or m003, then M(a, b) is unique among all hyperbolic 3-manifolds. (m004: the figure eight knot complement m003: the sister of m004)

25 / 42

Introduction sketch of proofs Open problems Main theorem 1

Main theorem 1

Theorem (Unique volume Manifolds) There is an infinite sequence of hyperbolic manifolds {Mi} such that N(vol(Mi)) = 1. Theorem (Unique volume Cusped manifolds) There is an infinite sequence of hyperbolic manifolds {MC

i }

such that NC(vol(MC

i )) = 1.

These manifolds are obtained by Dehn filling on m004 and m129 respectively. (m004 = complement of figure eight knot, m129 = complement of Whitehead link)

26 / 42

Introduction sketch of proofs Open problems Main theorem 2

Main theorem 2

Theorem (Hodgson-M) There exists c > 1 such that NL(x) > cx (L: Link complements)

27 / 42

Introduction sketch of proofs Open problems Main theorem 2

Hyperbolic graph

G: trivalent spatial graph in S3. V : the set of vertices of G.

28 / 42

Introduction sketch of proofs Open problems Main theorem 2

Hyperbolic graph

G: trivalent spatial graph in S3. V : the set of vertices of G. Define NG by NG := M \ G \ ( ∪

v∈V

N(v)) where N(v) is an open regular neighborhood of v.

28 / 42

Introduction sketch of proofs Open problems Main theorem 2

Hyperbolic graph

G: trivalent spatial graph in S3. V : the set of vertices of G. Define NG by NG := M \ G \ ( ∪

v∈V

N(v)) where N(v) is an open regular neighborhood of v. Then NG is a manifold with 3-punctured sphere boundaries,

• ne corresponds to each vertex of G.

28 / 42

Introduction sketch of proofs Open problems Main theorem 2

Definition A spacial graph G is hyperbolic if NG admits complete hyperbolic structure (with parabolic meridians) of finite volume with totally geodesic boundaries. Example (Intuitive picture) of a hyperbolic graph.

29 / 42

Introduction sketch of proofs Open problems Main theorem 2

Volume preserving moves

Lemma The following moves on hyperbolic graphs in S3 are volume preserving.

• This lemma relates hyperbolic graphs with hyperbolic links.

30 / 42

Introduction sketch of proofs Open problems Main theorem 2

Example. Two complements have the same volume.

31 / 42

Introduction sketch of proofs Open problems Main theorem 2

We apply one of the moves to the following graph. Then we get possibly distinct 2n links of a same volume.

32 / 42

Introduction sketch of proofs Open problems Main theorem 2

We apply one of the moves to the following graph. Then we get possibly distinct 2n links of a same volume. We distinguish these manifold by computing the moduli

• f cusps and edges of canonical decomposition.

32 / 42

Introduction sketch of proofs Open problems Main theorem 2

Our graph

The graph comes from a planar graph

• 33 / 42

Introduction sketch of proofs Open problems Main theorem 2

The complements of planar hyperbolic graphs admit useful polyhedral decompositions. Remark. This decomposition is same as the decomposition of a fully augmented link found by Agol-Thurston.

34 / 42

Introduction sketch of proofs Open problems Main theorem 2

Since each dihedral angle is π/2, this decomposition gives a circle packing on ∂H3 ∼ = S2. This circle packing enables us to compute modulus of each cusp.

35 / 42

Introduction sketch of proofs Open problems Main theorem 2

Our graph

Our graph, its polyhedral decomposition and corresponding circle packing.

• 36 / 42

Introduction sketch of proofs Open problems Main theorem 2

Moduli of cusps

• For our graph, there are 3

different types of annuli cusps. The example we observed By gluing annuli cusps together we get a torus cusp. The example we observed ⇒ We can compute cusp moduli. The example we observedhe example we observedhe example we observed

37 / 42

Introduction sketch of proofs Open problems Main theorem 2

Example.

• This graphs has 3 types of tori cusps and their shapes are
• 38 / 42

Introduction sketch of proofs Open problems Main theorem 2

For each link that we obtain after gluing the 3-punctured sphere of we can assign (horoball) volume to each cusp in terms of the moduli. It gives us a way to fix a canonical decomposition. (SnapPy demo.)

39 / 42

Introduction sketch of proofs Open problems

1 Introduction

Hyperbolic volume On small N(v) On large N(v)

2 sketch of proofs

Main theorem 1 Main theorem 2

3 Open problems

40 / 42

Introduction sketch of proofs Open problems

Open problems

1 Find additional exact values or upper bounds on N(v).

41 / 42

Introduction sketch of proofs Open problems

Open problems

1 Find additional exact values or upper bounds on N(v). 2 (Gromov, 1979) Is N(v) locally bounded?

41 / 42

Introduction sketch of proofs Open problems

Open problems

1 Find additional exact values or upper bounds on N(v). 2 (Gromov, 1979) Is N(v) locally bounded? 3 Are all hyperbolic Dehn fillings on m004 (or m003)

determined by their volumes, amongst Dehn fillings on m004 (or m003)?

41 / 42

Introduction sketch of proofs Open problems

Open problems

1 Find additional exact values or upper bounds on N(v). 2 (Gromov, 1979) Is N(v) locally bounded? 3 Are all hyperbolic Dehn fillings on m004 (or m003)

determined by their volumes, amongst Dehn fillings on m004 (or m003)?

4 What is the largest volume v < vω = 2.029883... of a

closed hyperbolic 3-manifold which does not arise from Dehn filling of m004 or m003? (This would allow us to make the above results explicit.) Guess: v = 2.02885309.. = vol(m006(−5, 2)).

41 / 42

Introduction sketch of proofs Open problems

Open problems

1 Find additional exact values or upper bounds on N(v). 2 (Gromov, 1979) Is N(v) locally bounded? 3 Are all hyperbolic Dehn fillings on m004 (or m003)

determined by their volumes, amongst Dehn fillings on m004 (or m003)?

4 What is the largest volume v < vω = 2.029883... of a

closed hyperbolic 3-manifold which does not arise from Dehn filling of m004 or m003? (This would allow us to make the above results explicit.) Guess: v = 2.02885309.. = vol(m006(−5, 2)).

5 Does there exist C > 0 such that NL(x) > xCx?

41 / 42

Introduction sketch of proofs Open problems

Thank you for your attention.

Great Ocean Road (Australia)

42 / 42
