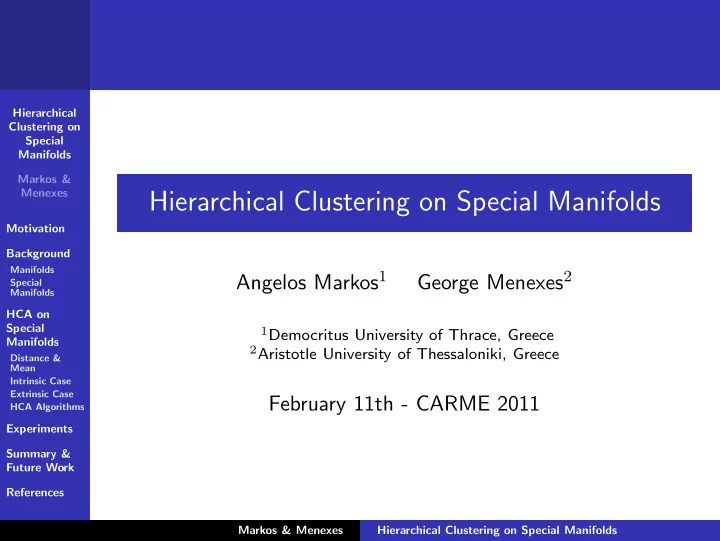

Hierarchical Clustering on Special Manifolds

Angelos Markos1 George Menexes2

1Democritus University of Thrace, Greece 2Aristotle University of Thessaloniki, Greece

February 11th - CARME 2011

Markos & Menexes Hierarchical Clustering on Special Manifolds

Hierarchical Clustering on Special Manifolds Markos & Menexes Motivation Background

Manifolds Special Manifolds

HCA on Special Manifolds

Distance & Mean Intrinsic Case Extrinsic Case HCA Algorithms

Experiments Summary & Future Work References

Motivation

Let Xi, i = 1, . . . , n denote n matrices of size (m × k) such that X′X = Ik. The rows of each Xi correspond to a low-dimensional representation of different “views” of the same object and the columns refer to the same

• variables. The whole dataset can be seen as a collection of
• rthonormal bases or subspaces.

For example, suppose we have multiple images of the same person where each image is represented by a vector. A low-dimensional representation of this image set spans a subspace in the so-called image space. We address the problem of clustering sets of objects, where object-specific subspaces instead of vectors are compared.We should take into account the specific geometry of the space of orthonormal matrices.
