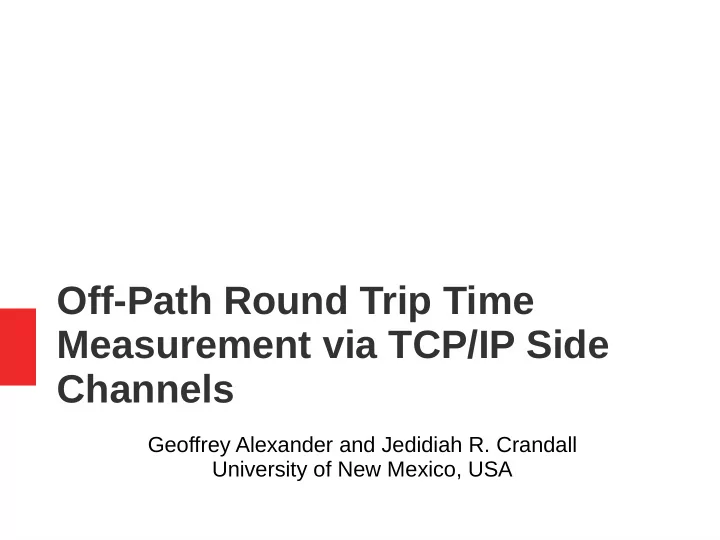

Off-Path Round Trip Time Measurement via TCP/IP Side Channels

Geoffrey Alexander and Jedidiah R. Crandall University of New Mexico, USA

2

How do you measure something?

• Interact directly
• T

ake samples

• Multiple tests

3

Problem

How do you measure something you can't access? What about off-path network connections?

4

Motivation

• Internet Censorship

– Censored IP address re-binding

• Clear picture of network behavior

5

Contribution

• T

echnique for measuring ofg-path RTT

– Uses side channel in Linux network stack

• Version 2.6 and higher

– RTT = Round T

rip Time

• Performs comparably to previous work

– 80% of scans within 20% of actual RTT

6

Outline

• Background
• Linux SYN-backlog behavior
• Using SYN-backlog as a Side Channel
• Our T

echnique

• Results

7

On-Path Measurements

• Control at least one

end host

– Not always easy

to get access

– May not get

required privileges

• Provides direct

access to network traffjc

8

Ofg-Path Measurements

• No access to either

end host

• No direct access to

network traffjc

– Need to infer

behavior

– Can use side

channels to infer information

???

9

Side Channels

• Source of Information from a shared resource

– CPU timing, power consumption – Shared counters, memory bufgers, etc.

• IPID used as side channel for network scans

– Idle scans [1] [2] – Detect ofg-path packet drops [3]

[1]Antirez “new tcp scan method”, http://seclists.org/bugtraq/1998/Dec/79 [2]Ensafi, R. et. al. “Idle Port Scanning and Non-Interference Analysis of Network Protocol Stacks Using

Model Checking”, USENIX Security 2010

[3]Ensafi, R. et. al. “Detecting intentional packet drops on the Internet via TCP/IP side channels”, PAM 2014

10

TCP Handshake

• Creates new TCP

connection

• SYNs must be stored

during handshake

• Incomplete

connections are “half-open”

Client Server SYN SYN-ACK ACK

11

SYN-backlog

• SYN packets are stored in a bufger known as

SYN-backlog until three-way handshake is complete.

• SYN-ACKs for each SYN are sent at set time

intervals after fjrst attempt until three-way handshake fjnishes.

• Internally Linux categorizes backlog entries

as either “young” or “mature”

– “Young” packets have not retransmitted a

SYN-ACK

12

SYN-backlog as a side channel

• When backlog is fjlled to or beyond half

capacity a retransmission threshold is calculated based on number of “mature” entries

• Entries above this threshold are removed

until the backlog size drops below half capacity

• This behavior can be used to infer

information about the state of the backlog

14

Our technique

• Using Linux SYN-backlog we developed a technique

for estimating RTT between two end hosts

• Perform a binary search using backlog behavior as

a comparison operator between estimated and actual RTT

• T

echnique divided into three stages

– Prepare backlog – Attempt to use backlog as side channel – Infer state information about backlog

15

Our technique

• MM sends SYNs to S

until the SYN- backlog is almost half fjlled

– Leave each “half

• pen”
• Each SYN uses

unique sequence number and IPID

S C MM SYN

16

Our technique

• Wait until 2

retransmission intervals have elapsed

• Send SYNs to S for

10s at rate based on estimated RTT

– Causes S to send

SYN-ACKs to C

– SYN-ACKs are reset

S C MM SYN-ACK RST Spoofed SYNs

17

Our technique

• MM counts number of

retransmitted SYN-ACKs for each SYN from Stage 1

• If all SYNs kept

retransmitting then infer backlog never fjlled past half

• If some stopped

retransmitting, infer backlog fjlled past half and removed some entries

S C MM SYN-ACK

18

Will this crash the Server?

• Packets sent in short bursts

– Not continuous traffjc

• Packets are only headers

– Small total size

• SYN backlog never fjlls much past half full

– Most connections complete quickly – Regular traffjc should complete as normal

19

Methodology

• Used PlanetLab nodes for Server host

– Provided ground truth measurements – No assistance to measurements

• 15 PlanetLab nodes used

– Distributed evenly between North America,

South American, Europe, Asia, and Australia/New Zealand

• Clients chosen at random from IPv4 address space

– Only used if an address meets criteria

20

Results

Dataset Within 10% (Percent) Within 20% (Percent) Overall 60.7 81.3 RTT > 25ms 63.6 83.7 RTT < 25ms 18.0 46.1 RTT > 100ms 67.1 87.2 RTT < 100ms 35.5 58.1 25ms < RTT < 100ms 43.5 63.5

• Measurements for 616 pairs of IP addresses
• Collected from July 14, 2014 to July 28, 2014

21

Results

0.0 0.5 1.0 1.5 2.0

Est/Actual RTT

0.0 0.2 0.4 0.6 0.8 1.0

Percent of Measurements Full Dataset No Packet Loss

CDF of overall results with and without packet loss

22

Efgects of Packet Loss

0.0 0.5 1.0 1.5 2.0 Est/Actual RTT 0.0 0.2 0.4 0.6 0.8 1.0 Percent of Measurements

Overall Low RTT High RTT

0.0 0.5 1.0 1.5 2.0 Est/Actual RTT 0.0 0.2 0.4 0.6 0.8 1.0 Percent of Measurements

Overall Low RTT High RTT

Results with packet loss for overall, low (<25ms), and high (>100ms) estimates Results without packet loss for overall, low (<25ms), and high (>100ms) estimates

24

Ethical Considerations

• Traffjc might appear to be Denial of Service

– At most send ~800 packets per sec. – Each packet is only 60 bytes in size

• ~48 kilobytes per second

– Shouldn't overwhelm modern networks

• Traffjc is sent in bursts

– Not continuous like most DoS attacks

• SYN-backlog never fjlls much past half

– Regular connections should complete

25

Conclusion

• Using Linux SYN-backlog as side channel
• T

echnique for estimating ofg-path RTT values

• Within 20% of actual RTT for ~80% of paths

– Similar to previous systems, like King

• Packet loss is largest cause of inaccuracy

26

Future Work

• Improve Accuracy and Speed

– Better method for checking SYN removal – Directly probe SYN-backlog

• Find additional side channels

– In Linux – In other operating systems

• Windows, OS X, etc.

27

Thank You

• Jed Crandall
• Ben Mixon-Baca and Bianca Bologa
• Xu Zhang
• NSF for funding research

28
