OFC/NFOEC 2012 Review on Multi-Layer Networks, Network Virtualization, and Survivability Ferhat Dikbiyik April 6, 2012 Group Meeting Presentation, Davis, CA Page 1 Sessions Reviewed Multi-Layer Awareness and Management (NFOEC)

slide-1
SLIDE 1

Page 1

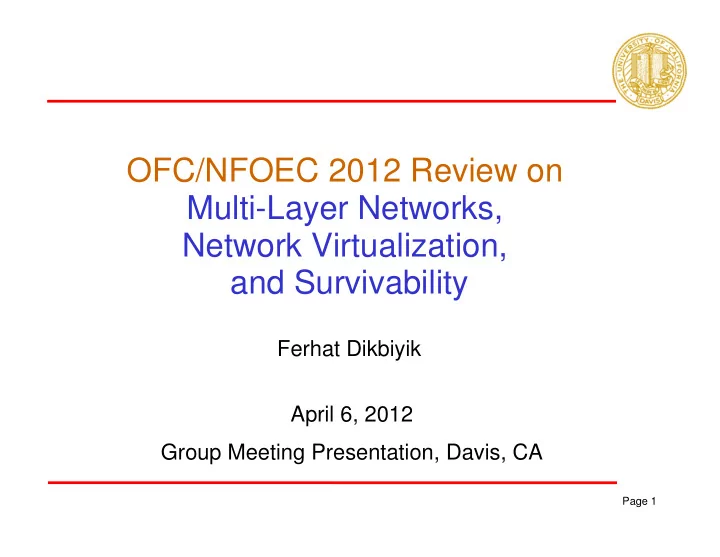

OFC/NFOEC 2012 Review on Multi-Layer Networks, Network Virtualization, and Survivability

Ferhat Dikbiyik April 6, 2012 Group Meeting Presentation, Davis, CA

slide-2
SLIDE 2

Page 2

Sessions Reviewed

  • Multi-Layer Awareness and Management (NFOEC)
  • Optical Network Virtualization (OFC)
  • Designing Survivable Networks (NFOEC)
  • Next Generation Networks and Survivability (OFC)
slide-3
SLIDE 3

Page 3

Sessions Reviewed

  • Multi-Layer Awareness and Management (NFOEC)
  • Optical Network Virtualization (OFC)
  • Designing Survivable Networks (NFOEC)
  • Next Generation Networks and Survivability (OFC)
slide-4
SLIDE 4

Page 4

Multi-Layer Awareness and Management (NFOEC) Simulations of a Service Velocity Network Employing Regenerator Site Concentration

Mark D. Feuer, Sheryl L. Woodward, Inwoong Kim, Paparao Palacharla, Xi Wang, Daniel Bihon, Balagangadhar G. Bathula, Weiyi Zhang, Rakesh Sinha, Guangzhi Li and Angela L. Chiu AT&T Labs – Research Fujitsu Labs of America Columbia Univ., New York

slide-5
SLIDE 5

Page 5

Simulations of a Service Velocity Network Employing Regenerator Site Concentration

Multi-Layer Awareness and Management (NFOEC)

  • “The transitions from today’s static networks (to

dynamic photonic networks), ….., has been stymied by a range of technology and cost issues.”

  • “Practical ROADM designs …. have been

published, and hardware is becoming commercially available, but challenges remain in

  • perational practices and business models.”
slide-6
SLIDE 6

Page 6

Simulations of a Service Velocity Network Employing Regenerator Site Concentration

Multi-Layer Awareness and Management (NFOEC)

  • Previous work (JOCN, Feb. 2012):

Service Velocity: Rapid Provisioning Strategies in Optical ROADM Networks

“ For networks to achieve fully dynamic operation, not

  • nly technology, but also business models and network
  • perations must evolve. …, a key application driver for

CN ROADMs may be the ability to pre-deploy regenerators in support of accelerated connection provisioning in the network. If all needed regenerators are pre-deployed, a new circuit can be remotely provisioned without requiring manual operations at any intermediate nodes, enabling new connections to become operational with minimal delay.”

slide-7
SLIDE 7

Page 7

Simulations of a Service Velocity Network Employing Regenerator Site Concentration

Multi-Layer Awareness and Management (NFOEC)

  • Traffic:

Quasi-static Traffic matrix in which the population of each city determines its probability to be used as a source or destination.

  • Upgrade:

Adding regenerators when it is needed to sustain future demands. Overbuild of individual fiber links when they exceed 60% wavelength fill, up to maximum of three fiber pairs per link.

slide-8
SLIDE 8

Page 8

Simulations of a Service Velocity Network Employing Regenerator Site Concentration

Multi-Layer Awareness and Management (NFOEC)

(Shortest-Path Routing) (Minimal-Regeneration Routing)

slide-9
SLIDE 9

Page 9

Simulations of a Service Velocity Network Employing Regenerator Site Concentration

Multi-Layer Awareness and Management (NFOEC) Results above 900 demands are not plotted as these represent a distorted traffic pattern and an unrealistic mode of operation (above 900 demands, the network

  • perator would be turning away customers whose requests are inconvenient).
slide-10
SLIDE 10

Page 10

Multi-Layer Awareness and Management (NFOEC)

Optical network evolving towards smart network in Korea [Invited]

Hyungjin Park, Geun Young Kim, Hosung Yoon, Jae Hyung Park, Jin Hee Kim KT Network R&D Laboratory

slide-11
SLIDE 11

Page 11

Optical network evolving towards smart network in Korea

Multi-Layer Awareness and Management (NFOEC)

slide-12
SLIDE 12

Page 12

Optical network evolving towards smart network in Korea

Multi-Layer Awareness and Management (NFOEC)

  • Maintaining an efficient fiber management system meeting to the growing needs of fiber

cable connection in the access network…

  • Meeting to the dynamic needs regarding the network management coming from the

dynamic convergence service environment…

slide-13
SLIDE 13

Page 13

Optical network evolving towards smart network in Korea

Multi-Layer Awareness and Management (NFOEC) Video content request As the smart node is placed at the nearest edge in the cell service area, the quality of video service is properly guaranteed. Video content request Delivers the satellite broadcasting channels. RF signals are relayed to customer premise through fiber cable by using a third wavelength dedicated for the video overlay.

slide-14
SLIDE 14

Page 14

Sessions Reviewed

  • Multi-Layer Awareness and Management (NFOEC)
  • Optical Network Virtualization (OFC)
  • Designing Survivable Networks (NFOEC)
  • Next Generation Networks and Survivability (OFC)
slide-15
SLIDE 15

Page 15

Optical Network Virtualization (OFC) Network Virtualization: A Tutorial

George N. Rouskas North Carolina State University

slide-16
SLIDE 16

Page 16

Network Virtualization: A Tutorial

Optical Network Virtualization (OFC)

slide-17
SLIDE 17

Page 17

Optical Network Virtualization (OFC) Stochastic Virtual Infrastructure Planning in Elastic Cloud Deploying Optical Networking

Markos P. Anastasopoulos, Anna Tzanakaki and Konstantinos Georgakilas Athens Information Technology

slide-18
SLIDE 18

Page 18

Stochastic Virtual Infrastructure Planning in Elastic Cloud Deploying Optical Networking

Optical Network Virtualization (OFC)

slide-19
SLIDE 19

Page 19

Stochastic Virtual Infrastructure Planning in Elastic Cloud Deploying Optical Networking

Optical Network Virtualization (OFC)

slide-20
SLIDE 20

Page 20

Optical Network Virtualization (OFC) Virtual Optical Network Composition over Single-Line-Rate and Mixed-Line-Rate WDM Optical Networks

Shuping Peng, Reza Nejabati, Siamak Azodolmolky, Eduard Escalona, and Dimitra Simeonidou University of Essex, UK

slide-21
SLIDE 21

Page 21

Virtual Optical Network Composition over Single-Line- Rate and Mixed-Line-Rate WDM Optical Networks

Optical Network Virtualization (OFC)

  • Impairment-aware virtual network composition
  • ver single-line-rate WDM optical networks
  • Cost-aware virtual network composition over

mixed-line-rate WDM optical networks

slide-22
SLIDE 22

Page 22

Sessions Reviewed

  • Multi-Layer Awareness and Management (NFOEC)
  • Optical Network Virtualization (OFC)
  • Designing Survivable Networks (NFOEC)
  • Next Generation Networks and Survivability (OFC)
slide-23
SLIDE 23

Page 23

Designing Survivable Networks (NFOEC) On Shared Risk Link Group Optimization

Guangzhi Li, Dongmei Wang, Timothy Gallivan, and Robert Doverspike AT&T Labs

slide-24
SLIDE 24

Page 24

On Shared Risk Link Group Optimization

Designing Survivable Networks (NFOEC)

  • The SRLG Information for each IP-layer link describes a

list of SRLGs to which the link belongs.

  • SRLGs are often represented by IDs in layer planning

systems at various network layers (e.g., “bundle” ID).

  • Some routing protocol enforce a maximum list length of

the number of bundle IDs per link.

  • However, in reality, there are links that exceed the

maximum (the number of SRLG IDs could exceed 50,000 IDs easily in a large carrier).

  • One solution is to combine multiple fiber spans (without

bifurcation) to one super fiber span to reduce the number

  • f SRLGs.
slide-25
SLIDE 25

Page 25

Designing Survivable Networks (NFOEC) Restoration Design with Selective Optical Bypass in IP-over-Optical Networks

Qiong Zhang, Angela L. Chiu, Xi Wang, Paparao Palacharla, and Motoyoshi Sekiya Fujitsu Laboratories of America AT&T Labs

slide-26
SLIDE 26

Page 26

Restoration Design with Selective Optical Bypass in IP-over-Optical Networks

Designing Survivable Networks (NFOEC)

slide-27
SLIDE 27

Page 27

Restoration Design with Selective Optical Bypass in IP-over-Optical Networks

Designing Survivable Networks (NFOEC)

slide-28
SLIDE 28

Page 28

Restoration Design with Selective Optical Bypass in IP-over-Optical Networks

Designing Survivable Networks (NFOEC)

slide-29
SLIDE 29

Page 29

Designing Survivable Networks (NFOEC) Partial Protection in Networks with Backup Capacity Sharing

Greg Kuperman, Eytan Modiano, and Aradhana Narula-Tam MIT

slide-30
SLIDE 30

Page 30

Partial Protection in Networks with Backup Capacity Sharing

Designing Survivable Networks (NFOEC)

slide-31
SLIDE 31

Page 31

Designing Survivable Networks (NFOEC) Finding Partially Disjoint Routes for Dual Fiber-Cut Protection on Bi-Connected Networks

Victor Yu Liu and Zhicheng Sui Huawei Technologies

slide-32
SLIDE 32

Page 32

Finding Partially Disjoint Routes for Dual Fiber-Cut Protection on Bi-Connected Networks

Designing Survivable Networks (NFOEC)

Cut-pair: (s-a), (s-t)

slide-33
SLIDE 33

Page 33

Finding Partially Disjoint Routes for Dual Fiber-Cut Protection on Bi-Connected Networks

Designing Survivable Networks (NFOEC)

Cut-pair: (s-a), (d-t)

slide-34
SLIDE 34

Page 34

Sessions Reviewed

  • Multi-Layer Awareness and Management (NFOEC)
  • Optical Network Virtualization (OFC)
  • Designing Survivable Networks (NFOEC)
  • Next Generation Networks and Survivability (OFC)
slide-35
SLIDE 35

Page 35

Next Generation Networks and Survivability (OFC)

Shared-Path Protection in OFDM-based Optical Networks with Elastic Bandwidth Allocation

Xu Shao, Yong-Kee Yeo, Zhaowen Xu, Xiaofei Cheng, Luying Zhou Institute for Infocomm Research, Singapore

slide-36
SLIDE 36

Page 36

Shared-Path Protection in OFDM-based Optical Networks with Elastic Bandwidth Allocation

Next Generation Networks and Survivability (OFC)

slide-37
SLIDE 37

Page 37

Next Generation Networks and Survivability (OFC) Diverse Lightpath Protection against Correlated and Probabilistic Failures in Multi-Domain Optical Networks

  • F. Xu1, K. Liang, K. Shaban, M. Peng, Samee U. Khan,
  • N. Ghani

University of New Mexico, Qatar University, Wuhan University, North Dakota State University

slide-38
SLIDE 38

Page 38

Diverse Lightpath Protection against Correlated and Probabilistic Failures in Multi-Domain Optical Networks

Next Generation Networks and Survivability (OFC)

  • Extension p-SRLG concept for Multi-Domain networks

considering TE concerns.

TE-Only

  • Find primary and backup loose routes (LR) domain

sequences by load balancing.

Recursive Single-Path (RSP)

  • Find k-shortest LRs with load balancing.
  • Select primary LR which has the lowest aggregate failure

probability (AFP).

  • Find k-shortest backup LRs.
  • Select backup LR which has the lowest AFP.

Path Pair-Correlation

  • Find k-shortest link-disjoint LRs with load balancing.
  • Select the LR-pair with the lowest dot-product (correlated

failures of primary and backup).

slide-39
SLIDE 39

Page 39

Diverse Lightpath Protection against Correlated and Probabilistic Failures in Multi-Domain Optical Networks

Next Generation Networks and Survivability (OFC)

slide-40
SLIDE 40

Page 40

Next Generation Networks and Survivability (OFC)

Directions of Next Generation Transport Network Development [Invited]

Andreas Gladisch, F.-Joachim Westphal Deutsche Telekom Innovation Laboratories

slide-41
SLIDE 41

Page 41

Directions of Next Generation Transport Network Development [Invited]

Next Generation Networks and Survivability (OFC)

  • A change from the focus on connectivity to content
  • New technologies are modifying the definition of

network and of traffic structure

slide-42
SLIDE 42

Page 42

Directions of Next Generation Transport Network Development [Invited]

Next Generation Networks and Survivability (OFC)

  • Four major areas of interdependency between optical technologies and

network architecture:

  • Increase of capacity and improvement of efficiency
  • Improve spectral efficiency by new modulation formats
  • Denser channel spacing
  • An increase of the spectral efficiency by the factor 20 seems realistic
  • Optimization of traffic structure
  • Approaches of content caching, CDN and redirection of traffic based on

DNS

  • ISP may operate servers relatively close to the customer to deliver replicas
  • f frequently requested content
  • Optimization of architecture and topology
  • Fiber in access networks (many local exchanges are closing or planned to

be closed, e.g., 6000 for DT).

  • Minimization of complexity
  • Complexity vs. configurability
  • Electronic compensation
  • Tunable transponders
slide-43
SLIDE 43

Page 43

Post-OFC Ideas

slide-44
SLIDE 44

Page 44

Exploiting Excess Capacity in Virtualization

2 3 7 5 1 10 9 8 12 11 14 6 4 1 10 8 4

Post-OFC Ideas

slide-45
SLIDE 45

Page 45

Effects of Social Networks

Post-OFC Ideas

slide-46
SLIDE 46

Page 46

Effects of Social Networks

Post-OFC Ideas

slide-47
SLIDE 47

Page 47

Effects of Social Networks

Post-OFC Ideas

750 million photos uploaded in 2011 New Year’s Eve

slide-48
SLIDE 48

Page 48

Effects of Social Networks

Post-OFC Ideas

Can Bonomo decided not to attend Eurovision
