Vitsab International AB When refrigeration is the sole barrier to outgrowth of non-proteolytic C. bot toxin, a suitable Critical Control Point (CCP) is the use of a properly calibrated Time Temperature Indicator (TTI) on each ROP/MAP package

slide-1
SLIDE 1

10/12/2017 1

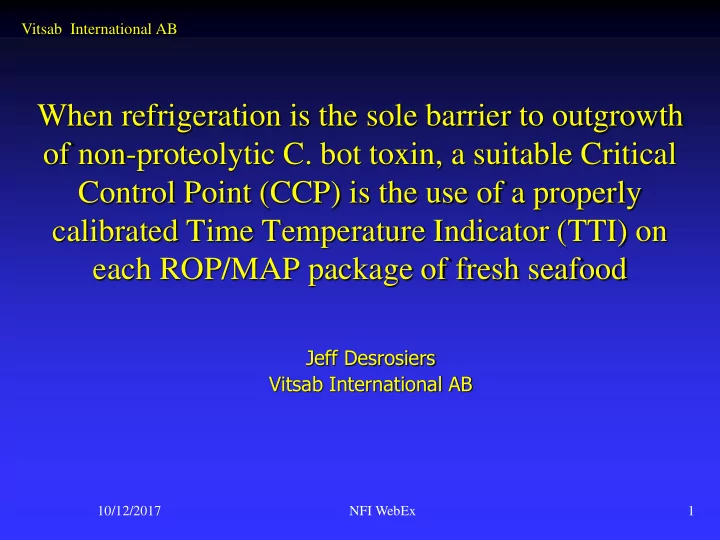

When refrigeration is the sole barrier to outgrowth

  • f non-proteolytic C. bot toxin, a suitable Critical

Control Point (CCP) is the use of a properly calibrated Time Temperature Indicator (TTI) on each ROP/MAP package of fresh seafood

Jeff Desrosiers Vitsab International AB

Vitsab International AB

NFI WebEx

slide-2
SLIDE 2

10/12/2017 2

Why is there a concern from packaging to consumption?

Harvester Processor Distributor Cold Chain

  • f

Distribution Retailer Food Service Restaurant Consumer

Vitsab International AB

NFI WebEx

slide-3
SLIDE 3

10/12/2017 3

Vitsab International AB

There is a direct relationship with temperatures above 38 ºF / 3.3 ºC and C bot toxin growth. This is why we need to monitor time and temperature.

NFI WebEx

slide-4
SLIDE 4

10/12/2017 4

Vitsab International AB

S F 5 10 15 20 25 10 20 30 Hours Temperature °C

  • Fig. 6 Logged temperature profile of air shipment

Temperature recorders and data loggers

  • They can be too expensive to use on each ROP/MAP package of fresh seafood
  • They require downloading and analysing the data

NFI WebEx

slide-5
SLIDE 5

10/12/2017 5

Vitsab International AB

Types Indication

CTI Critical Temperature indicators Temperature above a set temperature CTTI Critical Time-Temperature Integrators

  • Temp. Integration start above a set temperature

TTI Full History Time-Temperature Integrators

  • Temp. Integration starts at activation

Temperature indicating labels

  • Inexpensive
  • Easy to understand by simply looking at them

Types:

NFI WebEx

slide-6
SLIDE 6

10/12/2017 6

Vitsab International AB

An ideal TTI should have the following properties:

  • Respond only to time-temperature changes.
  • The response should be irreversible and easy to measure.
  • Calibrated to C Bot Toxin growth for ROP/MAP fresh seafood
  • Reliable with consistent response to temperature conditions.
  • Low cost.
  • Small and easy to integrate into food packaging.
  • Long shelf life before activation plus easy to activate.
  • Resistant to normal mechanical abuses and response cannot be

tampered.

  • Nontoxic due to its close proximity to food product.
  • Easy to read by human eye by personnel or consumers .

From: Taoukis P.S. and Labuza T.P. 2003. Time-Temperature Indicators (TTI). In: Novel Food Packaging Techniques. R. Ahvenainen , ed. Woodhead Publishing Limited, Cambridge, UK and CRC Press LLC, Boca Raton FL, USA, 2003; 103-126.

NFI WebEx

slide-7
SLIDE 7

10/12/2017 7

Vitsab International AB

Time Temperature Integrators (TTIs) are simple, inexpensive devices that can show

an easily measurable, time and temperature dependent change that cumulatively indicates the time-temperature history of the product from the point of manufacture to the consumer, allowing the location and the improvement of the critical points of the chill chain

Microbial Diffusion based

Enzymatic

Polymer based Photo- chromic

NFI WebEx

slide-8
SLIDE 8

10/12/2017 8

FDA Import Alert 16-125

  • f packed fresh seafood to USA

Vitsab International AB

Requiring HACCP program with special attention towards temperature monitoring and control throughout the shipment

NFI WebEx

slide-9
SLIDE 9

10/12/2017 9

Vitsab International AB

Time and temperatures conditions for toxin formation of Clostridium botulinum

NFI WebEx

slide-10
SLIDE 10

10

5 10 15 20 25 5 10 15 20

  • Temp. °C

Time, days

Skinner and Larkin boundary

No toxin formed

Area of toxin formed

Adaptation of Vitsab TTI-formulation to Clostridium botulinum toxin formation

Vitsab International AB

10/12/2017 NFI WebEx

slide-11
SLIDE 11

10/12/2017 11

Vitsab TTI or Smart Label

Vitsab International AB

NFI WebEx Activation

Active Expired

slide-12
SLIDE 12

This picture helps shows the size of each TTI

10/12/2017 12

Vitsab International AB

NFI WebEx

slide-13
SLIDE 13

10/12/2017 13

Jeff Desrosiers VITSAB International AB www.Vitsab.com jeff.Desrosiers@Vitsab.com +1 (207) 210-1753 Thank you to NFI for this WebEx series FDA for hosting on their WebEx platform Everyone in attendance Any Questions?
