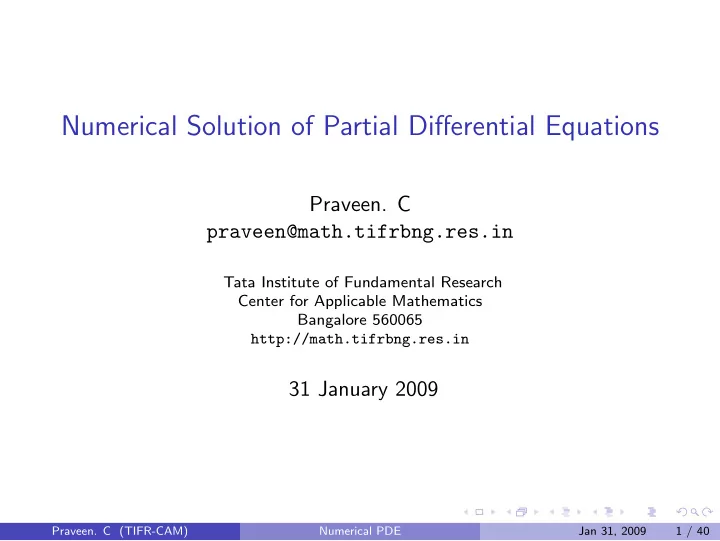

Numerical Solution of Partial Differential Equations Praveen. C - - PowerPoint PPT Presentation

Numerical Solution of Partial Differential Equations

• Praveen. C

praveen@math.tifrbng.res.in

Tata Institute of Fundamental Research Center for Applicable Mathematics Bangalore 560065 http://math.tifrbng.res.in

31 January 2009

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 1 / 40

A continuous function

u(x) = sin(2πx), x ∈ [0, 1]

x u(x)

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 2 / 40

Space of continuous functions

• C([0, 1]) = Space of continuous functions
• C([0, 1]) has infinitely many elements in it

= ⇒ We say it is infinite dimensional

• Example:

u(x) = sin(2πx) is an element of C([0, 1])

• A computer has finite memory

= ⇒ It cannot represent infinite dimensional objects Hence we need to approximate an infinite dimensional object using a finite dimensional space

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 3 / 40

Discrete approximation

u(x) = sin(2πx), x ∈ [0, 1]

x u(x)

Sample at discrete set of N points, with spacing h =

1 N−1

xi = (i − 1)h, 1 ≤ i ≤ N ui = u(xi)

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 4 / 40

Discrete approximation

u(x) = sin(2πx), x ∈ [0, 1]

x u(x)

U = [u1, u2, . . . , uN] ∈ RN U provides a finite dimensional approximation to the continuous function

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 5 / 40

Discrete approximation

u(x) = sin(2πx), x ∈ [0, 1]

x u(x)

Piecewise linear approximation uh(x) N → ∞ = ⇒ h → 0 and uh(x) → u(x)

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 6 / 40

Ordinary Differential Equation

• u = u(x): function of single variable x
• Second order ODE

−d2u dx2 = sin(x), x ∈ (0, 2π) with boundary condition u(0) = u(2π) = 0

• Exact solution

u(x) = sin(x) This can be called a symbolic solution.

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 7 / 40

Ordinary Differential Equation

• If we have a general ODE

−d2u dx2 = f(x), x ∈ (0, 2π) there may not exist an explicit, analytical solution

• Example:

−d2u dx2 = exp(−x2), x ∈ (0, 2π) = ⇒ Need for numerical solution

• Numerical techniques for ODE/PDE

1 Finite Difference Method 2 Finite Volume Method 3 Finite Element Method

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 8 / 40

Finite Difference Method

• Consider a general ODE

−d2u dx2 = f(x), x ∈ (a, b) with boundary conditions u(a) = ua, u(b) = ub

• Instead of finding a function that solves the ODE, find a discrete

approximation to the solution

• Divide computational domain (a, b) into N + 1 intervals each of size

h = b − a N + 1

• Computational grid

xi = ih, 0 ≤ i ≤ N + 1

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 9 / 40

Finite Difference Method

• Discrete solution

x0, x1, x2, . . . , xN, xN+1 u0, u1, u2, . . . , uN, uN+1 ui ≈ u(xi), i = 0, . . . , N + 1

• From boundary condition

u0 = ua, uN+1 = ub Hence, we need to find U = [u1, u2, . . . , uN] ∈ RN This is a finite dimensional problem

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 10 / 40

Finite Difference Method

• We must approximate the ODE at the interior grid points

x1, x2, . . . , xN

• Differentiation is limit of finite difference

d dxu(x) = lim

h→0

u(x + h) − u(x) h

• Finite difference approximation

d dxu(xi) ≈ ui+1 − ui h

Finite Difference Method

Approximate differential operators by finite difference operators

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 11 / 40

FDM: First derivative

• From Taylor’s formula

ui+1 = ui + hu′(xi) + h2 2 u′′(ξ)

• Forward difference approximation

δ+ui := ui+1 − ui h = u′(xi) + h 2u′′(ξ)

O(h)

Forward difference is first order accurate

• Backward difference approximation

δ−ui := ui − ui−1 h = u′(xi) + O(h)

• Central difference approximation

δ0ui := ui+1 − ui−1 2h = u′(xi) + O(h2)

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 12 / 40

FDM: Second derivative

• Second order derivative

u′′(x) = lim

h→0

u′(x + h/2) − u′(x − h/2) h

• Finite difference approximation

∆ui =

ui+1−ui h

− ui−ui−1

h

h = ui−1 − 2ui + ui+1 h2

• Second order accurate

∆ui = u′′(xi) + O(h2)

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 13 / 40

Back to the ODE

• Replace ODE

−u′′(x) = f(x), x ∈ (a, b) with finite difference approximation −∆ui = fi, i = 1, 2, . . . , N

• At i = 1

2 h2 u1 − 1 h2 u2 = f1 + 1 h2 ua

• For i = 2, . . . , N − 1

− 1 h2 ui−1 + 2 h2 ui − 1 h2 ui+1 = fi

• At i = N

− 1 h2 uN−1 + 2 h2 uN = fN + 1 h2 ub

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 14 / 40

FDM for ODE

For N = 10, putting all equations together 1 h2            

2 −1 −1 2 −1 −1 2 −1 −1 2 −1 −1 2 −1 −1 2 −1 −1 2 −1 −1 2 −1 −1 2 −1 −1 2

                       

u1 u2 u3 u4 u5 u6 u7 u8 u9 u10

            =            

f1 + ua

h2

f2 f3 f4 f5 f6 f7 f8 f9 f10 + ub

h2

           

• r

AhUh = bh We have N equations for the N unknowns: [u1, u2, . . . , uN]

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 15 / 40

FDM for ODE

• Matrix Ah is invertible

= ⇒ Solution to discrete problem exists

• Efficient solution using Thomas Tri-diagonal algorithm

1 2 3 4 5 6 −1 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 1 x u(x) Numerical Exact

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 16 / 40

Partial Differential Equations

• Problems involving more than one independent variable

u(x, t): x is space, t is time u(x, y): x, y denotes two space coordinates u(x, y, t): x, y denotes two space coordinates, t is time = ⇒ Leads to Partial Differential Equation

• One space and one time: u(x, t)

◮ Hyperbolic equation

∂2u ∂t2 = c2 ∂2u ∂x2

◮ Elliptic equation

∂u ∂t = µ∂2u ∂x2

◮ Parabolic equation

∂u ∂t + c∂u ∂x = µ∂2u ∂x2

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 17 / 40

Simplest hyperbolic PDE

• Linear, scalar, convection (advection) equation for u(x, t)

∂u ∂t + c∂u ∂x = 0, x ∈ R with initial condition u(x, 0) = u0(x)

• Exact solution

u(x, t) = u0(x − ct)

x u t = 0 t = ∆t c∆t c > 0

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 18 / 40

Hyperbolic PDE

Wave

A phenomenon in which some recognizable feature propagates with a recognizable speed

Hyperbolic PDE

A PDE which has wave-like solutions

• Waves propagate in specific directions:
• Linear, convection equation

◮ c > 0 =

⇒ wave moves to the right

◮ c < 0 =

⇒ wave moves to the left

◮ c is the speed at which waves propagate ◮ Finite speed of propagation ◮ Preserves shape of initial condition

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 19 / 40

Hyperbolic PDE

• Scalar, convection equation

∂ ∂t + c ∂ ∂x

• u = 0

contains one wave

• Second order wave equation

∂2u ∂t2 = c2 ∂2u ∂x2

◮ can be factored

∂ ∂t + c ∂ ∂x ∂ ∂t − c ∂ ∂x

• u = 0

◮ contains two waves, with speed +c and −c ◮ In fact, general solution is

u(x, t) = f(x − ct) + g(x + ct)

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 20 / 40

Elliptic PDE

• Example: Heat equation

∂u ∂t = µ∂2u ∂x2 , x ∈ R with initial condition u(x, 0) = u0(x)

∆ t t+ t

• No waves; initial condition is damped or dissipated
• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 21 / 40

Parabolic PDE

• Convection-diffusion equation

∂u ∂t + c∂u ∂x = µ∂2u ∂x2 contains convection and diffusion

∆ t t+ t

• Damped wave-like solutions
• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 22 / 40

FDM for ut + cux = 0

• Given u(x, 0) = u0(x), find solution for t > 0: Initial Value Problem
• Space-time grid

x t i n ∆x ∆t

• Numerical solution un

i

un

i ≈ u(xi, tn)

Numerical solution computed only at grid points

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 23 / 40

FDM for ut + cux = 0

• Forward difference in time

∂ ∂tu(xi, tn) ≈ un+1

i

− un

i

∆t

• Three choices for

∂ ∂x 1 Backward difference

∂ ∂xu(xi, tn) ≈ un

i − un i−1

∆x

2 Forward difference

∂ ∂xu(xi, tn) ≈ un

i+1 − un i

∆x

3 Central difference

∂ ∂xu(xi, tn) ≈ un

i+1 − un i−1

2∆x

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 24 / 40

FDM for ut + cux = 0

• Forward-time and backward-space finite difference scheme

∂u ∂t + c∂u ∂x = 0 approximated as un+1

i

− un

i

∆t + cun

i − un i−1

∆x = 0

• Re-arranging

un+1

i

= un

i − c∆t

∆x (un

i − un i−1)

• Given initial condition u0

i for all i, we march forward in time

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 25 / 40

FDM for ut + cux = 0

• Three numerical schemes

1 Backward difference

un+1

i

= un

i − ν(un i − un i−1)

2 Forward difference

un+1

i

= un

i − ν(un i+1 − un i )

3 Central difference

un+1

i

= un

i − 1

2ν(un

i+1 − un i−1)

• Courant-Friedrich-Levy number or CFL number

ν = c∆t ∆x

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 26 / 40

FDM for ut + cux = 0

• Consider the case c > 0, ν = 0.8
• Initial condition with a step

x u t = 0

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 27 / 40

FDM for ut + cux = 0

x u x u x u

Backward Forward Central

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 28 / 40

FDM for ut + cux = 0

• For stable schemes: un remains bounded
• For unstable schemes: un → ∞ as n → ∞
• For c > 0

Backward = ⇒ stable Forward = ⇒ unstable Central = ⇒ unstable

• For c < 0

Backward = ⇒ unstable Forward = ⇒ stable Central = ⇒ unstable

Hyperbolic problems

Finite difference scheme must be chosen based on the sign/direction of waves present in the problem

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 29 / 40

FDM for ut + cux = 0: Backward difference

x u x u

ν = 0.8 ν = 1.2

• Scheme is stable only if ν ≤ 1
• This is called CFL condition
• Restriction on time step

∆t ≤ ∆x |c|

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 30 / 40

FDM for ut + cux = 0: Backward difference

x u t = 0

• Numerical solution behaves like solution of convection-diffusion

equation

• Numerical scheme has artificial dissipation or numerical dissipation
• Numerical dissipation =

⇒ stable scheme But we must not have too much numerical dissipation

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 31 / 40

FDM for Elliptic equation

• Elliptic PDE

∂u ∂t = µ∂2u ∂x2

• No waves =

⇒ no directional dependance Hence use central differencing for spatial derivatives un+1

i

− un

i

∆t = µun

i−1 − 2un i + un i+1

∆x2

• r re-arranging

un+1

i

= Pun

i−1 + (1 − 2P)un i + Pun i+1

with P := µ∆t ∆x2

• Stability condition

P ≤ 1 2 = ⇒ ∆t ≤ ∆x2 2µ

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 32 / 40

FDM for Parabolic equation

• Convection-diffusion equation

∂u ∂t + c∂u ∂x = µ∂2u ∂x2 , c > 0

• Combine appropriate scheme for hyperbolic and elliptic operators

un+1

i

− un

i

∆t + cun

i − un i−1

∆x = µun

i−1 − 2un i + un i+1

∆x2

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 33 / 40

Consistency and accuracy

• FTBS for ut + cux = 0

un+1

i

− un

i

∆t + cun

i − un i−1

∆x = 0 Plug in exact solution u(x, t) u(xi, tn + ∆t) − u(xi, tn) ∆t + cu(xi, tn) − u(xi − ∆x, tn) ∆x = τ n

i

• τ n

i = local truncation error

• Numerical scheme consistent with PDE if

τ n

i → 0,

as ∆x → 0, ∆t → 0

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 34 / 40

Consistency and accuracy

• FTBS: truncation error

τ n

i = 1

2c∆x(1 − ν)∂2u ∂x2 + O(∆x2) We say that FTBS is first order accurate

• For a second order accurate scheme

τ n

i = O(∆x2)

Higher order accurate scheme = ⇒ more accurate solution

x u t = 0

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 35 / 40

Convergence

Does the numerical solution converge to the exact solution as the grid is refined ? ∆x → 0, ∆t → 0 = ⇒ un

i → u(xi, tn)

Lax-Richtmyer Equivalence theorem

A consistent finite difference scheme for a PDE for which the initial value problem is well-posed is convergent if and only if it is stable

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 36 / 40

Non-linear hyperbolic PDE

• Linear convection equation

∂u ∂t + c∂u ∂x = 0

• Non-linear convection (Burger) equation

∂u ∂t + u∂u ∂x = 0 Convection speed depends on solution u

Triple−valued solution

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 37 / 40

Non-linear hyperbolic PDE

• Solution becomes discontinuous at some time

This is called a shock

• Not differentiable =

⇒ does not satisfy PDE Notion of weak solution1

• Discontinuous solutions occur in many physical models: Compressible

flow of gases

• 1S. Kesavan: Topics in Functional Analysis and Applications
• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 38 / 40

Summary of numerical method

Choice of numerical scheme based on physics in the problem: convection and/or diffusion

• Discretize PDE using finite differences
• Check consistency of numerical scheme
• Check stability of numerical scheme
• Check convergence of numerical solution to exact solution
• Validate numerical scheme against available exact solutions
• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 39 / 40

References

• F. Strikwerda

Finite difference schemes and partial differential equations

• A. Iserles

A first course in the numerical analysis of differential equations

• Praveen. C (TIFR-CAM)

Numerical PDE Jan 31, 2009 40 / 40
