Notice To Proceed August 8 th , 2008 80,000 cubic yards bulk excavation 80,000 yards of bulk excavation Geo Piers Spread Eng. Fill Footings Caissons 4 Different foundation methods required Benches for CSLM Stone at ice ring

slide-1
SLIDE 1

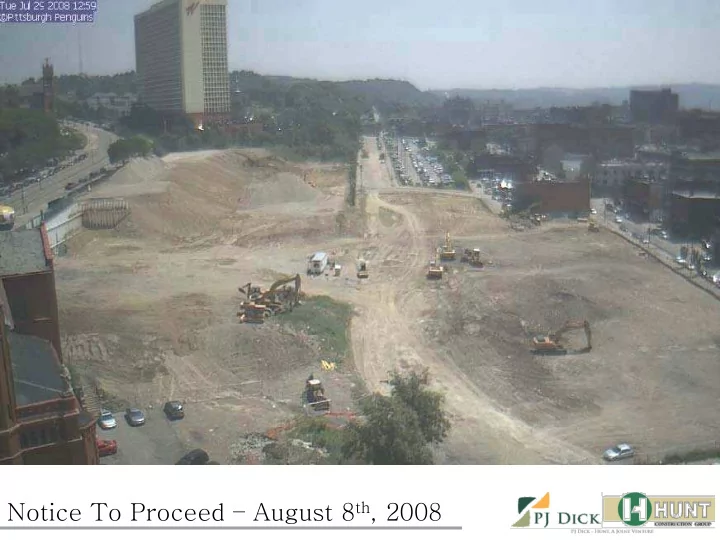

Notice To Proceed – August 8th, 2008

slide-2
SLIDE 2
  • 80,000 cubic yards bulk excavation

80,000 yards of bulk excavation

slide-3
SLIDE 3

4 Different foundation methods required

  • Eng. Fill

Geo Piers Spread Footings Caissons

slide-4
SLIDE 4

Benches for CSLM

slide-5
SLIDE 5
  • Stone at ice ring

Stone at Ice Ring

slide-6
SLIDE 6

9,000 cubic yards of concrete foundation

slide-7
SLIDE 7

4,600 linear feet of foundation wall

slide-8
SLIDE 8

11,000 yards of CLSM backfill

slide-9
SLIDE 9

CLSM backfill

slide-10
SLIDE 10

Steel at Ice Ring for Steel Erection

slide-11
SLIDE 11

Steel erection start date – December 22, 2008 Milestone Achieved

slide-12
SLIDE 12
  • 74 steel sequences

7,200 tons of steel – 74 sequences

slide-13
SLIDE 13

Snow day! Fighting the elements

slide-14
SLIDE 14

14,000 cubic yards

slide-15
SLIDE 15

Upper down precast erection

slide-16
SLIDE 16

Preparation for ice slab 420 yards of poured monolithic

slide-17
SLIDE 17

55,000 square foot curtain wall

slide-18
SLIDE 18

Pens locker room – resembles current Civic Arena – (Igloo Shaped)

slide-19
SLIDE 19

Writers’ Press – capable of seating

  • ver 130 reporters
slide-20
SLIDE 20

Team store

slide-21
SLIDE 21

East Club

slide-22
SLIDE 22

Spine Wall

slide-23
SLIDE 23

5th Avenue Entrance

slide-24
SLIDE 24

5th Avenue Elevation

slide-25
SLIDE 25

Lexus Club overlooking Civic Arena

slide-26
SLIDE 26

Final touches on 70,000 pound scoreboard

The scoreboard’s 4 screens are 14 feet x 25 feet

slide-27
SLIDE 27

University of Pittsburgh Locker Room

slide-28
SLIDE 28

Lexus Club Bar

slide-29
SLIDE 29

Typical Suite – 1 of 71

slide-30
SLIDE 30

Party Suite – Capable of Seating 200 guests

slide-31
SLIDE 31

Ticket windows – 53,000 feet of terrazzo

There are 800 HD TVs of all sizes located throughout the arena

slide-32
SLIDE 32

Wall of Fame featuring team jerseys from local high schools

slide-33
SLIDE 33

Trib Total Media Gate

slide-34
SLIDE 34

Escalators – there are 12 total in the arena

slide-35
SLIDE 35

One area for concessions – there is

  • ne concession point for every 158

visitors

slide-36
SLIDE 36

The arena seats 18,087 guests for a hockey game

slide-37
SLIDE 37

The arena includes conference space for 40 to up to 160 people

slide-38
SLIDE 38

236 Loge Box Seats are available in the arena

slide-39
SLIDE 39

On June 10th, 2010 the Pittsburgh Penguins Invited 400 local college and high school students into the arena to test the 384 toilets and 168 urinals throughout the building to ensure that the plumbing system could handle 1,800 gallons of water per minute

Photo credit: Pittsburgh Tribune-Review

slide-40
SLIDE 40

Here, Walt Czekaj, Director of Field Operations and other construction workers pose with the Stanley Cup on the job site

slide-41
SLIDE 41

Arena staff pose with some Pittsburgh Penguins on site

slide-42
SLIDE 42

The CONSOL Energy Center is the 1st NHL Arena to Achieve LEED Gold Certification
