Northeastern Conference of Seventh Day Adventists (NEC) REMOVAL OF - - PowerPoint PPT Presentation

NEW YORK / NEW JERSEY

August 7, 2018

Green Architecture & Planning

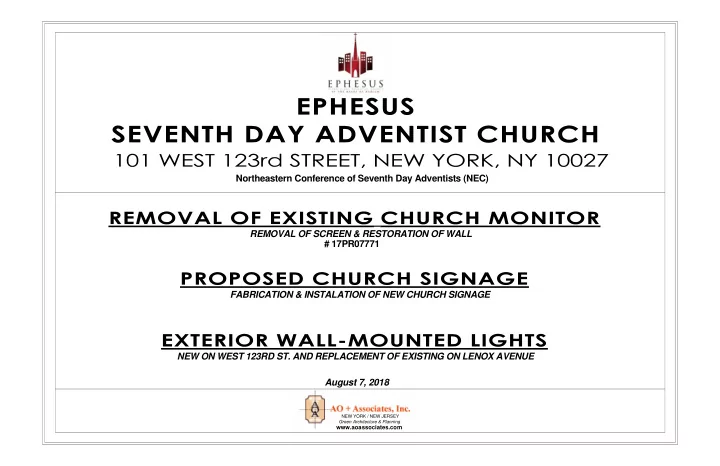

# 17PR07771 REMOVAL OF SCREEN & RESTORATION OF WALL NEW ON WEST 123RD ST. AND REPLACEMENT OF EXISTING ON LENOX AVENUE FABRICATION & INSTALATION OF NEW CHURCH SIGNAGE Northeastern Conference of Seventh Day Adventists (NEC)

www.aoassociates.com

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC)

08/01/2018 8:54:16 AM

A102

BLOCK & LOT

N

No. Description Date

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC)

08/01/2018 8:54:19 AM

A103

EXISTING SCREEN

No. Description Date

GENERAL NOTES: REMOVE ENTIRE EXISTING ELECTRONIC SIGNAGE. a. Prior to any work under this project, Contractor shall file for, and

• btain "Work Permit" from the NYC Landmark Preservation Commision

and/or NYC Department of Buildings as required. b. The contractor shall field verify all existing conditions prior to the commencement of this work. Any discrepancies shall be brought to the attention of the Architect at once. No demolition work shall commence without field verification by the contractor and Architect. c. It is the contractor's responsibility to locate and remove all Mechanical, Electrical, & Miscellaneous related equipment as required to completely remove the wall mounted screen, and related wall bracket carefully, without any further damage to the exisitng stone units and building facade. d. Contractor shall provide temporary structural support for the entire assembly prior to the actual removal, in order to prevent any further damage to the stone units and/or wall surface behind. e. The entire screen assembly shall be carefully and safely uninstalled, disassembled and delivered to a location as directed by the Church. f. The preference is to retain and preserve the existing facade finishes as monolithic and as weathered as possible. Therefore special care must be taken to avoid chipping off, staining, cracking, or loosening up existing masonry unit surfaces. g. Upon complete removal of the screen, fasteners, and all support brackets, contractor shall schedule a field visit by the Architect for visual inspection and further specific directives to proceed with repair and restoration of wall surfaces. h. Acidic cleaners or highly alkaline cleaners shall not be used to clean any portion of the wall surfaces. Only non-acidic neutral pH detergents shall be used in conjunction with non-metallic brushes or scrapers. Cleaning methods should be carefully selected to do the job without further harming the historic material. i. If water pressure is used for cleaning, the pressure shall not exceed 150-200 psi. Abrasive methods such as grit blasting or "sandblasting" should never be used. j. Test patches shall be performed prior to selecting a removal product

• r method, beginning with the lowest recommended concentration of

product and working upward to find the appropriate level.

• k. If and when required, removal of existing loose mortars should be

performed using hand-held, non-power tools. Carefully controlled pneumatic chisels or small grinders may be appropriate, but must

• nly be handled by hands with extensive experience and quality

control to assure that the masonry units are not damaged.

• l. New mortar shall match the existing in strength, composition, color,

texture, aggregate distribution and all other qualities as determined by a laboratory analysis.

• m. All new joint mortar shall match existing in width, tooling, texture and
• profile. Special character-defining joints such as "ruled" or

"grapevine" shall be repaired or reproduced carefully.

• n. Since the damaged stone units are difficult to repair, replacement

may be most appropriate and may involve using new or salvaged

• units. If repair is not possible and replacement is necessary, new

units shall match the existing in size, color, texture and all other qualities exactly. In accordance with preservation Standards, the best remedy is always to repair. Replacement should only be considered if the material is deteriorated beyond repair. Where cracked, spalled or exfoliated, limestone, sandstone, marble, terra cotta, cast stone or concrete materials should be repaired to prevent further damage.

• . If mortar analysis is not undertaken to determine the composition of

the original mortar, the following soft, lime-rich mortar mix may be appropriate for use on most historic masonry: 1 part white Portland cement; 3 parts Type S hydrated lime; 6 parts sand with no admixtures since color additives can weaken masonry if used in large quantities, a color match is best achieved using only appropriate colored aggregates (sand, brick dust, etc.) All information on appropriate specific treatment for historic masonry materials were obtained from SHPO Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC) 1" = 1'-0"

08/01/2018 8:54:32 AM

A104

EXISTING SCREEN REMOVAL

Existing wall mounted Projection Screen to be removed. Restore wall finish to pre-installation condition. SITE PLAN LENOX AVENUE FRONTAGE

No. Description Date

0' - 9" 2' - 9" 3' - 6" 0' - 9" BRUSHED STAINLESS STEEL CROSS, & BASE ANCHOR STONE VENEER

• WALL. (Finish to match existing

Church wall - front & back) BACK-LIT BRUSHED STAINLESS STEEL 4" LETTERINGS (Treated to resist deterioration by exterior elements) SURFACE MOUNTED BRUSHED SS. 1 1/2" LETTERINGS. (Centered @ base)

8 5 . 9 1 ° 0' - 2" 0' - 10" 8 5 . 9 1 ° 1' - 0"

Main Worship Service Every Sabbath 11:00am Main Auditorium Youth Church Worship Service Every Sabbath 11:00am Youth Sanctuary

GLASS ENCLOSED PROGRAMABLE L.E.D. DIGITAL MESSAGE CENTER (Back Cover Panel with access panel)

3' - 0" BRUSHED STAINLESS STEEL CROSS, & BASE ANCHOR STONE VENEER WALL. (Finish to match existing Church wall) BACK-LIT BRUSHED STAINLESS STEEL 4" LETTERINGS (Treated for exterior installation) 0' - 5"

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC) 1 : 6

08/01/2018 8:58:27 AM

A105

NEW SIGN

PROPOSED INDEPENDENT SIGNAGE

REAR ELEVATION FRONT ELEVATION PLAN SIDE ELEVATION

1. CONTRACTOR TO INTEGRATE STRUCTURAL STEEL SUPPORT AND ANCHORAGE AS REQUIRED WITHIN SIGN & EMBED INTO A NEW CONCRETE FOUNDATION BELOW GRADE. 2. PROVIDE "SHOP" DRAWINGS FOR REVIEW AND APPROVAL PRIOR TO FABRICATION. 3. NEW SIGN ASSEMBLY TO BE INSTALLED AT MIDDLE OF EXISTING LANDSCAPED AREA.. (See Site Paln). Repair and/or replant disturbed landscape)

No. Description Date

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC) As indicated

08/01/2018 8:58:36 AM

A106

MATERIAL SAMPLE

PROPOSED INDEPENDENT SIGNAGE

No. Description Date

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC)

08/01/2018 8:58:29 AM

A107

NEW SIGN RENDERING

PROPOSED INDEPENDENT SIGNAGE

No. Description Date

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC)

08/01/2018 8:58:27 AM

A108

L.E.D. SIGN RESOLUTION

PROPOSED INDEPENDENT SIGNAGE

No. Description Date

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC)

08/01/2018 9:01:53 AM

A-109

NEED FOR NIGHT-LIGHTING

PROPOSED WALL-MOUNTED EXTERIOR LIGHTING

No. Description Date

ALL NEW LIGHT FIXTURES TO ALIGN HORIZONTALLY

AREA OF PROPOSED WORK AREA OF PROPOSED WORK AREA OF PROPOSED WORK

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC) 1/8" = 1'-0"

08/01/2018 9:02:04 AM

A-110

LENOX AVENUE & West 123rd St. ELEVATIONS

PROPOSED WALL-MOUNTED EXTERIOR LIGHTING

1/8" = 1'-0" 1

• W. 123rd STREET ELEVATION.

AREA OF PROPOSED WORK REPLACE EXISTING LIGHT FIXTURES WITH NEW TO MATCH THE NEW ONES ON West 123rd STREET.

No. Description Date

EQ EQ EQ EQ EQ EQ

ALL NEW LIGHT FIXTURES TO ALIGN HORIZONTALLY NEW WALL MOUNTED LIGHT FIXTURES (typ) TO BE INSTALLED AT THE SAME LOCATIONS AS PREVIOUS FIXTURES. ELECTRIFICATION SHALL BE BY EXISTING ELECTRICAL WIRING PROTRUDING FROM WALL SURFACES. INSTALLATION METHOD ON EXISTING WALL SURFACES SHALL BE IN STRICT COMPLIANCE WITH "LPC" GUIDELINES FOR SUCH LANDMARK BUILDINGS.

AREA OF PROPOSED WORK

Scale Project Number Date Drawn by Checked by

ALL IDEAS, DESIGNS, ARRANGEMENTS & PLANS INDICATED OR REPRESENTED BY THESE DRAWINGS ARE OWNED BY, & ARE PROPERTIES OF AO + ASSOCIATES Inc., & WERE CREATED, EVOLVED & DEVELOPED FOR USE ON & IN CONNECTION WITH THIS SPECIFIC PROJECT. NONE OF SUCH IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR ANY PURPOSE WHATSOEVER WITHOUT WRITTEN PERMISSION FROM AO + ASSOCIATES Inc.,

Owners: Project: ARCHITECT:

EPHESUS Seventh Day Adventist Church 101 W. 123rd St. NY, NY 10027 AO + ASSOCIATES, Inc. New York / New Jersey

Northeastern Conference of Seventh Day Adventists (NEC) 1/4" = 1'-0"

08/01/2018 9:02:10 AM

A-111

FIXTURE OPTIONS & LOCATIONS

PROPOSED WALL-MOUNTED EXTERIOR LIGHTING

1/4" = 1'-0" 1 PARTIAL WEST 123RD ST. ELEVATION

HIDDEN FROM ELEVATION ON 123RD STREET PROPOSED LIGHT FIXTURES TO BE INSTALLED AT THE EXACT SAME POINTS AS THE EXISTING ELECTRICAL WIRES

No. Description Date
