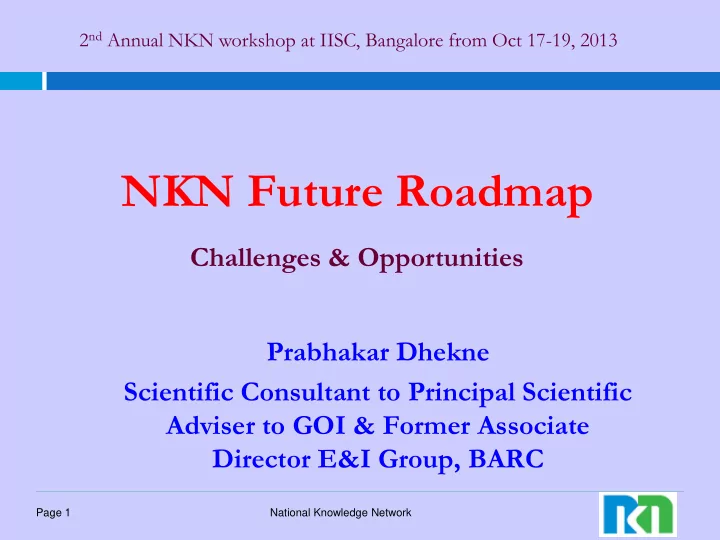

NKN Future Roadmap

Challenges & Opportunities Prabhakar Dhekne Scientific Consultant to Principal Scientific Adviser to GOI & Former Associate Director E&I Group, BARC

2nd Annual NKN workshop at IISC, Bangalore from Oct 17-19, 2013

slide-2
SLIDE 2

National Knowledge Network Page 2

Outline of Talk

  • Global Research Collaborations
  • Trends in e-infrastructure
  • National Knowledge Network(NKN)
  • Major Challenges & Opportunities
  • Testing of Dark Fiber for NKN scaling
  • Conclusions
slide-3
SLIDE 3

National Knowledge Network Page 3

Research Collaborations

India is effectively participating in the major international experimental programmes in Europe such as Large Hadron Collider (LHC), ITER, and

  • thers. Participation in the European Framework Programmes has been very

fruitful and has enabled Indian scientists to collaborate in frontier research activities with European colleagues. Cooperat

  • operatio

ion with th Globa lobal Virtua irtual Re Research search Com

  • mmu

munit nities es (G (GVRCs VRCs) through through pro project jects like ike LH LHC Grid rid & EU EU-Ind IndiaGrid iaGrid gave ave Ind India ia much uch neede needed impetus mpetus for for creati creating an an e-inf nfrastru rastructure cture with thin in th the cou country

  • try. The

The cooperat cooperation ion has has bee been enha enhanc nced by by two wo closel losely re relate lated EU EU-fu funde ded proj project cts – EU EU-Indi ndiaGrid aGrid2 and nd CHAIN IN. The EU EU-India ndiaGrid rid project, which has allowed Indian scientists to access major European and Indian Grid infrastructures exposing them to the grid technology, made significant progress in last two years.

slide-4
SLIDE 4

National Knowledge Network Page 4

Trend: Network Infrastructure

 Grid & Cloud computing has demanded deployment of an advanced network

infrastructure for Research & Education to be effective

 Light (lambda network facility) is the response to the need for high-quality

research and education. It will

 help create a viable economy-of-scale model for the region to

reduce networking costs per country,

 serve as a test-bed for development of new services, and allow the

R&E community to participate in international networking activities

 support the growth of National Research & Education Networks

(NRENs), accelerate research, fuel national and regional economic growth, and aid their integration with the rest of world.

 Many countries today have Lambda Network Facility – an e-infrastructure

slide-5
SLIDE 5

National Knowledge Network Page 5

The e-Infrastructure of India

Indian Grid Certification Authority EU-IndiaGrid CHAIN TIFR-CERN link National Knowledge Network: Enabling a Paradigm Shift in Research Infrastructure And Global Science Cooperation

NKN is a state-of-the-art multi-gigabit pan-India network: www.nkn.in

slide-6
SLIDE 6

National Knowledge Network Page 6

How Testing of NKN was done?

  • Exhaustive testing was conducted

– Functional Testing (ping, test route, latency, packet loss) – Sustainability Testing by HD Video-Con tests (Light weight, lossy data permitted) – End-to-End Performance & Reliability Testing using FTP data transfer for short & long periods (Heavy weight, lossless data) – Application testing

  • Collab-CAD connecting BARC-IGCAR-NIC
  • Grid Computing (DAE grid BARC-IGCAR-TIFR-VECC)
slide-7
SLIDE 7

National Knowledge Network Page 7

Interconnect-Related Terms

 Most critical component of HPC still remains to be interconnect

technology and network topology

 Latency:

 Networks: How long does it take to start sending a "message"?

Measured in microseconds- startup time

 Round Robin Delay & Number of Hops

 Processors: How long does it take to output results of some

  • perations, such as floating point add, divide etc., which are

pipelined?)  Bandwidth: What data rate can be sustained once the message is

started? Measured in Mbytes/sec or Gbytes/sec

slide-8
SLIDE 8

National Knowledge Network Page 8

8

Best Effort is not Good Enough …

  • Set up optimized

path

  • Select Level 2,3

,4 switching

  • Trade-off

between buffer size & Appln

  • Guaranteed end-

to-end performance

Choice for QOS

slide-9
SLIDE 9

National Knowledge Network Page 9

9

On the Network: Big Problems!

  • Network Traffic Profile
  • Mixing Traffic
  • Trade of between buffer

size Vs Appln

## Better Data handling methods, Innovative Algorithms in Data analytics are

  • needed. Also high resolution data visualisation techniques & tools needed to be

developed !!!

slide-10
SLIDE 10

National Knowledge Network Page 10

National Knowledge Network

Progress Chart

NKN User Nodes Commissioned, Mar-14, 58 NKN User Nodes Commissioned, Apr-14, 60 NKN User Nodes Commissioned, May-14, 66 NKN User Nodes Commissioned, Jun-14, 69 NKN User Nodes Commissioned, Jul-14, 73 NKN User Nodes Commissioned, Aug-14, 75 NKN User Nodes Commissioned, Sep-14, 78 NKN User Nodes Commissioned, Oct-14, 81 NKN User Nodes Commissioned, Nov-14, 83 NKN User Nodes Commissioned, Dec-14, 85 NKN User Nodes Commissioned, Jan-15, 89 NKN User Nodes Commissioned, Feb-15, 104 NKN User Nodes Commissioned, Mar-15, 104 NKN User Nodes Commissioned, Apr-15, 152 NKN User Nodes Commissioned, May-15, 179 NKN User Nodes Commissioned, Jun-15, 199 NKN User Nodes Commissioned, Jul-15, 210 NKN User Nodes Commissioned, Aug-15, 248 NKN User Nodes Commissioned, Sep-15, 358 NKN User Nodes Commissioned, Oct-15, 382 NKN User Nodes Commissioned, Nov-15, 467 NKN User Nodes Commissioned, Dec-15, 606 NKN User Nodes Commissioned, Jan-16, 638 NKN User Nodes Commissioned, Feb-16, 672 712 NKN User Nodes Commissioned, Mar-17, 1500 NKN User Nodes Provisioned, Mar- 14, 65 NKN User Nodes Provisioned, Apr- 14, 67 NKN User Nodes Provisioned, May- 14, 70 NKN User Nodes Provisioned, Jun- 14, 72 NKN User Nodes Provisioned, Jul-14, 78 NKN User Nodes Provisioned, Aug- 14, 79 NKN User Nodes Provisioned, Sep- 14, 85 NKN User Nodes Provisioned, Oct- 14, 91 NKN User Nodes Provisioned, Nov- 14, 104 NKN User Nodes Provisioned, Dec- 14, 121 NKN User Nodes Provisioned, Jan- 15, 139 NKN User Nodes Provisioned, Feb- 15, 157 NKN User Nodes Provisioned, Mar- 15, 185 NKN User Nodes Provisioned, Apr- 15, 224 NKN User Nodes Provisioned, May- 15, 259 NKN User Nodes Provisioned, Jun- 15, 270 NKN User Nodes Provisioned, Jul-15, 276 NKN User Nodes Provisioned, Aug- 15, 418 NKN User Nodes Provisioned, Sep- 15, 446 NKN User Nodes Provisioned, Oct- 15, 471 NKN User Nodes Provisioned, Nov- 15, 557 NKN User Nodes Provisioned, Dec- 15, 667 NKN User Nodes Provisioned, Jan- 16, 711 NKN User Nodes Provisioned, Feb- 16, 754 774 NKN User Nodes Provisioned, Mar- 17, 1500

  • No. of

NKN User Nodes NKN Progress Chart NKN User Nodes Commissioned NKN User Nodes Provisioned

  • No. of user nodes

Virtual Classrooms, Collab-CAD Model Projects Immersive Classrooms Global Science Research Collaboration through TIEN3, GEANT & European Grid Initiative (EGI)

  • No. of user nodes projected

High Energy Physics experiment at Large Hadron Collider, Climate Change Modeling, OSDD ESRF Synchrotron Lab at Grenoble, France, Material Science, Bioscience, Brain Grid etc.

831 980

NKN crosses 1000 Plus !!!

slide-11
SLIDE 11

National Knowledge Network Page 11

NKN Project Management

High Level Com DIT TAC Grid Appln Com Security Adv Imp Com Policy e_Gov Com NIC

Climate Change, HEP, Bio, Cancer, Brain, Agriculture, S&T

NKN - PIU

Implementing Agency DG, NIC Prof P.S.Dhekne

  • Dr. R.Chidambaram, PSA to GOI

Prof S.V.Raghavan R.S.Mani, Project Director

NICSI

G.P.Srivastava

  • Dr. B.K.Gairola

Prof S.V.Raghavan

Model Projects Eval Com

slide-12
SLIDE 12

National Knowledge Network Page 12

 Performance Monitoring, Enhancement, and Scaling  Development of newer High-End Applications  Cyber Security attacks and Solutions  Make or Buy decisions  Establishment of Test labs & Certification

Major Challenges in the Future

slide-13
SLIDE 13

National Knowledge Network Page 13

  • Explore Feasibility of setting up Sanitization Lab
  • Indigenization of Key NKN Components
  • Manufacturing & Quality Assurance
  • Deployment & Testing
  • Building Capacity & Capability in HR
  • Establishing International NKN PoPs

HLC Decisions

slide-14
SLIDE 14

National Knowledge Network Page 14

NKN R&D Programme

  • Model Projects
  • e-class rooms, edu-Medical, Collab-DDS, E-Foundry, DAE
  • utreach centre, Brain Grid, NBG
  • Design & Development of Indigenized Products

 ITMA (SETS, BARC,NIC,ECIL)  SNAS (BARC, ECIL)  Optics Switch Router ESR series (IITB, ECIL)  Enterprise Router (C-DOT)  NMS (BARC, C-DAC, NIC, NTRO)

  • Establishing National Test Labs
  • Setting up of National Data Centres
slide-15
SLIDE 15

National Knowledge Network Page 15

Participation in Model Projects

  • Participation for model projects for key applications and to

take active part in feasibility, capability and sustainability testing and ensuring effective use of high bandwidth of NKN

  • Approach for using NKN
  • Proposal in specific format to PSA’s office
  • Make plan to implement close user group on NKN
  • To demonstrate the potential/benefits of NKN
  • Connecting additional sites to NKN
  • Approx. 4-6 projects per year
slide-16
SLIDE 16

National Knowledge Network Page 16

Via CERN NKN PoP Via Singapore NKN PoP Singapore, Japan, Australia, and rest of Asia Pacific Via USA NKN PoP

  • 1. East Coast – NY

/ Wash DC / Chicago

  • 2. West Coast –

Los Angeles / Seattle

NKN International Connectivity

Mode Model Proje Project ct sch schem eme to to sh showc wcase ase th the ap applicabil icability ty ac acro ross ss a spe spectrum ctrum of

  • f app

pplica cations tions focusing using on

  • n educ

ucat ation, ion, heal alth an and life sciences es

NKN HLC has cleared establishment of NKN PoPs overseas

  • US
  • Europe
  • Asia Pacific including Japan and Australia).
slide-17
SLIDE 17

National Knowledge Network Page 17

Few aspects to be considered

  • Sustainable applications of common

interest such as weather/climate modeling & simulation, biodiversity, Cancer and Brain Grids, Education contents

  • Agreeing on standard data formats

and data sharing policy

  • R & D in advanced networking (100G

& above), software development etc

Enhancing Global Research Collaborations by enhancing network connectivity between NKN and the Research and Education Networks (RENs) of the world is becoming an absolute necessity.

Global Research Collaborations

slide-18
SLIDE 18

National Knowledge Network Page 18

COMPUTE (more FLOPS) DATA (more BYTES) NETWORK (more BW)

Today’s Applications

Data and High Performance Computing Data and Cyberinfrastructure Services

These applications, are both data-intensive and compute- intensive.

slide-19
SLIDE 19

National Knowledge Network Page 19

ICFA Report 2009 - Main Trends Accelerate: Dark

Fiber Nets, Dynamic Circuits, 40-100G

 Current generation of 10 Gbps network backbones and major Int’l links arrived

in 2002-8 in US, Europe, Japan, Korea; Now China, Brazil

 Bandwidth Growth: from 16 to 10,000X in 7 Yrs. >> Moore’s Law

 Proliferation of 10G links across the Atlantic & Pacific since 2005

 Bandwidth for LHC well above 100 Gbps in aggregate

 Rapid Spread of “Dark Fiber” and DWDM: Emergence of Continental, Nat’l,

State & Metro N X 10G “Hybrid” Networks in Many Nations

 Appearance of terrestrial 40 and 100G MAN/WAN:

 40G optical backbones in commercial and R&E networks are common  100G pilots/tests in 2009, first service deployments started

 Point-to-point “Light-paths” for HEP and “Data Intensive Science”

 Now Dynamic Circuits, and Managed Bandwidth Channels

 Technology continues to drive Performance Higher, Costs Lower

 Commoditization of GE now 10 GE ports on servers  Cheaper and faster storage ($ < 100/Tbyte); 100+ Mbyte/sec disks

slide-20
SLIDE 20

National Knowledge Network Page 20

Dark Fiber Deployment & Testing

  • NKN, NIC Team
  • Led by R S Mani
  • IITB & ECIL Team
  • Led by Prof A Gumaste
  • Railtel Team
  • Led by Mr. Bahuguna,CMD

: Evaluation & Testing on NKN : Fiber lighting & Swiching : Dark Fiber Provisioning

Dark Fiber was deployed for the first time in the country using locally developed equipment Experiment Coordinated by the PSA Office: Organizations involved

slide-21
SLIDE 21

National Knowledge Network Page 21

Test Setup Using ESR Router

  • 5 ESRs (Routers developed by IIT Bombay & manufactured

by ECIL) operated at 10 G

  • 2 Cisco ASR 9010
  • 1 Cisco ASR 1002
  • 1 Juniper MX 80

Devices Used :

slide-22
SLIDE 22

National Knowledge Network Page 22

Network Connectivity

  • Belapur ASR 9010 connected to Pune ASR 9010 through NKN

Cloud.

  • Belapur ASR 1002 connected to Pune ASR 9010 through Railtel

dark fiber.

  • 5 ESRs connected through Railtel dark fiber in the following

sequence.

  • NKN Belapur-Panvel-Lonavala-Pune Railway-NIC Pune
  • Node A connected to Belapur ASR 9010.
  • Node B connected to Belapur ASR 1002.
slide-23
SLIDE 23

National Knowledge Network Page 23

Railtel dark fiber Demo Institute at Belapur

NKN NKN Cloud loud

LAN ASR 1002 Belapur ESR A ASR 9K Belapur ESR AS ASR R 9K 9K Pune une B

14.139.4.62 14.139.109.244  FTP tested between A and B  Skype tested from B

Connectivity Diagram

ESR ESR ESR

NIC Pune Pune Railway Lonavala Panvel NKN Belapur

slide-24
SLIDE 24

National Knowledge Network Page 24

Applications Tested

  • We have tested successfully following

applications through this darkfiber link

  • FTP.
  • Ping & Trace.
  • Internet.
  • Video Conferencing through Skype.
slide-25
SLIDE 25

National Knowledge Network Page 25

Report Dated 27.09.2013 IP Address 14.139.4.62(Node A) connected to NKN cloud IP Address 14.139.109.244 (Node B) connected to Pune ASR through Railtel dark fiber Wan IP address Belapur Juniper MX80 end 10.119.252.45 Wan IP address Pune ASR9010 end 10.119.252.46

Test Reports with Juniper MX 80

1.Ping Report 2.Trace Report (Node B to Node A)

  • Sr. No.

Time Source IP Address Destination IP Address Minimum Latency Average Latency Maximum Latency Success Rate 1 10:25 AM 10.119.252.45 10.119.252.46 3.53ms 11.53ms 29.19ms 100% 2 1:14 PM 10.119.252.45 10.119.252.46 3.43ms 7.41ms 81.25ms 100% 3 2:31 PM 10.119.252.45 10.119.252.46 3.24ms 3.78ms 6.66ms 100% 4 4:00 PM 10.119.252.45 10.119.252.46 3.28ms 3.77ms 7.70ms 100% 5 5:02 PM 10.119.252.45 10.119.252.46 3.59ms 3.70ms 3.78ms 100%

  • Sr. No.

Time IP Address

  • No. of Hops

Latency 1 10:25 AM 14.139.4.62 4 6ms 2 1:21 PM 14.139.4.62 4 6ms 3 2:34 PM 14.139.4.62 4 6ms 4 4:00 PM 14.139.4.62 4 6ms 5 8:21 PM 14.139.4.62 4 6ms

slide-26
SLIDE 26

National Knowledge Network Page 26

3.FTP Test report

  • 3a. Date : 27.09.2013 ( FTP server IP:14.139.109.244)

Serial No File Size Transfer Rate Source IP Address Destination IP Address Errors if any Remarks 1 12.9 MB 0.220 MB/sec 14.139.4.62 14.139.109.244 2 82.8 MB 0.243 MB/sec 14.139.4.62 14.139.109.244 3 336 MB 0.324 MB/sec 14.139.4.62 14.139.109.244 4 521 MB 0.214 MB/sec 14.139.4.62 14.139.109.244 5 1.08 GB 0.378 MB/sec 14.139.4.62 14.139.109.244 3 Unable to transfer

NOTE : 1.08 GB file has not transferred and getting error (Could not write to transfer socket: ECONNABORTED - Connection aborted ) while transferring the file.

  • 3b. Date : 27.09.2013 ( FTP server IP:14.139.109.244)

Serial No File Size Transfer Rate Source IP Address Destination IP Address Errors if any Remarks 6 12.9 MB 1.201 MB/sec 14.139.109.244 14.139.4.62 7 82.8 MB 1.230 MB/sec 14.139.109.244 14.139.4.62 8 336 MB 1.262 MB/sec 14.139.109.244 14.139.4.62 9 521 MB 1.240 MB/sec 14.139.109.244 14.139.4.62 10 1.08 GB 1.252 MB/sec 14.139.109.244 14.139.4.62 1 Unable to transfer

NOTE : 1.08 GB file has not transferred and getting error (Could not write to transfer socket: ECONNABORTED - Connection aborted ) while transferring the file.

slide-27
SLIDE 27

National Knowledge Network Page 27

Report Dated 28.09.2013 IP Address 14.139.4.62(Node A) connected to NKN cloud IP Address 14.139.109.244 (Node B) connected to Pune ASR through Railtel dark fiber Wan IP address Belapur ASR1002 end 10.119.252.45 Wan IP address Pune ASR9010 end 10.119.252.46

Test Reports with Cisco ASR 1002

  • Sr. No.

Time Source IP Address Destination IP Address Minimum Latency Average Latency Maximum Latency Success Rate 1 10:32 AM 10.119.252.45 10.119.252.46 2ms 2ms 103ms 100% 2 12:12 PM 10.119.252.45 10.119.252.46 2ms 2ms 27ms 100% 3 2:39 PM 10.119.252.45 10.119.252.46 2ms 2ms 32ms 100% 4 6:09 PM 10.119.252.45 10.119.252.46 2ms 5ms 42ms 100% 5 7:09 PM 10.119.252.45 10.119.252.46 2ms 5ms 40ms 100% 6 7:45 PM 10.119.252.45 10.119.252.46 2ms 2ms 16ms 100% TIME Serial No IP Address

  • No. of Hops

Latency 10:33 AM 1 14.139.4.62 4 6ms 12:12 PM 2 14.139.4.62 4 6ms 6:10 PM 3 14.139.4.62 4 6ms 7:10 PM 4 14.139.4.62 4 6ms 7:45 PM 5 14.139.4.62 4 6ms

1.Ping Report 2.Trace Report (Node B to Node A)

slide-28
SLIDE 28

National Knowledge Network Page 28

  • 3a. Date : 28.09.2013 ( FTP server IP:14.139.109.244)

Serial No File Size Transfer Rate Source IP Address Destination IP Address Errors if any Remarks 1 12.9 MB 0.330 MB/sec 14.139.4.62 14.139.109.244 2 82.8 MB 0.359 MB/sec 14.139.4.62 14.139.109.244 3 336 MB 0.366 MB/sec 14.139.4.62 14.139.109.244 4 521 MB 0.363 MB/sec 14.139.4.62 14.139.109.244 5 1.08 GB 0.381 MB/sec 14.139.4.62 14.139.109.244

  • 3b. Date : 28.09.2013 ( FTP server IP:14.139.109.244)

Serial No File Size Transfer Rate Source IP Address Destination IP Address Errors if any Remarks 6 12.9 MB 1.201 MB/sec 14.139.109.244 14.139.4.62 7 82.8 MB 1.230 MB/sec 14.139.109.244 14.139.4.62 8 336 MB 1.235 MB/sec 14.139.109.244 14.139.4.62 9 521 MB 1.236 MB/sec 14.139.109.244 14.139.4.62 10 1.08 GB 1.236 MB/sec 14.139.109.244 14.139.4.62

  • 3c. Date : 28.09.2013 ( FTP server IP:14.139.4.62)

Serial No File Size Transfer Rate Source IP Address Destination IP Address Errors if any Remarks 1 12.9 MB 0.287 MB/sec 14.139.4.62 14.139.109.244 2 82.8 MB 0.307 MB/sec 14.139.4.62 14.139.109.244 3 336 MB 0.283 MB/sec 14.139.4.62 14.139.109.244 4 521 MB 0.315 MB/sec 14.139.4.62 14.139.109.244 1 5 1.08 GB 0.288 MB/sec 14.139.4.62 14.139.109.244

  • 3d. Date : 28.09.2013 ( FTP server IP:14.139.4.62)

Serial No File Size Transfer Rate Source IP Address Destination IP Address Errors if any Remarks 6 12.9 MB 4.404 MB/sec 14.139.109.244 14.139.4.62 7 82.8 MB 4.715 MB/sec 14.139.109.244 14.139.4.62 8 336 MB 4.785 MB/sec 14.139.109.244 14.139.4.62 9 521 MB 4.857 MB/sec 14.139.109.244 14.139.4.62 10 1.08 GB 4.845 MB/sec 14.139.109.244 14.139.4.62

3.FTP Test report

slide-29
SLIDE 29

National Knowledge Network Page 29

Outcome from Tests

  • Tested over 6 months for short term & long

term for

  • Reliability
  • Sustainability
  • Compatibility across CISCO & Juniper
  • Successful deployment of Dark Fibers from

PSU

  • Suitability for NKN use
slide-30
SLIDE 30

National Knowledge Network Page 30

30

Conclusions

 Demand on Computations & Communication is likely to grow

exponentially in the future

 Open access to publicly funded research results and data is

now becoming a reality

  • Institutional Repositories will be important elements of the national information

infrastructure

  • Institutional repositories will need to address data issues as well as research

publications

 Establishment of National Data Centres to provide advice,

guidance and data curation services for user community will be essential

 NKN must scale well constantly in terms of users, bandwidth,

end-to-end performance and QOS to be in the race !!!

slide-31
SLIDE 31

National Knowledge Network Page 31

Faith of a user !!!

Thanks for your Attention !!!

2011

slide-32
SLIDE 32

National Knowledge Network Page 32

Typical End Node Design

NKN MPLS SERVICE

PE

VLAN1-VPN Green VLAN2-Blue VLAN3-Red

Each Sub Interface associated with different VPN v v

802.1 Q

VPN Blue Site BIO TECH VPN Red Site IIT H

Multi-VRF Bio-Tech Lab Phy Lab Class Room

VPN Green Site DAE LAB

Ingress NKN Router Egress NKN Router

slide-33
SLIDE 33

National Knowledge Network Page 33

Multiple Zones in NKN Router User- end- Router WLCG Segment at site To NKN NKN Router at Site Internet Segment at site Segment at site Additional CUG

slide-34
SLIDE 34

National Knowledge Network Page 34

Linux server with 1 Gbps LAN, TCP/IP window (4MB, 8MB, 15.3 MB), Test Pgm: Iperf, Netpipe, Pathload

Test Set UP at BARC

Linux Linux MPLS-L3-VPN BARC, Trombay 10.117.128.50 IGCAR, Kalppakam 10.117.136.5 VECC, Kolkata 10.118.56.10 TIFR, Mumbai 10.117.160.10 Max rate: 923.08 Mbits/s Min rate: 333 Mbits/sec 1 Gbps links with babkbone 2.5 Gbps

slide-35
SLIDE 35

National Knowledge Network Page 35

Collaborative design of sub assembly of the prototype 500 MW Fast Breeder Reactor from three remote locations from NIC, BARC & IGCAR

Test Set UP for Collab-CAD

Collab-CAD Collab-CAD MPLS-L3-VPN NIC, Delhi 10.x.x.x IGCAR, Kalppakam 10.117.136.5 BARC, Trombay 10.117.128.50

slide-36
SLIDE 36

National Knowledge Network Page 36

Test Set UP at C-DAC

Garuda Grid at C-DAC, Banglore accessed from IISC, Bangalore by Prof Ravi S. Nanjundiah for running weather application

MPLS-L3-VPN Atmospheric Sciences Dept. IISC, Bangalore Weather Modeling Garuda at C-DAC, Bangalore
