New Approaches to Specimen Preparation for Molecular TEM Clint Potter National Resource for Automated Molecular Microscopy The Scripps Research Institute NRAMM Workshop 10 November 2014 T he overall mission of NRAMM is to develop, test and

slide-1
SLIDE 1

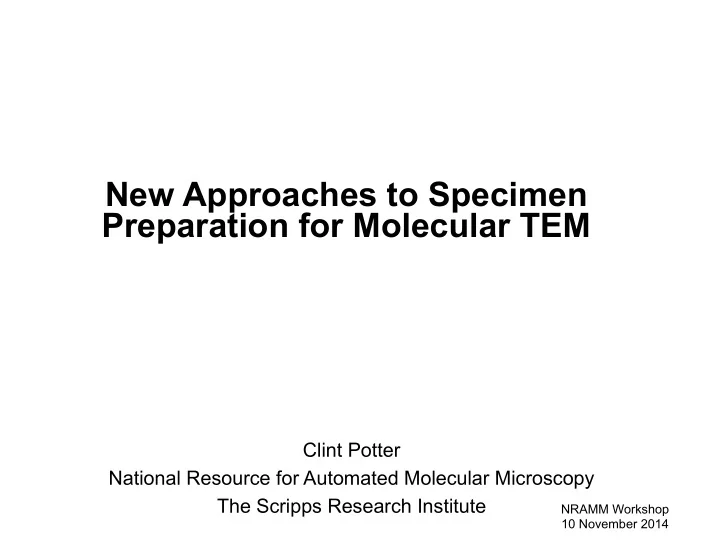

New Approaches to Specimen Preparation for Molecular TEM

NRAMM Workshop 10 November 2014

Clint Potter National Resource for Automated Molecular Microscopy The Scripps Research Institute

slide-2
SLIDE 2

The overall mission of NRAMM is to develop, test and apply technology for automating and streamlining cryo-electron microscopy (cryoEM) for structural biology. Technology enables:

  • Accessibility
  • Higher throughputs
  • “High” resolution structures of “small” / asymmetric / heterogeneous particles

(may need to analyze 1,000,000’s molecules)

  • Determination of many 3D structures in different states

(may need 100’s of maps) Specimen preparation Image acquisition Data processing

Investigation of the structure, function and dynamics of molecular machines

slide-3
SLIDE 3

EM Automation: Investigating structure and dynamics of molecular machines

slide-4
SLIDE 4

Automated Data Collection (Leginon) Sample Specimen preparation (Spotiton) Streamlined Processing (Appion) EM Density

Core Technologies: A Streamlined and Automated TEM Pipeline

slide-5
SLIDE 5

Current CryoTEM Specimen Preparation

3µl 3nl

0.1% 99.9%

>100,000 potential targets for imaging; most of them are not usable.

slide-6
SLIDE 6

A New Approach to Specimen Preparation:

Inkjet dispensing New substrates

1 sample per grid 3µl 10% usable area 10x 1000x 10x 9 samples per grid 30 pL 100% usable area Proposed picoliter sample dispensing: Current method:

slide-7
SLIDE 7

Spotiton v0.75

Precision 3-axis motors High-speed precision Linear motor Humidity chamber Three inkjet heads Liquid ethane dewar (Engineering Arts custom made, automated, three inkjet heads 24 um nozzle, 32 pL drops)

slide-8
SLIDE 8

30 µm 500 µm

1 droplet (32 pl) 1000 droplets (32 nl) Grid-tip positioning Dispense tip front view

Sample volume can be precisely controlled

slide-9
SLIDE 9

Spotiton v0.75 in action.

slide-10
SLIDE 10

Microtubules GroEL Lipid nanotubes Antibody-labeled QDots CNV TMV

Stability of particles dispensed using inkjet

500 nm 200 nm 2 µm 200 nm 200 nm 100 nm

slide-11
SLIDE 11

Applying specimens to microfabricated grid substrates

1mm

Hydrophobic Hydrophilic

slide-12
SLIDE 12

Vitrification across a 250 micron Si3N4 window

100 ¡µm 100 ¡µm 2 ¡µm 200 ¡nm LM EM

slide-13
SLIDE 13
  • Spotiton inkjet dispensing system fairly robust. Now refining for v1.0.
  • Capable of producing thin ice with well preserved specimens
  • Now focusing on even drop spreading and wetability of substrates

Challenge is to spread the specimen evenly into a thin layer

20nm thick SiO2 100 x 350 um window Plasma cleaned 72pL (2 drops) 0.5mg/mL TMV

LM view of drop dispense EM view of vitrified sample

Current status

slide-14
SLIDE 14

nanodiscs

baculovirus

CD4-gp120 arrestin GPCR-arrestin fusion complex MsbA Novel detergents

A different application for specimen preparation automation: Screening and rapid characterization

slide-15
SLIDE 15

Typhon (The Concept)

slide-16
SLIDE 16

100 µm

Sample can be precisely targeted and the grid is a very large space

~1,000 ¡grid ¡squares ¡available

slide-17
SLIDE 17

Inkjet heads Grid Holder Humidity Chamber Pump System

Scienion sciFLEXARRAYER S3, 8 inkjet heads, ~100 pl drops

Typhon v0.5

slide-18
SLIDE 18

Typhon v0.5 in action

slide-19
SLIDE 19

1 ¡mm 3 ¡mm

Typhon v0.5

Video LM Microtiter plate

80 ¡mm

Microtitre Plate Direct Transfer to EM Grid

slide-20
SLIDE 20

Applica9on: ¡ ¡Screening ¡of ¡nano ¡par9cles ¡(John ¡Nolan ¡group, ¡Scin9llon ¡Inst.)

1 ¡mm

Gold nanorods LM EM Atlas

Typhon v0.5

slide-21
SLIDE 21

21,000X Atlas 62,000X Spot tracking Targeting x 96! Sample Targeting

Semi-automated multiscale imaging

slide-22
SLIDE 22

High ¡magnifica9on ¡thumbnail ¡images ¡of ¡96 ¡individual ¡samples ¡

Typhon v0.5

slide-23
SLIDE 23

Suitable resolution and detail for downstream analysis in CellProfiler

  • Distribution of sizes and shapes can be accurately determined
  • 10-20 images of each sample have enough particles for statistical characterization

Examples of high magnification image of two samples

slide-24
SLIDE 24
  • Flexible system based on commercially available liquid handler
  • Capable of placing 96 samples on a single grid and acquiring high

magnification images in 24 hours

  • Focus is now on optimizing process and adapting for negative

staining of proteins

Typhon v0.5 Status

slide-25
SLIDE 25

Negative Staining of Proteins

[

[Slide 8 or 9 movie]

  • 100 mesh Cu grid
  • Carbon on Formvar
  • Protocol: 1.8nL

sample followed by 1.8nL 2% UF

slide-26
SLIDE 26

CPMV 0.65mg/mL

[

slide-27
SLIDE 27

THE SCRIPPS RESEARCH INSTITUTE

National Resource for Automated Molecular Microscopy http://nramm.scripps.edu

The Automated Molecular Microscopy Group

Anchi Cheng Bridget Carragher Clint Potter Sargis Dallakian John Crum Ivan Razinkov Sean Mulligan Melody Campbell David Veesler Jeff Speir Lorraine Lathrop Emily Greene

Support from NIH GM103966 and NIH GM103310
