Network Monitoring on Industrial Control Systems Alvaro Cardenas, PhD. David I Urbina, PhD. candidate Introduction of NSM Long term goals Current Research ICS T raffjc Analysis Intrusion Detection Some T ools for NSM

slide-1
SLIDE 1

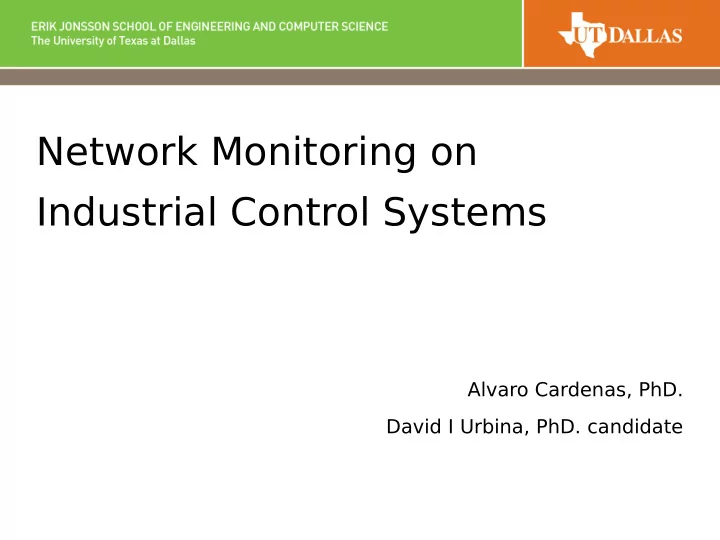

Network Monitoring on Industrial Control Systems

Alvaro Cardenas, PhD. David I Urbina, PhD. candidate

slide-2
SLIDE 2

1/13/15 2

  • Introduction of NSM
  • Long term goals
  • Current Research

– ICS T

raffjc Analysis

– Intrusion Detection

  • Some T
  • ols for NSM
slide-3
SLIDE 3

1/13/15 3

Network Security Monitoring is the collection, analysis, and escalation of indications and warnings to detect and respond to intrusions.

  • Informit
slide-4
SLIDE 4

1/13/15 4

Network Security Monitoring in ICS

slide-5
SLIDE 5

1/13/15 5

Long term goals

  • Improve Operational Situational Awareness (OSA).
  • Improve Security Situational Awareness (SSA).
  • Integrate OSA and SSA into the Control Centers.
slide-6
SLIDE 6

1/13/15 6

Integration OSA and SSA in ICS

slide-7
SLIDE 7

1/13/15 7

Traffjc Analysis

slide-8
SLIDE 8

1/13/15 8

IP

Modbus/TCP

Ethernet 2 / 802.3

Data Data TCP Data Data Modbus Data Link Network Transport Application

Dissecting Modbus Packets

slide-9
SLIDE 9

1/13/15 9

Modbus/TCP

slide-10
SLIDE 10

1/13/15 10

Intrusion Detection

slide-11
SLIDE 11

1/13/15 11

Detection methods:

  • Knowledge-based intrusion-detection techniques

apply the knowledge accumulated about specifjc attacks and system vulnerabilities. (IT)

  • Behavior-based intrusion-detection techniques

assume that an intrusion can be detected by

  • bserving a deviation from the normal or expected

behavior of the system or the users. (ICS)

slide-12
SLIDE 12

1/13/15 12

Detection methods:

  • Knowledge-based intrusion-detection techniques

apply the knowledge accumulated about specifjc attacks and system vulnerabilities. (IT)

  • Behavior-based intrusion-detection techniques

assume that an intrusion can be detected by

  • bserving a deviation from the normal or expected

behavior of the system or the users. (ICS)

slide-13
SLIDE 13

1/13/15 13

T1 T2

Law Abiding “Behavior”

B B B A A A

slide-14
SLIDE 14

1/13/15 14

Physical Model

Using models to detect deviations

slide-15
SLIDE 15

1/13/15 15

Which tools do we use?

slide-16
SLIDE 16

1/13/15 16

  • Ubuntu-based Linux

distribution for NSM.

  • Free and open source GNU GPL v2
  • Helps on:

– Deep Packet Inspection – Protocol Analysis – Traffjc Analysis – Intrusion Detection and Prevention

slide-17
SLIDE 17

1/13/15 17

Deployment scenarios

– Standalone – Server-sensor

slide-18
SLIDE 18

1/13/15 18

  • Core functions

– Full packet capture → netsnifg-ng (http://netsnifg-ng.com) – Network-based IDS

  • Snort (http://snort.org)
  • Suricata (http://suricata-ids.org)
  • Bro (http://bro-ids.org)

– Host-based IDS

  • OSSEC (http://www.ossec.net)

– Analysis T

  • ols
  • Sguil (http://sguild.sourceforge.net)
  • Squert (http://www.squertproject.org/)
  • Snorby (https://snorby.org/)
  • ELSA (https://code.google.com/p/enterprise-log-search-and-archive/ )
slide-19
SLIDE 19

1/13/15 19

Extensible network analysis framework not restricted to any particular detection approach.

  • Free and Open Source

Bro

slide-20
SLIDE 20

1/13/15 20

Bro features

  • Logging framework
  • Multiple Traffjc Analyzers for IT and ICS protocols
  • Extensible Analysis Architecture
  • Domain-specifjc, Turing complete Scripting

language

slide-21
SLIDE 21

1/13/15 21

Previous related research

  • Analysis of Encrypted Traffjc

–

Best Paper Award, "On the Practicality of Detecting Anomalies with Encrypted T raffjc in AMI", IEEE SmartGridComm, 2014.

slide-22
SLIDE 22

1/13/15 22
