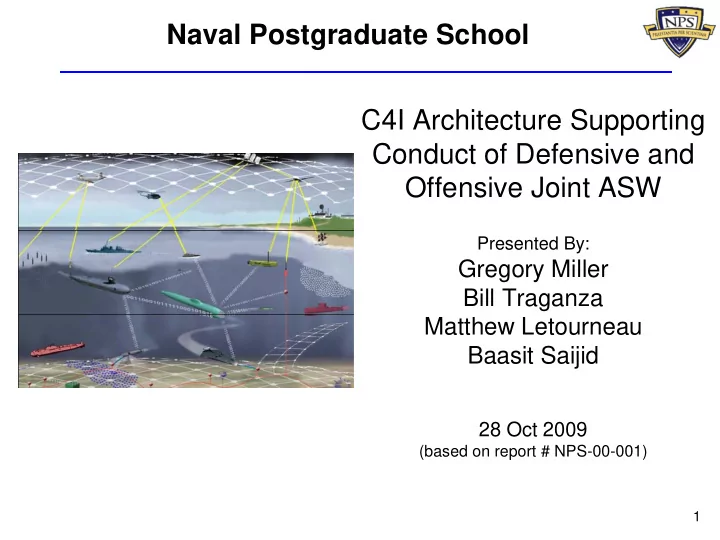

C4I Architecture Supporting Conduct of Defensive and Offensive Joint ASW

Presented By:

Gregory Miller Bill Traganza Matthew Letourneau Baasit Saijid

28 Oct 2009

(based on report # NPS-00-001)

Naval Postgraduate School

slide-2
SLIDE 2

2

Team Members

Michael Clendening Alejandro Cuevas Amritpal Dhindsa Dennis Hopkins Matthew Letourneau Justin Loy James New Van Ngo Amrish Patel Baasit Saijid Bill Traganza

  • Commands represented by team

– Space and Naval Warfare Systems Command -- Systems Center San Diego and Charleston – Naval Surface Warfare Center – Corona Division – Program Executive Office Littoral and Mine Warfare – Maritime Surveillance Systems Program Office – Program Executive Office C4I – Joint Tactical Radio System – Joint Program Executive Office – East Coast Electronic Warfare Systems – Communications-Electronics Research Development and Engineering Center

  • Project advisors: Gregory A. Miller & John M. Green
slide-3
SLIDE 3

3

Project Purpose

  • Create a new standardized joint ASW-specific C4I

architecture

– To enhance the commander’s ability to execute the joint ASW mission in support of a combatant commander’s campaign objectives [NCOE JIC, 2005]. – To meet key ASW stakeholder requirements, addressing current capability gaps and responding to changing threats – To guide development, force composition, and acquisition decisions

  • Constrained to:

– Target time frame: 2020 – Needs to use

  • Open standards
  • Common waveforms
  • Common data schema

– Interoperable with existing & evolving systems – Vertically integrated with other DoD C4I systems

slide-4
SLIDE 4

4

SE Process

slide-5
SLIDE 5

Needs Analysis

  • Capability Gaps Analysis

(Situation Today)

  • Stakeholders Analysis
  • Future Analysis
  • Functional Analysis
slide-6
SLIDE 6

6

Situation Today

  • Platform-centric ASW

C4I systems are not used in a networked fashion to share data

  • Limited situational

awareness

  • Limited mission

effectiveness

  • The submarine continues to be viewed by

the United States as a threat

  • Growth of terror groups, rogue nations

and the emergence of credible economic and political competitors

  • More capable, quieter, & affordable

submarines

slide-7
SLIDE 7

7

Summary of Stakeholder Input

  • Legacy & Evolved Systems

– Platform-centric C4I systems – Platform-centric sensors – Platform-centric weapons – Limited interoperability

  • Future Systems

– Networking to connect sensors & platforms – Information sharing – Improved information quality – Viewing through a COTP – fused, appropriate data – Conducting ASW as a Team

slide-8
SLIDE 8

8

Draft Futures OV-1

ISR Assets

  • based, National and

ISR Assets

  • Processing/Dissemination Centers)

US Coast Guard Land Attack Forces (including Strike Forces, Expeditionary Forces, Land Forces, and SOF) Maritime Forces (Airborne and Sea

  • Based

SUW and USW Forces) Enemy Sub Base

FORCE NETWORKS

  • (Manned, Unmanned, Space-based, National and
  • Air and Missile

Defense Forces (Sea, Air, Land

Enemy Sub

Land Attack Forces (including Strike Forces, Expeditionary Forces, Land Forces, and SOF) Maritime Forces (Airborne and Sea

  • Based

SUW and USW Forces) Sustainment Forces (Sea and Shore-based)

FORCE NETWORKS

Strike Force ASW Net-Centric C4I System Shore Based ASW Net-Centric C4I System Enemy Shipyard

Extended network infrastructure

Coalition Forces US Air Force B-52 Canadian Coast Guard

Enemy Sub unmanned vehicle Sub Enemy Sub Free Space Optics FSO Sub to Sub Comms

FUTURE C4I 2020

slide-9
SLIDE 9

9

C2 System Functional Analysis

9

slide-10
SLIDE 10

10 10 10

Value System

ASW Net Centric C4I System

A.0

Operational Effectiveness

# provided / # available (%) Seconds Net Ready Compliance (%)

Interface with ASW Sensor and ASW Weapon Systems Data Streams A.1.2

Interconnect Communication Nodes

A.1.1

Provide Connectivity A.1

Connect and Interface with External Networks A.1.3

Minimize Network Join Time Maximize GIG connectivity Maximize Interfaces to external data Streams Compliance With DoD 5200.08-R, April 9, 2007 (%) # of systems have ATO / total number of systems (%) Protected comm systems / Total # of comm systems (%) network nodes protected by IDSs, FWs (%) Provide Computer Network Defense A.2.1 Provide Electronic Protection A.2.2 Maximize Computer Network Protection Minimize susceptibility to Electronic Attack Provide Information Assurance (IA) Provide Physical Security A.2.3 A.2.4 Maximize IA Protection Minimize

  • pportunity for

physical intrusion / attack Perform Information Operations A.2 BW Required / BW Available (%) Spectrum Required / Spectrum Available (%)

Optimize Network Functions and Resources A.3

Manage Spectrum

A.3.2

Maximize Spectrum Availability Manage and Control Network

A.3.1

Maximize the Delivery of High Priority Traffic Throughput (Mbps) Information Delivered (< 1min / < 10 sec) Latency ( milliseconds) Transport ASW Information from End 2 End A.4 Transmit ASW Information A.4.1 Maximize Transmission Efficiency Receive ASW Information A.4.3 Maximize Reception Efficiency Deliver ASW Information A.4.2 Minimize Delivery Time A.5.3.1 Throughput (Mbps) Latency (milliseconds)

Aa % MTBF hours Operational Suitability Provide Reliability Provide Availability Provide Maintainability

Maximize Reliability Maximize Achieved Availability Minimize Maintenance hours

M (Mean Active Maintenance) hours

Provide ASW Data/Information Management A.5

Provide ASW COTP A.5.2 Maximize accuracy of Fused Data Maximize availability of COTP Identify, Store, Share and Exchange ASW Data and Information A.5.3 Provide ASW Information Publish/ Subscribe Services Enable Smart Pull/Push of ASW Information A.5.3.2 A.5.3.4 Manage ASW Data/Information Life Cycle and Optimize ASW Data/Info Handling A.5.3.3 Minimize Human in the loop Maximize use of pub/sub services Provide efficient data management services Minimize pull/ push times Percent of information posted and published 95%/99%

(%)

# users with access / # users (%) Figure of Merit (FOM) Fuse ASW Data A.5.1 #of systems M2M enabled / #of systems M2M capable (%) Percent of time Data /Information available ≥ 99% (%) Response time to User Requests or Demands < 1 sec (seconds) Transfer ASW Data from Machine to Machine A.5.3.1

slide-11
SLIDE 11

11 11

Top Six Evaluation Measures

11

– # Users w/ access to COTP – Time Required to Push/Pull – Time Required to Fuse Data – Time to Interconnect Nodes – Transmit Latency – Transmit Throughput

slide-12
SLIDE 12

12 12 12

Alternatives Generation

  • Baseline Architecture
  • Feasible Alternatives
slide-13
SLIDE 13

13 13 DoD Teleport

SINGLE INTEGRATION POINT FOR DISN (TERRESTRIAL & TACSAT COMMS); TELECOM COLLECTION & DISTRIBUTION POINT; MULTI-BAND, MULTIMEDIA, & WORLDWIDE REACH-BACK; STANDARDIZED TACTICAL ENTRY POINT EXTENTION; MULTIPLE MILCOMM & COMMSAT SYSTEMS; SEAMLESS DISN INTERFACE; INTER & INTRA-THEATER COMMUNICATIONS; INCREASED DISN ACCESS

Transformational Satellite System

GLOBAL NET-CENTRIC OPERATIONS; ORBIT-TO-GROUND LASER & RF COMMS; HI DATA RATE MILSAT COMMS & INTERNET-LIKE SVCS; IMPROVED CONNECTIVITY/DATA TRANSFER; IMPROVED SATCOMMS

Net-Centric Enterprise Services

UBIQUITOUS ACCESS; RELIABILITY; DECISION QUALITY INFORMATION; EMPOWER “EDGE” USER; TASK, POST, PROCESS, USE, & STORE, MANAGE & PROTECT INFORMATION RESOURCES ON DEMAND

Next Generation Enterprise Network

OPEN ARCHITECTURE SERVICE-ORIENTED ARCHITECTURE

Global Information Grid

COLLECTING, PROCESSING, STORING, DISSEMINATING, & MANAGING INFO ON DEMAND; OWNED & LEASED COMMS

Joint Tactical Radio System

LOS / BLOS; MULTI-BAND, MULTI-MODE, MULTI-CHANNEL; NARROWBAND & WIDEBAND WAVEFORMS; VOICE, VIDEO AND HIGH-SPEED DATA

Net-enabled Command Capability

JOINT COMMAND AND CONTROL

Programs of Record & C4I Functionality

slide-14
SLIDE 14

14 14 14

FY2020 Baseline ASW C4I Architecture

Alternative 0

slide-15
SLIDE 15

15 15 15

Alternative Solutions

Alternative 0 – FY2020 ASW C4I Baseline Architecture

  • Joint Surveillance and Target Attack Radar System (JSTARS)
  • Satellite communications link (SATCOM)
  • Surveillance and control datalink (SCDL)
  • Joint Tactical Radio System (JTRS)
  • RC-135: The Tactical Common Data Link (TCDL)
  • Interface to the Tactical Control System (TCS)
  • Link-16

Alternative 1

FY2020 ASW C4I Baseline Architecture plus:

  • JTRS improvements
  • NECC improvements
  • CANES improvements

Alternative 2

FY2020 ASW C4I Baseline Architecture plus:

  • JTRS improvements +
  • CANES improvements
  • Joint Track Manager

Alternative 3

FY2020 ASW C4I Baseline Architecture plus:

  • Modulated X-ray source communications system
  • Autonomous C4ISR UUVs
  • Military High Altitude Airship (HAA)
  • Tropospheric or space-based distribution & COTP fusion
  • Wireless info push/pull directly to satellite
  • r HAA based network.
slide-16
SLIDE 16

16 16 16

Modeling and Simulation Results

  • Model Overview
  • Data Inputs
  • Comparison of Alternatives
slide-17
SLIDE 17

17 17 17

Model Overview

DETECT - ASW Sensor Systems CONTROL – C4I ENGAGE – ASW Weapon Systems ASW Threat METOC Users ASW Sensor Data ASW Weapon Tasking ASW Weapon Data ASW Sensor Tasking PA/CA/EA METOC Data User Commands/Requests Published/Subscribed Information

Used the EXTEND modeling and simulation tool

slide-18
SLIDE 18

18 18

Communication Between Platforms

Graphical Representation of the Systems Expected to Perform the Interconnect Communication Nodes Function for Alternatives 0, 1, and 2

slide-19
SLIDE 19

19 19

Comparison of Alternatives

Measurement Alt 0 Alt 1 Alt 2 Alt 3

Data Fusion Processing Time (ms) 702.39 540.13 299.82 299.72 Interconnect Communication Nodes (s) 5 4.5 2.5 2.5 Latency (ms) 1334.1 1205.0 685.56 680.16 Throughput (kbps) 51.29 53.93 58.85 58.15

slide-20
SLIDE 20

20 20

Life Cycle Cost Estimate (LCCE)

slide-21
SLIDE 21

21 21

LCCE

  • Purpose: Basis for an informed decision when selecting an

alternative

– Assess affordability – Analyze alternatives – Cost verses performance tradeoffs – Establish program cost goals

  • Scope: Simplified Cost Break Down Structure (CBS)

– Research and Development (R&D) – Procurement and Installation (P&I) – Operation and Maintenance (O&M) – Disposal

  • Assumption: A “Notional” U.S. Navy Ship

– Common Computing, Network, Communication Infrastructure – C4I centric – Program office provided data – Three increments

slide-22
SLIDE 22

22 22

Total Cost for Each Alternative

0.00 200.00 400.00 600.00 800.00 1000.00 1200.00 Alt 0 Alt 1 Alt 2 Alt 3 Total Cost ($M) Disposal O&S P&I R&D

slide-23
SLIDE 23

23 23 23

Analysis of Alternatives

  • Multi Attribute Utility Theory (MAUT)
  • Raw Data Values
  • Utility Scores
  • Swing Weights
  • Decision Matrix
  • Utility Score vs. LCCE
slide-24
SLIDE 24

24

Multi Attribute Utility Theory (MAUT)

Wymorian Utility Functions Raw Data Utility Scores Swing Weights Add Overall Utility

  • Evaluation Measures

– Time Required to Fuse Data – Time to Interconnect Nodes – Transmit Latency – Transmit Throughput

slide-25
SLIDE 25

25 25

Raw Data Values

Alternative 0 Alternative 1 Alternative 2 Alternative 3 Fuse ASW Data (Time Required to Fuse Data) 702.395 ms 540.139 ms 299.823 ms 299.720 ms Interconnect Communication Nodes (Time to Interconnect) 5 s 4.5 s 2.5 s 2.5 s Transmit ASW Information (Transmit Latency) 1334.161 ms 1205.027 ms 685.560 ms 680.160 ms Transmit ASW Information (Transmit Throughput) 51.292 Kbps 53.930 Kbps 58.855 Kbps 58.155 Kbps Function (Evaluation Measure) Alternatives

From the Extend model and scenarios “Number of users with COTP access” and “Time required to push/pull” were identical for the four alternatives, so were not considered discriminators for decision- making.

slide-26
SLIDE 26

26

Decision Matrix

Alternative 0 Alternative 1 Alternative 2 Alternative 3 Fuse ASW Data (Time Required to Fuse Data) 0.370 0.06 0.36 0.93 0.93 Interconnect Communication Nodes (Time to Interconnect) 0.185 0.5 0.65 0.96 0.96 Transmit ASW Information (Transmit Latency) 0.278 0.37 0.49 0.9 0.9 Transmit ASW Information (Transmit Throughput) 0.167 0.63 0.83 0.99 0.98 Total Score (0-1) 0.32 0.53 0.94 0.94 LCCE ($Mil) 313.90 439.60 508.65 1080.46 Function (Evaluation Measure) Weight Alternatives

slide-27
SLIDE 27

27

0.2 0.4 0.6 0.8 1 200 400 600 800 1000 1200

Utility Score vs. LCCE

Alternative 2 Alternative 1 Alternative 0 Alternative 3 LCCE ($MIL) UTILITY

  • RECOMMENDATION: Alternative 2

– JSTARS – RC-135: TCDL – SATCOM – Interface to the TCS – SCDL – JTRS with latency & – Link-16 throughput improvements – Joint Track Manager – CANES improvements

slide-28
SLIDE 28

28 28

  • There are initiatives to solve most ASW stakeholder concerns
  • A system of systems (SoS) architect is needed

– Conduct SoS M&S – Address projects at a SoS level – Enable cross-program manager collaboration

  • Revise the modeling

– Reflect current planned attributes for 2020 (changes since mid-2008) – M&S with all 24 functional evaluation measures – Include classified data sets

  • Functional C4I characteristics not unique to ASW community
  • Future C4I capabilities dependent upon cross-leveling of future

DoD funding levels

  • ASW operational C4I standards are needed in FY2020

Conclusions

slide-29
SLIDE 29

29 29 29

Areas For Further Consideration

Operational Users and Acquisition Community

  • Consider accuracy improvements provoked by data fusion

and data sharing techniques during development of sensors and weapons

  • ASW is a team sport [Morgan, 2008]. Need to improve

ASW operational integration. Who’s on the team?

  • Interagency (e.g., Coast Guard) and Joint?
  • Coalition and Allied?
  • If yes, security restraints and policies preventing IP

base communications need to be addressed

  • …..and many more in the report
slide-30
SLIDE 30

30 30 30

Questions
