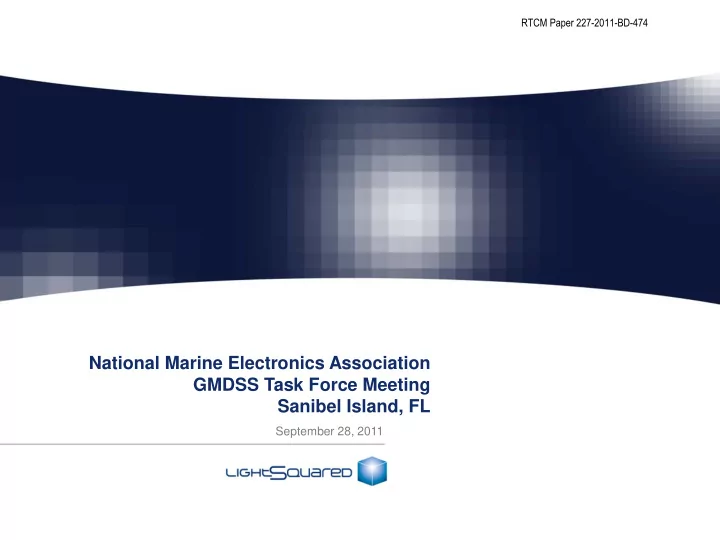

National Marine Electronics Association GMDSS Task Force Meeting Sanibel Island, FL

September 28, 2011

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 2

Overview

• About LightSquared
• Satellite/4G Wireless Integrated Network
• Background on Terrestrial Operations
• Issues Identified with GPS
• Changes to LightSquared Network Implementation to Ensure Compatibility

RTCM Paper 227-2011-BD-474

3

LightSquared

• Founded in 1988 as American Mobile Satellite Corporation
• Formerly MSV, and SkyTerra
• Leading developer and supplier of mobile satellite communications

services (MSS)

• Defense
• Maritime
• Oil and Gas
• Public Safety / Emergency Management
• Transportation
• Utilities

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 4

LightSquared Milestones

1988

Founded as American Mobile Satellite Corporation

1996-1997

Launched MSAT1 and MSAT2 satellites

2001

Initiated regulatory process for terrestrial authority

2005

Received terrestrial license

2008

Developed dual mode chipset with Qualcomm

2010

Purchased by Harbinger Capital; announced 4G wholesale network business model Agreed to FCC terrestrial build out coverage benchmarks Launched SkyTerra 1 Satellite

2011

Signed network sharing deal with Sprint Signed many major retail partners

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 5

SkyTerra 1 Satellite

• Launched in November of 2010
• First of Two Next-Generation Satellites to Replace Initial

Constellation Launched in 1996

• Designed for Compatibility with Terrestrial Operations
• Largest Reflector of Any Commercial Satellite
• 500 Spot Beams Provide Coverage and Capacity

Hawaii beam PR/VI beam

RTCM Paper 227-2011-BD-474

6

Dense Urban

Urban / Suburban Rural Roaming 3rd party Cellular Network LS Terrestrial L-Band LTE Network Maritime LS Digital L-Band Satellite / Two-Way Overlay

4G LTE Network Will Provide Seamless Coverage

Satellite:

• Exceptional coverage
• Supports full suite of existing and

enhanced MSS services

• 2 state-of-the-art satellites

Terrestrial:

• Advanced air interface supports

all-IP network

• High capacity for urban/suburban

coverage

• Up to 40,000 base stations

nationwide Integrated units with ubiquitous service and small form factors

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 7

Demand is High for LightSquared Services

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 8

Background on GPS Issues

• LightSquared, responding to issues raised by the GPS industry, agreed to

stringent emissions limits on its operations (2002-2003)

• These emissions limits, stronger than for any other commercial wireless

carrier, ensure LightSquared’s signal does not travel outside of its own spectrum band

• It turns out, however, that many GPS devices are designed to receive signals
• utside of the GPS spectrum band and within the adjacent band licensed to

LightSquared

• After this issue was first raised in late 2010, the FCC directed LightSquared to

form a working group to study GPS issue

• Working group included LightSquared, GPS manufacturers, federal agencies

and representatives from various user communities

• 130 different GPS devices were tested in a variety of spectrum configurations,

including the configuration later proposed by LightSquared in its mitigation plan

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 9

Key to Solution is Spectrum Separation and Power Levels

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 10

Testing has Provided Information Essential to Finding Solutions

• Many devices did show affects when tested against LightSquared’s initial

deployment plan

• As a result, LightSquared has significantly revised its deployment plan
• Testing identified power levels and frequency combinations at which devices

were most susceptible

• LightSquared’s revised deployment plan is specifically tailored to ensure

narrowband GPS devices will not be degraded by LightSquared’s operation

• New Channel Configuration
• Drastically Lower Power Levels
• Commitment to Specific On-The-Ground Power Levels to Eliminate any Uncertainty
• LightSquared has also funded the development of the necessary filters to

allow wide-band devices to be adapted to eliminate any potential incompatibility going forward

• The Federal Government is undertaking further testing to validate the

effectiveness of LightSquared’s mitigation steps

• LightSquared is fully cooperating with this testing
• Results to be released by November 30

RTCM Paper 227-2011-BD-474

CONFIDENTIAL – DO NOT REPRODUCE

October 20, 2011 11

Conclusion

• LightSquared’s integrated satellite and terrestrial network will bring great

benefits to wireless users nationwide

• We are committed to ensuring that there is no disruption to GPS users as a

result of our deployment

• We are eager to work through the remaining issues so that this network

deployment is not further delayed

• We remain committed to working with the utmost transparency and in good

faith to ensure that any reasonable concerns are appropriately addressed

• Q&A
• Additional questions? Please feel free to contact me at:

geoff.stearn@lightsquared.com
