NAT64 Operational Considerations draft-chen-v6ops-nat64-cpe-03.txt IETF 82- Taipei, Nov 2011 Gang Chen (chengang@chinamobile.com) Qibo Niu(niu.qibo@zte.com.cn) Changes since IETF#81 (-02 to -03) Added different deployment considerations

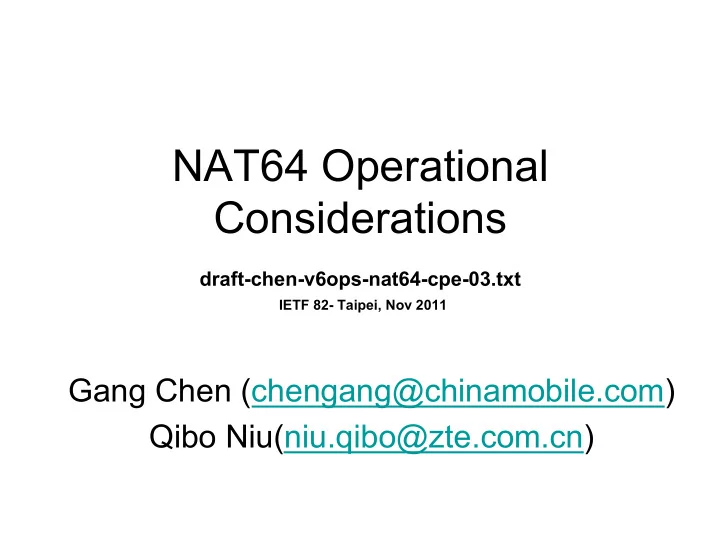

SLIDE 1

NAT64 Operational Considerations

draft-chen-v6ops-nat64-cpe-03.txt IETF 82- Taipei, Nov 2011

Gang Chen (chengang@chinamobile.com) Qibo Niu(niu.qibo@zte.com.cn)

SLIDE 2

Changes since IETF#81 (-02 to -03)

Added different deployment considerations

regarding the different positions of NAT64, which is focusing “An IPv6 Network to the IPv4 Internet: NAT64-CGN” and “The IPv6 Internet to an IPv4 Network: NAT64-CE”

Aligned with RFC6144

SLIDE 3

Considerations for NAT64-CGN deployment

PC HG ONU/SW OLT/SW BRAS DNS64 NAT64 DNS PPPoEv6/IPoEv6 SLAAC/DHCPv6 DNS query(AAAA/A) DNS Response (A) DNS Response(synthesized AAAA) IPv4 Server DNS query(AAAA)

n Implementation: Standalone CGN VS Embedded CGN (BNG, Aggregation Router or PGW) n CGN location: centralized deployment VS distributed deployment; n Performance: Traffic throughout, concurrent sessions and session rate of IDC CGN and Internet CGN is related with WEB traffic and Subscriber scale respectively, n Reliability: NAT64 session + Filter/Mapping mode should be synchronized between Master and backup CGN n Service Richness: FTP, SIP, DNS64, RSTP, H.323, SCCP, PPTP and so on; n Security: Lawful interception (ETSI CC IIF) and user traceability for Legal Entity; TCP tracking, uRPF, blacklist and Mapping/Filter mode for CGN security; n Other requirements: Load Balancer, PCP server and subscriber policy (similar to BNG)

IPv6 Network IPv4 Internet

SLIDE 4 The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.

Considerations for NAT64-CE deployment

PC PC

IPv6 Internet

NAT64-CE NAT64-CE Enterprise Network Residential Network

n DNS resolving: static AAAA records can be added directly in authoritative DNS n Service Richness: VPN, P2P, Web (Office automation), FTP n Reliability: Standalone NAT64 deployment n Security: IPsec VPN may need to be deployed to prevent privacy invasion n Service Richness: VPN, P2P, Web (Office automation), FTP Other requirements: PCP proxy functionalities n Reliability: Standalone NAT64 deployment n Security: IPsec VPN may need to be deployed to prevent privacy invasion n Other requirements: PCP proxy functionalities

IPv6 Internet IPv4 Network

SLIDE 5

Next steps

Future works

– Add justification for NAT64 deployment considerations – Make detailed comparison for different cases

Adopt?
