Mud Cat

Innovation • Quality • Support

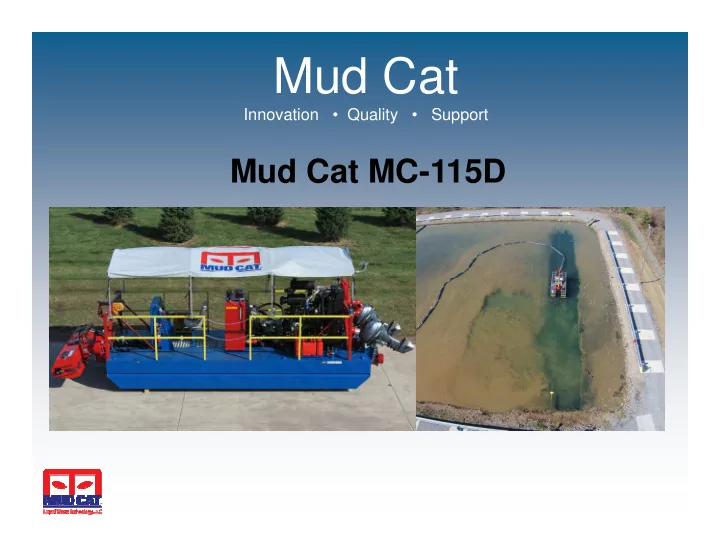

Mud Cat MC-115D

Mud Cat – Reputation & Financial Strength

Mud Cat invented the environmental auger dredge and started full scale production in 1971. Mud Cat is owned by Markel MKL (NYSE), a Fortune 500 company valued at over $12 billion USD. Mud Cat will be around as long as you are in business. Over 1,000 Mud Cat dredges operating in over 80 countries around the globe. More contaminated sediments are removed with Mud Cat dredges than any other brand of hydraulic dredge in the world. Over 50% of Mud Cat’s clients are repeat buyers.

Mud Cat -Training & Support

• Mud Cat provides extensive on site training during the launch of each dredge
• system. Mud Cat has a global mentality and is in more countries than any
• ther environmental dredge equipment supplier.
• Mud Cat provides unlimited technical support via phone and e-mail for the
• perating life of the equipment even if ownership changes.
• Emergency visits and warranty visits can be easily arranged in a timely manner.
• Most replacement parts are on the shelf and can ship within 24 hrs.

Mud Cat– MC 115D – General Overview

• Weight: 7,720 lbs.
• Pump: Ladder mounted for higher % solids.
• Production: 2,000 gpm (454m3/hrs.),

highest production in its class.

• Sphere Passage: 3.6 inch
• Pump: 8 inch (rubber lining optional)
• Pump: 8 inch (rubber lining optional)
• Depth: 15 ft.
• Propulsion: Cable Drive (standard) w/ Prop

Drive (optional)

Mud Cat– MC 115D – Engine & Hydraulics

Engine:

• Power: 115 HP John Deere
• Fuel Capacity: 60 gallons
• Fuel Consumption: 6.22 gallons / hr.
• Tier: 3 and 4 available

Hydraulics:

• Filtration: 10 micron
• Stainless Tubing on Dredge Ladder
• Optional: Biodegradable oil
• Brands: Parker

Mud Cat– MC 115D – Propulsion Systems

• CABLE DRIVE:
• 4-Point Cable Drive System (standard)
• Allows for positive traction drive in sand and

consolidated sediments.

• Allows for easy tracking of cuts in lakes,

ponds, etc.

• Precision dredging in winds and light

currents using double sheave winch

• PROP DRIVE:
• PROP DRIVE:
• 2 x 25 HP Yamaha outboard motors.
• Allows for self propulsion in marinas or on

jobs where cabling up is not ideal.

• Good for applications where material is not

compact or consolidated.

Mud Cat– MC 115D – Cutterhead Versatility

• The SolidsMaster Cutterhead is an

aggressive 7 ft. wide cutterhead with replaceable teeth.

• USES: Sand, silt, mud, sludge, organics…
• The patented WeedMaster

SOLIDSMASTER WEEDMASTER

• The patented WeedMaster

Cutterhead (Patent #9,060,464) which allows the dredge to cut aquatic vegetation into 75-150mm pieces and pump them up to 1km away. No other dredge in the world can do this. Others have tried, but all have failed.

• USES: Cattails, reeds, hyacinths, algae,

sarguassum , etc.

• Weed Rake is recommended for hyacinths.

WEED RAKE

Mud Cat– MC 115D – Rapid Clean-Out Ports

• Clean cutterhead quickly with quick

release hatches on the shroud.

• Just pull the lock pin, open the hatch

and remove the debris from the cutter and get back to dredging.

• Reduces downtime compared to

standard bolted clean out ports. standard bolted clean out ports.

Mud Cat– MC 115D – Pump Defender Technology

• Mud Cat’s patent pending Pump

Defender technology reduces pump clogs and debris guard clogs and reduces downtime by up to 80%.

• Proven in trash, sea grass, rocks, and
• rganic debris.
• Cutterhead cleans Pump Defender
• Cutterhead cleans Pump Defender

after every

• Only auger dredge in the world with

this technology.

Mud Cat– MC 115D – Spray Dredging Option

• Bi-Directional Broadcaster attachment

allows for spray dredging in canals and wetlands where government agencies have proven the benefit of nutrient spreading.

• Allows for quick discharge of slurry

without a pipeline.

• Spray in both directions or add in

blocker plate and spray in one direction only.

Mud Cat– MC 115D – User Friendly Controls

• All weather control panel.
• Throttle controls for dual outboard

motor option.

• All weather folding operators chair.
• Includes easy to use CANbus system

for quick diagnosing all system issues for quick diagnosing all system issues with factory. Optional languages with the flick of a button.

• All electronics assembled in

electronics clean room.

Mud Cat– MC 115D – Optional Remote Control

• Electronic over hydraulic system

allows for optional radio remote control to be installed for a very affordable price.

• Allows remote operation of the

dredge from up to 1,000 ft. away.

• Allows you to operate in
• Allows you to operate in

contaminated environments without endangering the operator.

Mud Cat– MC 115D – Liner Protection Wheels

• Optional gauge wheels for working

in poly plastic lined lagoons.

• Prevents tearing of expensive

lagoon liners.

• Available with horizontal spiral

auger cutter bar to replace standard SolidsMaster cutter bar. SolidsMaster cutter bar.

Mud Cat– MC 115D – Weather Canopy

• Optional Mud Cat logo

canopy to cover entire dredge deck.

• Protects operator from the

elements.

• Decreases UV wear on
• Decreases UV wear on

hydraulic hoses.

• Engine exhaust extension is

diverted out the back of the dredge.

Mud Cat– MC 115D – Self-Launching Trailer

• Mud Cat TRL Trailer (Transport /

Launch / Retrieve)

• Includes pipe rack for discharge pipes

and hoses.

• Tilt deck w/ hand held controller.
• Requires truck w/ 16,000 gross weight
• Requires truck w/ 16,000 gross weight

towing capacity.

• Includes breaks and tail lights.
• Hitch is bumper ball hitch type – 2-5/16

inches.

Ryan Horton Vice President Office: 913-642-5100

Thank you for your time. We look forward to serving you.

Office: 913-642-5100 Mobile: 715-760-2170 www.mudcatdredge.com

“The only way to stop a Mud Cat…is to turn off the key”
