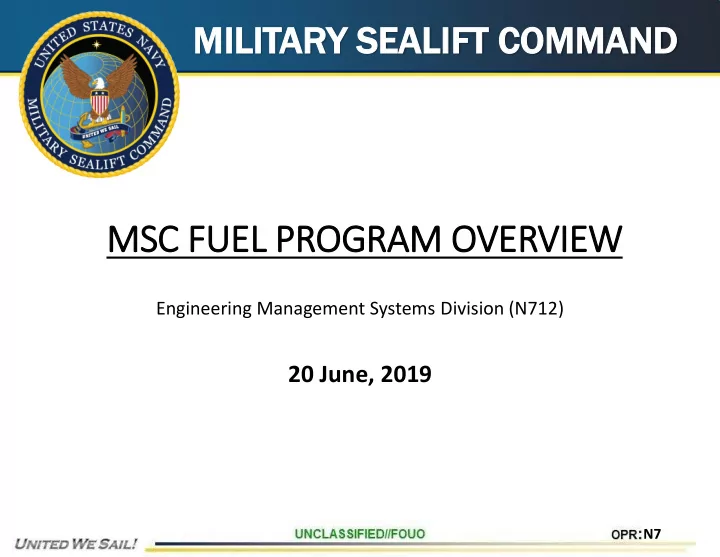

MSC C FUEL UEL PROGRAM OVERVIEW EW

Engineering Management Systems Division (N712)

20 June, 2019

N7 N7

Refer eren ences es F For You

CMEO CD

• MSC Fuel presentation
• Worldwide Chemical Contract “MSC Chemical

Handbook” (Product data sheets, order forms, MSDS’s)

• Bunker Fuel Manual

MSC Bunker Fuel Organization

• MSC Fuel Agency Program Coordinator (APC)
• AO’s, OO’s (based on OPAREA)
• MSCHQ N712

N7 N7

Fuel el B Basics: C Crude e Oil

N7 N7

Fuel el B Basics: C Crude e Refining

N7 N7

Fuel el T Types es

Marine Gas Oil (MGO) Distillate Fuel Aviation Fuel Off-road Diesel

DMA F76

JP-5, JP-8 Jet A/B No.2 Othe r

Residual Fuel

Heavy Fuel Oil (HFO) Intermediat e Fuel Oil (IFO) No.5 No.6 RME, RMG, RMK 180, 380

N7 N7

DOD Fuel el O Organization

Defense Logistics Agency (DLA) Department

• f Defense

Army Air Force Marine Corps Navy NAVSEA NAVAIR MSC NAVSUP

N7 N7

Combined ed F Fuel el O Organization

NAVSUP Energy Defense Logistics Agency (DLA) NAVSEA NAVAIR

USCG

Combined Fuels Team (CFT) Naval Research Laboratory

N7 N7

Ho How Do Does DL DLA Do Do it?

• Logistics nightmare
• Strategic Storage facilities
• Contracts (SEACARD)
• Open Market Procurements
• Foreign Services (FEA’s…e.g. Royal Navy)
• How does MSC Get it?
• LOGREQ
• EMAIL
• PHONECALL
• FAX

N7 N7

Fuel el C Categ egories es

• MSC has three categories of “fuel”:
• Bunker: used for propulsion and auxiliary equipment
• Cargo: transferred to other entities (ships, fuel depots etc)
• Aviation: can be used for onboard equipment or transferred

Bunker Cargo Aviation Additives No Additives

N7 N7

MSC Fuel el O Organization

MSC N4 N7 N712 APC N46 CFC Agency Program Coordinator Cargo Fuel Coordinator

N7 N7

MSC Bunkering

MSC Bunkering

N7 N7

Safety

• Safety:
• Follow your doctrine
• Ship’s fuel bill
• SMS Procedures (7.4-004-ALL)
• MSC Bunker Manual

N7 N7

DEFINI NITION ONS

• MARPOL VI =ESTABLISHED THE REQUIREMENT FOR

TAKING FUEL OIL SAMPLES

• MARPOL 2020= ESTABLISHED THE REQUIREMENT

FOR ALL BUNKER FUELS TO HAVE A MXIMUM OF 0.5% (5000 PPM)

• ECA=ENVIRONMEMTAL CONTROL AREAS

MAXIMUM SULFUE CONTENT 0.1% (1000 PPM)

• DISTILLATE FUEL= MOST FUEL IS BETWEEN 300-15

PPM

N7 N7

MARPOL M MAP

N7 N7

En Ensuring P Proper er F Fuel el Quality

N7 N7

SULFUR H HISTORY

N7 N7

En Ensuring P Proper er F Fuel el Quality

3 Tenets to Ensuring Good Quality:

• Pre-delivery spec sheet review
• Clear and Bright Samples
• In-line Fuel Sampling & additive

dosing

N7 N7

BUNKER D DELI LIVERY N Y NOTE TE

N7 N7

Clea ear a and Bright

Clear & Bright (distillate only)

• Sample each tank/barge/truck
• FROM THE BOTTOM!!!
• Perform visual inspection for:
• Sediment and water
• If C&B fails:
• Reject the fuel
• If already started, cease fueling
• Master notify Area and Oper.

Cmdr.

• Annotate BDN that C&B failed
• Collect a sample and send to lab

with remark “fails to meet C&B”

N7 N7

In In-line S Sampling

In-line fuel sampling

Get equipment Follow Process Maintain your records

*Not on contract **On FOLO contract

REQUIRED!!!

N7 N7

In In-line S Sampling

Sampling Process

• Draw Primary
• Taken at ship inlet manifold
• Continuous drip
• 4 Representative Samples
• 1 for MARPOL, 1 for vendor
• 1 shore-side lab, 1 for re-test
• Sealed, labeled and mailed
• 4 spots for seals: ship, vendor,

surveyor, and other

• Ensure information is accurate,

fuel type, date, port etc.

• WAIT for results

N7 N7

In In-line S Sampling

Sample Analysis and Results

• Lab Receives/Processes-3 days
• Results uploaded to FAS
• Results assessed, msg sent -2 days
• WAIT for results
• Could take up to 15 days to see a results msg depending
• n location

N7 N7

Fuel el S Sample A e Analysis Mes essage

R 211311Z NOV 12 FM COMSC WASHINGTON DC//N7// TO USNS EFFECTIVE// BT// UNCLAS//N04700// MSGID/GENADMIN/COMSC// SUBJ/ USNS EFFECTIVE FUEL OIL SAMPLE TEST RESULTS// RMKS/

• 1. SAMPLE PROCESSED AT LAB 09NOV12. 1 SAMPLE IDENTIFIED WITH 1

ALERT.

• 2. ALERTED SAMPLE :
• A. Port: WHITE BEACH Sample Number: 9004003 Date Bunkered:

02NOV12 MSCHQ ASSESSMENT AND RECOMMENDATIONS: REQACTION Insufficient sample to analyze for oxidation stability. It is requested that you send a second sample for analysis. Fill bottles to or above fill line. Please maintain a copy of this report IAW MARPOL Annex VI requirements. SAMPLE DATA Port Bunkered: WHITE BEACH Sub Port Name: NOT STATED Date Bunkered: 2012-11-02 Sample Number: 9004003 Seal Number: 590264 Date Lab Rcvd: 2012-11-09 Supplier Name: 505TH QM Battalion, Okinawa Fuel Grade: F76 Supplier Dens: NOT STATED Supplier Visc: NOT STATED TESTS DATA SPECS APPEARANCE 0.0 UM ASH 0.00 % W/W 0.00HH CETANEIND 52.4 43.0LL 55.0HH DENSITY15C 840.00 KG/M3 876.00HH FLASH POINT 66.00 DEG.C 60.00LL MCR 0.00 MG/KG 0.20HH POUR POINT -17.80 DEG.C -6.00HH SEDTOTAL 0.01 MG/L SULFUR 0.08 PERCENT 0.30LL 0.50HH VISCOSITY40C 2.88 CST 40C 1.70LL 4.30HH WATER 0.00 % W/W CLOUDPT -2.80 DEG.C -1.00HH TAN 0.05 MG KOH/G 0.30HH H2S 0.15 PPM WEARSCAR 420.00 PPM 460.00HH LAB COMMENTS: Analysis for the sample numbered 69004-03 is within the requirements of the Marine Fuel specifications for the grade as stated per ISO 8217:2010 (E) Specification, however, due to insufficient sample, Oxidation Stability was not analyzed.

• 3. TIP OF THE MONTH: Heavy cycle oil is used worldwide in

complex refining as a … BT//

N7 N7

Fuel el T Trea eatmen ents

AMERSTAT 25

• Biocide Treatment – dose automatically , every fuel evolution
• 1 liter per 25 tons of fuel
• Distillate fuels only

AMERGY XLS

• Fuel lubricity additive
• 1 liter per 3 tons of fuel
• Contains dispersants and detergents
• Dosing based on Wearscar reading

AMERGIZE

• Improves combustion and limits production of deposits
• Dosing based on MCR, Ash, Metals and Sediment readings

AMERGY 222

• Fuel Oil Conditioner: Minimizes Fuel Instability and Incompatibility
• Used for fuels with high ox/stab readings and biodiesel contamination

N7 N7

Other er Quality I Issues es

Stability:

• F-76 stable for minimum of 2 years
• Recommend sampling F76 stored greater than 1 year and send to

lab for stability testing

• MGO/DMA no warranted stability
• Recommend sampling MGO stored greater than 6 months and send

to lab for stability testing

Sulfur Content:

• ISO 8217
• DMA 1.0 max
• Residual: Regulatory Requirements (MARPOL Annex VI or ECA)
• MARPOL Annex VI:
• Global 3.5% max (projected to be 0.5% in 2020)
• ECA: Baltic Sea, English Channel and North American ECA: 0.1% max

N7 N7

Other Quality Issues

Sulfur Content (cont):

• California Air Resources Board (CARB):
• ALL ocean going vessels enroute to a CA port and within 24 nautical

miles of the coastline to use low sulfur MGO*

• Main engines AND auxiliary engines and boilers (main boilers excluded)

*Military vessels (including MSC) are exempt, however MSC will comply as much as practical

Source: CARB Marine Note 2012_1

N7 N7

Other er Quality I Issues es

Cloud Point

• F-76 has a cloud point limit of -0.1 C.
• DMA has not cloud point requirement
• Most commonly a “problem” in Korea.
• Vendors typically sell higher cloud points in summer and lower CPs in

winter.

• DFSP is best option if it is of primary concern
• There is an additive to reduce CP but it is extremely cost inefficient

Biodiesel and Biofuel

• Not the same thing! VERY different
• Biodiesel is unregulated mixing of bio-stocks like Fatty Acid Methyl

Ester (FAME) with regular MGOs. Low concentrations have questionable impact.

• Biofuel is a fuel with known concentrations of bio-stocks with proven
• performance. For Example: 50/50 HRD/F-76
• Current USN and MSC Policy is 0% biodiesel/FAME

N7 N7

Fuel el Quality T Take e Aways

• What are the 3 Tenets to Ensuring Good Quality?
• Pre-delivery spec sheet, C&B, In-line sampling/dosing
• What is the additive that must be dosed at every bunkering?
• AMERSTAT 25 – biocide
• What is the global sulfur limit on bunker fuel?
• 3.5%
• What is an ECA?
• Emissions Control Area
• Where are the current ECAs?
• Baltic Sea, English Channel, North American
• What is the sulfur limit in the ECA’s?
• 0.1%

N7 N7

Fuel el Oil Rec ecord K Keep eeping

Record Maintenance

• Fuel Samples:
• Ship’s MARPOL Sample: Until consumed but not less than 1

year from delivery.

• Vendor Sample: 0, give to vendor; Test Sample: 0, mail ASAP
• Retest Sample: Until consumed or 90 days after delivery
• Bunker Deliver Notes:
• BDN’s shall be retained onboard for a period of three years

after receipt of bunker fuel.

• Fuel Messages:
• Same as BDN

N7 N7

Common I Issues es: Q Quality

• No Labels
• Wrong labels
• New Contract: Texas Oil Tech
• CHASE Supply mailed new labels
• Printable Labels are in SAMM and on Portal

Labels

N7 N7

No Labels Not Enough Sample

Common I Issues es

N7 N7

Common I Issues es: Q Quantity

Internal MSC Issues

• Soundings taken on ship, not barge
• This includes when using a marine surveyor
• No letter of protest written
• Nothing annotated on BDN

N7 N7

Common n Issue ues

N7 N7

Common I Issues es: Q Quantity

Busan, Korea

• Inspection of the barges turned up unknown,

unreported / uncertified void spaces

• Three bunker barges supplied fuel to the Watson on

9-28-10.

• The barges’ void has sluice valves to allow it to be

filled with the rest of the vessel, but then it is isolated and pumped out.

• The barge receives the ordered amount, then pumps

the void off, and delivers to us the reduced amount.

N7 N7

Common I Issues es: Q Quantity

Busan, Korea (cont.)

• The sounding tables for the barge represent this void

as part of the larger tank. When this void is pumped

• ff the soundings do not change. They have a survey

that shows them receiving the full amount and the barge is found to be empty so they claim we received the full amount.

• There is no way to see this void is empty at the pre-

unloading soundings.

• No openings to this void from the deck.

N7 N7

Common I Issues es: Q Quantity

Busan, Korea

Access to open top of void More piping mods

N7 N7

Common I Issues es: Q Quantity

N7 N7

Common I Issues es: Q Quantity

Charleston, South Carolina

Vendor: KPI Bridge Oil Fuel Type: MGO Problem: Vendor has only 1 clean tank on his barge which holds 2000 barrels. Results in a lot of round robin trips to fuel farm and creates a LONG day of fueling. Action: Vendor has been put on notice by DLA, however they are the only contracted vendor in the area. Interim Solution: Ensure you include an “End by” time in your SEACARD order.

N7 N7

Common I Issues es: Q Quantity

Gwangyang, Korea

Vendor: Multiple Fuel Type: MGO Problem: Vendor claimed delivery of more fuel than had been delivered. Surveyor was hired to oversee the evolution and caught the discrepancy via soundings

• rounds. Further inspection revealed a tank holding the

4000 gallons (tank was not hidden) . Action: Dispute was made on site and the vendor corrected their number. DLA was notified for future reference. Note: Take Pictures for future use by DLA and MSC

N7 N7

Summa mmary

• Fuel Basics
• Receiving Bunkers
• Fuel Records
• Common Issues

N7 N7
