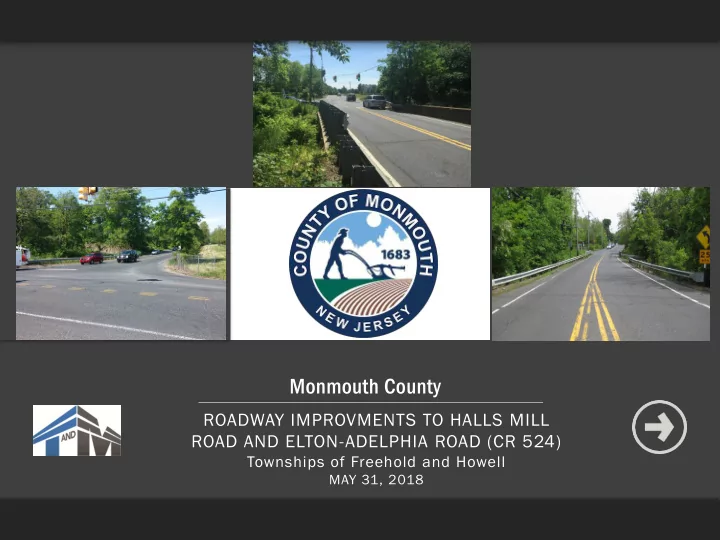

Monmouth County ROADWAY IMPROVMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524) Townships of Freehold and Howell MAY 31, 2018 1 INVESTED | PROACTIVE | TRUSTED | RESULTS ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD


slide-1
SLIDE 1

1

INVESTED | PROACTIVE | TRUSTED | RESULTS

ROADWAY IMPROVMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Townships of Freehold and Howell

MAY 31, 2018

Monmouth County

slide-2
SLIDE 2

2

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Project ct

NEED PROJECT GOALS:

➢ Improve driver and pedestrian safety within

the project limits.

➢ Improve traffic circulation and levels of

service within the project limits.

➢ Relieve congestion and increase mobility in

the regional roadway network.

➢ Replace functionally obsolete and structurally

deficient structures within the project limits.

slide-3
SLIDE 3

3

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Project ct

NEED

LOCATION PLAN

slide-4
SLIDE 4

4

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Project ct

HISTORY PRIOR STEPS: ➢ Freehold Township studies: 1980’s ➢ County-led Scoping Study: 2007 ➢ Public Information Center: 2007 ➢ National Environmental Policy Act (NEPA)

Environmental Assessment: 2009 2009

➢ Public Hearing: 2011 ➢ Finding Of No Significant Impact (FONSI)

Issued: 2012

slide-5
SLIDE 5

5

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Project ct

HISTORY FINAL DESIGN:

➢ Initiated Fall 2015 ➢ NJDEP Permits Approved April 2017 ➢ NJDEP Green Acres Minor Diversion: ✓ Public Hearing held December

cember 2017

✓ Approved Januar

ary 2018 18 (Awaiting State House Approval)

➢ Final Submission to NJDOT Anticipated Summe

mer 2018 18

➢ Federal Authorization for Construction Anticipated

Fall 2018 18

slide-6
SLIDE 6

6

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Existin sting

DEFICIENCIES

➢ Narrow roadway with no shoulders ➢ Curvature on Halls Mill Road does not

meet a Design Speed of 55 MPH

➢ Posted Speed Limit: 50 MPH down to

Advisory postings on curves: 25 MPH

➢ Sight distance issues

ROADWAY GEOMETRY

slide-7
SLIDE 7

7

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Existin sting

DEFICIENCIES

➢ Crash History 2013-2015: ✓ 94

94 Crash shes s in the Project Area

✓ 8.57

7 crashes hes per million vehicle miles traveled

✓ NJDOT Statewide Average: ✓ 3.83

83 crashe shes per million vehicle miles traveled

➢ Halls Mill Road/Elton Adelphia Road L.O.S. = “F” ➢ Halls Mill Road roadway L.O.S. = “E”

TRAFFIC CONGESTION/SAFETY

slide-8
SLIDE 8

8

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Existin sting

DEFICIENCIES

➢ F-59:

9:

✓ Functionally Obsolete ✓ Structurally Deficient (rating of 69) ➢ F-30:

0:

✓ Functionally Obsolete ✓ Structurally Deficient (rating of 55) ➢ F-29:

9:

✓ Functionally Obsolete ✓ Structurally Deficient (rating of 42)

BRIDGE CONDITION

slide-9
SLIDE 9

9

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Proposed sed

IMPROVEMENTS

➢ Halls Mill Road Realignment ➢ Roadway Improvements ➢ New Traffic Signals ➢ Bridge Replacements

slide-10
SLIDE 10

10

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Proposed sed

IMPROVEMENTS

➢ Halls Mill Road Realignment:

✓ Re-align the roadway to create a 4-leg

intersection with Elton-Adelphia Road and Edinburgh Drive

slide-11
SLIDE 11

11

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Proposed sed

IMPROVEMENTS

❖ Roadway Improvements: ➢ Halls Mill Road

ad and Edinburg nburgh Driv ive

✓ 68’ Overall Width (Curb to Curb)

  • 14’ Outside Lanes
  • 12’ Inner Lanes
  • 16’ Median/Left Turn Lanes

➢ Elton-Adel

elph phia ia Road d (CR 524)

✓ 62’ Overall Width (Curb to Curb)

  • 14’ Outside Lanes
  • 11’ Inner Lanes
  • 12’ Left Turn Lanes
  • 6’ Sidewalks
slide-12
SLIDE 12

12

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Proposed sed

IMPROVEMENTS

➢ New Traffic Signals:

✓ Edinburgh Drive and Route 9 ✓ Halls Mill Road/Elton Adelphia Road (CR

524) and Edinburgh Drive.

✓ Halls Mill Road and Three Brooks Road ✓ Other Improvements

  • Pedestrian Crossing Beacon on

Edinburgh Drive at Kapalua Court/Wentworth Drive

  • Left turn lanes will be provided at all

signalized intersections

slide-13
SLIDE 13

13

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Proposed sed

IMPROVEMENTS

➢ Bridge Replacements:

✓ F-59

59

  • 36” R.C.C.P

✓ F-30

30

  • 31’ precast concrete three sided

structure

✓ F-29

29

  • 22.5’ precast concrete three-sided

structure

  • Retaining wall tie–in with Rutgers

Lower Adelphia Dam

slide-14
SLIDE 14

14

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Proposed sed

IMPROVEMENTS

➢ Other Improvements:

✓ Sidewalk Connectivity on Elton-Adelphia

Road (CR 524) + enhanced lighting

✓ Spyglass Hill Road Cul-de-Sac ✓ Full-depth pavement reconstruction ✓ Signing and Striping replacement ✓ Utility Relocations ✓ Stormwater Management: 3 basins ✓ Water Quality: Median Bioswale ✓ Groundwater Recharge: Infiltration Basin NJDEP Permit

Requirements

slide-15
SLIDE 15

15

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Project ct

IMPACTS

➢ 30 Parcels require temporary or

permanent easements or property acquisition

➢ Approximately 14 Acres in total

RIGHT OF WAY ACQUISITION

slide-16
SLIDE 16

16

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Project ct

IMPACTS

➢ 0.484 Acres of Manasquan River

Greenway to be acquired

➢ As compensation, the County to

convey 0.739 Acres of adjacent property back to the Park System

✓ Includes the section of Halls Mill

Road to be abandoned by the roadway re-alignment

GREEN ACRES DIVERSION OF PARKLAND

slide-17
SLIDE 17

17

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Project ct

IMPACTS ➢ State Open Waters:

0.167 Acres

➢ Freshwater Wetlands:

0.264 Acres

➢ Wetlands Transition Area:

0.612 Acres

➢ Wetlands Mitigation Requirement:

0.431 Acres

➢ Total Riparian Zone Disturbance:

0.620 Acres

➢ Riparian Mitigation Requirement:

0.450 Acres

NJDEP PERMITS/ENVIRONMENTAL

slide-18
SLIDE 18

18

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

Const struction uction

STAGING

➢ Staging Concepts ✓ Goal: maintain one lane of traffic in

each direction for the duration of construction

✓ Maintain access for pedestrians at all

times

✓ Lane closures with flagging permitted ✓ Full road closures with traffic detours

  • nly permitted for one construction

shift at a time, no long-term detours

slide-19
SLIDE 19

19

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

STAGE 1A CONSTRUCTION

slide-20
SLIDE 20

20

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

STAGE 1B CONSTRUCTION

slide-21
SLIDE 21

21

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda

STAGE 2 CONSTRUCTION

slide-22
SLIDE 22

22

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524)

Agenda PROJECT SCHEDULE AND NEXT STEPS

➢ Final Submission to NJDOT:

Summer ummer 2018 18

➢ Obtain Federal Authorization:

Fall l 2018 18

➢ Advertise for Construction:

Fall/Wint l/Winter er 2018 18

➢ Award Construction Contract:

Winter er 2019

➢ Start Construction:

Sprin ring g 2019

➢ Finish Construction:

Summer ummer 2021

slide-23
SLIDE 23

23

ROADWAY IMPROVEMENTS TO HALLS MILL ROAD AND ELTON-ADELPHIA ROAD (CR 524) Agenda

THANK YOU!
