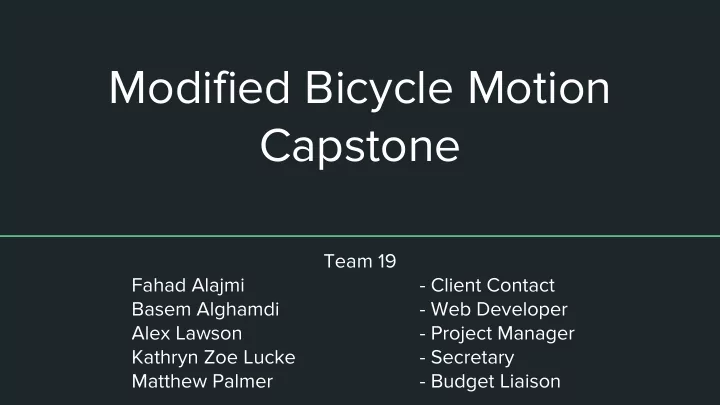

Modified Bicycle Motion Capstone

Team 19 Fahad Alajmi

• Client Contact

Basem Alghamdi

• Web Developer

Alex Lawson

• Project Manager

Kathryn Zoe Lucke

• Secretary

Matthew Palmer

• Budget Liaison

Project Introduction

• Dr. Scot Raab

○ Assistant Professor in Athletic Training ○ Long-time cyclist

• Modified Bicycle Motion

○ Limit Range of Motion (ROM) experienced by the knee ○ Create maximal torque ○ Limit the modifications to existing bicycles

2 Alajmi 10/25/2016 Modified Bicycle Motion / 19

Designs Considered

3 Palmer 10/25/2016 Modified Bicycle Motion / 19 Adjustable Pedals CVT Translating Seat Pedal Shape

Designs Considered (Cont.)

4 Lawson 10/25/2016 Modified Bicycle Motion / 19 Crankset Slider Pedal Slider Translating Cranks Q-Rings

Engineering Requirements

• Added weight < 300g
• Design cost < $250
• Sustain falling weight > 50 lbs at 0.6 ft
• Power generation < 5% difference vs. standard cranks
• Knee > 90o

5 Lucke 10/25/2016 Modified Bicycle Motion / 19

Design Selected

6 Lucke 10/25/2016 Modified Bicycle Motion / 19

Schedule and Budget Schedule

7 Alghamdi 10/25/2016 Modified Bicycle Motion / 19

Budget

• Total budget: $1500
• No expenditures
• Seek sponsorship

○ Local bike shops
