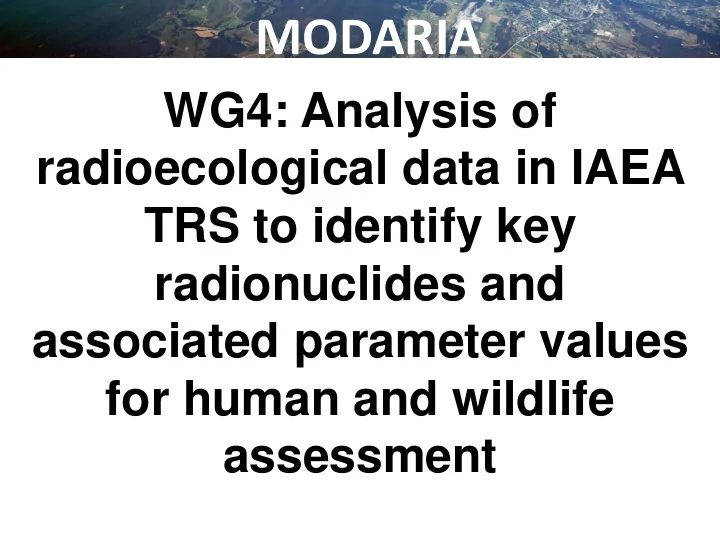

WG4: Analysis of radioecological data in IAEA TRS to identify key radionuclides and associated parameter values for human and wildlife assessment

MODARIA

IAEA Parameter value compilations

WTD: http://www.wildlifetransferdatabase.org

Objectives

Using the recent data compilations:

• To identify the most important radionuclides,

pathways and parameter values – For different source terms – For different exposure situations

• Identify data gaps which matter
• Provide guidance on need for further data for

different source terms

• Explore ways to make TRS 472 data more usable

by modelling community Consider both human and wildlife

Current focus

• Parameter values for ingestion doses
• Soils, sediments, animals, plants
• CR for human foodchain
• CRwo-media for wildlife
• Kd values for both
• Soil
• Sediment

– Freshwater – Marine?

Prioritising Data gaps

Wildlife: eg. terrestrial

Radionuclide Grasses & Herbs Shrub Lichens & Bryophytes Annelid Tree Mammal Mollusc Arthopod Bird Reptile Amphibian Arachnid Cs Pb Am Sr Cd Pu Ni U Po Ru Mn Th Cl Co Se Sb Ce Eu I Tc Ag Cm Zr Nb Np P S Te n≤10 n>10<20 n>20<100 n≥100

Human foodchain

• Animal products

Element Beef Sheep meat Goat meat Pork Poultry Egg Cow milk Goat milk Sheep milk Ag 1 Am 1 1 1 1 2 Ba 2 1 2 1 15 3 1 Be 1 Ca 3 2 1 15 12 St Cd 8 1 2 8 1 1 Ce 1 1 6 1 Cl 1 Co 4 2 2 2 4 1 2 Cr 3 2 1 Cs 58 41 11 22 13 11 288 28 28 Fe 4 1 2 7 St St I 5 1 2 3 4 104 24 7 La 3 Mn 2 1 1 2 3 4 St 1 Mo 1 1 3 7 4 Na 2 1 1 2 7 St 1 Nb 1 1 1 1 1 1 Ni 2 2 1 Np 1 P 1 1 1 St St St Pb 5 2 15 St 1 1 4 2 Pu 5 2 2 n/a 1 Ra 1 11 Ru 3 2 1 1 6 S 3 1 12 St Sb 2 3 Se 1 4 4 12 2 Sr 35 25 8 12 7 9 154 21 4 Te 1 1 1 1 11 1 1 Th 6 3 U 3 2 2 2 3 1 W 7 Y 1 1 Zn 6 6 2 3 4 8 St St Zr 1 1 1 1 6 1

ICRP RAPs CR values Based on data

Approach

• Develop a set of criteria to evaluate importance
• f parameter values
• Source terms
• Magnitude and relative importance of internal dose
• Impact of environmental factors on internal dose

estimates related to each parameter value

• Analyse data quantity and quality
• TRS wildlife / some TRS 472 data in spreadsheets
• Derived values

SRS 19 update – parameter value analysis

1.0E-06 1.0E-05 1.0E-04 1.0E-03 1.0E-02 1.0E-01 1.0E+00

Th-229 Th-230 Rb-87 K-40 Re-186m Rb-86 Rb-84 Rb-83 Tc-98 Tl-204 Tc-99 Re-184m Ge-68 Re-184 As-74 Tc-95m Tc-97m Th-234 As-73 Tc-97 Tl-202 Ag-111 Re-187 Ge-71

Dose (Sv per Bq m-3)

No data for TRS Milk

1.0E-05 1.0E-04 1.0E-03 1.0E-02 1.0E-01 1.0E+00 1.0E+01 Dose (Sv per Bq m-3)

Values included in TRS Milk

Needs work to understand calculations and assumptions in SRS update and develop criteria

Criteria

• Half life
• Magnitude of dose
• Proportion of dose
• TRS value?

Revision and application of Kd values

Aim To harmonise the approach used to develop and extend the range of PDFs available To provide PDFs in a format applicable for modelling for soils and freshwater Collate new data and integrate into current databases Select appropriate statistics to analyse data to develop the PDFs

Soil and freshwater Kd databases

Starting point: databases created in the frame of TRS 472

• Both datasets reported as AM, SD, GM, GSD and min-

max values.

• Probability/cumulative density functions (PDF/CDF)

were derived for the freshwater Kd dataset.

• Probability density functions could also be calculated

for the soil Kd dataset, as it might be a better approach than using best estimate values.

Soil Kd database

Soil Kd database created in the frame of TRS 472

• Excluded data for other materials (e.g., sediments; pure soil phases such

as clays or Fe-Mn-Al oxides)

• Around 2900 records for 67 elements,
• Cs and Sr most values, a few elements with more than 100 entries

each (e.g., I, U, Co, Sb and Se).

• Data grouped according to texture/OM and, when possible, soil

properties governing their interaction (cofactors).

• Lognormal distribution was assumed (although not tested): GM value

defined the Kd best estimate (for n > 3),

• no probability density functions were derived Main aim of this

topic within WG4

Update of soil Kd database

Initially not foreseen, but…

• Aims of the dataset have (partially) changed.
• Density functions require large number of entries (n > 10).
• TRS 472 database: gaps have been identified (either absence of

information or low number of entries).

• More than 50 new documents already critically reviewed and additional

data sources (yet) to be checked.

Initial conclusions on soil Kd database update

• Significant increase in the number of elements/records with respect

to TRS 472 (especially for RNs such as Am, Eu, Ni, Cs, Sr, U and Co): 4500 entries for 75 elements.

• Limited number of records for priority radionuclides (e.g., Ag,

lanthanides, actinides).

• Reconsideration of criteria to accept data: use of types of

analogues.

• Stable (+ natural/indigenous) isotopes
• Actinides / lanthanides
• Clays / sediments

Construction of CDFs for Kd database

• Soil Kd data fitted to a distribution function, using whole and partial

datasets (according to texture/OM; scores; cofactors) and with/without scoring.

• To weight data to obtain CDFs with a lower variability and more

representative than those without scoring.

• Challenge: to agree scores for a minimum number of partial datasets, so

the related number of observations is still significant, and valid to be used for any radionuclide

Different scores for sorption, desorption and indigenous data Use of scores

n GM GSD Min Max GM GSD 5 Indigenous 38 21878 13 73 650000 24210 19 186 Sorption 335 1023 6.6 4 43445 1517 4.5 129 Desorption 225 692 8.1 26 375000 594 10.3 13

Impact of source data type

For Cs

INITIAL CONCLUSIONS ON USE OF PDF/CDF

• Preliminary lognormal CDFs for Cs, Sr and Am.
• Soil Kd best estimates should not be derived from AM,
• from GM of dataset or from 50th percentile of the fitted CDF.
• 5th-95th percentiles reduces data variability (identify outliers).
• Use of scores:
• introduces expert (personal) judgment in data treatment
• Relevance depends on the size and quality of the dataset
• Challenges:
• How to proceed with small datasets (n < 10??) or when statistical

descriptors are not available?

• Analogues to fill data gaps!

ACTION LIST: SOIL

• To continue the update of the Kd soil database (to be

finished Nov 2014!)

• To start testing the use of analogues in large datasets
• use of sediments data for clay soils?
• To explore CDFs sensitivity to scores for small datasets

Freshwater Kd : Suspended vs surface sediments

Kd for suspended particulate matter (KdSPM) and Kd for surface

• xygenated sediments (KdSOS) can be linked by considering

granulometric size corrections

dissolved SOS particle SOS dissolved n WaterColum SPM n WaterColum SPM

C C C C Kd  

• For same particles:

SPM SOS

Kd Kd  

• Sediments Particles Sizes > Suspended Particles Sizes:

CDF for Freshwater Kd for SPM and surface sediments

From P.Ciffroy Data Base

For Cesium   0,25

WHAT IT CAN BE DONE FOR SINGLE VALUE OR SMALL DATASETS (N<3 )?

• 1. The most conservative

GSD = GSDmax  8.34

• 1. No PDF
• 2. Exponential distribution (ERICA)
• 3. Log normal distributions: GM given by the dataset and GSD conservatively

estimated from knowledge of GM and GSD couples ( ). Two possibilities

• 2. GSD = F(GM)

F(GM) = envelop 𝑯𝑵; 𝑯𝑻𝑬 (Green curve)

Next steps

• Define a common structure for freshwater and soils Kds including Kd

values and relevant parameters.

• Update the references with the new data published or obtained since

2007.

• Collate referencees from MODARIA community into the data base

following a common template

• contributors will be acknowledged
• Allowing free access to summarised data.

WG interaction

• Queries on parameter values

– Need logging systems – Q and A available – requests for pdf

• Sustainability of databases

– Databases with common QC – Summary data available and regularly updated

Future Plans: Interim meeting

– PROPOSED WORKSHOP ON Kd in collaboration with STAR – May week 21 or 22, Location ? – Invited speakers – To discuss improvement and enhancement of Kd databases for soils and freshwater – What to do with small datasets (n < 10??) or when statistical descriptors are not available? – Analogues to fill data gaps! – Sustainability and visibility
