Minutes of Centennial Mandalong Community Consultative Committee - - PowerPoint PPT Presentation

1

Centennial Coal Community Consultative Committee Meeting Minutes – 13 February 2018

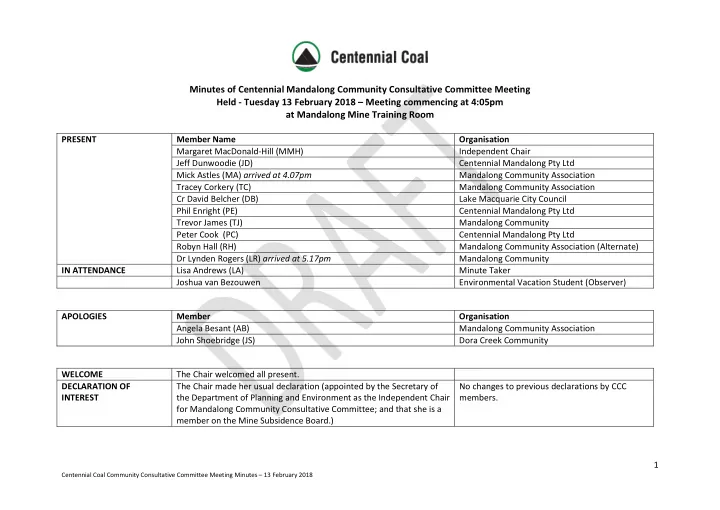

Minutes of Centennial Mandalong Community Consultative Committee Meeting Held - Tuesday 13 February 2018 – Meeting commencing at 4:05pm at Mandalong Mine Training Room

PRESENT Member Name Organisation Margaret MacDonald-Hill (MMH) Independent Chair Jeff Dunwoodie (JD) Centennial Mandalong Pty Ltd Mick Astles (MA) arrived at 4.07pm Mandalong Community Association Tracey Corkery (TC) Mandalong Community Association Cr David Belcher (DB) Lake Macquarie City Council Phil Enright (PE) Centennial Mandalong Pty Ltd Trevor James (TJ) Mandalong Community Peter Cook (PC) Centennial Mandalong Pty Ltd Robyn Hall (RH) Mandalong Community Association (Alternate) Dr Lynden Rogers (LR) arrived at 5.17pm Mandalong Community IN ATTENDANCE Lisa Andrews (LA) Minute Taker Joshua van Bezouwen Environmental Vacation Student (Observer) APOLOGIES Member Organisation Angela Besant (AB) Mandalong Community Association John Shoebridge (JS) Dora Creek Community WELCOME The Chair welcomed all present. DECLARATION OF INTEREST The Chair made her usual declaration (appointed by the Secretary of the Department of Planning and Environment as the Independent Chair for Mandalong Community Consultative Committee; and that she is a member on the Mine Subsidence Board.) No changes to previous declarations by CCC members.

2

Centennial Coal Community Consultative Committee Meeting Minutes – 13 February 2018

PREVIOUS MINUTES Minutes Action The minutes of the previous meeting held on 24th October 2017 were confirmed without change. Moved: Trevor James Seconded: Tracey Corkery BUSINESS ARISING Item Action Business arising from the previous minutes:

• 1. Rural Fire Shed Land Transfer
• 2. TransGrid – TL 24 Location
• 3. TL24 Tower Inspection
• 4. Approval of alternate for Mandalong Community Association

1 An update was provided by Cr Belcher. LMCC is overseeing the project. Council is still negotiating with RFS in relation to access

• points. DB to keep CCC informed of progress.

2 PC advised that the towers are being erected next week. The concreting works have been half completed. 3 TL24 inspection will take place on Tuesday 27th February 2018, 4pm. CCC Members to meet at Transgrid site office. 4 MMH advised that Zsofia Kennedy has been approved by the Department as an “alternate” community representative for MCA. CORRESPONDENCE Item The correspondence was included on the agenda with one additional item: Date: 9/2/18– PE’s pre-meeting report. CENTENNIAL COAL MANDALONG REPORTS Presentation Comments  A hard copy of the Mandalong Mine Community Consultative Committee Presentation 13 February 2018 was provided to all attendees.  A hard copy of the Mandalong Mine – Land Management Plan (updated 5 February 2018) was provided to all attendees.  TC commented on the community complaint involving the near miss incident between a truck and a school bus on 8/2/18.  DB enquired whether the bus company had lodged a complaint with Centennial. PC advised that they hadn’t.  Community Sponsorship – November 2017-February 2018 MA thanked Centennial for their support for the MCA Christmas

• Party. There are new residents in the area and it was a great

Questions were asked and answered throughout the presentation. PC advised that this matter has been

• investigated. The truck involved was a sub-

contractor for TransGrid. The driver, who had been inducted was aware that no heavy vehicles are allowed to travel during school bus times and has been stood down. PC confirmed that Daracon have finished and the

3

Centennial Coal Community Consultative Committee Meeting Minutes – 13 February 2018

• pportunity for everyone to get together.

TC informed PC that MCA wished to have a photo opportunity with Lakes Mail to present a certificate of appreciation to Centennial. PC happy to participate.  Rehabilitation Management Plan (RMP) Update  Mining Update  Exploration  LW23 Review  LW24 Preview  Extraction Plan LW24-24A  Extraction Plan LW25-31  Access Road and MSSS (photographs of rehabilitated areas)  Mandalong Road Incidents PC advised that the issue with the power line’s reduced clearance was due to storm activity and not subsidence.  TransGrid – TL24 relocation  Photographs of cruciform and tower assembly areas  Dog baiting  Traffic Data  Ausgrid – 33kV Power Line Project  Offset Areas – discussions ensued about the management of fire

• weed. Focus should be on slashing the weed prior to it flowering.

Blackberry and Lantana will be sprayed (Kleinfelder is the contractor that will be undertaking the works). TC informed the CCC of a horse stuck in a dam on a tenanted Centennial property.  Mandalong Approvals Update  NCLP SSD-5145 MOD 1: Cooranbong main truck movements will now be in relation to the TL24 construction works involving concrete trucks and metal recycling trucks. Action: Request for copy of the Local Land Services Plan. JD to email through link to website. No new FTEs. Existing staff or contractors will be used. GENERAL BUSINESS ITEM COMMENTS  LR apologised to the CCC for being late  MA advised Centennial of what appears to be a compression hump

• n the road adjacent to the old Jones Dairy.

 DB informed the CCC that LMCC is in legal action with one of its road base suppliers as the product provided is now bulging and Discussion on deterioration of road base caused by recent extreme temperatures. PE advised that there is no subsidence in this area, but will inspect this and cracks near

4

Centennial Coal Community Consultative Committee Meeting Minutes – 13 February 2018

causing damage to infrastructure.  TC enquired whether Centennial were selling any more properties. PE advised that one had recently been sold on the hill on Mandalong Road and there is another one in Browns Road that will go on the market in the next 4 weeks. There were approximately 3- 4 properties sold in the last 12 months.  PC informed the CCC that the ventilation shaft tenders close 14/2/18. Unsure of when the works will commence, but probably May 2018. Sabina’s corner. ACTION LOG CURRENT ACTIONS ACTION NO: TOPIC ACTION WHO WHEN STATUS 25.10.16 - 5 RFS land transfer Cr Belcher to advise progress

• f land transfer and advise

CCC. Cr Belcher By next meeting Update: 13/10/17 Council still in negotiation with RFS

• n access points.

24.10.17 - 1 TransGrid – TL24 relocation TC requested that PE contact her when the TransGrid concreting works commence. PE Completed December 2017 PC advised that a major concreting pour in relation to 34X will see increase in truck movements on 19/3/18 between 7am to 6pm. 24.10.17 – 2 TL24 Tower Inspection An inspection of towers is proposed to be undertaken prior to the February 2018 meeting. PC/MMH 24/2/18 Inspection to be held on Tuesday 27th February 2018 on site at 4pm. MEETING CLOSED 5.35PM TJ advised he will be an apology to the June meeting.

5

Centennial Coal Community Consultative Committee Meeting Minutes – 13 February 2018

NEXT MEETING The meeting schedule for 2018 was discussed and agreed:  Tuesday 19 June 2018  Tuesday 23 October 2018 Commencing at 4pm. An inspection of the new TL24 towers is proposed for 27/2/18 at 4pm. LIST OF TABLED ITEMS AS ATTACHMENTS TO MINUTES Centennial Coal Community Consultative Committee Mine Update –Presentation and Land Management Plan Centennial Coal

Pre-Meeting Report

Community Consultative Committee Mandalong Mine 13 February 2018

Mandalong Mine CCC Pre-Meeting Report – February 2018

Table of Contents

1 CURRENT MINING STATUS ...................................................................................................................... 1 1.1 LONGWALL ................................................................................................................................................... 1 1.2 DEVELOPMENT .............................................................................................................................................. 2 2 EXPLORATION ......................................................................................................................................... 2 3 ENVIRONMENTAL MONITORING ............................................................................................................. 2 3.1 AIR QUALITY MONITORING ............................................................................................................................. 2 3.2 SURFACE WATER QUALITY MONITORING UPDATE ............................................................................................... 3 3.3 GROUNDWATER MONITORING UPDATE ............................................................................................................. 8 4 PLANNING APPROVALS ......................................................................................................................... 12 4.1 MANDALONG SOUTHERN EXTENSION PROJECT .................................................................................................. 12 4.2 TRANSGRID TL24 RELOCATION PROJECT ......................................................................................................... 12 4.3 33 KV POWERLINE TO MSSS ......................................................................................................................... 12 4.4 TRANSGRID TL24 MITIGATION WORKS ........................................................................................................... 12 4.5 COORANBONG MODIFICATION 1 .................................................................................................................... 13 5 COMMUNITY CONTACTS ....................................................................................................................... 13 5.1 MANDALONG.............................................................................................................................................. 13 5.1.1 Mining Notifications ...................................................................................................................... 13 5.1.2 Consultation .................................................................................................................................. 13 5.2 MANDALONG SOUTH ................................................................................................................................... 13 5.3 COMPLAINTS .............................................................................................................................................. 13 5.4 SPONSORSHIP ............................................................................................................................................. 13 6 LAND MANAGEMENT ............................................................................................................................ 13 6.1 MANDALONG PROPERTIES ............................................................................................................................. 13 6.2 PROPERTY SALE ........................................................................................................................................... 14

List of Figures

FIGURE 1 - MINE PLAN AND SURFACE FEATURES. ............................................................................................................... 1 FIGURE 2 - ROLLING ANNUAL AVERAGE DUST DEPOSITION .................................................................................................. 3 FIGURE 3 - SURFACE WATER PH RESULTS ......................................................................................................................... 4 FIGURE 4 - SURFACE WATER TSS RESULTS ....................................................................................................................... 5 FIGURE 5 - SURFACE WATER OIL & GREASE RESULTS.......................................................................................................... 5 FIGURE 6 - GROUND WATER DEPTH ................................................................................................................................ 8 FIGURE 7 - GROUNDWATER PH ...................................................................................................................................... 9 FIGURE 8 - GROUNDWATER ELECTRICAL CONDUCTIVITY .................................................................................................... 10 FIGURE 9 – GROUNDWATER BORE LOCATIONS ................................................................................................................ 11

List of Tables

TABLE 1- DEPOSITIONAL DUST ....................................................................................................................................... 2 TABLE 2 - LDP001 DAILY SAMPLING RESULTS ................................................................................................................... 3 TABLE 3 - LDP002 DAILY SAMPLING RESULTS ................................................................................................................... 4 TABLE 4 - LDP001 MONTHLY SAMPLING RESULTS ............................................................................................................. 6 i | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

1 Current Mining Status

1.1 Longwall

Longwall 23 commenced in October 2017 and is planned to finish by late February this year. Longwall 24 is then planned to commence operation in mid to late March and extract coal over the next four months, completing extraction during July 2018. Longwall 24 start position is located just to north-west of Tobins Rd as shown in Figure 1. Figure 1 - Mine Plan and Surface Features.

1 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

1.2 Development

Maingate 24 has almost completed development for Longwall 24, while Maingate 24A and Tailgate 25 have progressed to approximately half their planned length. The Main Headings have advanced and recently completed the roadways for the commencement of Maingate 25 as shown in Figure 1.

2 Exploration

Surface borehole exploration is in progress within Olney State Forest and is focusing on defining the location the sill near the end of Longwalls 25 to 29. Two boreholes have been completed in this area and another three are planned.

3 Environmental Monitoring

Environmental monitoring has continued at Mandalong, Mandalong South, Cooranbong and Delta as required by the Environmental Protection Licence (EPL 365) and Development Consents DA 97/800, SSD-5144 and SSD-5145. A summary and review of the monitoring results will be presented at the CCC meeting.

3.1 Air Quality Monitoring

The air quality monitoring results for the reporting period and year to date are summarised below. Depositional dust (g/m2/month) results (insoluble solids) are shown in Table 1. Table 1- Depositional Dust

Licensee: Mandalong Data Sampled: 20/12/2017 - 19/01/2018 Address: Data Obtained: 5/2/18 EPL No. 365

Feb- 17 Mar- 17 Apr- 17 May- 17 Jun- 17 Jul- 17 Aug- 17 Sep- 17 Oct- 17 Nov- 17 Dec- 17 Jan- 18 DG4 0.9 1.3 2.5 5.1 0.6 0.4 0.4 1.0 4.8 0.6 1.0 DG6 1 0.8 0.7 0.8 0.3 0.2 0.4 0.6 0.5 1.1 2.5 2.1 DG7 1.3 1.4 0.8 1.7 0.8 1.0 1.4 1.3 1.9 1.3 1.4 1.4 DG8 0.6 1.0 0.6 0.9 0.2 0.2 0.5 0.6 0.4 0.6 0.6 0.8 DG9 0.4 1.0 0.9 1.6 0.5 0.3 0.6 1.4 0.9 1.9 2.6 0.7 DG10 2.4 4.2 6.0 1.7 1.6 1.0 1.4 2.1 0.8 1.2 2.0 4.0 DG12 0.3 0.7 0.2 0.2 0.4 0.3 0.3 DG14 1.7 8.0 5.9 2.5 2.6 2.9 0.3 0.5 0.5 1.3 1.9 0.6 Delta 1 0.3 0.4 0.7 0.9 0.5 0.1 0.3 0.4 0.3 0.5 0.2 0.7 Delta 2 0.7 0.6 0.3 0.8 0.5 0.2 0.6 0.5 0.7 0.6 2.8 1.5 Delta 3 0.3 0.3 0.3 0.5 0.7 0.3 0.6 0.5 0.2 0.2 0.5 1.6

DG – Dust Gauge *Results excluded due to contamination / damage.

Depositional dust monitoring data indicates that dust deposition results for January 2018 range from 0.6 g/m2/mth to 4.0 g/m2/mth. The rolling annual averages for each of the dust gauges to January 2018 are shown in Figure 2. All rolling annual averages are below the 4 g/m2/month criteria.

2 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Figure 2 - Rolling Annual Average Dust Deposition

3.2 Surface Water Quality Monitoring Update

The following parameters, pH, Total Suspended Solids (TSS mg/L), Electrical Conductivity (EC µs/cm) and Oil and Grease (mg/L) are monitored at Licenced Discharge Point LDP001 and LDP002 daily during discharge in accordance with the requirements of Environmental Protection Licence 365. Table 2 and Table 3 show a summary of these results, whilst Figure 3 to Figure 5 are graphical

• representations. Additional pollutants are required to be monitored monthly during discharge;

these results can be found in Table 4. Table 2 - LDP001 Daily Sampling results

Data Published: 14/02/2018 Licensee: Mandalong Data Sampled: 1/1/18 – 31/1/18 Address: Data Obtained: 08/02/2018 EPL No. 365 Pollutant Units of measure Monitoring frequency required by licence

• No. of times

measured during month

• Min. value

Max. value 100 percentile limit Exceedance (yes/no) Oil & Grease mg/L 29 30 10 No pH pH 29 30 7.69 8.20 6.5-8.5 No Total Suspended Solids mg/L 29 30 11.0 50 No

There were no discharges from LDP002 in January 2018 as shown in Table 3.

0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 Feb-17 Mar-17 Apr-17 May-17 Jun-17 Jul-17 Aug-17 Sep-17 Oct-17 Nov-17 Dec-17 Jan-18 Rolling Average (g/m2/mth) Monthly Dust Deposition

DG4 DG6 DG7 DG8 DG9 DG10 DG12 DG14 Delta 1 Delta 2 Delta 3 Annual Average limit (4g/m2/mth)

3 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Table 3 - LDP002 Daily Sampling results

Data Published: 14/2/2018 Licensee: Mandalong Data Sampled: 1/1/18 – 31/1/18 Address: Data Obtained: 01/02/18 EPL No. 365 Pollutant Units of measure Monitoring frequency by licence

• No. of times

measured during month

• Min. value

Max. value 100 percentile limit Exceedance (yes/no) Oil & Grease mg/L

• 10

No pH pH

• 6.5-8.5

No Total Suspended Solids mg/L

• 50

No

Figure 3 - Surface Water pH Results

4 5 6 7 8 9 10 01-Jan-18 03-Jan-18 05-Jan-18 07-Jan-18 09-Jan-18 11-Jan-18 13-Jan-18 15-Jan-18 17-Jan-18 19-Jan-18 21-Jan-18 23-Jan-18 25-Jan-18 27-Jan-18 pH units Surface Water pH LDP001 pH Lower Limit pH Upper Limit LDP002 4 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Figure 4 - Surface Water TSS Results Figure 5 - Surface Water Oil & Grease Results

10 20 30 40 50 60 01-Jan-18 03-Jan-18 05-Jan-18 07-Jan-18 09-Jan-18 11-Jan-18 13-Jan-18 15-Jan-18 17-Jan-18 19-Jan-18 21-Jan-18 23-Jan-18 25-Jan-18 27-Jan-18 TSS (mg/L) Surface Water TSS TSS Limit LDP002 LDP001 2 4 6 8 10 12 01-Jan-18 03-Jan-18 05-Jan-18 07-Jan-18 09-Jan-18 11-Jan-18 13-Jan-18 15-Jan-18 17-Jan-18 19-Jan-18 21-Jan-18 23-Jan-18 25-Jan-18 27-Jan-18 Oil & Grease (mg/L) Surface Water Oil & Grease LDP001 Oil & Grease Limit LDP002 5 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Table 4 - LDP001 Monthly Sampling Results

Data Published: 14/02/2018 Licensee: Mandalong Data Sampled: 01/01/18 – 31/01/18 Address: Data Obtained: 08/02/2018 EPL No. 365 Pollutant Units of measure Monitoring frequency required by licence

• No. of times

measured during month

• Min. value

Mean value

• Max. value

Aluminium (Dissolved) µg/L 1 2 <LOR <LOR <LOR Aluminium (Total) µg/L 1 2 <LOR <LOR <LOR Antimony µg/L 1 2 <LOR <LOR <LOR Arsenic (Dissolved) µg/L 1 2 1 1.5 2 Arsenic (Total) µg/L 1 2 2 2.5 3 Barium µg/L 1 2 166 171 176 Beryillium (Dissolved) µg/L 1 2 <LOR <LOR <LOR Beryillium (Total) µg/L 1 2 <LOR <LOR <LOR Boron µg/L 1 2 230 235 240 Cadmium (Dissolved) µg/L 1 2 <LOR <LOR <LOR Cadmium (Total) µg/L 1 2 <LOR <LOR <LOR Calcium µg/L 1 2 64000 65000 66000 Chromium (Dissolved) µg/L 1 2 <LOR <LOR <LOR Chromium (Total) µg/L 1 2 <LOR <LOR <LOR Cobalt (Dissolved) µg/L 1 2 2 2 2 Cobalt (Total) µg/L 1 2 2 2 2 Conductivity µS/cm 29 30 3470 3738.66667 4080 Copper (Dissolved) µg/L 1 2 <LOR <LOR <LOR Copper (Total) µg/L 1 2 <LOR <LOR <LOR Iron (Filt) µg/L 1 2 140 155 170 Lead (Total) µg/L 1 2 <LOR <LOR <LOR Lead (dissolved) µg/L 1 2 <LOR <LOR <LOR Lithium µg/L 1 2 162 168 174 Magnesium µg/L 1 2 46000 46000 46000 Manganese (Filt) µg/L 1 2 47 47.5 48 Mercury (Total) µg/L 1 2 <LOR <LOR <LOR Mercury (dissolved) µg/L 1 2 <LOR <LOR <LOR Molybdemon (Dissolved) µg/L 1 2 28 29.5 31 Molybdemon (Total) µg/L 1 2 40 43 46 Nickel (Dissolved) µg/L 1 2 32 33 34 Nickel (Total) µg/L 1 2 33 35 37 Phosphorous (Total) µg/L 1 2 <LOR <LOR <LOR Potassium ug/L 1 2 14000 15000 16000 Selenium (Dissolved) µg/L 1 2 <LOR <LOR <LOR Selenium (Total) µg/L 1 2 <LOR <LOR <LOR Silica µg/L 1 2 13000 13100 13200

6 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Data Published: 14/02/2018 Licensee: Mandalong Data Sampled: 01/01/18 – 31/01/18 Address: Data Obtained: 08/02/2018 EPL No. 365 Pollutant Units of measure Monitoring frequency required by licence

• No. of times

measured during month

• Min. value

Mean value

• Max. value

Silver µg/L 1 2 <LOR <LOR <LOR Silver (dissolved) µg/L 1 2 <LOR <LOR <LOR Sodium µg/L 1 2 763000 774000 785000 Sulfur µg/L 1 2 34000 40000 46000 Tin µg/L 1 2 <LOR <LOR <LOR Titanium µg/L 1 2 <LOR <LOR <LOR Vanadium (Dissolved) µg/L 1 2 <LOR <LOR <LOR Vanadium (Total) µg/L 1 2 <LOR <LOR <LOR Zinc (Dissolved) µg/L 1 2 <LOR <LOR <LOR Zinc (Total) µg/L 1 2 <LOR 2.5 5 NOTE: <LOR means less than Limit of Reporting.

7 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

3.3 Groundwater Monitoring Update

A graphical summary of groundwater levels, pH and electrical conductivity from the groundwater monitoring bores (BH01 - BH27C and MSGW01 – MSGW04C) for the monitoring period and year to date are shown in the following figures. Figure 6 - Ground Water Depth

10 20 30 40 50 60 70 80 90 Oct 16 Apr 17 Oct 17 Apr 18 mbTOC

Water Level

BH01 BH02A BH03 BH03A BH03B BH04 BH05 BH06A BH07B BH09 BH09A BH09B BH10 BH10A BH10B BH11 BH12 BH13 BH14 BH20 BH21 BH23A BH24A BH24B BH24C BH25A BH25B BH25C BH26A BH26B BH26C BH27A BH27B BH27C GW078043 MSGW01 MSGW03A MSGW03B MSGW03C MSGW04A MSGW04B MSGW04C 8 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Figure 7 - Groundwater pH

3 4 5 6 7 8 9 10 Jan 17 Feb 17 Apr 17 May 17 Jul 17 Sep 17 Oct 17 Dec 17 Feb 18 pH units

pH (Field) BH01 BH02A BH03 BH03A BH03B BH04 BH05 BH06A BH07B BH09 BH10 BH10A BH11 BH12 BH13 BH14 BH20 BH21 BH23 BH23A BH24A BH25A BH25B BH25C BH26A BH26B GW078043 MSGW01 MSGW03A MSGW03B MSGW04A MSGW04B 9 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Figure 8 - Groundwater Electrical Conductivity

5,000 10,000 15,000 20,000 25,000 30,000 Jan 17 Feb 17 Apr 17 May 17 Jul 17 Sep 17 Oct 17 Dec 17 Feb 18 µS/cm

Electrical conductivity (field) BH01 BH02A BH03 BH03A BH03B BH04 BH05 BH06A BH07B BH09 BH10 BH10A BH11 BH12 BH13 BH14 BH20 BH21 BH23 BH23A BH24A BH25A BH25B BH25C BH26A BH26B GW078043 MSGW01 MSGW03A MSGW03B MSGW04A MSGW04B 10 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

Figure 9 – Groundwater Bore Locations

11 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

4 Planning Approvals

4.1 Mandalong Southern Extension Project

The access road and pads for the ventilation shafts have been completed and Daracon has demobilised from site. The Mandalong Road pavement has continued to be monitored during the period with no reports made to LMCC since the last meeting. The tender for the ventilation shafts commenced in December 2017 and closes 14 February 2018. It is expected that site works for the shafts will commence in May 2018.

4.2 TransGrid TL24 Relocation Project

TransGrid’s Principal Contractor, Zinfra, have been working on site since November 2017 and the program is on schedule. There are eight new tower sites which are all in progress at one of the following stages:

• Excavation;
• Formwork;
• Pouring of concrete;
• Stripping of formwork;
• Tower assembly;
• Tower erection; and
• Rehabilitation of construction pad.

The construction of the new towers is scheduled to be completed in May 2018. Once the towers are constructed Zinfra will commence the stringing works which will require use of a helicopter at low

• height. Dates for the helicopter are not yet available, but it is expected that it will be on site for six
• days. Centennial Mandalong will notify nearby residents when the helicopter dates are known.

Once the new line is operational, there are twelve towers which will be decommissioned and removed and the redundant easement will be relinquished by TransGrid to the landowners. The decommissioning and removal is expected to take place from June 2018 and take approximately two months.

4.3 33 kV Powerline to MSSS

Downer Engineering is still completing its design of the power line route and associated easement and clearing required. A number of options had to be considered where the line crosses existing

• infrastructure. A final design is expected very soon.

Ecology surveys continued in November and December, as did geotechnical drilling for the pole sites. A heritage survey is planned for April and the RAPs have been informed and are reviewing the heritage methodology. All other assessments will commence as soon as the final design is confirmed.

4.4 TransGrid TL24 Mitigation Works

Mitigation works to retrofit concrete cruciform footings on TL24 Towers 45, 46 and 47 located over Longwalls 22 to 24A was completed in July 2017. Towers 47 and 46 have now been mined beneath by Longwalls 23 and 24 respectively. Subsidence monitoring has been undertaken in accordance

12 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

with the approved TransGrid Tower Management Plan and has shown subsidence to be well within the predicted values, with no impact to the two towers observed.

4.5 Cooranbong Modification 1

The Centennial Northern Coal Services modification (SSD-5145 Mod 1) was approved by the Department of Planning & Environment on 25 January 2018. The modification allows Northern Coal Services to:

• Increase the number of full-time equivalent (FTE) employees based at the Cooranbong Entry

Site from 14 to 60; and

• Amend the operational noise criteria specified by Condition 2 of Schedule 3 for the privately-
• wned residences in the vicinity of the Cooranbong Entry Site.

5 Community Contacts

5.1 Mandalong 5.1.1 Mining Notifications

One month mining notifications for Longwalls 23 and 24 have been provided to landowners, Centennial tenants and infrastructure owners prior to mining beneath their property or asset as per PSMPs and Infrastructure Management Plans.

5.1.2 Consultation

Consultation is ongoing with landowners and infrastructure owners affected by current operations for LW22-23 and the recently approved Extraction Plan for LW24-24A.

5.2 Mandalong South

Various contacts with land holders regarding the commencement of the MSSS Access Road construction and quarterly noise monitoring occurred at the end of December 2017.

5.3 Complaints

There were no community complaints received since the October 2017 meeting.

5.4 Sponsorship

• 1. Wangi Fire Brigade;
• 2. MCA Christmas Party;
• 3. LMCC School Environment Awards; and
• 4. Morisset 2018 Show.

6 Land Management

6.1 Mandalong Properties

An update of the Summary of Proposed Land Management Activities for 2018 will be provided at the CCC meeting.

13 | P a g e

Mandalong Mine CCC Pre-Meeting Report – February 2018

6.2 Property Sale

Three properties were sold in 2017, one property along Browns Road and two in Sauls Road. Centennial has sold one property along Mandalong Road this year and a further property is expected to go on the market within the next few months. There is an ongoing commitment to sell properties in Mandalong that are surplus to Centennial’s needs.

14 | P a g e

www.centennialcoal.com.au

Mandalong Mine Community Consultative Committee

APP170399

13 February 2018

Water Quality 2018 – YTD Summary

2

Average Water Quality Monitoring Required by EPL 365 2018 Period pH (6.5-8.5) TSS (mg/L) (50mg/L) Oil & Grease (mg/L) (10mg/L) LDP001 7.83 1.83 Average Water Quality Monitoring Required by EPL 365 2018 Period pH (6.5-8.5) TSS (mg/L) (50mg/L) Oil & Grease (mg/L) (10mg/L) LDP002 N/A N/A N/A

Water Volume Discharged 2018 YTD

3

• Average daily discharge of 2.06ML per day. No exceedances of

5ML/day discharge volume limit in 2018 to date.

Average Water Quality Monitoring Required by EPL 365 Daily discharge Min Discharge (ML/day ) Average Discharge (ML/day) Maximum Discharge (ML/day) LDP 001 2.06 2.3

Community Complaints November 2017 to February 2018

4

• One community complaint received since the previous meeting on

13/2/18.

• A Mandalong resident contacted the Mine regarding a truck

travelling along Mandalong Road during school bus times and reported a near-miss with the school bus on 8/2/18.

Community Sponsorship November 2017 – February 2018

5

• Wangi Fire Brigade;
• MCA Christmas Party;
• LMCC School Environment Awards; and
• Morisset 2018 Show.

Rehabilitation Management Plan (RMP) Update

• The combined RMP / Mining Operations Plan (MOP) required by

Condition 33 of Schedule 3 of SSD-5144 has recently been amended by SLR Consulting.

• Update for the recently approved Extraction Plan LW24-24A
• The MOP has been prepared for the seven year period from 1

December 2016 to 31 November 2023.

• The RMP / MOP will be submitted to DPE and DRE in February 2018.

6

Mining Update

7

• LW23 commenced on 13

October 2017.

• LW23 scheduled to complete

extraction in late February 2018.

• Developing Maingate 24A

and Tailgate 25.

• Started development of

Maingate 25 for LW25.

Exploration

• Surface borehole exploration has continued and is

focusing on the extent of sill within Mandalong South (LW25 onwards) and the location of the seam split along the Main Headings.

• Currently drilling in Olney State Forest near end of LW25

to LW29 to find extent of sill.

• Two holes completed and three more planned
• Access Agreements and Occupational permits in place.
• Exploration program will continue throughout 2018.

8

LW23 Review

• LW23 length is 2196m with approx. 80m remaining.
• 10 private properties with 8 dwellings – subsidence impact

within expected range

– Repairs required to fix roof drainage and cracked tiles.

• Tobins Rd – no damage to pavement.
• Mandalong Rd – minor tension cracks not requiring immediate

repair.

• Telstra phone lines -– no reported interruption to service.
• Ausgrid 11kV powerline repaired – increased conductor sag
• n line located on private property, additional pole installed.
• TransGrid 330kV TL24 Towers 46 and 47 – concrete

cruciform footings constructed on both towers – subsidence within prediction and no observed impact.

• Tobins and Morans Creeks – no observed ponding or erosion,

monitoring ongoing.

9

LW24 Preview

• Extraction Plan LW24-24A approved by DPE on 6/2/18
• LW24 length is 2200m
• 14 private properties and 2 dwellings over longwall
• Tobins Rd, Mandalong Rd and Chapman Rd
• Telstra phone lines – Copper and inactive optical fibre

cables

• Ausgrid 11kV powerline
• TransGrid 330kV TL24 Towers 46
• Tobins and Morans Creeks
• Heritage – 1 scarred tree
• Remnant ponding – three potential sites

10

Extraction Plan LW24-24A

• Extraction Plan LW24-24A was

approved by DPE on 6/2/18

• PSMPs completed and

provided to landowners

• Majority of SA NSW pre-

mining inspections completed

• Structural assessments

completed

• Majority of subsidence

monitoring on dwellings and property completed

• Infrastructure & Environment

Management Plans approved

11

Extraction Plan LW25-31

• Preparation of the Extraction Plan for LW25 to LW31

has commenced.

• Finalising length of longwalls with current exploration

along edge of sill.

• PSMPs to be developed with landowners
• Infrastructure and environmental plans
• DPE approval required prior to start of LW25 in

January 2019.

12

Rehabilitation Management Plan (RMP) Update

• The combined RMP / Mining Operations Plan (MOP)

required by Condition 33 of Schedule 3 of SSD-5144 has recently been amended by SLR Consulting.

• The MOP has been prepared for the seven year period

from 1 December 2016 to 31 November 2023.

• The RMP / MOP will be submitted to DPE and DRE in

February 2018.

13

Access Road and MSSS

14

MSSS – Mandalong Road Incidents

• On 10/1/18 at 1:15pm a Coates hire truck with

demountable building pulled down the Ausgrid 240v feeder crossing the road at 604 Mandalong Rd.

• Power was lost to one residence and restored by 8pm.
• Investigation found that the total height of the vehicle with

load was 4.4m which is permitted.

• A 5.0m high load drove under the line on 5 January 2018

without incident.

• Recent storm activity was the probable cause for reduced

line clearance, with fallen tree limbs nearby.

• On 8/2/18 Centennial notified TransGrid of a non-

conformance with the Traffic Management Plan when, at 7:48am, a truck and dog was captured on the traffic camera.

• TransGrid suspended further deliveries that day and

spoke to the driver and the company.

• On 13/2/18 a resident contacted the Mine regarding the

same truck and reported a near-miss with the school bus.

15

TransGrid – TL24 relocation

• Zinfra started work in October 2017

and work is progressing to schedule.

• Construction work on the eight new

towers (33X – 40X) is due to be completed in May 2018.

• Stringing will be completed for the

new line (shown in blue).

– Helicopters will be used for this activity and landowners will be notified when TransGrid schedules those days. – Estimated to be six days of helicopter use.

• Decommissioning and removal of

redundant line and towers (shown in green) will occur once the new line is

• perational.
• Dog baiting program underway.

16

TL24 clearing

17

Excavation 34X Formwork and concrete poured 36X Cruciform footing 37X Tower assembly 37X

18

Traffic Data

19

Ausgrid – 33kV Power Line Project

• Detailed design progressing and due to be

finalised in February 2018. Moved due to RFS burn (Aug 17). Design to be submitted to Ausgrid for approval.

• Additional flora surveys planned for

February / March 2018.

• Heritage assessment methodology provided

to RAPs. Survey planned for March 2018.

• Other assessments to commence when

detailed design is finalised.

• Additional geotechnical drilling at pole

locations planned for Q1 2018.

• Easement agreements to be negotiated with

landowners in Q1 / Q2 2018.

• Construction commencement Q2 2019.
• Contact landholders in Project Area via

Newsletter and Open Day (expect March 2018).

20

Offset Areas

21

www.centennialcoal.com.au

Mandalong Approvals Update

Community Consultative Committee Meeting 13 February 2018

NCLP SSD-5145 MOD 1: Cooranbong

23

• The Centennial Northern Coal Services modification (SSD-5145 Mod 1) was

approved by the Department of Planning & Environment on 25 January

• 2018. The modification allows Northern Coal Services to:

1. Increase the number of full-time equivalent (FTE) employees based at the Cooranbong Entry Site from 14 to 60; and 2. Amend the operational noise criteria specified by Condition 2 of Schedule 3 for the privately-owned residences in the vicinity of the Cooranbong Entry Site.

Thank You

24

Mandalong Mine – Land Management Plan Summary of Proposed Land Management Activities – January 2017 to March 2018 Updated 5 February 2018 Blue is completed or in progress

1

Property Address Property Ref No Riparian & Wetlands Maintenance Weed Maintenance Farm Management 38 Browns Road Hamlets Creek 43 Blackberry control on creek banks Repairs to boundary and internal fences Jan/Feb 2018 Upgrade farm track Feb 2018 Repairs to dressage arena and round yard Feb 2018 111/112 Browns Road 40 & 48 Regrowth and blackberry control (land on Western side of Browns Rd) Replace part boundary fence with 544 Mandalong Rd (fence was able to be repaired) Repair boundary fence on northern side of Browns Road 226 Browns Road 21 Check weeds and regrowth in riparian zone – needs an updated plan with new tenants Regrowth and blackberry control Feb / Mar Repair boundary fence/gateway to forest March 2018 230 Browns Road 33 Regrowth and blackberry control Feb / Mar 32-64 Chapman Road Chapman Estate 222 Double Gateway installed where existing gate was on (January 2017) 158 Crooks Road 3 295 Deaves Road American Oak 9 Regrowth and blackberry control Feb Decommission bridge once crossing repaired Following approval of the DA the old cottage has been demolished and removed and the fence upgraded 323 Deaves Road 7 & 8 Regrowth and blackberry control Fence off cottage (Upgrade existing fence instead of new fence around cottage.) Following approval of the DA the old hostel has been demolished and removed and the fence upgraded 350 Deaves Road 56 Blackberry control Tea Tree control along fence lines Minor boundary fence repairs (repaired by tenant) 202 Mandalong Road 4 280 Mandalong Road 182 Mandalong Road 184 Mandalong Road Mandalong Dairy 59 60 1 Complete riparian zone fencing to suit land management land for these blocks Regrowth and blackberry control -ongoing Ongoing control of thistles, tobacco bush and blackberry along Morans Creek Upgrade entrance to house off Mandalong Rd Upgrade boundary fence with 343 Mandalong Rd 343 Mandalong Road 61 Upgrade boundary fence with Mandalong Dairy 378 Mandalong Road 58 Fence off drain along rear of property Blackberry control -ongoing Boundary fence repairs with 416 Mandalong Rd (repaired by tenant). Investigate replacing section in 2018. Repaired front boundary fence. 544 Mandalong Road Lonesome Pine 37 and 49 Blackberry control Jan /Feb Replace boundary with 111 Browns Rd (Fence was repaired) Replace internal fence

Mandalong Mine – Land Management Plan Summary of Proposed Land Management Activities – January 2017 to March 2018 Updated 5 February 2018 Blue is completed or in progress

2

Property Address Property Ref No Riparian & Wetlands Maintenance Weed Maintenance Farm Management 555 Mandalong Road 68 Repair damage to wetland fence by deer and continue to monitor. Property to be Auctioned Regrowth and blackberry control. Dec Replace boundary fence along Mandalong Rd 619 Mandalong Road 70 Repairs to access road and associated drainage. Upgrade stock water, relocate fences Repairs to multiple fences/clear fallen trees following significant storm damage Jan 18 658 Mandalong Road 81 Lantana control Upgrade front boundary fence as required by land use. 687 Mandalong Road 84 Replace eastern boundary fence 695 Mandalong Road 85 Replace or repair boundary fence on Mandalong Road Upgrade access road 803 Mandalong Road 217 New internal fencing being planned to suit the development of Mandalong South Project. Destocked in Jan 2017 12 Sauls Road 52 & 53 Regrowth and blackberry control Repairs to Dam wall Upgrade access track Feb 2018. Quote pending 27 Sauls Road 55 Property sold 35 Sauls Road 54 Property Sold 91 Sauls Road 42 Regrowth and blackberry control Repair boundary fence with 35 Sauls Rd 229 Sauls Road Tallowood Lodge 26 Repairs to erosion above one of the dams. Rearrange fencing to include the old Lodge house paddock back into the main farm 232 Sauls Road Gumnut 23 Maintain & upgrade firebreak Sept 2017 Boundary and internal fences repaired Additional fences erected and quantity of fertiliser applied (tenant) 28 Timber Road 50 Regrowth and blackberry control Repairs to boundary fence/entrance on Mandalong Road March 2018 37 Tobins Road 75 Maintain and upgrade Firebreak Maintenance on dam wall

Mandalong Mine – Land Management Plan Summary of Proposed Land Management Activities – January 2017 to March 2018 Updated 5 February 2018 Blue is completed or in progress

3

Notes This plan is a guide only and will be affected by the weather and ground conditions. Weed Control Information - Treatment for the following weeds is included in this Schedule. Weed Treatment Period Method of Treatment Blackberry October to March Spraying Tabaco Bush All year Cut & paint or spraying – depending on size Giant Parramatta Grass October to March Spot spray & rotor wipe 2 types of chemical used depending on season Lantana October to March Spraying
