ORBITA MINIBAR Von GKI

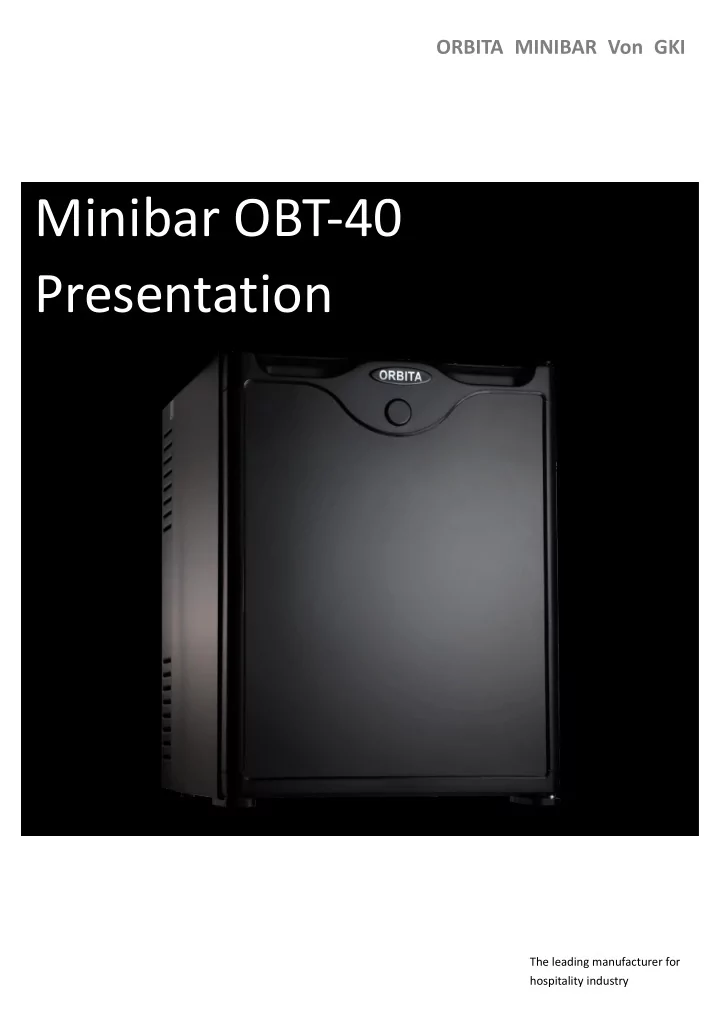

Minibar OBT-40 Presentation

The leading manufacturer for hospitality industry

Specifications

Application Hotel, Resort, Apartment, Dormitory, Guesthouse etc. Dimension(W*D*H) 400*470*517mm Validity Capacity 40 Litres Cooling Technology Absorption Storage Temperature 0℃-12℃ (black door), 4℃-12℃ (glass door) Input Power 70W/0.32A Energy Consumption 0.9kW.h/24h Voltage AC: 220V/60Hz, 110V/60Hz. DC: 12V. Type of Controller Digital Type of Door Seal Removable Lock Available Gross Weight 19.2kgs (black door), 21.5kgs (glass door) Color Black Certificates ISO 9001:2008, CE, EMC, ETL Key Features Absorption, No Freon, No Compressor, No Vibration, Noiseless

PRE 1

Minibar OBT-40 Presentation

Different Angles

PRE 2

Minibar OBT-40 Presentation

Features of MB-40

 Absorption mini bar for hotel guest room.  40L capacity, available in 30L and 60L.  Green minibar: Eu supering absorption cooling technology, cooling by ammonia, no freon, noiseless, “Dual Environment Protecting”.  Storage temperature of black door minibar can reach minimum 0 degree centigrade.  Low energy consumption: 70W/0.32A power input, 0.9kW.h/24h energy consumption.  Applicable to different voltage with matched plug, like 220V/60Hz, 110V/60Hz etc.  Lock mounted, can be locked by mechanical key.  No compressor, no fan, no moving part, no vibration, silent and don't produce any noise.  Can defrost automatically and belong to static-cooling refrigerators.  Can put the minibar in the wardrobe, but better to leave some space in the back of the minibar as it's aborption type that need some space for air circulation.  Certain distance shall be kept between the stuff stored in the minibar, so that the cool air can flow freely and the temperature will be even.  Quite even, and have little fluctuation when starting and shutting off.  The door hinges of the product are left-and-right interchangeable.  Internal temperature sensor will keep low storage temperature and make minibar energy-efficient after stabilized.  Internal LED light with low energy consumption 3.6V/W.

PRE 3

Minibar OBT-40 Presentation

Technical of Absorption Minibar

Priciple of Absorption Minibar Back of Minibar

PRE 4

Minibar OBT-40 Presentation

Absorption VS Compressor

Item Absorption Minibar Compressor Minibar Noise SILENT, no moving parts, does not disturb guest sleep. Noise from compressor increases with age. Disturbs sleep and causes guest complaints. Storage Temperature 0℃-12℃ 8℃-15℃ Vibration NO VIBRATION, good to store wine. Vibrates from piston movement, can not be attached without rubber mounts. unit hums and worsens with wear. Frost FROST FREE, fully automatic defrosting. Manual or push button. Requires clean up of water mess caused by melting ice. Using Type DESIGNED and ENGINEERED for Hotel use. Residential use only. Not made for Hotel use. Energy Consumption ENERGY EFFICIENT, with special insulation. Under 1 ampere Energy Abusive. Electric power consumption varies from twice to five times the cost of absorption type. Environmental ENVIRONMENTALLY SAFE, no CFCs or HCFC Refrigerant. Refrigeration gas (R12) is harmful to the

• zone layer and must be recovered at the

Hotels owners expense. Life Span 5-20 years. 1-5 years. Maintenance NO MAINTENANCE REQUIRED. Maintenance and periodic cleaning of coils essential.

PRE 5

Minibar OBT-40 Presentation

Certificates & Contact

ISO 9001:2008 EMC LVD ETL Huizhou Orbita Technology Co.,Ltd.

Orbita Industrial Park, Changbu Village, Xinxu Town, Huiyang District, Huizhou, China 516223 Web: www.orbitatech.com

Contact: David Chen

Mobile: +86 15989377026 WeChat: davidchenhotel Skype: orbita-sales5 Email: sales5@orbitatech.com
