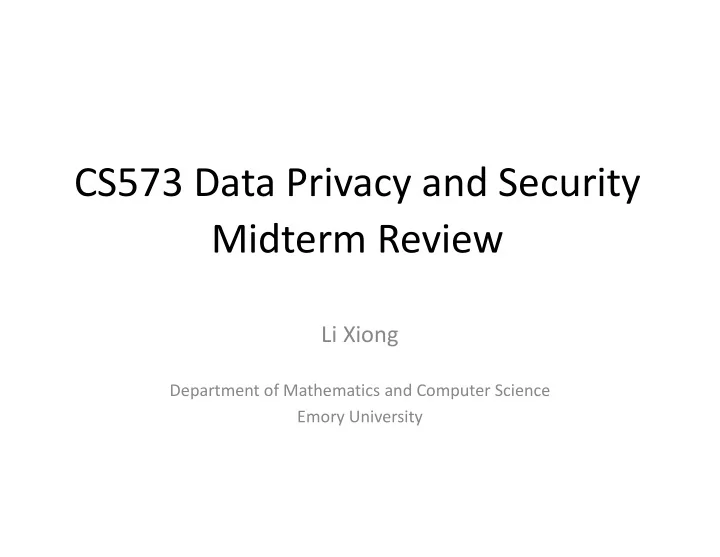

CS573 Data Privacy and Security Midterm Review

Li Xiong

Department of Mathematics and Computer Science Emory University

Principles of Data Security – CIA Triad

• Confidentiality

– Prevent the disclosure of information to unauthorized users

• Integrity

– Prevent improper modification

• Availability

– Make data available to legitimate users

Privacy vs. Confidentiality

• Confidentiality

– Prevent disclosure of information to unauthorized users

• Privacy

– Prevent disclosure of personal information to unauthorized users – Control of how personal information is collected and used – Prevent identification of individuals

11/8/2016 3

Data Privacy and Security Measures

• Access control

– Restrict access to the (subset or view of) data to authorized users

• Cryptography

– Use encryption to encode information so it can be only read by authorized users (protected in transmit and storage)

• Inference control

– Restrict inference from accessible data to sensitive (non- accessible) data

• Inference control: Prevent inference from

accessible information to individual information (not accessible)

• Technologies

– De-identification and Anonymization (input perturbation) – Differential Privacy (output perturbation)

Inference Control

Original Data Sanitized Records De-identification anonymization

Traditional De-identification and Anonymization

• Attribute suppression, encoding, perturbation, generalization
• Subject to re-identification and disclosure attacks

Original Data Statistics/ Models/ Synthetic Records Differentially Private Data Sharing

Statistical Data Sharing with Differential Privacy

• Macro data (as versus micro data)
• Output perturbation (as versus input perturbation)
• More rigorous guarantee

Cryptography

• Encoding data in a way that only authorized

users can read it

11/9/2016 8

Original Data Encrypted Data Encryption

9

Applications of Cryptography

• Secure data outsourcing

– Support computation and queries on encrypted data

11/9/2016 9

Encrypted Data

Computation /Queries

10

Applications of Cryptography

• Multi-party secure computations (secure function

evaluation)

– Securely compute a function without revealing private inputs

xn x1 x3 x2 f(x1,x2,…, xn)

11

Applications of Cryptography

• Private information retrieval (access privacy)

– Retrieve data without revealing query (access pattern)

Course Topics

• Inference control

– De-identification and anonymization – Differential privacy foundations – Differential privacy applications

• Histograms
• Data mining
• Local differential privacy
• Location privacy
• Cryptography
• Access control
• Applications

11/8/2016 12

k-Anonymity

Caucas 78712 Flu Asian 78705 Shingle s Caucas 78754 Flu Asian 78705 Acne AfrAm 78705 Acne Caucas 78705 Flu Caucas 787XX Flu

Asian/AfrA m

78705 Shingle s Caucas 787XX Flu

Asian/AfrA m

78705 Acne

Asian/AfrA m

78705 Acne Caucas 787XX Flu

Quasi-identifiers (QID) = race, zipcode Sensitive attribute = diagnosis K-anonymity: the size of each QID group is at least k

slide 14

Problem of k-anonymity

… … …

Rusty Shackleford Caucas

78705 … … … Caucas 787XX Flu

Asian/AfrA m

78705 Shingle s Caucas 787XX Flu

Asian/AfrA m

78705 Acne

Asian/AfrA m

78705 Acne Caucas 787XX Flu

Problem: sensitive attributes are not “diverse” within each quasi-identifier group

l-Diversity

Caucas 787XX Flu Caucas 787XX Shingle s Caucas 787XX Acne Caucas 787XX Flu Caucas 787XX Acne Caucas 787XX Flu

Asian/AfrA m

78XXX Flu

Asian/AfrA m

78XXX Flu

Asian/AfrA m

78XXX Acne

Asian/AfrA m

78XXX Shingle s

Asian/AfrA

78XXX Acne

Entropy of sensitive attributes within each quasi-identifier group must be at least l

[Machanavajjhala et al. ICDE ‘06]

… HIV- … HIV- … HIV- … HIV- … HIV- … HIV+ … HIV- … HIV- … HIV- … HIV- … HIV- … HIV-

Original dataset

Q1 HIV- Q1 HIV- Q1 HIV- Q1 HIV+ Q1 HIV- Q1 HIV- Q2 HIV- Q2 HIV- Q2 HIV- Q2 HIV- Q2 HIV- Q2 Flu

Anonymization B

Q1 HIV+ Q1 HIV- Q1 HIV+ Q1 HIV- Q1 HIV+ Q1 HIV- Q2 HIV- Q2 HIV- Q2 HIV- Q2 HIV- Q2 HIV- Q2 HIV-

Anonymization A

99% have HIV-

50% HIV-  quasi-identifier group is “diverse” This leaks a ton of information 99% HIV-  quasi-identifier group is not “diverse” …yet anonymized database does not leak anything

Problem with l-diversity

Caucas 787XX Flu Caucas 787XX Shingle s Caucas 787XX Acne Caucas 787XX Flu Caucas 787XX Acne Caucas 787XX Flu

Asian/AfrA m

78XXX Flu

Asian/AfrA m

78XXX Flu

Asian/AfrA m

78XXX Acne

Asian/AfrA m

78XXX Shingle s

Asian/AfrA

78XXX Acne

[Li et al. ICDE ‘07]

Distribution of sensitive attributes within each quasi-identifier group should be “close” to their distribution in the entire original database

t-Closeness

slide 17

Problems with Syntactic Privacy notions

• Syntactic

– Focuses on data transformation, not on what can be learned from the anonymized dataset

• “Quasi-identifier” fallacy

– Assumes a priori that attacker will not know certain information about his target – Attacker may know the records in the database or external information

slide 18

Course Topics

• Inference control

– De-identification and anonymization – Differential privacy foundations – Differential privacy applications

• Histograms
• Data mining
• Location privacy
• Cryptography
• Access control
• Applications

11/8/2016 19

Differential Privacy

• Statistical outcome is indistinguishable regardless whether a

particular user (record) is included in the data

Differential Privacy

• Statistical outcome is indistinguishable regardless whether a

particular user (record) is included in the data

Original records Original histogram

Statistical Data Release: disclosure risk

Original records Original histogram Perturbed histogram with differential privacy

Statistical Data Release: differential privacy

Differential Privacy

A privacy mechanism A gives ε-differential privacy if for all neighbouring databases D, D’, and for any possible output S ∈ Range(A), Pr[A(D) = S] ≤ exp(ε) × Pr[A(D’) = S]

D D’

• D and D’ are neighboring

databases if they differ in one record

Add Laplace noise to the true output f(D)

Δf = max D,D’ |f(D) - f(D’)|

Global Sensitivity

Laplace Mechanism

Example: Laplace Mechanism

• For a single counting query Q over a dataset

D, returning Q(D)+Laplace(1/ε) gives ε- differential privacy.

11/8/2016 26

Exponential Mechanism

Inputs Outputs Sample output r with a utility score function u(D,r)

Exponential Mechanism

For a database D, output space R and a utility score function u : D×R → R, the algorithm A Pr[A(D) = r] ∝ exp (ε × u(D, r)/ 2Δu) satisfies ε-differential privacy, where Δu is the sensitivity of the utility score function Δu = max r & D,D’ |u(D, r) - u(D’, r)|

Example: Exponential Mechanism

• Scoring/utility function w: Inputs x Outputs

 R

• D: nationalities of a set of people
• f(D) : most frequent nationality in D
• u (D, O) = #(D, O) the number of people with

nationality O

Tutorial: Differential Privacy in the Wild 29 Module 2

Composition theorems

Sequential composition ∑iεi –differential privacy Parallel composition max(εi)–differential privacy

Differential Privacy

• Differential privacy ensure an attacker can’t

infer the presence or absence of a single record in the input based on any output.

• Building blocks

– Laplace, exponential mechanism

• Composition rules help build complex

algorithms using building blocks

Course Topics

• Inference control

– De-identification and anonymization – Differential privacy foundations – Differential privacy applications

• Histograms
• Data mining
• Location privacy
• Cryptography
• Access control
• Applications

11/8/2016 32

Baseline: Laplace Mechanism

• For the counting query Q on each histogram

bin, returning Q(D)+Laplace(1/ε) gives ε- differential privacy.

11/8/2016 33

Name Age Income HIV+ Frank 42 30K Y Bob 31 60K Y Mary 28 20K Y … … … …

Original Records DP V-optimal Histogram Multi-dimensional partitioning

DPCube [SecureDM 2010, ICDE 2012 demo]

DP unit Histogram

DP Interface ε/2-DP ε/2-DP

• Compute unit

histogram counts with differential privacy

• Use DP unit

histogram for partitioning

• Compute V-optimal

histogram counts with differential privacy

Private Spatial decompositions [CPSSY 12]

quadtree kd-tree  Need to ensure both partitioning boundary and the counts of each partition are differentially private

35

Non-parametric methods (only work well for low-dimensional data) Parametric methods (joint distribution difficult to model)

Histogram methods vs parametric methods

Fit the data to a distribution, make inferences about parameters

e.g. PrivacyOnTheMap

Original data Histogram Synthetic data Perturbation

Learn empirical distribution through histograms

e.g. PSD , Privelet, FP, P-HP

DPCopula

A semi-parametric method

Non-parametric estimation for each dimension

Age Hours /week Income

42 64 30K 31 82 60K 28 40 20K 43 36 80K

… … …

Original data set

Hours/week Age Income

DP Marginal Histograms Dependence structure

Age Hours /week Income 42 64 30K 31 82 60K 28 40 20K 43 36 80K … … …

DP synthetic data set

Parametric estimation for dependence

• Marginal distributions + Bayesian network

PrivBayes: Bayesian Network

age workclass education title income Pr 𝑏𝑕𝑓 Pr 𝑥𝑝𝑠𝑙 | 𝑏𝑕𝑓 Pr 𝑓𝑒𝑣 | 𝑏𝑕𝑓 Pr 𝑢𝑗𝑢𝑚𝑓 | 𝑥𝑝𝑠𝑙 Pr 𝑗𝑜𝑑𝑝𝑛𝑓 | 𝑥𝑝𝑠𝑙

• STEP 1: Choose a suitable Bayesian network 𝒪

– must in a differentially private way – Add edges with highest mutual information - Exponential mechanism

• STEP 2: Compute conditional distributions implied by 𝒪

– straightforward to do under differential privacy – inject noise – Laplace mechanism

• STEP 3: Generate synthetic data by sampling from 𝒪

– post-processing: no privacy issues

Outline of the Algorithm

Metrics:

Random range-count queries with random query predicates covering all attributes Relative error: Absolute error:

Evaluation for DP Histograms

Course Topics

• Inference control

– De-identification and anonymization – Differential privacy foundations – Differential privacy applications

• Histograms
• Data mining
• Location privacy
• Cryptography
• Access control
• Applications

11/8/2016 41

Frequent sequence mining (FSM)

ID 100 200 300 400 500 Record a→c→d b→c→d a→b→c→e→d d→b a→d→c→d Database D Sequence {a} {b} {c} {d} Sup. 3 3 4 4 {e} 1 C1: cand 1-seqs Sequence {a} {b} {c} {d} Sup. 3 3 4 4 F1: freq 1-seqs

Sequence {a→a} {a→b} {a→c} {a→d} Sup. 1 3 3 {b→a} {b→b} {b→c} {b→d} 2 2 1 {c→a} {c→b} {c→c} {c→d} 4 {d→a} {d→b} {d→c} {d→d} 1 1 C2: cand 2-seqs Sequence {a→c} {a→d} {c→d} Sup. 3 3 4 F3: freq 2-seqs

Scan D Scan D Scan D

Sequence {a→a} {a→b} {a→c} {a→d} {b→a} {b→b} {b→c} {b→d} {c→a} {c→b} {c→c} {c→d} {d→a} {d→b} {d→c} {d→d} C2: cand 2-seqs

Sequence {a→b→c} C3: cand 3-seqs Sequence {a→b→c} Sup. 3 F3: freq 3-seqs

ID 100 200 300 400 500 Record a→c→d b→c→d a→b→c→e→d d→b a→d→c→d Database D

Sequence {a} {b} {c} {d} Sup. 3 3 4 4 {e} 1 C1: cand 1-seqs noise 0.2

• 0.4

0.4

• 0.5

0.8

Sequence {a→a} {a→c} {a→d} {c→a} {c→c} {c→d} {d→a} {d→c} {d→d} C2: cand 2-seqs Sequence {a→a} {a→c} {a→d} Sup. 3 3 {c→a} {c→c} {c→d} 4 {d→a} {d→c} {d→d} 1 C2: cand 2-seqs noise 0.2 0.3 0.2

• 0.5

0.8 0.2 0.3 2.1

• 0.5

Scan D Scan D

Sequence {a→c→d} C3: cand 3-seqs {a→d→c}

noise 0.3 Sequence {a→c→d} Sup. 3 {a→d→c} 1 C3: cand 3-seqs

Scan D

Sequence {a} {c} {d} Noisy Sup. 3.2 4.4 3.5 F1: freq 1-seqs

Sequence {a→c} {a→d} {c→d} Noisy Sup. 3.3 3.2 4.2 F2: freq 2-seqs {d→c} 3.1

Sequence {a→c→d} Noisy Sup. 3 F3: freq 3-seqs

Lap(|C2| / ε2) Lap(|C1| / ε1) Lap(|C3| / ε3)

Baseline: Laplace Mechanism

PFS2 Algorithm

• Sensitivity impacted by two factors:

– Candidate size – Sequence length

• Basic ideas: reduce sensitivity
• Use kth sample database for pruning candidate k-

sequences

– reduce candidate size

• Shrink sequences by transformation while maintaining

the frequent patterns

– Reduce sequence length

Original Database

mth sample database 2nd sample database 1st sample database …… Partition

DP Frequent Sequence Mining Evaluation

• Metrics
• F-score:
• Relative Error:

2 precision recall F score precision recall     

'

{(| |) / }

X x x x

RE median sup sup sup  

Course Topics

• Inference control

– De-identification and anonymization – Differential privacy foundations – Differential privacy applications

• Histograms
• Data mining
• Local differential privacy
• Location privacy
• Cryptography
• Access control
• Applications

11/9/2016 46

Local Differential Privacy

Finance.com Fashion.co m WeirdStuff.com . . .

• No trusted server
• Each user applies

local perturbation before submitting the value to server

• Server only

aggregates the values

• Google Chrome

deployment

Randomized Response

Disease (Y/N) Y Y N Y N N

With probability p, Report true value With probability 1-p, Report flipped value

Disease (Y/N) Y N N N Y N

D O

[W 65]

Differential Privacy Analysis

• Consider 2 databases D, D’ (of size M) that differ in the jth value
• D[j] ≠ D’[j]. But, D[i] = D’[i], for all i ≠ j
• Consider some output O

Course Topics

• Inference control

– De-identification and anonymization – Differential privacy foundations – Differential privacy applications

• Histograms
• Data mining
• Local differential privacy
• Location privacy
• Cryptography
• Access control
• Applications

11/9/2016 50

Individual Location Sharing: Existing Solutions and Challenges

• Private information retrieval
• Computationally expensive
• Spatial cloaking
• Syntactic privacy notion
• Temporal correlations due to road constraints and moving patterns

• Event-level differential privacy
• protect an event (the exact location of a single user at a given time)
• Challenges:
• Large input domain (locations on the map) makes output useless
• Temporal correlations

Event-level differential privacy

Definition (Differential Privacy)

At any timestamp t, a randomized mechanism A satisfies

• differential privacy if, for any output zt and any two locations x1

and x2, the following holds:

Intuition

the released location zt (observed by the adversary) will not help an adversary to differentiate any input locations

• Challenges:
• Distance does not capture location semantics
• Temporal correlations

Geo-indistinguishability [CCS 13]

Definition (Geo-indistinguishability)

At any timestamp t, a randomized mechanism A satisfies

• differential privacy if, for any output zt and any two locations x1

and x2 within a circle of radius r , the following holds:

Intuition

the released location zt (observed by the adversary) will not help an adversary to differentiate any two input locations that are close to each other

Differential privacy on δ-location set under temporal correlations [CCS 15]

Definition (Differential Privacy on δ-location set)

At any timestamp t, a randomized mechanism A satisfies

• differential privacy on δ-location set if, for any output zt and any

two locations x1 and x2 in δ-location set, the following holds:

Intuition

the released location zt (observed by the adversary) will not help an adversary to differentiate any two locations in δ- location set, the possible set of locations a user might appear

Course Topics

• Inference control/Differential Privacy
• Cryptography

– Foundations – Applications

• Secure outsourcing
• Secure multiparty computations
• Private information retrieval
• Access control
• Applications

11/8/2016 55

56

E D

m plaintext k encryption key k’ decryption key Ek(m) ciphertext Dk’ (Ek(m)) = m attacker

Operational model of encryption

• Kerckhoff’s assumption:

– attacker knows E and D – attacker doesn’t know the (decryption) key

• attacker’s goal:

– to systematically recover plaintext from ciphertext – to deduce the (decryption) key

• attack models:

– ciphertext-only – known-plaintext – (adaptive) chosen-plaintext – (adaptive) chosen-ciphertext

slide 57

Cryptography Primitives

• Symmetric encryption
• Pubic encryption
• Encryption schemes with different properties

– Hommomorphic encryption – Probabilistic encryption vs Deterministic encryption – Order preserving encryption – Commutative encryption

Symmetric Key Cryptography

symmetric key crypto: Bob and Alice share know same (symmetric) key: KA-B Examples: AES

plaintext ciphertext

K

A-B encryption algorithm decryption algorithm

K

A-B plaintext message, m c=KA-B (m) K (m)

A-B

m = K ( )

A-B

Public-Key Cryptography

Public key for encryption and secret key for decryption Examples: RSA

Course Topics

• Inference control/Differential Privacy
• Cryptography

– Foundations – Applications

• Secure multiparty computations
• Secure outsourcing
• Access control
• Applications

11/9/2016 60

61

Multi-party secure computations (secure function evaluation)

– Securely compute a function without revealing private inputs

xn x1 x3 x2 f(x1,x2,…, xn)

slide 62

Security Model

• A protocol is secure if it emulates an ideal setting

where the parties hand their inputs to a “trusted party,” who locally computes the desired outputs and hands them back to the parties

[Goldreich-Micali-Wigderson 1987]

A B

x1 f2(x1,x2) f1(x1,x2) x2

slide 63

Properties of the Definition

• Correctness

– All honest participants should receive the correct result of evaluating function f

• Privacy

– All corrupt participants should learn no more from the protocol than what they would learn in ideal model – Which means only the private input (obviously) and the result of f

slide 64

Adversary Models

• Semi-honest (aka passive; honest-but-curious)

– Follows protocol, but tries to learn more from received messages than he would learn in the ideal model

• Malicious

– Deviates from the protocol in arbitrary ways, lies about his inputs, may quit at any point

Security proof tools

– Real/ideal model: the real model can be simulated in the

ideal model

• Key idea – Show that whatever can be computed by a party

participating in the protocol can be computed based on its input and output only

•  polynomial time S such that {S(x,f(x,y))} ≡ {View(x,y)}
• Composition theorem

– if a protocol is secure in the hybrid model where the protocol uses a trusted party that computes the (sub) functionalities, and we replace the calls to the trusted party by calls to secure protocols, then the resulting protocol is secure – Prove that component protocols are secure, then prove that the combined protocol is secure

General protocols

• Primitives

– Oblivious transfer (OT) – Random shares

slide 67

Oblivious Transfer (OT)

• Fundamental SMC primitive
• 1-out-of-2 Oblivious Transfer (OT)

S R

m0, m1 m  = 0 or 1 S inputs two bits, R inputs the index of one of S’s bits R learns his chosen bit, S learns nothing

– S does not learn which bit R has chosen; R does not learn the value

• f the bit that he did not choose

[Rabin 1981]

Secret Sharing Scheme

• Splitting

– Encode the secret as an integer S. – Give to each player i (except one) a random integer ri. – Give to the last player the number 𝑇 − 𝑠𝑗

𝑜−1 𝑗=1

(t, n) threshold scheme

• Shamir’s scheme 1979

– It takes t points to define a polynomial of degree t-1 – Create a t-1 degree polynomial with secret as the first coefficient and the remaining coefficients picked at

• random. Find n points on the curve

and give one to each of the players. At least t points are required to fit the polynomial.

General protocols

• Passively-secure computation for semi-honest

model

– Yao’s garbled circuit for two-party (OT and symmetric encryption) – GWM protocol for multiple parties (random shares and OT)

• From passively-secure protocols to actively-secure

protocols for malicious model

– Use zero-knowledge proofs to force parties to behave in a way consistent with the passively-secure protocol

Specialized protocols

• Using secret sharing, special encryption

schemes, or randomized responses

– May reveal some information – Tradeoff of security and efficiency

• Examples

– Secure sum by random shares – Secure union (using commutative encryption)

• Build complex protocols from primitive

protocols

Course Topics

• Inference control/Differential Privacy
• Cryptography

– Foundations – Applications

• Secure multiparty computations
• Secure outsourcing
• Access control
• Applications

11/9/2016 72

73

Secure data outsourcing

• Support computation and queries on

encrypted data

11/9/2016 73

Encrypted Data

Computation /Queries

Secure data outsourcing

• Crypto Primitives

– Homomorphic encryption

• General protocol based on fully homomorphic

encryption: computationally prohibitive

• Specialized protocols based on partially homomorphic

encryption

– Property preserving encryption

• Deterministic encryption vs probabilistic encryption
• Order preserving encryption

Homomorphic Encryption

Homomorphic Encryption

Enc[f(x)] Enc[x] f

Eval

Homomorphic encryption schemes

• Partially homomorphic encryption:

– homomorphic scheme where only one type of operation is possible (* or +)

• Multiplicative homomorphic – e.g. RSA
• Additive homomorphic, e.g. Paillier
• Somewhat homomorphic encryption:
• homomorphic scheme that can perform a limited number
• f additions and multiplications
• Fully homomorphic encryption (FHE) (Gentry, 2010)

– Can perform an infinite number of additions and multiplications

76

11/9/2016 77

Using Partially Hommomorphic Encryption with two servers

• Two server setting

– C1 holds encrypted data E(a), E(b) – C2 holds decryption key sk

• Security goal:

– C1 and C2 do not obtain anything about the data and result

• Basic idea

– Utilize additive homomorphic property – Use random shares to ensure C2 only has access to decrypted data with random shares

• Primitive protocols:

– secure multiplication, secure comparison, …

• Build complex protocols from primitive protocols: eg secure kNN

queries …

11/9/2016 79

Secure data outsourcing

• Crypto Primitives

– Homomorphic encryption

• General protocol based on fully homomorphic

encryption: computationally prohibitive

• Specialized protocols based on partially homomorphic

encryption

– Property preserving encryption

• Deterministic encryption vs probabilistic encryption
• Order preserving encryption

11/9/2016 81

CryptDB

• Use layers of encryption
• Decrypt as needed
