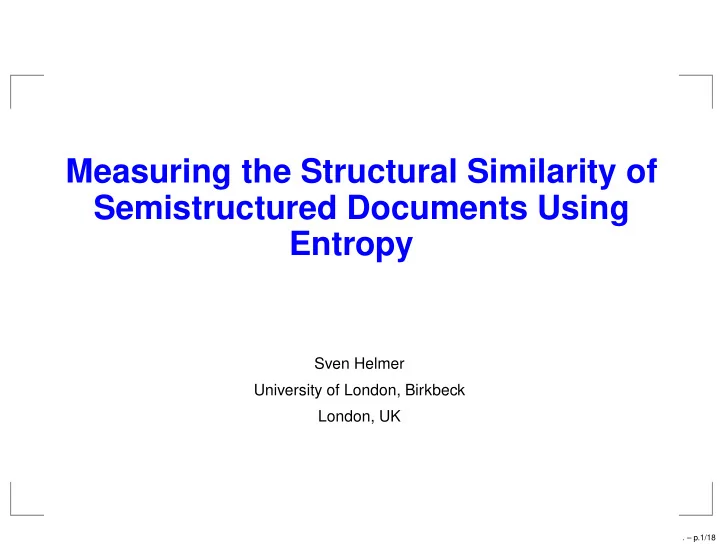

Measuring the Structural Similarity of Semistructured Documents Using Entropy

Sven Helmer University of London, Birkbeck London, UK

. – p.1/18

Introduction

XML is everywhere . . . In traditional IR detecting similarities used widely: for querying for clustering Consequently, lots of similarity measures for text documents

. – p.2/18

Introduction(2)

New challenges with semistructured documents: measuring structural similarity semistructured documents show great structural diversity Measuring structural similarity used for: entity resolution in data cleaning clustering documents before extracting DTD or schema information integrating heterogeneous data sources as a query tool for inexperienced users (query-by-example)

. – p.3/18

Measuring Entropy

Bennet et al. introduced concept of universal information metric Based on Kolmogorov complexity: given data object x, Kolmogorov complexity K(x) is the length of shortest program that outputs x Generalized form is conditional Kolmogorov complexity

K(x|y):

length of the shortest program with input y that

• utputs x

. – p.4/18

Information Distance

Similarity of two data objects can be measured by normalized information distance:

NID(x, y) = max(K(x|y), K(y|x)) max(K(x), K(y))

Has some nice properties: it’s “almost” a metric, lower bound for admissible distances So what’s the catch?

. – p.5/18

Information Distance(2)

Unfortunately, Kolmogorov complexity is not computable in general However, can be approximated by compression (Cilibrasi and Vitányi):

NCD(x, y) = C(xy) − min(C(x), C(y)) max(C(x), C(y))

. – p.6/18

Measuring Structural Similarity

Just compressing XML files does not get the job done Extract structural information first: Tags: list element/attribute names in document order Pairwise: like tags, but with names of parents Path: like tags, but with full path to root Family order: family-order traversal of document Except Path, all extractions can be done in linear time

. – p.7/18

Measuring Structural Similarity(2)

After extracting structural information, we use

NCD with gzip

Ziv-Merhav crossparsing to come up with similarity measure Can be done in linear time (with suffix trees)

. – p.8/18

Competitors

Tree-editing distance (Nierman and Jagadish): measuring the minimum editing distance five different edit operations: relabel, insert & delete node, insert & delete (sub-)tree Quadratic runtime

. – p.9/18

Competitors(2)

Discrete Fourier Transformation (Flesca et al.): encode XML document as a time series rotate document by 90◦, interpret indentations as time series use DFT transform to compute similarity Runtime: N log N (N size of larger document)

. – p.10/18

Competitors(3)

Path shingles (Buttler) extract structural information using the Full Path variant compute a hash value hj for each path a shingle of width w is the combination of w consecutive hash values compute similarity between two documents using Dice coefficient on the two sets of shingles Original version is not linear, can be made linear by using different extraction technique

. – p.11/18

Clustering Quality

Measure quality of similarity measure by clustering We used hierarchical agglomerative clustering Quality expressed in number of misclusterings in dendrogram

doc−DTD1 doc−DTD1 doc−DTD1 doc−DTD2 doc−DTD1 doc−DTD2 doc−DTD2 doc−DTD1

. – p.12/18

Document Collections

We used three different document collections for experimental evaluation: Real data sets: SIGMOD record, INEX 2005, music sheets encoded in XML Synthetically generated data sets from the DFT paper Own synthetically generated data sets, varying: element names element frequencies element positions element depths

. – p.13/18

Overall Results

tree-edit 15.3% DFT direct ML 22.4% pairwise ML 19.7% Shingles tags 20.4% pairwise 17.8% full path 15.3% gzip simple 26.1% tags 17.7% pairwise 20.8% full path 16.9% family order 18.9% Ziv-Merhav tags 11.7% pairwise 13.8% full path 11.3% family order 10.6%

. – p.14/18

More Detailed Results

Different methods have different strengths and weaknesses: tree-edit: generally good, has problems with largely varying document sizes DFT: good at frequencies, bad at element names, position, and depth gzip/Ziv-Merhav: bad at frequencies, good at element names, position, and depth DFT and gzip/Ziv-Merhav are complementary to each

• ther; idea: combine them

. – p.15/18

Hybrid Version

Hybrid (DFT/Ziv-Merhav)

• pairw. ML/tags

8.8%

• pairw. ML/pairw.

12.4%

• pairw. ML/path

9.7%

• pairw. ML/family

21.4% Clustering performance becomes even better (except family order) Hybrid approach does not have linear run time

. – p.16/18

Conclusion and Outlook

Our approach totally different to previous approaches Can be done in linear time (important for large document collections) Possible future work: more sophisticated ways of encoding document structure? different entropy measure better suited for structural information?

. – p.17/18

. – p.18/18
