MICROWAVE INSPECTION METHOD AND ITS APPLICATION TO FRP MTI AmeriTAC 2013 Robert J Stakenborghs General Manager Evisive, Inc. Baton Rouge, Louisiana, USA 1 OBJECTIVES Describe FRP and GRP Discuss failure modes Describe microwave

slide-1
SLIDE 1

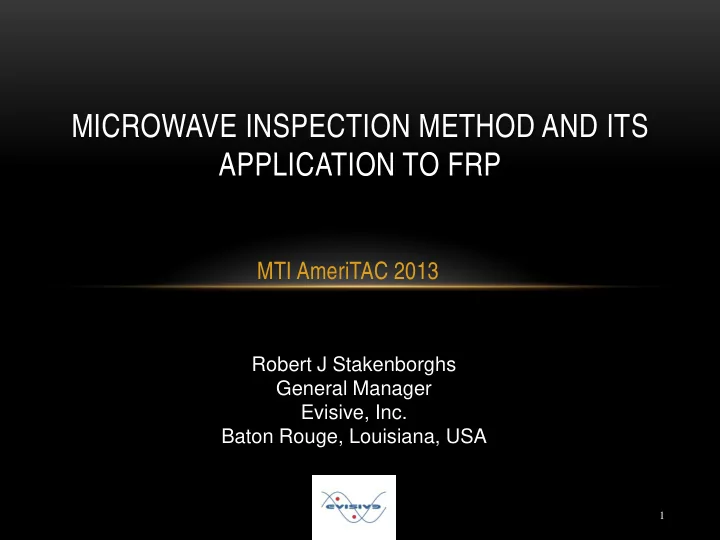

MTI AmeriTAC 2013

MICROWAVE INSPECTION METHOD AND ITS APPLICATION TO FRP

Robert J Stakenborghs General Manager Evisive, Inc. Baton Rouge, Louisiana, USA

1

slide-2
SLIDE 2

OBJECTIVES

2

  • Describe FRP and GRP
  • Discuss failure modes
  • Describe microwave inspection
  • Show inspection examples
slide-3
SLIDE 3

FRP AND ASSOCIATED PRODUCTS

3

  • FRP is an acronym for Fiber Reinforced Plastic or Polymer
  • is a fiber reinforced polymer
  • plastic matrix
  • reinforced by fine fibers of many different materials
  • Glass is most common, called fiberglass
  • Aramid fibers, such as kevlar, are also becoming more popular

particularly in some specialty areas such as body armor

  • Carbon fiber is gaining in popularity because of its high strength
  • The plastic matrix may be
  • Epoxy, thermosetting plastic or thermoplastic
slide-4
SLIDE 4

FRP CHARACTERISTICS

4

  • Fiber reinforced polymer composites are made of
  • Fiber reinforcements
  • Resin
  • Fillers and additives
  • The fibers provide increased stiffness and tensile capacity
  • The resin offers high compressive strength and binds the fibers into a

firm matrix

  • The fillers serve to reduce cost and shrinkage
slide-5
SLIDE 5

GRP OR GFRP

5

  • Fiberglass
  • also called glass-reinforced plastic, GRP,
  • glass-fiber reinforced plastic, or GFRP
  • Most common FRP due to its low cost
slide-6
SLIDE 6

GLASS REINFORCEMENT

6

Fine Ground Chopped Strand Mat

slide-7
SLIDE 7

ADVANTAGES

7

  • Strong
  • Lightweight
  • Corrosion resistant
  • Less expensive than carbon fiber
  • Non conducting (dielectric)
slide-8
SLIDE 8

COMMON USES

8

Tanks

slide-9
SLIDE 9

COMMON USES

9

Pipe

slide-10
SLIDE 10

COMMON USES

10

Boats (My favorite)

slide-11
SLIDE 11

FAILURE MODES GRP

11

  • GRP Similar to concrete
  • Plastic matrix OK in compression, weak in tension
  • Glass fiber adds tensile strength
  • Some failure modes similar to metals
  • Overload
  • Too much load results in tearing of glass fiber
  • Usually a crushing or moment load
  • Often results in delamination
  • Environmental stress corrosion cracking
  • Chemical attack weakens glass fibers, resulting in failure at loads well below

what would be expected

slide-12
SLIDE 12

ESCC AND OVERLOAD EXAMPLES

12

Overload where glass fibers pullout from plastic matrix ESCC where glass fibers lose strength and fail prematurely

slide-13
SLIDE 13

OTHER GRP FAILURE MODES

13

  • Some failure modes unique to GRP
  • Hydrolysis
  • Water or other liquid seeps into matrix
  • Interaction with plastic matrix causes chemical reaction and formation of acidic

molecules

  • These molecules become mobile and occupy more volume than the original

molecules and pressure builds inside the laminate structure

  • This internal pressure results in blistering and delamination
  • Blister formation is typically on surface nearest the source of liquid
  • Boat hulls – external so visible
  • Piping – internal not visible
slide-14
SLIDE 14

HYDROLYSIS

Internal Pipe Blistering (Hard to see from

  • utside)

Hull Blistering (Easy to see from outside)

14

slide-15
SLIDE 15

OTHER GRP FAILURE MODES

15

  • Erosion
  • Not unique to GRP
  • Attack is different because it affects the weaker plastic matrix
  • Leaves the glass fiber
  • Not necessarily in original orientation
  • Manufacturing issues
  • Resin poor regions
  • Weak area due to lack of binder, reacts differently to load
  • Resin rich area
  • Weak region due to low glass content
  • Poor layup practice
slide-16
SLIDE 16

MANUFACTURING PROBLEM

Fiberglass booms Voiding in corner near reinforcement

16

slide-17
SLIDE 17

OTHER GRP FAILURE MODES

17

  • Assembly problems
  • Joint adhesive
  • Lack of adhesive
  • Incomplete adhesive
  • These are internal defects that are difficult to detect
slide-18
SLIDE 18

MICROWAVE INSPECTION

Background of Method

18

slide-19
SLIDE 19

Transmitter Receivers

Object being examined Defect

A B

If a dielectric system is bathed in microwave energy: What does the interaction of the microwave energy with the system look like? It was supposed that the interaction behaved IAW Snell’s law. That is, energy is reflected and transmitted based on the ratio of the indexes of refraction (a function of the dielectric constant of the various materials)

BASIC OPERATING CONCEPT

19

slide-20
SLIDE 20

EARLY TESTING

Early microwave transceiver Fabricated defect

20

slide-21
SLIDE 21

TIME DOMAIN SCAN

21

slide-22
SLIDE 22

CONCLUSIONS

Further testing clearly indicated the answer was YES Microwaves enter the system and reflect from areas of differing dielectric constant

22

slide-23
SLIDE 23

MICROWAVE NDE INSPECTION METHOD

23

  • Current State of the art
  • Monochromatic, phase coherent electromagnetic radiation in

5-50 gigahertz frequency range

  • Sample material is bathed in low power (milliwatt) microwave

field

  • Microwave energy reflected and transmitted from regions of

differing dielectric constant

  • Detectors sense returning microwave energy
slide-24
SLIDE 24

MICROWAVE NDE INSPECTION APPARATUS

24

  • Current Technology
  • Microwave probe
  • Transmitter (Microwave generator)
  • Two detectors
  • Position monitoring device
  • Analog/Digital signal converter
  • Computer for data collection and display
slide-25
SLIDE 25
  • 25
  • 20
  • 15
  • 10
  • 5

5 10 15 20 25 2 4 6 8 10 12 14 16 18

Sample Thickness

Ch C Ch A Ch B Back Wall

GENERATED MICROWAVE SIGNALS

Volts, DC

25

slide-26
SLIDE 26

BENEFITS OF A MICROWAVE SYSTEM

26

  • Microwave energy has good penetrating power
  • Effective volumetric inspection at several inches of GRP
  • Easy to operate
  • Small portable system
  • No couplant required (i.e. – air coupled to part)
  • Unlike ultrasound there is no acoustic impedance mismatch at the air to material interface

so a large percentage of the microwave energy enters the material

  • Microwave energy is not attenuated to the extent of ultrasound in composite materials
  • Microwave energy likes air, that is, it is not adversely impacted by the presence of air in a

sample, such as air bubbles or foam cores

slide-27
SLIDE 27

EFFECTIVENESS OF SYSTEM

27

Fiberglass plies POD Flaws 90% POD Size 3 98% ≤ 0.5” 6 88% 0.9” 9 80% 2.0”

Results of a Sandia Labs exercise for FAA aging aircraft program.

slide-28
SLIDE 28

CURRENT SYSTEM

28

slide-29
SLIDE 29

PIPING SYSTEM

29

slide-30
SLIDE 30

PIPE WITH MANUFACTURED DEFECTS

Pipe with erosion defects and insufficient glue Inspection image of pipe

30

slide-31
SLIDE 31

PIPE WITH MANUFACTURED DEFECTS

Gray scale image showing interference pattern at erosion hole 3D rendering of pipe

31

slide-32
SLIDE 32

MANUFACTURED DEFECTS IN FLANGE

Picture of flange with back drilled holes 3d rendering of inspection image

32

Different depth of holes is apparent in 3D rendering

slide-33
SLIDE 33

MICROWAVE INSPECTION

Real world examples

33

slide-34
SLIDE 34

OVERLOADED SECTION OF FIBERGLASS BOOM

Boom section Inspection image

34

Delamination

slide-35
SLIDE 35

INTERNAL EROSION OF PIPE

35

Displaced structure caused by washout of resin matrix Localized Pit

slide-36
SLIDE 36

VOIDING AT MANUFACTURE

Boom with voiding Inspection image of boom

36

Voiding identified in inspection image

slide-37
SLIDE 37

INTERNAL PIPE HYDROLYSIS

Picture of pipe ID Inspection image of pipe ID

37

Internal blistering identified in image

slide-38
SLIDE 38

ENVIRONMENTAL DEGRADATION OF FURAN PIPE

Photo showing chemical attack Inspection image of chemical attack

38

Degraded resin to right of line

slide-39
SLIDE 39

RESIN POOR AREAS OF PULTRUDED PANEL

39 A 1816 B 1217 C 1597 D 1114

Tensile test results (Pounds load to failure)

slide-40
SLIDE 40

PANEL WITH VARIOUS TYPES OF FOD

40

Image focus changes based

  • n relative

position of the end of the antenna with respect to the material surface

Metal, paper, cloth FOD

slide-41
SLIDE 41

41

QUESTIONS
