SLIDE 1
1
2
Tests Description
- Use “trigger hammer” to capture physical taps
- trigger DAQ by completing a circuit on contact
- Tap ~5 times on each microphone
- Tap on several locations around microphones
- Checked amplifier gain
MICE Cavity Microphone Tests MTA Weekly RF Meeting Peter Lane - - PowerPoint PPT Presentation
MICE Cavity Microphone Tests MTA Weekly RF Meeting Peter Lane - - PowerPoint PPT Presentation

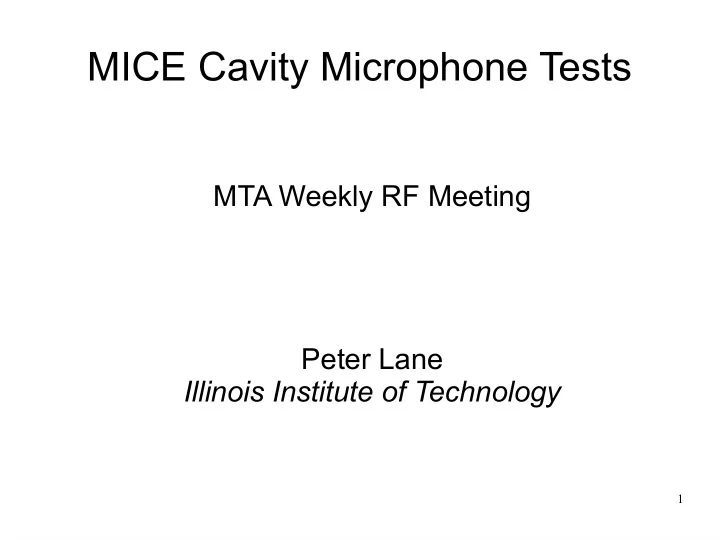

MICE Cavity Microphone Tests MTA Weekly RF Meeting Peter Lane Illinois Institute of Technology 1 Tests Description Use trigger hammer to capture physical taps trigger DAQ by completing a circuit on contact Tap ~5 times on each
SLIDE 2
SLIDE 3
3
DW3, DW4, & DW6
SLIDE 4
4
Upstream Window Mics with Downstream Center Mic
SLIDE 5
5
Record #11: DW1 & DW6
SLIDE 6
6
Initial Conclusions
- 22/24 microphones functioning normally
- 1 microphone easily separated from cavity
- not one of the abnormal function microphones
- will leave in cavity as a control for EMI
- DW6 sensitive enough to saturate when any
- ther mic receives even a moderate signal
- Not surprisingly, the cavity reverberates for
several seconds
- Amplifier gain was not saved when changed to
max from min (operator error)
SLIDE 7
7
What is the relevance to actual RF signals?
SLIDE 8
8
RF Hammer on DW1 and DW6
SLIDE 9
9
Spark on DW 1 and DW6
SLIDE 10
10
Spark Minus RF Hammer
- n DW1 & DW6
SLIDE 11
11
RF Signal Conclusions
- Spikes concurrent with RF pulse do not behave
like impulses
- No recoil
- No reverberation
- DW6, though very sensitive, does not register
- We may still be able to see reverberations with
