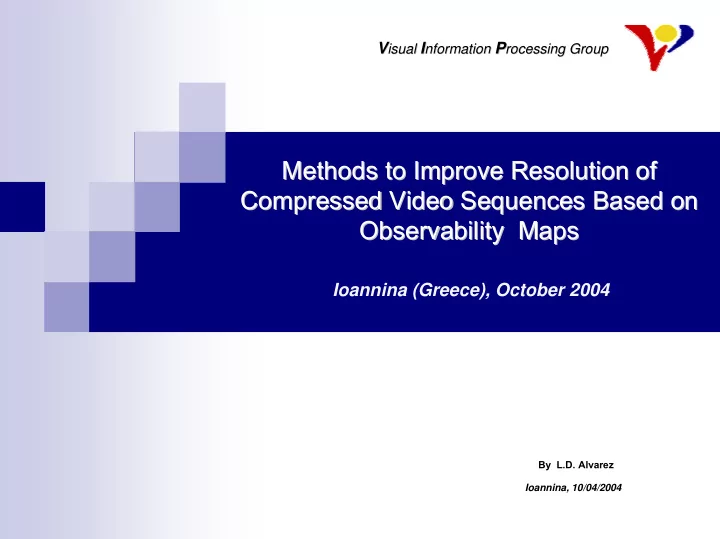

Methods Methods to to Improve Improve Resolution Resolution of

f

Compressed Compressed Video Video Sequences Sequences Based Based on

n

Observability Observability Maps Maps

Ioannina (Greece), October 2004

By L.D. Alvarez Ioannina, 10/04/2004

SLIDE 2

L.D. Alvarez

Ioannina, September 2004

Outline Outline

Introduction

A few things about myself. A few things about my city and university. A few things about my research group.

Brief introduction. Staff. Research areas.

Research

Introduction and notation. System model. Problem formulation. Optimization procedure. HR simultaneous estimation. Observability and predictibility. Results.
