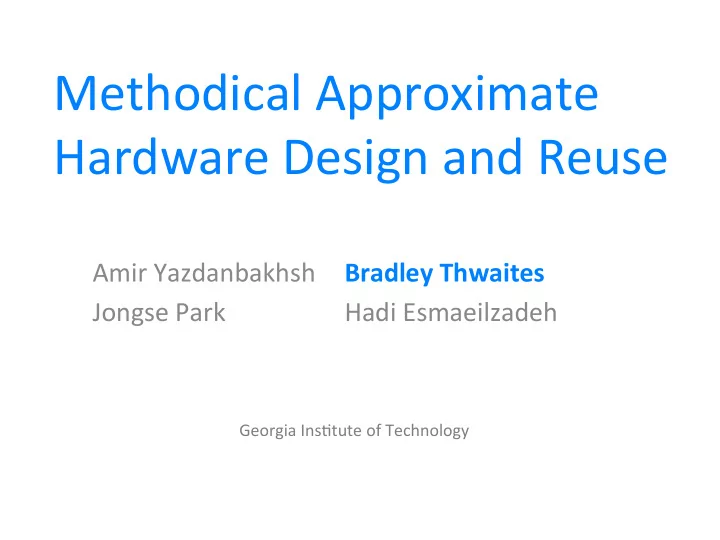

Methodical Approximate Hardware Design and Reuse Amir Yazdanbakhsh Bradley Thwaites Jongse Park Hadi Esmaeilzadeh Georgia InsBtute of Technology


  1. Methodical ¡Approximate ¡ Hardware ¡Design ¡and ¡Reuse ¡ Amir ¡Yazdanbakhsh ¡ Bradley ¡Thwaites ¡ ¡ Jongse ¡Park ¡ ¡ ¡ ¡Hadi ¡Esmaeilzadeh ¡ ¡ ¡ Georgia ¡InsBtute ¡of ¡Technology ¡

  2. Outline ¡ Design ¡of ¡approximate ¡modules ¡ IntegraBon ¡and ¡reuse ¡of ¡approximate ¡modules ¡ Safety ¡analysis ¡ Output ¡quality ¡analysis ¡ QuesBons ¡

  3. Design ¡Phase ¡ • How ¡does ¡the ¡designer ¡specify ¡what ¡can ¡be ¡ approximate? ¡ – Marking ¡individual ¡gates ¡is ¡burdensome. ¡ – Mark ¡only ¡output ¡wires ¡as ¡approximate ¡signals. ¡ • Maintain ¡SeparaBon ¡ • ApproximaBon ¡Plan ¡and ¡Interfacing ¡

  4. ApproximaBon ¡Plan ¡ module fa(a, b, c_in, c_out, s); w0 input a, b, c_in; a x0 output c_out; (* A *) s x1 b ( ∗ A ∗ ) output s; c_in wire w0, w1, w2, w3; w1 xor x0(w0, a, b); xor x1(s, w0, c_in); w2 c_out and u2(w1, a, b); and u2(w2, a, c_in); w3 and u2(w3, b, c_in); or u4(c_out, w1, w2, w3); endmodule

  5. Module ¡Interfacing ¡ module DualStateMemory( (*C*) wrt_en clk, wrt_en, address, data_in, approx_in, data_out, approx_out); (*C*) addr DualState ( ∗ C ∗ ) input clk; (*A*) data_out data_in ( ∗ C ∗ ) input wrt_en; Memory ( ∗ C ∗ ) input[N-1:0] address; (*C*) approx_in approx_out input[M-1:0] data_in; ( ∗ C ∗ ) input approx_in; ( ∗ A ∗ ) output[N-1:0] data_out; output approx_out; (*C*) clk ... endmodule

  6. Reuse ¡Phase ¡ • Avoid ¡rewriBng ¡modules ¡from ¡scratch ¡ – Ease ¡of ¡development ¡ • Reuse ¡of ¡IP ¡cores ¡ – MoBvaBon ¡for ¡innovaBon ¡and ¡entrepreneurship ¡ • Scalability ¡for ¡very ¡large ¡designs ¡

  7. Overriding ¡ b[7] a[7] b[2] a[2] b[1] a[1] b[0] a[0] c_out c[2] c[1] c[0] c_in Full Adder Full Adder Full Adder Full Adder (*C*) z[7] (*C*) z[2] z[1] z[0] Precise Modules Approximate Modules

  8. Overriding ¡within ¡a ¡Module ¡ (*C*) clk (*C*) rst d0 d1 d2 d3 x b0 b1 b2 b3 m2 m3 m0 m1 * * * * * (*A*) w1 (*A*) w2 (*A*) w3 + + + (*A*) y (*C*) y a1 a2 a3 (*A*) w0 w4 w5

  9. Bridging ¡ (*C*) wrt_en addr DualState (*A*) data_out data_in Memory (*C*) approx_in approx_out (*C*) clk

  10. ApproximaBon ¡Safety ¡Analysis ¡ • ApproximaBon ¡bridge ¡ Algorithm 1 Backward slicing to find precise wires. Inputs: K : Circuit vs. ¡criBcal ¡wire? ¡ Θ : Set of precise outputs Ψ : Set of critical wire overrides Y: Set of approximate wires overrides • Deciding ¡final ¡precision ¡ Output: ℜ : Set of precise wires of ¡all ¡gates. ¡ Initialize ℜ / 0 Initialize Q / 0 for each w i 2 ( Θ [ Ψ ) do • Backward ¡Slicing ¡ enqueue( Q , w i ) end for Algorithm ¡ while ( Q 6 = / 0) do w i dequeue( Q ) Φ In K , find input wires of the gate that drives w i for each w j 2 Φ do if ( w j / 2 Y and w j / 2 ℜ ) then ¡ ℜ ℜ [ w j enqueue( Q , w j ) end if ¡ end for end while

  11. Cone ¡Analysis ¡ (*A*) w0 (*A*) y (*C*) y (*A*) y (*A*) w1 (*C*) w2 z

  12. Quality ¡Analysis ¡ • Constraining ¡approximaBon ¡ • Safety ¡vs. ¡Quality ¡ • (*A: ¡f() ¡< ¡ε*) ¡ • Profiling ¡with ¡test ¡inputs ¡ • Global ¡confidence ¡metric ¡

  13. QuesBons? ¡
