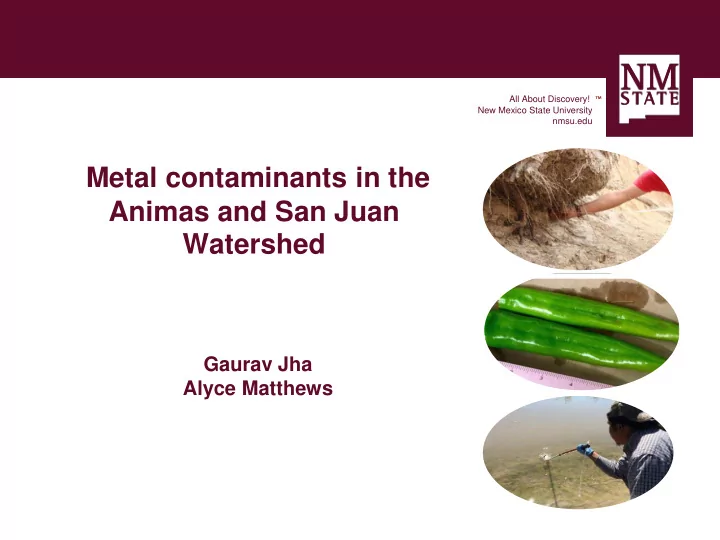

Metal contaminants in the Animas and San Juan Watershed

Gaurav Jha Alyce Matthews

All About Discovery! New Mexico State University nmsu.edu

™

Historical agriculture in the Lower Animas Watershed

(Bart Wilsey, Farmington Museum Director, 2017 personal communication)

A historical photo of the high value apple crop in San Juan County

(Bart Wilsey, Farmington Museum Director, 2017 personal communication)

All About Discovery! New Mexico State University nmsu.edu

™

We as Navajo people view as things as having life and draw no no disti tincti tion

• n b

between a abioti tic and bioti

• tic. In our holy songs we sing

about being chil hildren o

• f t

f the he e

• earth. We were made from ears of

s of cor

• rn

and the he big big w wind g gave us us l life

• ife. Water i

is r revered a d and h d held d sacred

• ed. The rivers carry our prayers and are integral part of

ceremonial life. When t en the Gold K King ng Mine S ne Spill happened ened i it affe ffected a a ho holy p part rt o

• f

f world, t the he San Jua

• Juan. We watched our

children, the corn and plants died. We e need need t the w water a and nd p plants in ou

• ur c

ceremonies to to resto tore bala lance a and h harmony to to ou

• ur

world

• ld. Without being sure of the sanctity of our water and plants,
• ur holy corn pollen path was disrupted. That why I believe our

work is vital to revitalizing our farming way of life and reconnecting to our Mother the Earth. Hozho

• Brand

ndon F n Franc ncis

All About Discovery! New Mexico State University nmsu.edu

™

Study Questions

▪ What is the occurrence of metal-contaminated sediment in irrigation ditches and agricultural fields along the Animas and San Juan Rivers? ▪ What metals of concern are found in plants-leaf tissue and fruits/ vegetables from fields receiving irrigation water from the Animas and San Juan Rivers? ▪ What metal concentrations are on plant surfaces (i.e. as residue from irrigation water)? ▪ What are the metal concentrations in irrigation water? Ditch sediments and agricultural field soils analysis Plant leaf tissue and fruits/vegetables analysis Plant rinsate analysis Total suspended solids and metal content in irrigation water

4

All About Discovery! New Mexico State University nmsu.edu

™

Representation of irrigation ditches with increasing distance from the GKM (Colorado and NM border through Shiprock)

SAMPLING LOCATIONS

All About Discovery! New Mexico State University nmsu.edu

™

Sampling timeline

2017 Growing season

All About Discovery! New Mexico State University nmsu.edu

™

Analysis techniques

All About Discovery! New Mexico State University nmsu.edu

™

sampling schematic (elaborated below); nine categorized sample points were used for statistical analys

All About Discovery! New Mexico State University nmsu.edu

™

Lead Levels Among Point Categories in a Ditch Transect

All About Discovery! New Mexico State University nmsu.edu

™

Arsenic Levels Among Point Categories in a Ditch Transect

All About Discovery! New Mexico State University nmsu.edu

™

Metal concentrations in ditch sediments across Animas and San Juan watershed

• No obvious trends of metal

concentration with distance from Gold King Mine.

• Iron, copper, arsenic, zinc

and lead higher concentration

• n the sides than center of

ditches.

• Sediment metal analysis

shows that most elements of concern are below the EPA Residential Screening Value, RSL.

Arsenic concentration (in parts per million)

Center Side

All About Discovery! New Mexico State University nmsu.edu

™

All About Discovery! New Mexico State University nmsu.edu

™

Location Season

(Guideline value) *

As

(0.10 ppm)

Pb

(5 ppm)

Zn

(2 ppm)

Al

(5 ppm)

Ca Cr

(0.10 ppm)

Cu

(0.20 ppm)

Fe (5 ppm) Mn

(0.20 ppm)

Upper Animas (Aztec) Pre-growing

ND 0.004 0.07 0.68 54.32 ND 0.0085 0.78 0.07

Growing

ND 0.008 0.06 0.84 44.08 ND ND 1.07 0.11

Post-growing

ND 0.001 0.005 0.66 66.5 ND ND 0.70 0.06

Lower Animas (Farmington) Pre-growing

ND 0.006 0.07 1.54 62.40 ND ND 1.55 0.15

Growing

ND ND 0.05 0.56 52.05 ND ND 0.64 0.11

Post-growing

ND 0.003 0.02 1.53 142.6 ND ND 1.70 0.23

San Juan (Navajo Nation) Pre-growing

ND 0.004 0.04 2.19 53.62 ND ND 2.15 0.09

Growing

ND 0.007 0.05 2.13 52.80 ND ND 2.13 0.14

Post-growing 0.001

0.032 0.11 31.22 89.70 0.02 0.05 27.65 1.02

Metal concentrations (ppm) in irrigation water across Animas and San Juan watershed

All About Discovery! New Mexico State University nmsu.edu

™

Location Season

(Guideline value) *

As

(0.10 ppm)

Pb

(5 ppm)

Zn

(2 ppm)

Al

(5 ppm)

Ca Cr

(0.10 ppm)

Cu

(0.20 ppm)

Fe (5 ppm) Mn

(0.20 ppm)

Upper Animas (Aztec) Pre-growing Growing Post-growing Lower Animas (Farmington) Pre-growing Growing Post-growing San Juan (Navajo Nation) Pre-growing Growing Post-growing

Metal concentrations (ppm) in irrigation water across Animas and San Juan watershed

*New Mexico Water Quality Standards for irrigation

All About Discovery! New Mexico State University nmsu.edu

™

Location Season (Guideline value) * TSS (mg/L) Upper Animas (Aztec) Pre-growing 30 Growing 45 Post-growing 67 Lower Animas (Farmington) Pre-growing 82 Growing 23 Post-growing 91 San Juan (Navajo Nation) Pre-growing 106 Growing 97 Post-growing 1346

Total Suspended Solids in irrigation water across Animas and San Juan watershed

A B C

Water collected from irrigation ditches energized by A.) Animas River and B.) and C.) San Juan River

All About Discovery! New Mexico State University nmsu.edu

™

All About Discovery! New Mexico State University nmsu.edu

™

Spatial distribution of Arsenic in agricultural fields

Pasture grass 14.1 hectares Aztec Forage (alfalfa) 3.04 hectares Farmington Vegetables 1.27 hectares Shiprock

Total Arsenic concentration (parts per million) RSL-7.07 mg kg-1

All About Discovery! New Mexico State University nmsu.edu

™

Spatial distribution of Manganese in agricultural fields

Pasture grass 14.1 hectares Aztec Forage (alfalfa) 3.04 hectares Farmington Vegetables 1.27 hectares Shiprock

Total Manganese concentration (parts per million) RSL-180 mg kg-1

All About Discovery! New Mexico State University nmsu.edu

™

All About Discovery! New Mexico State University nmsu.edu

™

Livestock Consumption Livestock Consumption

Alfalfa and Pasture Alfalfa and Pasture

Human Consumption Human Consumption

Fruits and Vegetables Fruits and Vegetables

All About Discovery! New Mexico State University nmsu.edu

™

Native Vegetation sampled from rainfed areas to compare with irrigated pasture, forage and vegetable fields

All About Discovery! New Mexico State University nmsu.edu

™

Metals Maximum limit Alfalfa Non-irrigated vegetation (Control) Arsenic 1.7 1.0 1.2 Lead 10 0.4 ND Zinc 150 27.5 20.7 Aluminum 3410 111 44.5 Calcium

• 19,300 (1.9%)

10,800 (1.1%) Copper 30 12.6 10.1 Iron

• 147

40.5 Manganese 300 28.4 54.2 Chromium 0.5-1.5 0.48 ND

Metal concentrations in alfalfa (ppm)

Comparison of irrigated alfalfa to non-irrigated native vegetation (control)

Location-Animas and San Juan watershed

All About Discovery! New Mexico State University nmsu.edu

™

Metal concentrations in pasture grass (ppm)

Comparison of irrigated pasture fields to non-irrigated native vegetation (control)

Location-Upper and lower Animas

Metals Maximum limit Pasture grass Non-irrigated vegetation (Control)

Arsenic 1.70 1.0 1.2 Lead 10 0.6 ND Zinc 150 32.9 28.2 Aluminum 3410 300 40.3 Calcium

• 5,800 (0.6%)

5,300 (0.5%) Copper 30 8.3 7.4 Iron

• 252

194 Manganese 300 44 66 Chromium 0.5 1.3 ND

All About Discovery! New Mexico State University nmsu.edu

™

The tolerable upper intake level (UL) is the maximum usual daily intake levels at which no risk of adverse health effects is expected for most of the individuals in a specific group based

• n stage of life.

All About Discovery! New Mexico State University nmsu.edu

™

Chromium Chromium

“There has been no demonstration of any toxicity so far in the clinical

• bservations of the authors with the use of chromium nicotinate at

levels as high as 5000 mcg/day (Lamson & Plaza, 2002).” 5000 mcg/day = [5 mg/day] “Chromium appears to be the only nutritional mineral with a several hundred-fold difference between the acceptable daily intake level and the calculated reference dose (Lamson & Plaza, 2002).”

Lamson, D. W., & Plaza, S. M. (2002). The Safety and Efficacy of High-Dose Chromium. Alternative Medicine Review,7(3). Retrieved from https://www.ncbi.nlm.nih.gov/pubmed/12126463.

All About Discovery! New Mexico State University nmsu.edu

™

Recommended Dietary Allowance (RDA): average daily level of intake sufficient to meet the nutrient requirements

• f nearly all (97%-98%) healthy people.

All About Discovery! New Mexico State University nmsu.edu

™

Nutrition Facts Label [FDA]. Retrieved from https://www.fda.gov/Food/Labeling Nutrition/ucm274593.htm

All About Discovery! New Mexico State University nmsu.edu

™

Equate Adults 50+ Complete Multivitamin Tablets

All About Discovery! New Mexico State University nmsu.edu

™

All About Discovery! New Mexico State University nmsu.edu

™

Sharing the technique through teach Sharing the technique through teach

• ins

ins Upper Fruitland Chapterhouse, Navajo Nation Shiprock Chapterhouse, New Mexico Shiprock Ag. Days 2018

All About Discovery! New Mexico State University nmsu.edu

™

Radio talks Factsheets on GKM results

All About Discovery! New Mexico State University nmsu.edu

™

All About Discovery! New Mexico State University nmsu.edu

™

Conclusions Conclusions

• The higher concentrations of arsenic and manganese that were

found in some hotspots did not correlate to increased concentration

• f metal uptake in plants.
• The concentrations of metals in fruits and vegetables are below the

upper tolerable limits specified by Food and Nutrition Board, National Institute of Health and are safe for consumption.

All About Discovery! New Mexico State University nmsu.edu

™

Acknowledgments Acknowledgments

• Farmers in Aztec, Farmington and Navajo nation who allowed access to

fields for long term monitoring of contaminations.

• EPA-NMED State Cooperative Agreement 01F22301

Assistance Program 66.204, Multipurpose Grants to Tribes and States.

• NMSU Interdisciplinary IMPACT grant
• Dr.April Ulery, Sylvia “Gaby” Philips, Dr.Kevin Lombard, Barbara Hunter
• Brandon Francis, Tiffany Charley, Hunter Winsor, Roya Ghorbani

All About Discovery! New Mexico State University nmsu.edu

™

Questions Questions and and Feedback Feedback
