Meshes in QTM Presenters Host: Johannes Sverker Panel: Daniel Thompson Field Applications and Support Field Applications and Support GoToWebinar control panel Show/hide control panel Full screen Check your audio settings if you cant

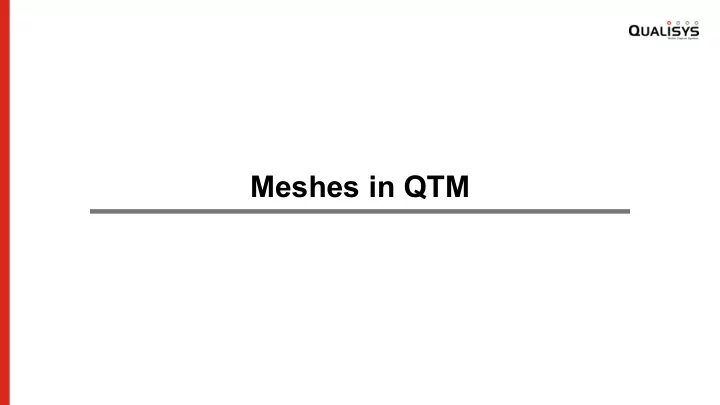

Meshes in QTM
Presenters Host: Johannes Sverker Panel: Daniel Thompson Field Applications and Support Field Applications and Support
GoToWebinar control panel Show/hide control panel Full screen Check your audio settings if you can’t hear us! Enter your questions here
Agenda • Meshes feature • Static meshes • Rigid body meshes • Sharing QTM files with meshes
Meshes files • QTM supports meshes in Obj-files • Limitations, for example - Only material on one side of a face - Only four faces on a row in the obj-file • Download obj files - Complex meshes may slow down QTM - Check the licensing - Edit path to .mtl file if it is an absolute path
Share QTM file with meshes For all meshes: • Share whole project - Required for static mesh For rigid body meshes: • Share QTM file with mesh in the same location • Share Data folder and Meshes folder
Next webinar Conventional Gait Model 2 (CGM2) May 14 th 2020 presented by Nils Betzler Fabien Leboeuf Find out more at www.qualisys.com/webinar
Resources • Bike made by McBlendMaster and downloaded from Blendswap
