APA Ground Meshes Dr. Lucien Cremaldi L. Cremaldi Universiy of Mississippi Dr. Don Summer APA Construction and Proposal Workshop Dr. David Sanders Fermilab, June 11, 2019 Dr. Gavin Davies (NOvA+nearDUNE) M APA Ground Meshes Material

slide-1
SLIDE 1

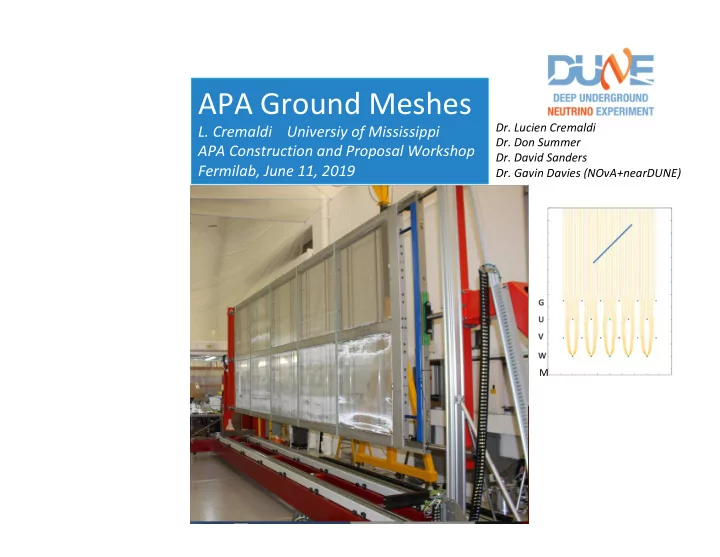

APA Ground Meshes

  • L. Cremaldi Universiy of Mississippi

APA Construction and Proposal Workshop Fermilab, June 11, 2019

  • Dr. Lucien Cremaldi
  • Dr. Don Summer
  • Dr. David Sanders
  • Dr. Gavin Davies (NOvA+nearDUNE)

M

slide-2
SLIDE 2

APA Ground Meshes

Scheduling 8/1/2020 2021 2022 2023 2024 total APA 23 33 33 33 30 152 Meshes 460 660 660 660 600 3040 Material Type Mesh Wire mm Aperture mm Open Area % Weight Kg m^2 Proposed SS 304 20x20 0.089 (3.5 mil) 1.17 84.87 0.10 UK Vendor: Locker Wire Weavers Ltd. 1200 off part: 294-10320 @ £146.50 each 1800 off part: 294-10314 @ £146.50 each Delivery schedule: Approx: 20-22 weeks from order (mesh will take approx. this long to weave) Terms: To be agreed. $190.45 per mesh US Vendors: 1) Unique Wire Weaving, Hillside, NJ 2) GKD-USA, INC. Cambridge, MD 3) Edward J. Darby & Son, Inc. Philadelphia,PA 4) Banker Wire & Iron Works, Milwaukee, W 5) McNichols, Tampa FL

2

NSF MidScale pre-Proposal

slide-3
SLIDE 3

https://edms.cern.ch/ui/#!master/navigator/document?P:100233194:100324720:subDocs Dimensions 996mm x 1131 mm ( 39.2” x 45.6” ) 10mm x 20mm x 1.5mm tubing 3/4 “x 3/8” x 1/16”

  • 8. TENSIONING

1 3 3 3 4 2 3 3 3 5

head

mounting bracket

slide-4
SLIDE 4

SS frames are welded. Mesh tensioned and resistance welded.

4

Locker Process:

  • Tubing for frame cut and drilled outside and shipped to Locker.
  • Wire mesh purchased outside and shipped to Locker.
  • Frames welded in house.
  • Screens stretched and welded to frame. 2 welds on top + 1 weld on side.
  • Frames inspected and cleaned. (QC Manchester)

Assembly at Locker Wire (UK)

slide-5
SLIDE 5

5

welds

slide-6
SLIDE 6

Seam Weld Stainless Steel Mesh with and PG2 Hand Piece Attachment $6-8K ??

Sunstone AC 5 KVA Welder https://sunstonewelders.com/videos/100914-ss-mesh-welds-with-ac5-kva-and-pg2/ https://sunstonewelders.com/product/5-kva-ac-spot-welder/ https://sunstonewelders.com/product/pistol-grip-single-probe-hand-piece-pg2-with-roll-spot/ 6

slide-7
SLIDE 7

7

$16/m

slide-8
SLIDE 8

https://www.twpinc.com/tcpdf/pdf/create.php?prod_id=3613 8

$800/100ft $25/sqm

slide-9
SLIDE 9

9

Packing & Shipping (unit=20 meshes)

$300/pallet $30/box

slide-10
SLIDE 10

10

Mesh Production

  • A. Fabricate meshes in the US.

Waiting for a quote from Unique Wire Weaving, Hillside, NJ. My estimate: 4m tubing (material) $60 - $100 tubing machining & welding (frame) $80 - $150 1 hr labor 1 m2 mesh material $20 - $100 Stretch & weld mesh $80 - $150 1 hr labor $240 - $500/mesh

  • B. Purchase 600 meshes/yr from Banker Wire (UK) at $190/mesh

and ship to the US. Estimating $500 shipping per APA (20meshes) adds +$25 to mesh cost. Must be negotiated with Banker Wire(UK). $225/mesh

  • C. Hybrid plan- 50% US meshes + 50% UK meshes. May be safest?

Still working on pricing, large inquiries like these take some time to get wire pricing for. I will follow up with it. Bill Bard, Unique Wire

slide-11
SLIDE 11

11

Schedule 8/1/2020 8/2021 2022 2023 2024 2025 total APA 23 33 33 33 30 152 Meshes Setup/Stockpiling 460 660 660 660 600 3040 Scenario-1 160 60/mo 60/mo 60/mo 60/mo Scenario-2 400 55/mo 55/mo 55/mo 55/mo

Mesh Schedule Mesh QC

  • Insure outer dimension and hole

±1/2mm pattern correct – jig stands.

  • Frame flatness test.

±5mm

  • Mesh flatness test.

±1mm

  • Mesh tension test.

< 1mm deflection ½ kG

  • Screen inspection.

No loose ends

  • Wipe test of screen and tubing.

Little or no residue

  • Anti-static cleaning

vacuum or dry air

  • Label and bag (plastic).
slide-12
SLIDE 12

12

Research wing

Facilities

slide-13
SLIDE 13

13

Clean Room

Facilities

Past Projects

  • Babar CsI ECAL
  • CMS HCAL/Pixels
  • Pierre Auger Tank Liners
  • MICE Aerogel Ckov + Targets

Clean Room Shop

C l e a n R

  • m

1 S t

  • r

a g e L a b

350 sqft

L a b

Lewis Hall Basement Floor

slide-14
SLIDE 14

14

5 yr Budjet

Package Unit cost Units Comment Total Grounding mesh (fasteners) $3,809 152 APAs (20 meshes) (UK quote) $578,968 (???) Ship to wiring centers* $240/APA 152 APAs motor freight $36,480 Technical Labor $78.85/hr (0.03 FTE/y) 260 hours jigs + maintenance $20,500 Student Labor (AY) (2 mo summer) $15/hr 1520 hours (1/2 hr per mesh) QC $22,800 Materials & Supplies* $200 QC rigs (clean tent) materials $1000 $1000 $5/APA 152 APAs QC $1520 $50/APA 152 APAs packing/skid $7600 Equipment $1000 1 anti-static vac system $1000

* new costs

slide-15
SLIDE 15

15

Personnel

Project Leader(s): Lucien Cremaldi/Don Summers uncosted Deputy Leader: David Sanders scientist uncosted Technical: Scot Watkins machinist <0.05 FTE + uncosted Undergrads: 1 or 2 Grad student 1 base grant request

  • US Mesh more expensive than Asian markets. US fabrication costs unclear.

Should we be producing prototypes?

  • Banker Wire (UK) may be the best option?
  • Best to charge Fedex Freight directly to winding centers.
  • Risk – Having a two mesh producers may be a safer road.
  • Risk - NSF or DOE base funding not straightforward.

Final Comments/Risks
